About this product
- Size: 110*80*110
- Color: red
- Rangeof application: Other
- Brand: Other
- Sheath material: Other
- Conductor material: Other
- Exports to: Mainland China, Middle East, Central Asia, USA and Canada, Latin America, EU, Other European Countries
About this product
- Size: 110*80*110
- Color: red
- Rangeof application: Other
- Brand: Other
- Sheath material: Other
- Conductor material: Other
- Exports to: Mainland China, Middle East, Central Asia, USA and Canada, Latin America, EU, Other European Countries
Product details
| Size | 110*80*110 |
|---|---|
| Color | red |
| Rangeof application | Other |
| Brand | Other |
| Sheath material | Other |
| Conductor material | Other |
| Certification | Other |
| Application | Other |
| Material shape | RoundWire |
| Conductor type | Solid |
| Insulation material | Other |
Product details
| Size | 110*80*110 |
|---|---|
| Color | red |
| Rangeof application | Other |
| Brand | Other |
| Sheath material | Other |
| Conductor material | Other |
| Certification | Other |
| Application | Other |
| Material shape | RoundWire |
| Conductor type | Solid |
| Insulation material | Other |
From the supplier
Application

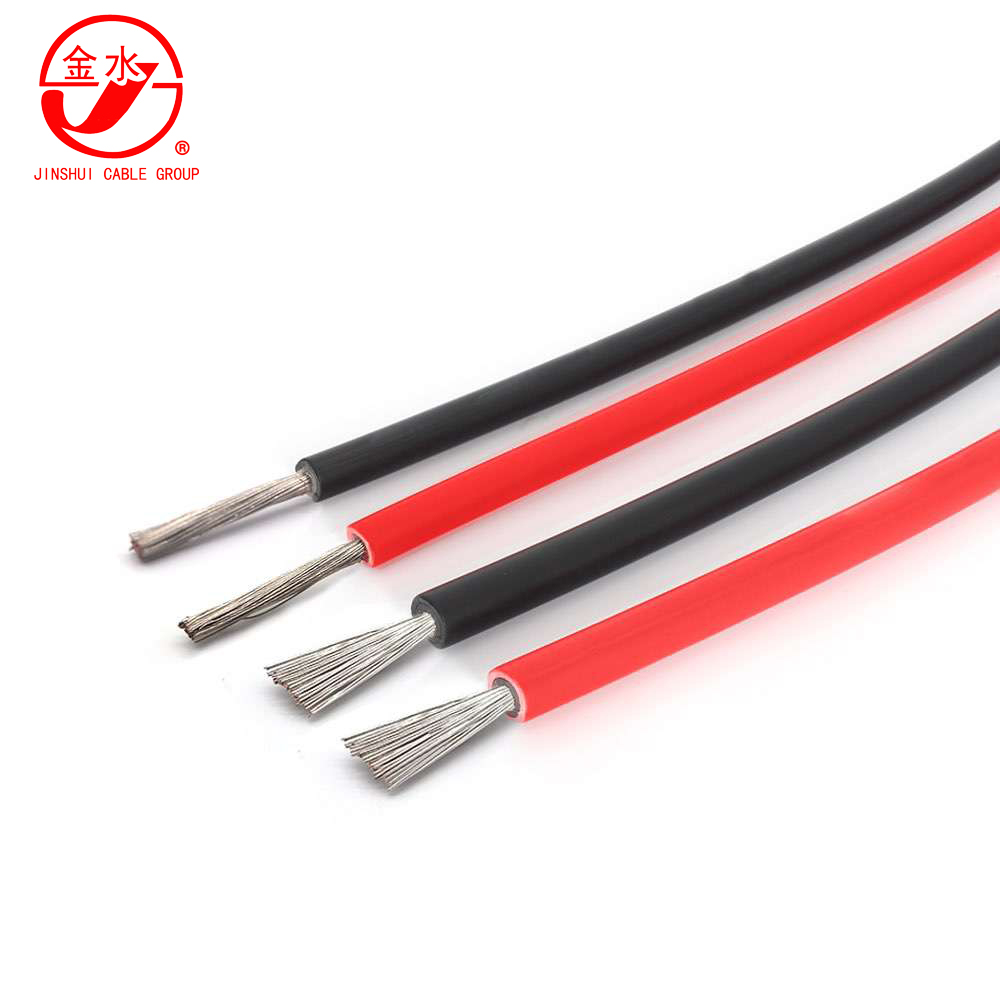

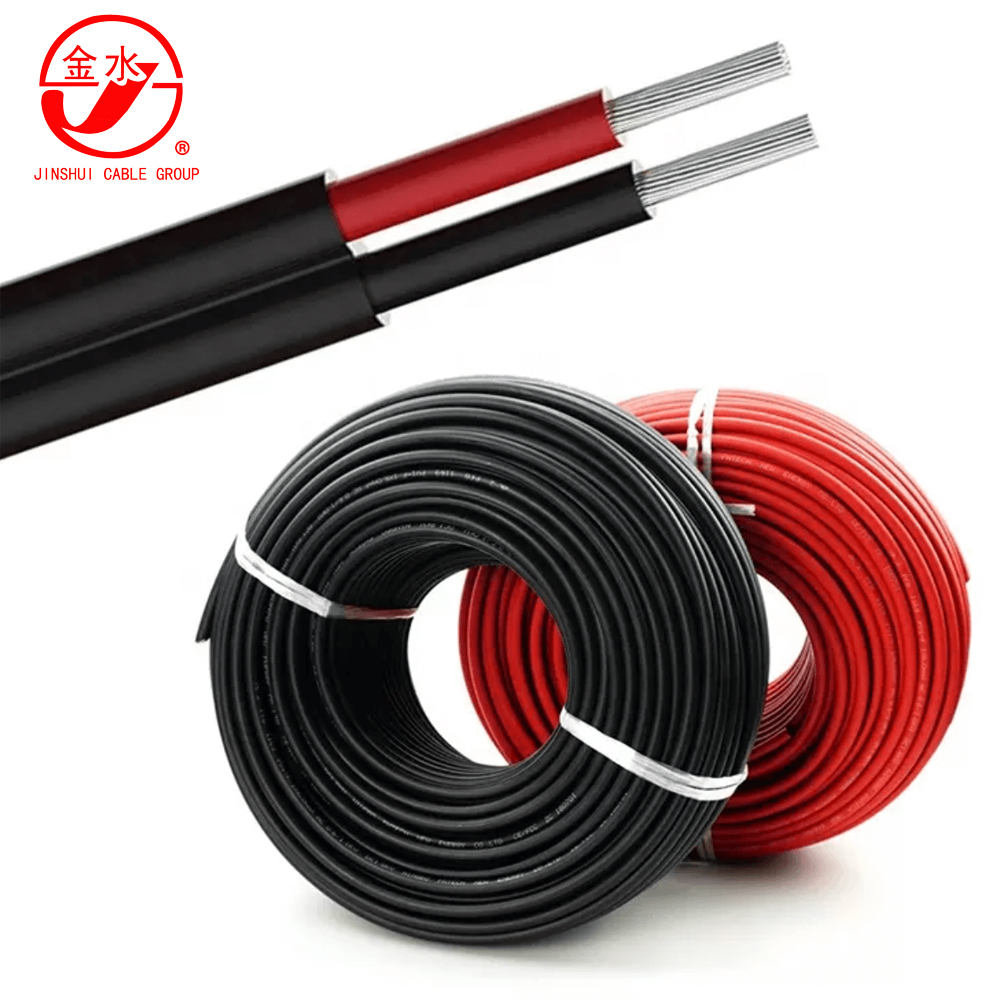

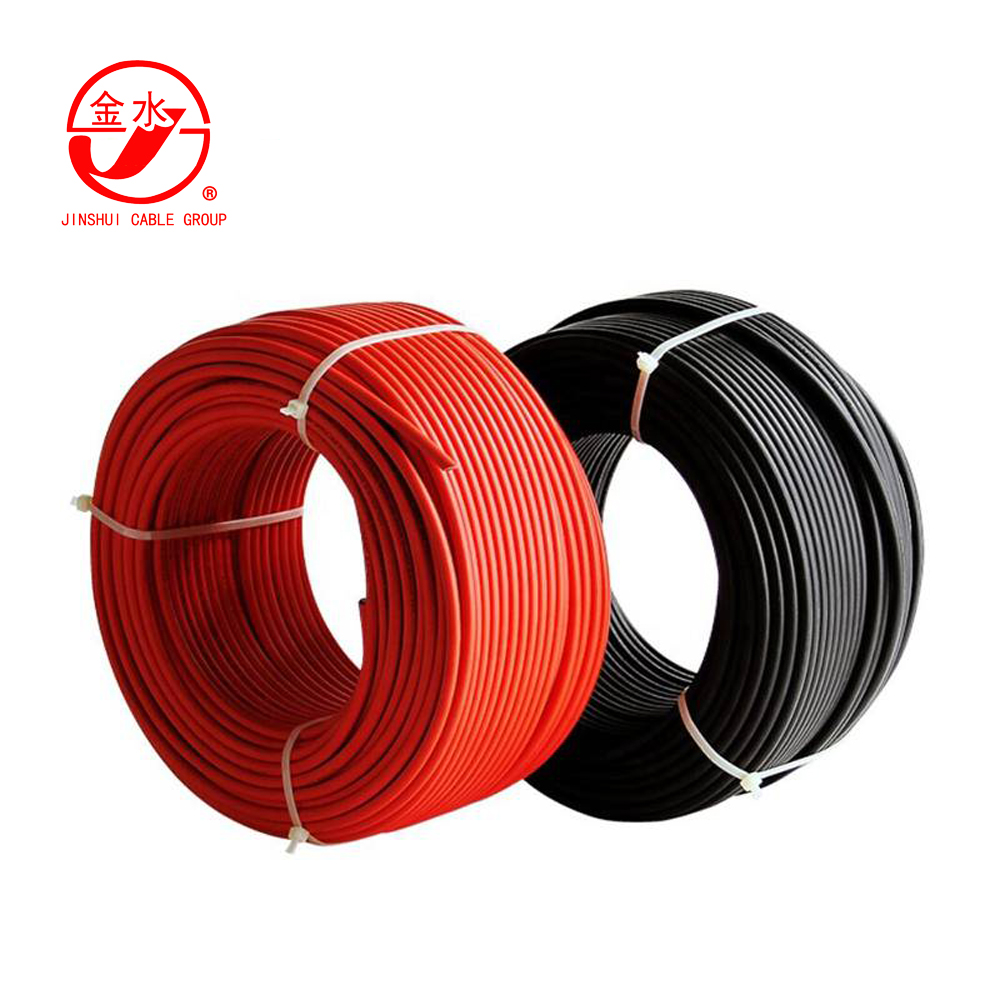

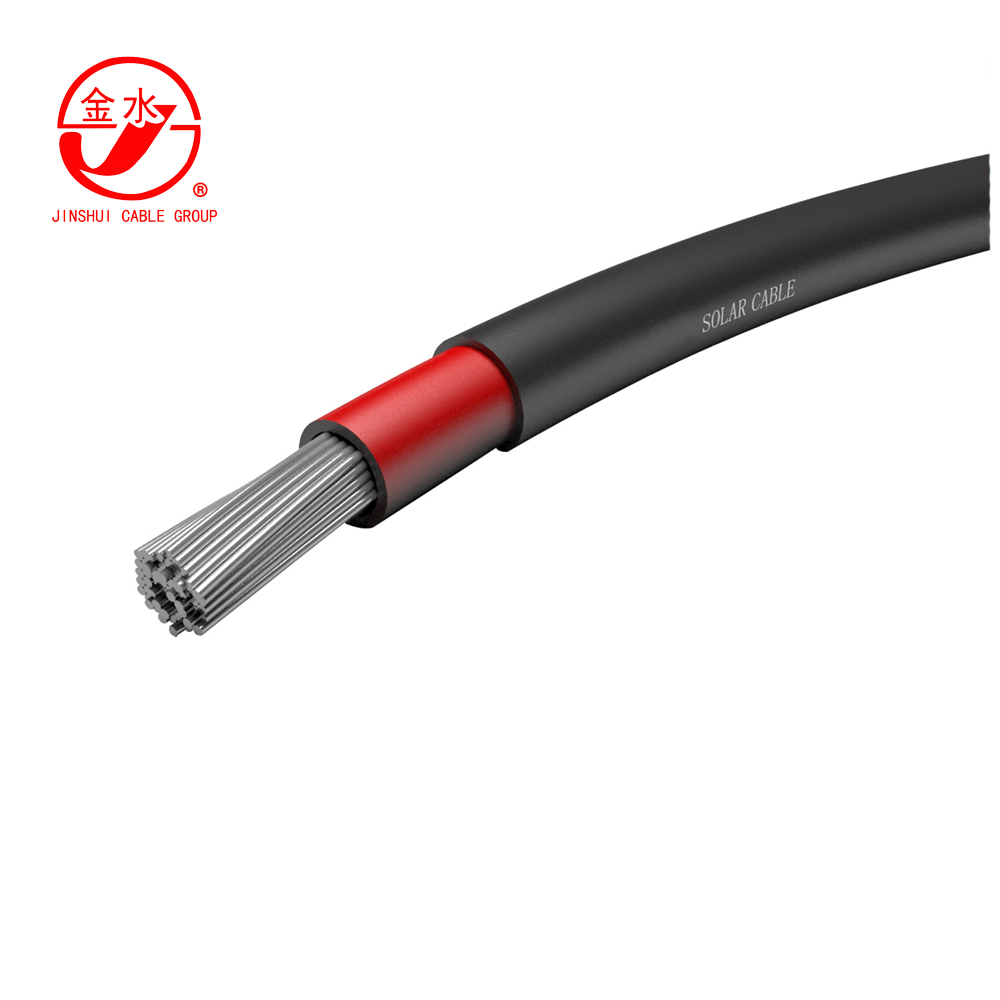

Photovoltaic solar cables are intended for interconnecting power supplies within renewable energy photovoltaic systems such as solar panel arrays in solar energy farms. PV cables are manufactured in accordance with standard BS EN 50618 or UL4703 and are suitable for fixed installations, internal and external with conduit or systems or direct burial applications
Standard
EN50618, UL4703
SPECIFICATION
Nominal Voltage: PV1-F: DC 1.0KV AC 0.6/1.0KV
H1Z2Z2-K: DC 1.5KV AC 1.0/1.0KV
Ambient Temperature: -40℃~+90℃
Max.Temperature at conductor: +120℃
Service life: ＞25 years ( -40℃~+90℃)
Withstand voltage(V/5min): AC6500
Min bending radius(mm) : 5*D
Number and nominal sectional area of conductors
Thickness of insulation
Thickness of sheath
Maximum resistance of conductor at 20℃
Current carrying capacity
mm2
mm
mm
Ω/km
A
1x1.5
0.7
0.8
13.7
30
1x2.5
0.7
0.8
8.21
41
1x4
0.7
0.8
5.09
55
1x6
0.7
0.8
3.39
70
From the supplier
Application
Photovoltaic solar cables are intended for interconnecting power supplies within renewable energy photovoltaic systems such as solar panel arrays in solar energy farms. PV cables are manufactured in accordance with standard BS EN 50618 or UL4703 and are suitable for fixed installations, internal and external with conduit or systems or direct burial applications
Standard
EN50618, UL4703
SPECIFICATION
Nominal Voltage: PV1-F: DC 1.0KV AC 0.6/1.0KV
H1Z2Z2-K: DC 1.5KV AC 1.0/1.0KV
Ambient Temperature: -40℃~+90℃
Max.Temperature at conductor: +120℃
Service life: ＞25 years ( -40℃~+90℃)
Withstand voltage(V/5min): AC6500
Min bending radius(mm) : 5*D
Number and nominal sectional area of conductors
Thickness of insulation
Thickness of sheath
Maximum resistance of conductor at 20℃
Current carrying capacity
mm2
mm
mm
Ω/km
A
1x1.5
0.7
0.8
13.7
30
1x2.5
0.7
0.8
8.21
41
1x4
0.7
0.8
5.09
55
1x6
0.7
0.8
3.39
70
