About this product
- Materials: steel
- Size: 7500*1500*1600mm
- Color: Blue & Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: steel
- Size: 7500*1500*1600mm
- Color: Blue & Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | steel |
|---|---|
| Size | 7500*1500*1600mm |
| Color | Blue & Yellow |
Product details
| Materials | steel |
|---|---|
| Size | 7500*1500*1600mm |
| Color | Blue & Yellow |
From the supplier
Product Name:

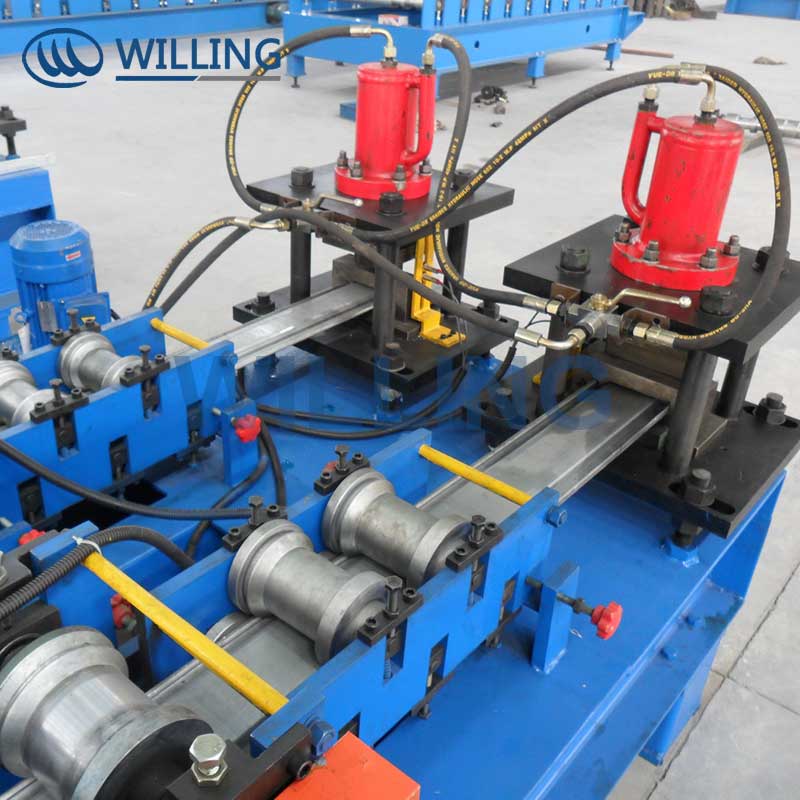

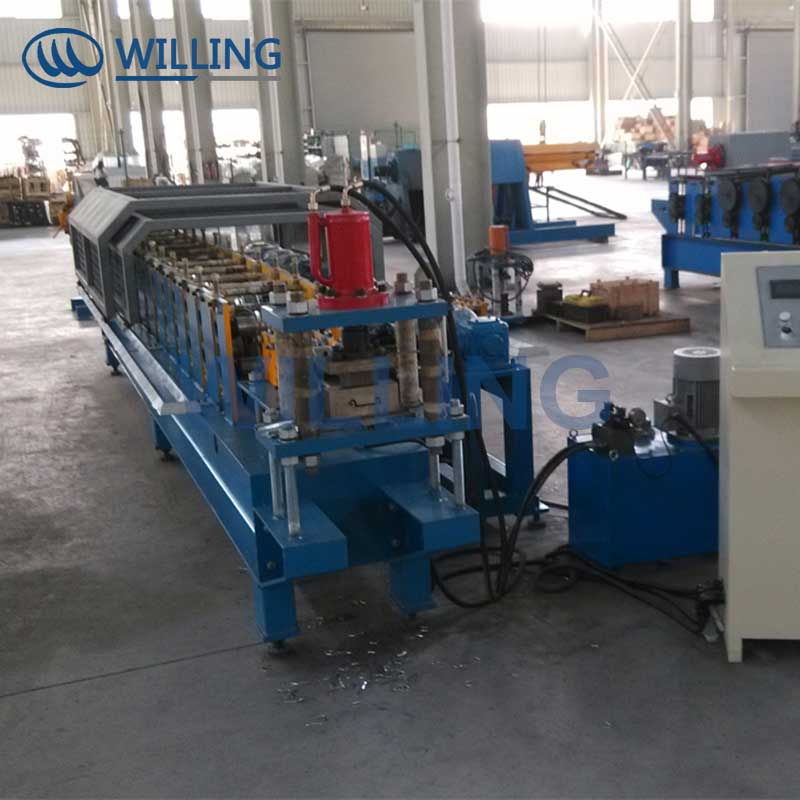

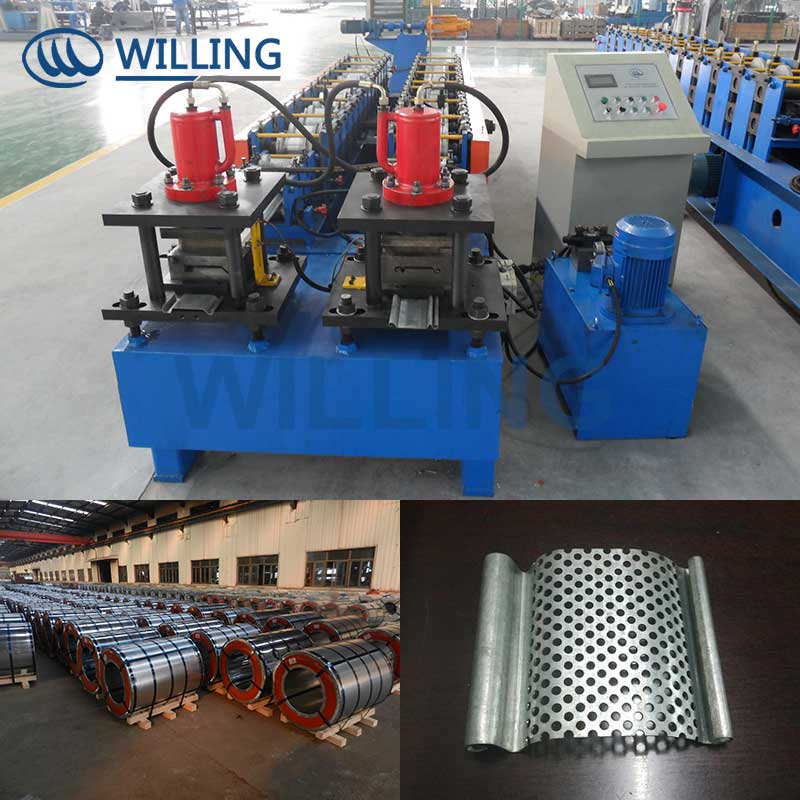

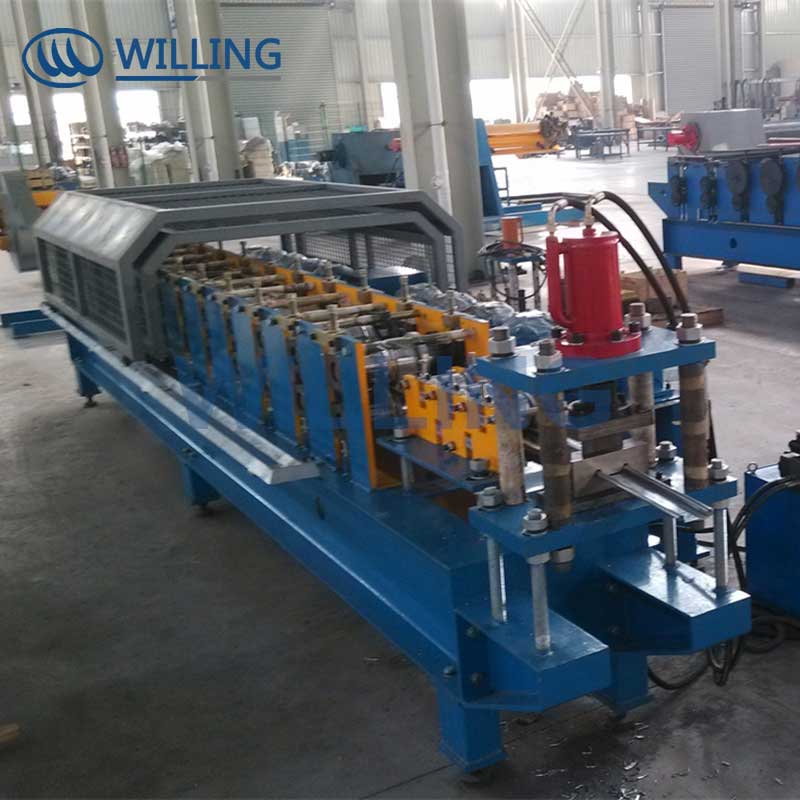

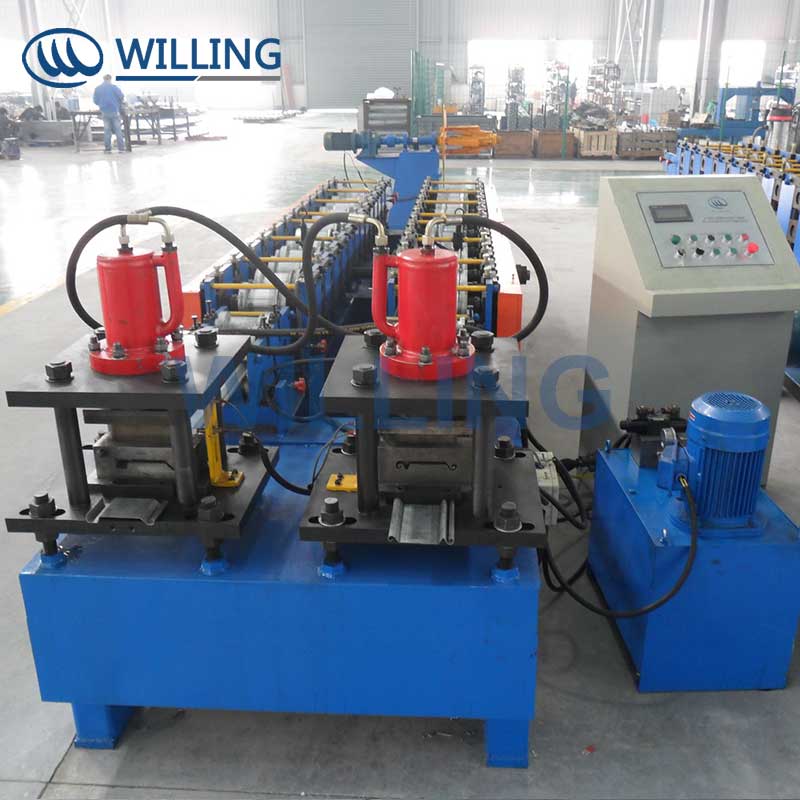

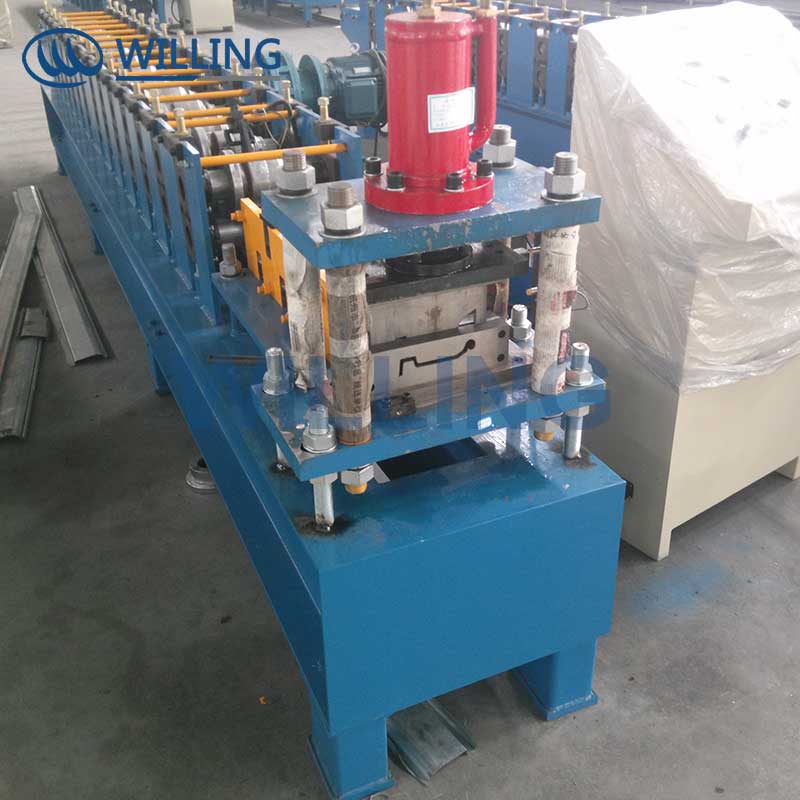

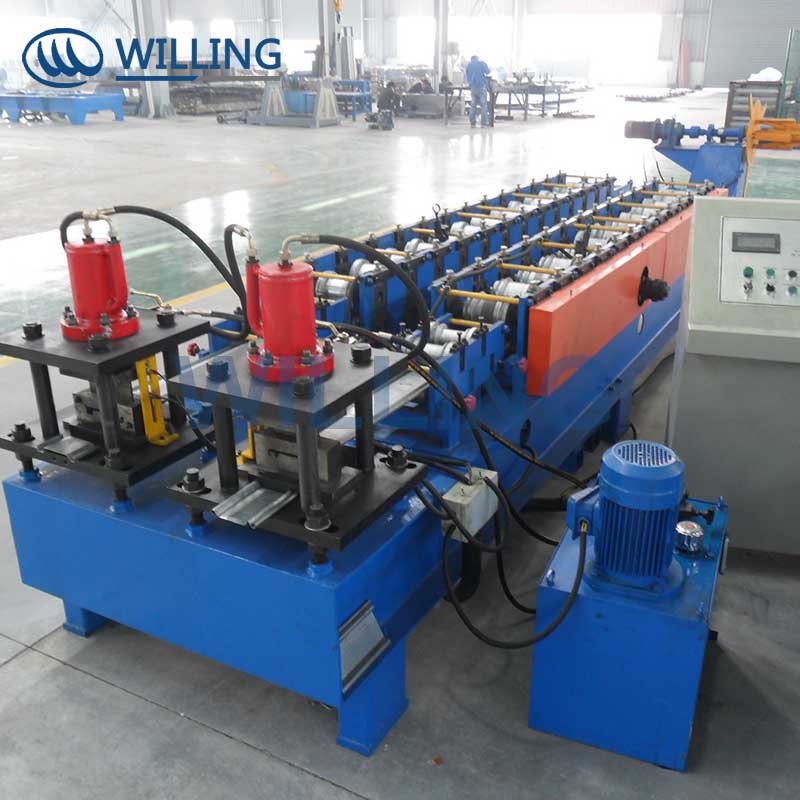

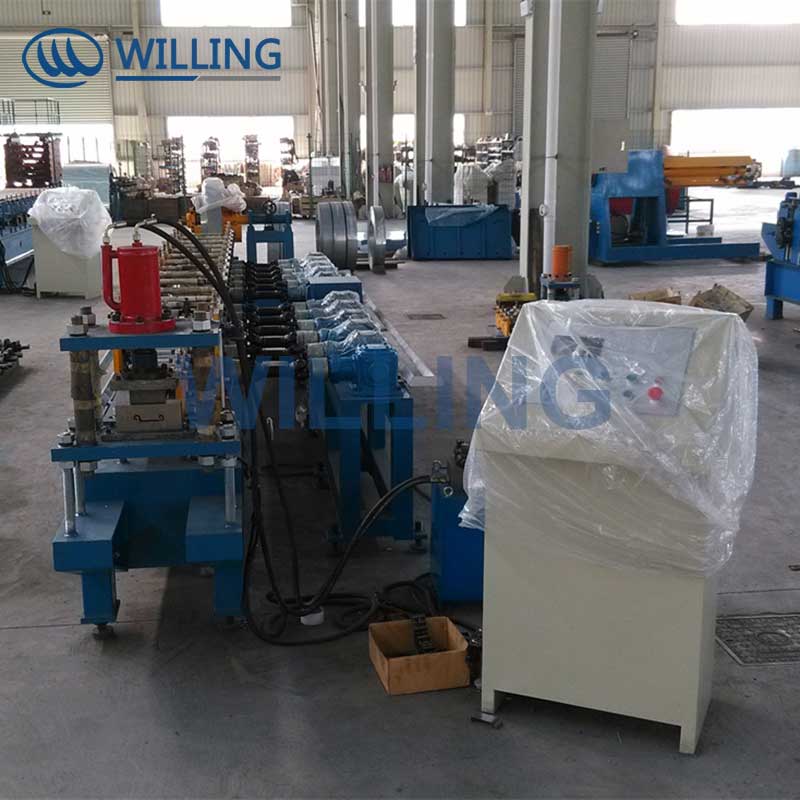

Shutter Door Forming Machine
Introduction:

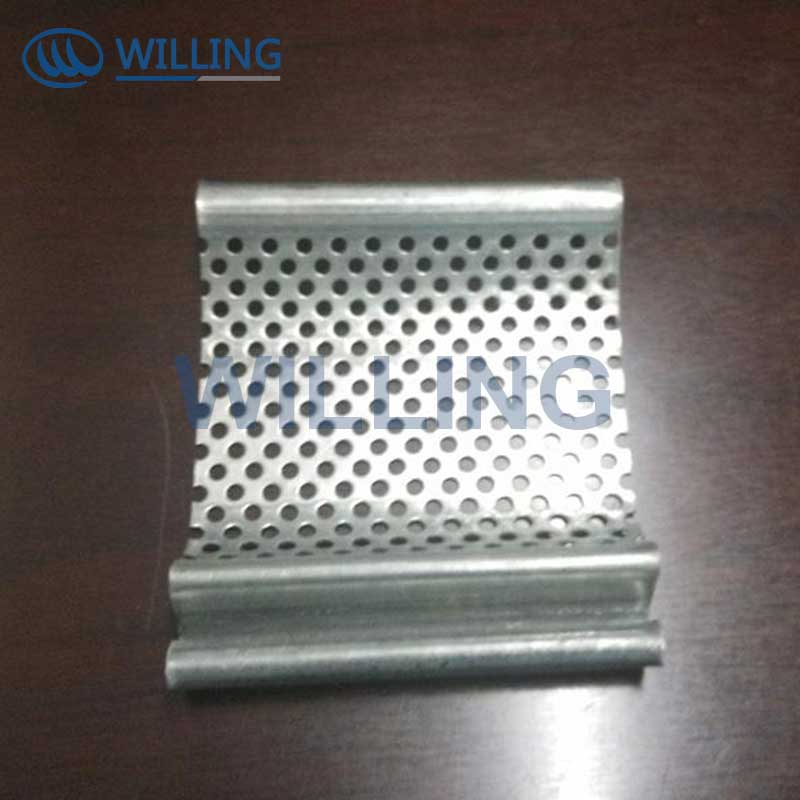

Rolling shutter door cold roll forming machine for windows is a color-coated steel plate that is cold-rolled into various wave-shaped pressed plates. It is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls and interior and exterior wall decoration of large-span steel structures. It has the characteristics of light weight, high strength, rich color, convenient and quick construction, anti-seismic, fireproof, rainproof, long life and maintenance-free. It has been widely used.
Working Flow:
Uncoiling→Sheet Guiding→Roll Forming→Measuring Length &Shearing→Sheet to Support Table.
Main Technical Parameters:
Model
Material
Type
Color steel sheet
Thickness（mm）
0.3-0.7
Yield stress（Mpa）
230-300
Max. Forming speed（m/min）
8-12
Roller material
45# steel with chrome
Roller driven type
Chain transmission
Controller
PLC
Operation
Touch screen and button
Hydraulic system pressure（Mpa）
12
Hydraulic station motor power（KW）
3
Main motor power（KW）
4
Total power （KW）
7
Total weight（Kg）
About 3000
