About this product
- Materials: Steel with chrome treatment
- Size: 7000mm*1700mm*1500mm
- Color: Blue&Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Steel with chrome treatment
- Size: 7000mm*1700mm*1500mm
- Color: Blue&Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Steel with chrome treatment |
|---|---|
| Size | 7000mm*1700mm*1500mm |
| Color | Blue&Yellow |
From the supplier
Product Name:

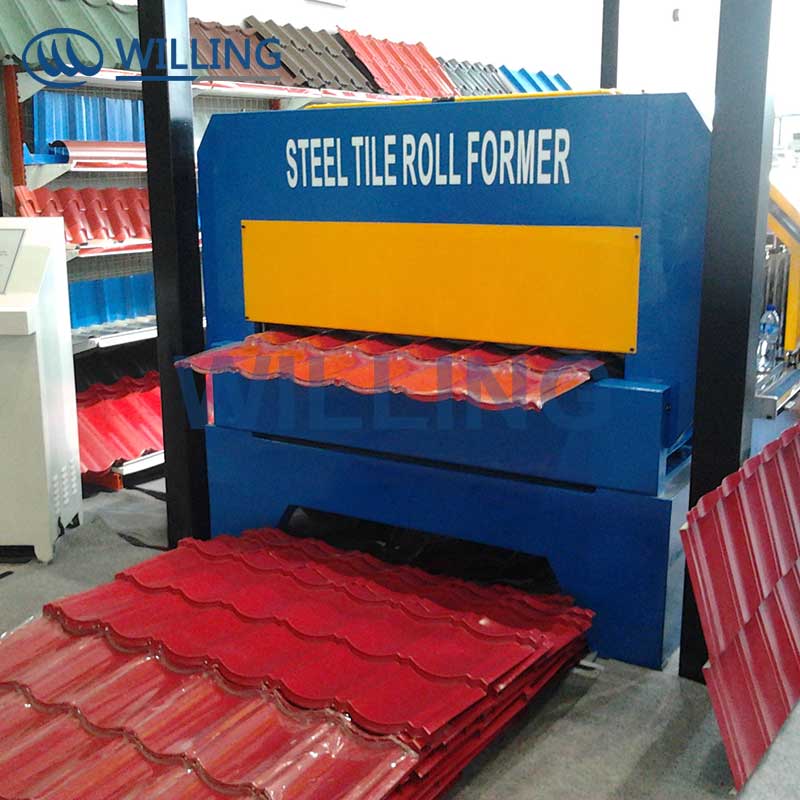

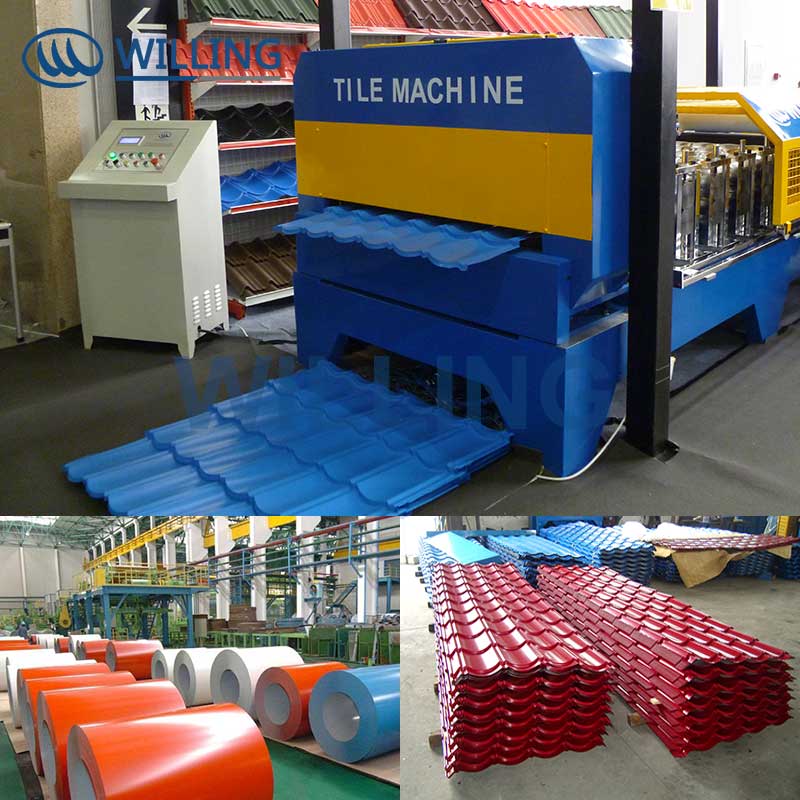

Steel roof tile roll forming machine
Introduction:

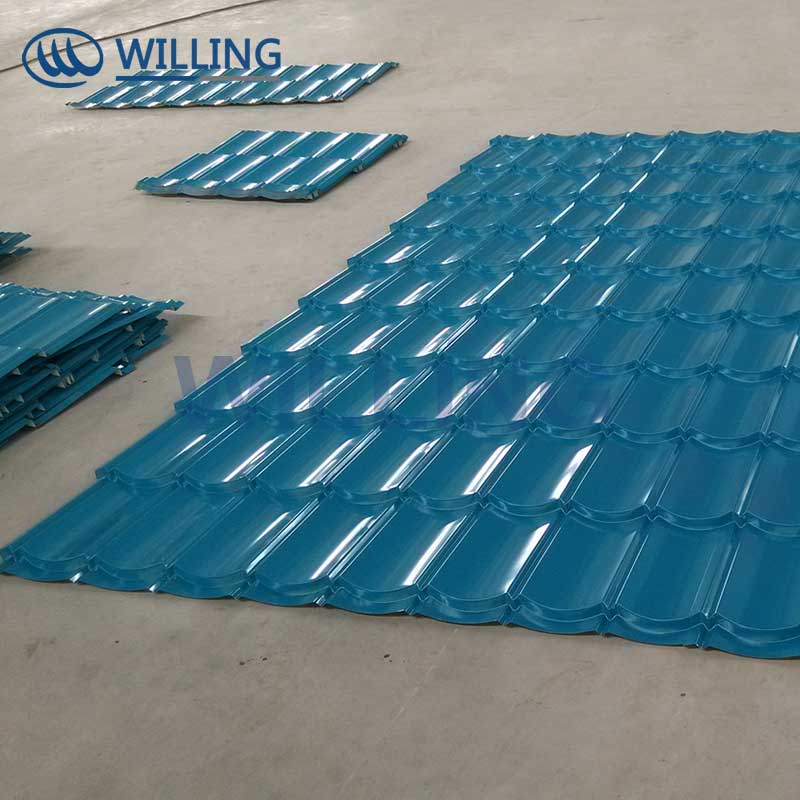

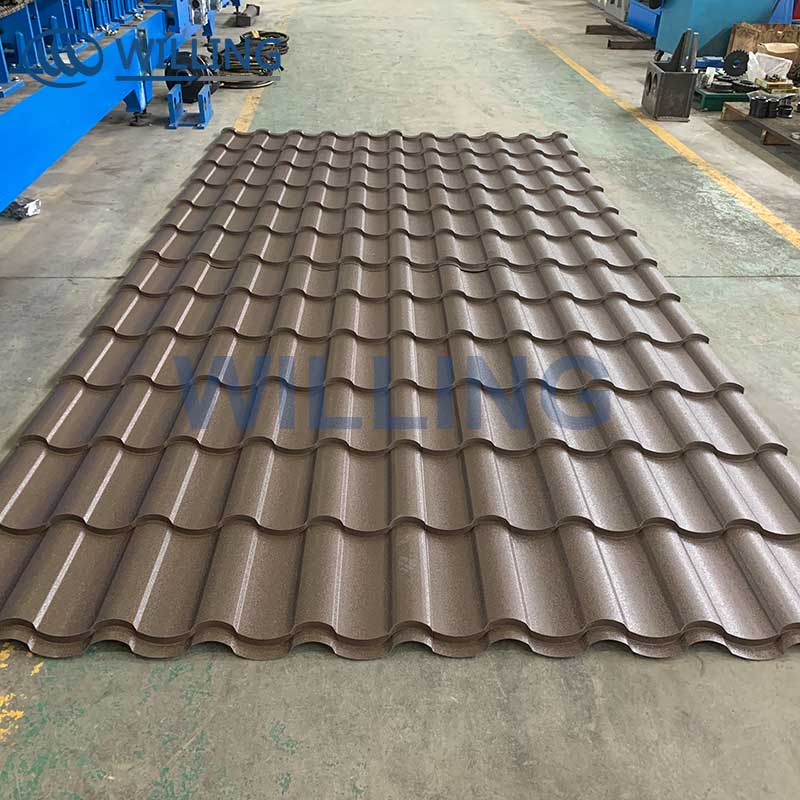

The archaistic tile sheet is rolled and pressed by the WLTM series modular tile sheet roll forming machine, it has many features, such as good appearance, primitive simplicity and elegance, unique style, noblest grade, and etc. It is widely used in garden style factories, scenic resorts, pavilions, hotels, villas, exhibition halls, country clubs, and so on for outdoor decorations.

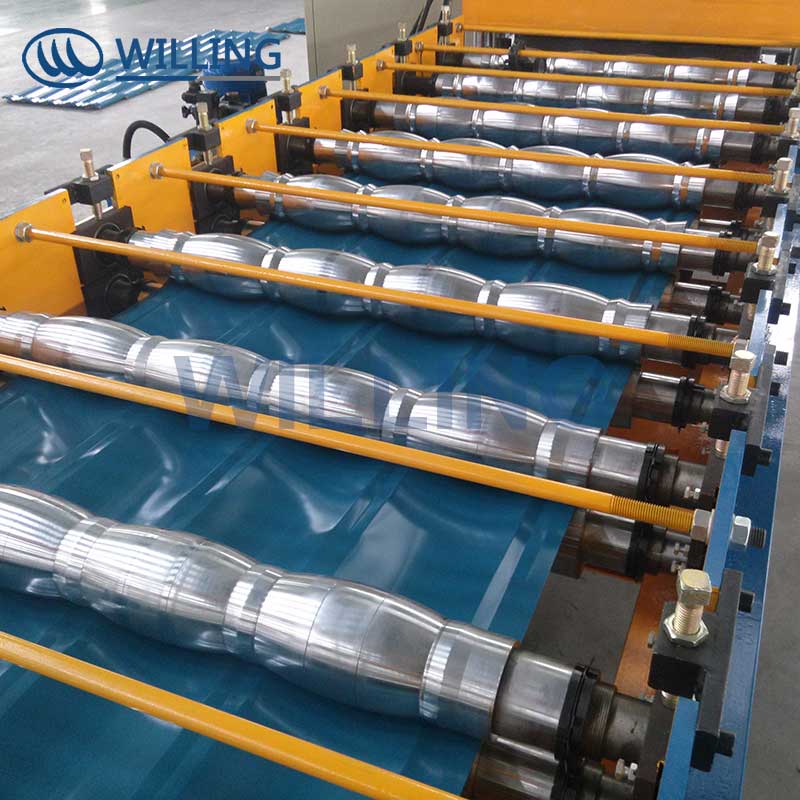

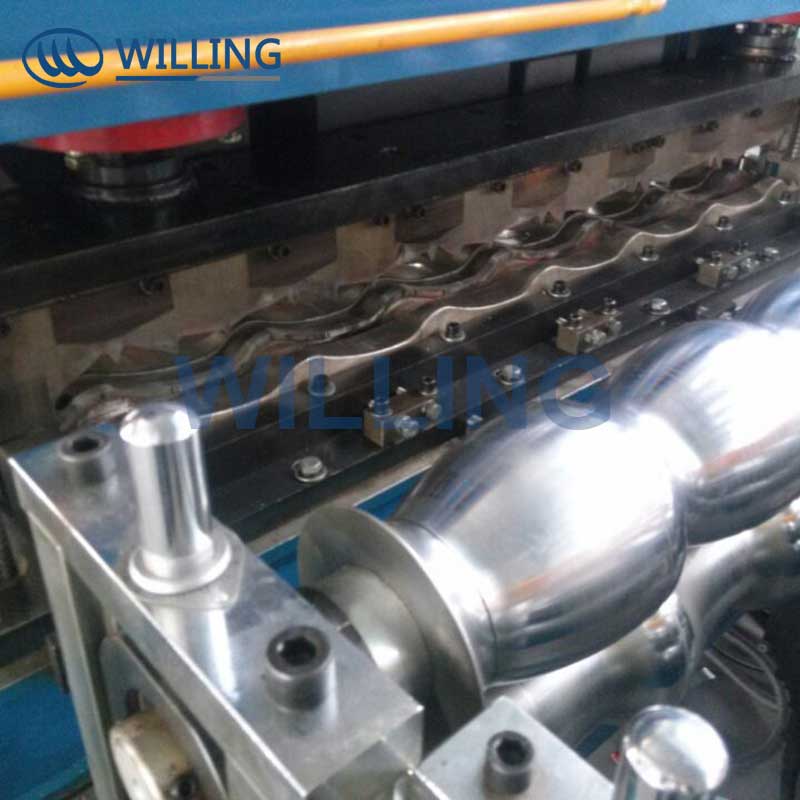

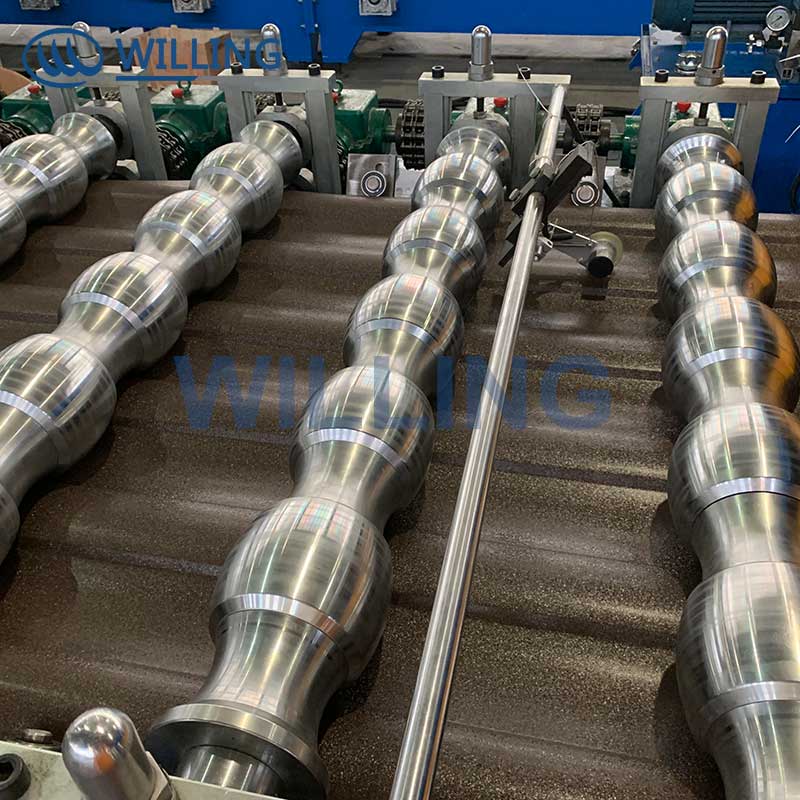

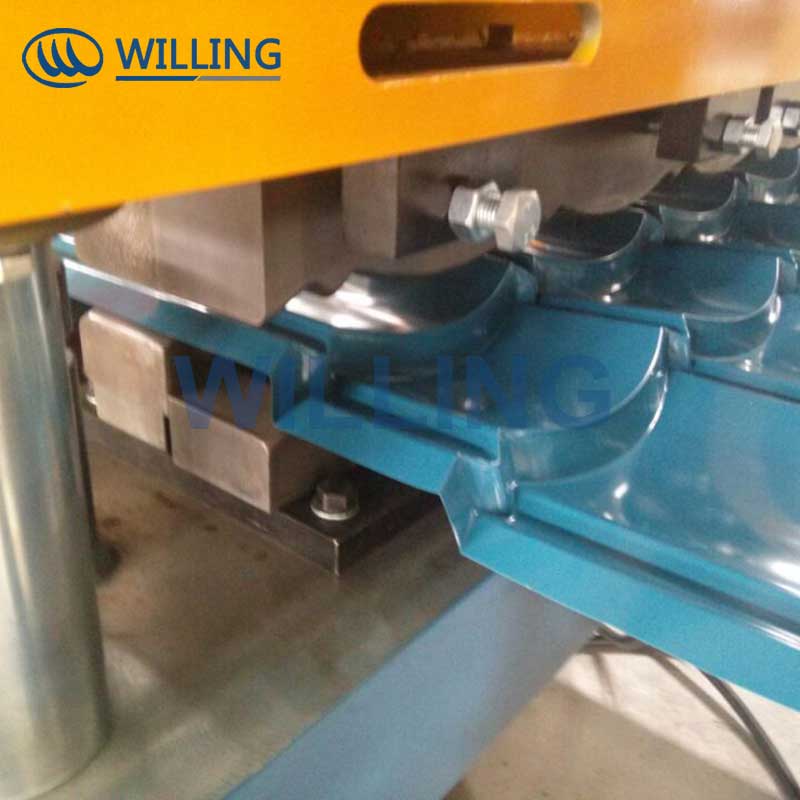

WLTM series modular tile sheet roll forming machine consists of uncoiler and its base, infeed guides, fixed position driven forming stations, pressing die, shearing device, hydraulic station, PLC control console and so on. Our company has dozens of profile models for this series roll forming machine, such as WLTM25-183-1100, WLTM28-207-828, and etc. We can design different kinds of profile and fittings for machine, as per customers' requirements.
Working Flow:
Uncoiling→Sheet Guiding→Roll Forming→Pressing→Measuring Length &Shearing→Sheet to Support Table.
Main Technical Parameters:
Material
Type
Color steel sheet
Thickness（mm）
0.3-0.6
Yield stress（Mpa）
230-350
Max. Forming speed（m/min）
2-3m/min; 4-6m/min
Roller material
45# steel with chrome
Roller driven type
Chain transmission
Controller
PLC
Operation
Touch screen and button
Hydraulic system pressure（Mpa）
12
Hydraulic station motor power（KW）
5.5
Main motor power（KW）
5.5
Total power（KW）
11
Total weight（Kg）
About 6000
