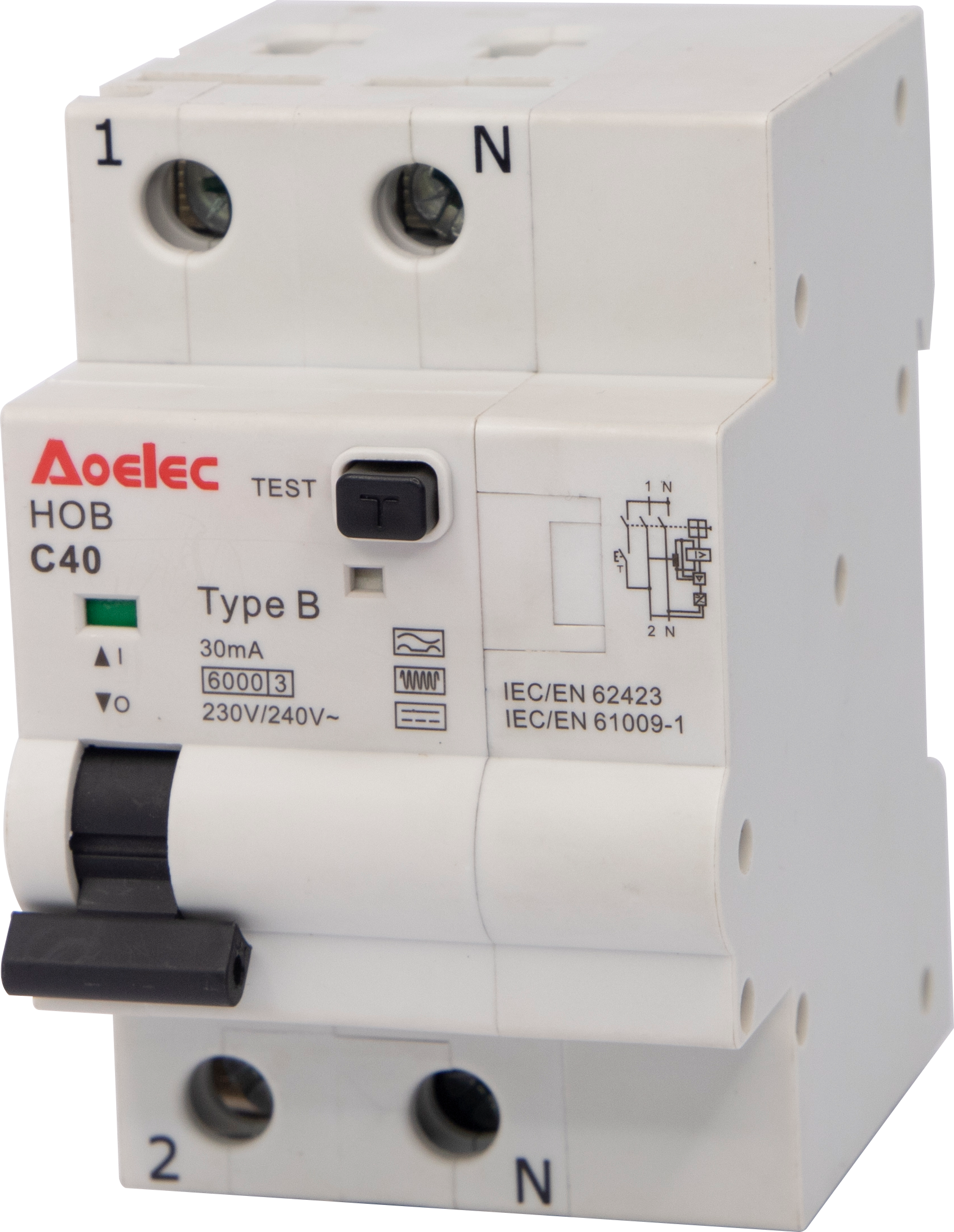

RCBO Type B
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
RCBO Type B
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: PA66
- Size: 53*87*72
- Color: Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: PA66
- Size: 53*87*72
- Color: Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | PA66 |
|---|---|
| Size | 53*87*72 |
| Color | Grey |
From the supplier
Supply Ability Supply Ability: 100000 Piece/Pieces per Month Packaging & Delivery Packaging Details The carton is strong enough for sea and air shipment,
Colorful box will be designed according to your requirement.">1 pcs/inner box,60 inner boxer/carton.
The carton is strong enough for sea and air shipment,
Colorful box will be designed according to your requirement. Port Ningbo/shanghai
Function and Feature:
Combined with RCCB/MCB in a compact design for personnel, fire and line protection
Protection against earth fault/leakage current, residual current, short circuit, overload, and function of isolation
Effectively protects electric equipment against insulating failure
Handle can be locked with pad-lock to prevent unwanted operation for safety.
35mm DIN rail mounting and screw mounting
Contact position indication
Electro-magnetic type
Technical type:
Rated Current(In): 6,10,15,16,20,25,32, 40,63A
Rated voltage(Un): 230/240VAC
Breaking capacity(Icn):10kA
Rated frequency:50/60Hz
Rated residual current:10mA, 30mA, 100mA, 300mA
Tripping characteristics: B,C
Number of Poles: 1P+N
Electrical endurance:4000cycles
Mechanical endurance: 10000cycles
Terminals: pillar type
Cable termination:25mm2
Torque of screw:25Nm
IP degree: IP20
Standards: IEC/EN61009-1
