About this product
- Materials: PA66
- Size: 82*66*18
- Color: Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: PA66
- Size: 82*66*18
- Color: Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | PA66 |
|---|---|
| Size | 82*66*18 |
| Color | Grey |
Product details
| Materials | PA66 |
|---|---|
| Size | 82*66*18 |
| Color | Grey |
From the supplier
Colorful box will be designed according to your requirement.">12 PCS/inner box,10 inner boxer/carton.
The carton is strong enough for sea and air shipment,
Colorful box will be designed according to your requirement.PortNingbo/Shanghai
Function and Feature:

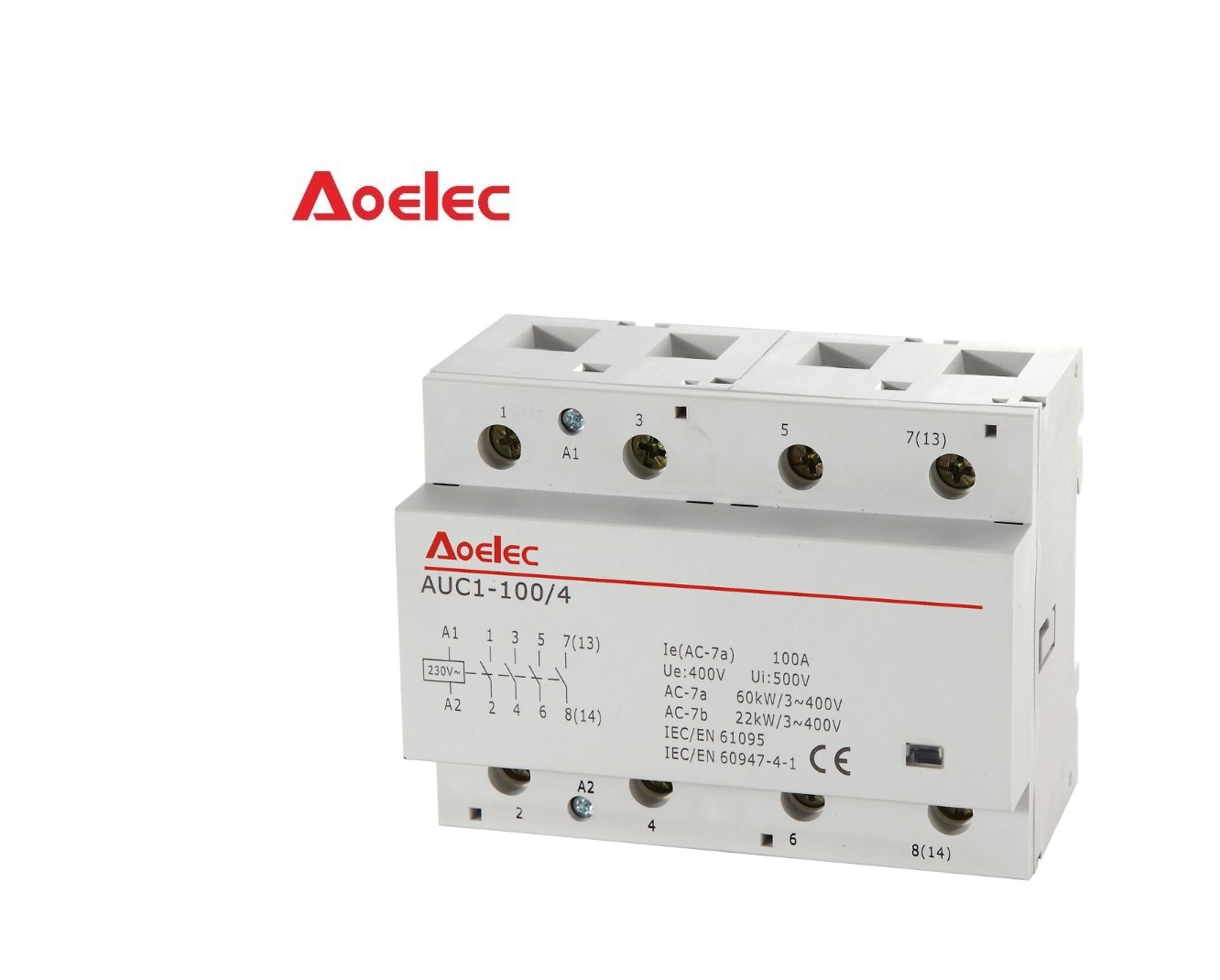

Contactor are electromechanically controled switches used to control single
or mult-phase(high) power loads while the control itself can be (very) low power
Technical Data:
Rated current(In):20,25,40,63A,100A
Rated operational voltage(Ue):230/240VAC
Control voltage(Uc):24/48/110/230VAC
Number of module:1M,2M,3M
Rated frequency:50/60Hz
Utilization category:AC1,AC3,AC7a,AC7b,AC5b
Electrical endurance:150000cycles(AC1,AC7a,AC3,AC7b)
Mechnical endurance:1,000,000cycles
Rated insulation voltage(Ui):500VAC
Rated impulse withstand voltage(Uimp):4KV
Terminal:pillar type
Cable termination:16/25mm2
Torque of screw:1.2/2Nm
IP degree:IP 20
Standards:IEC/EN 61095,IEC/EN 60947-1
Catalog No. CTN Size:46.5x24x17.5CM
ModelDescriptionQTY/BoxQTY/CTNAUC1-63-24/4063A 24V 4NO440AUC1-63-48/4063A 48V 4NO440AUC1-63-110/4063A 110V 4NO440AUC1-63-230/4063A 230V 4NO440AUC1-63-24/0463A 24V 4NC440AUC1-63-48/0463A 48V 4NC440AUC1-63-110/0463A 110V 4NC440AUC1-63-230/0463A 230V 4NC440AUC1-63-24/2263A 24V 2NO+2NC440AUC1-63-48/2263A 48V 2NO+2NC440AUC1-63-110/2263A 110V 2NO+2NC440AUC1-63-230/2263A 230V 2NO+2NC440About us:
Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
From the supplier
Colorful box will be designed according to your requirement.">12 PCS/inner box,10 inner boxer/carton.
The carton is strong enough for sea and air shipment,
Colorful box will be designed according to your requirement.PortNingbo/Shanghai
Function and Feature:
Contactor are electromechanically controled switches used to control single
or mult-phase(high) power loads while the control itself can be (very) low power
Technical Data:
Rated current(In):20,25,40,63A,100A
Rated operational voltage(Ue):230/240VAC
Control voltage(Uc):24/48/110/230VAC
Number of module:1M,2M,3M
Rated frequency:50/60Hz
Utilization category:AC1,AC3,AC7a,AC7b,AC5b
Electrical endurance:150000cycles(AC1,AC7a,AC3,AC7b)
Mechnical endurance:1,000,000cycles
Rated insulation voltage(Ui):500VAC
Rated impulse withstand voltage(Uimp):4KV
Terminal:pillar type
Cable termination:16/25mm2
Torque of screw:1.2/2Nm
IP degree:IP 20
Standards:IEC/EN 61095,IEC/EN 60947-1
Catalog No. CTN Size:46.5x24x17.5CM
ModelDescriptionQTY/BoxQTY/CTNAUC1-63-24/4063A 24V 4NO440AUC1-63-48/4063A 48V 4NO440AUC1-63-110/4063A 110V 4NO440AUC1-63-230/4063A 230V 4NO440AUC1-63-24/0463A 24V 4NC440AUC1-63-48/0463A 48V 4NC440AUC1-63-110/0463A 110V 4NC440AUC1-63-230/0463A 230V 4NC440AUC1-63-24/2263A 24V 2NO+2NC440AUC1-63-48/2263A 48V 2NO+2NC440AUC1-63-110/2263A 110V 2NO+2NC440AUC1-63-230/2263A 230V 2NO+2NC440About us:
Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
About the supplier
Main products: Earth Leakage Circuit Breaker,Switch disconnector/Circuit breaker,Surge protector,Capacitor contactor,Safety Breaker,Other electrical and electronic products,Small breaker ( low-voltage apparatus)
