Quick DetailsPlace of Origin:                 Zhejiang, ChinaBrand Name:                 AoelecModel Number:                 KBO2Type:                 Earth LeakagePoles Number:                 1P+NCertificate:                 Semko,CB and CEEnclosure:                 PA66PA66 cover:                 Fire resistantInstallation:                 Din Rail mountingSupply Ability                    Supply Ability:                 120000 Piece/Pieces per   MonthPackaging & DeliveryPackaging DetailsThe carton is strong enough for air and sea shippment.
Colorful box will be designed according to your requirement.">1 piece/inner box,60 inner box/carton.
The carton is strong enough for air and sea shippment.
Colorful box will be designed according to your requirement.PortNingbo/shanghai

Online Customization

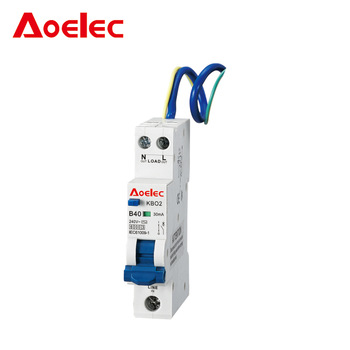

Residual Current Circuit Breaker with Over current Protection

KBO2





Function and Feature:

Provides protection against earth fault/leakage current,short circuit,overload

Provides complementary protection against direct contact by human body

Effectively protects electric equipment against insulating failure

Handle can be locked with pad-lock to prevent unwanted operation for safety.



Technical Data

electronic RCBO

Number of poles

1P+N

Rated voltage

230/240VAC

Rated Current

6,10,16,20,25,32,40A

Rated residual current

10mA,30mA,100mA,300mA

Type of residual current tripping

type A, type AC

Rated frequency

50/60Hz

Rated short-circuit capacity

6kA

Tripping characteristic

B,C

Energy limiting class

-

Index of protection

IP20

Terminals

1-16mm2&1-10mm2

Mechanical endurance

10000 times

Electrical endurance

4000 times

Ambient temperature

Max.-25℃+55℃

Storage temperature

Max. -40℃+70℃

Mounting on the rail EN60715

yes

Standard

IEC61009-1







In(A)30mA100mA300mAQTY/BoxQTY/CTN Model No.Model No.Model No.PCSPCS6AKBO2 1P+N 6AKBO2 1P+N 6AKBO2  1P+N 6A16010AKBO2  1P+N 10AKBO2 1P+N 10AKBO2  1P+N 10A16016AKBO2 1P+N 16AKBO2 1P+N 16AKBO2  1P+N 16A16020AKBO2  1P+N 20AKBO2 1P+N 20AKBO2  1P+N 20A16025AKBO2  1P+N 25AKBO2 1P+N 25AKBO2  1P+N 25A16032AKBO2  1P+N 32AKBO2 1P+N 32AKBO2  1P+N 32A16040AKBO2  1P+N 40AKBO2 1P+N 40AKBO2  1P+N 40A160





Dimensions(mm)





About us:



Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
