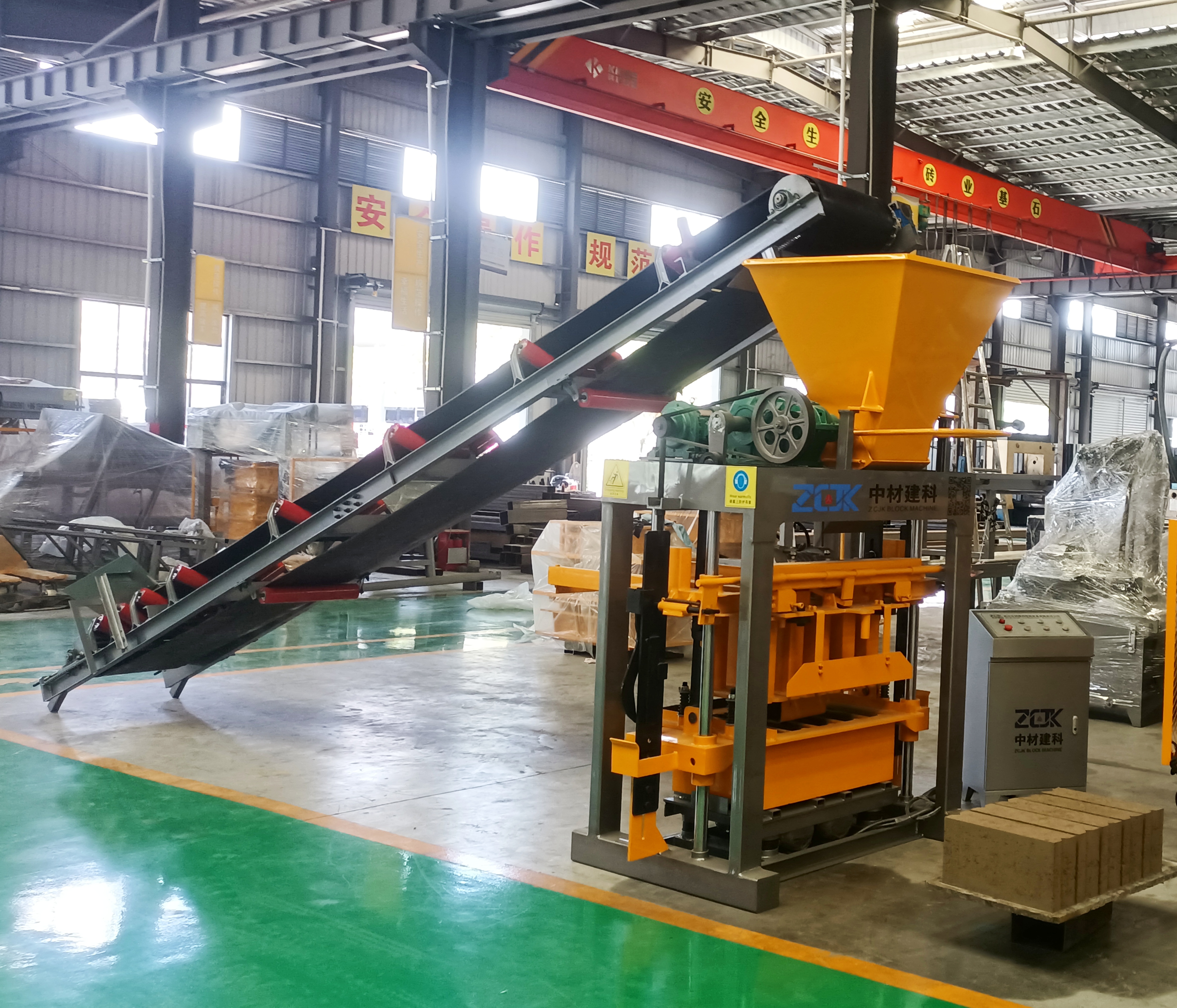

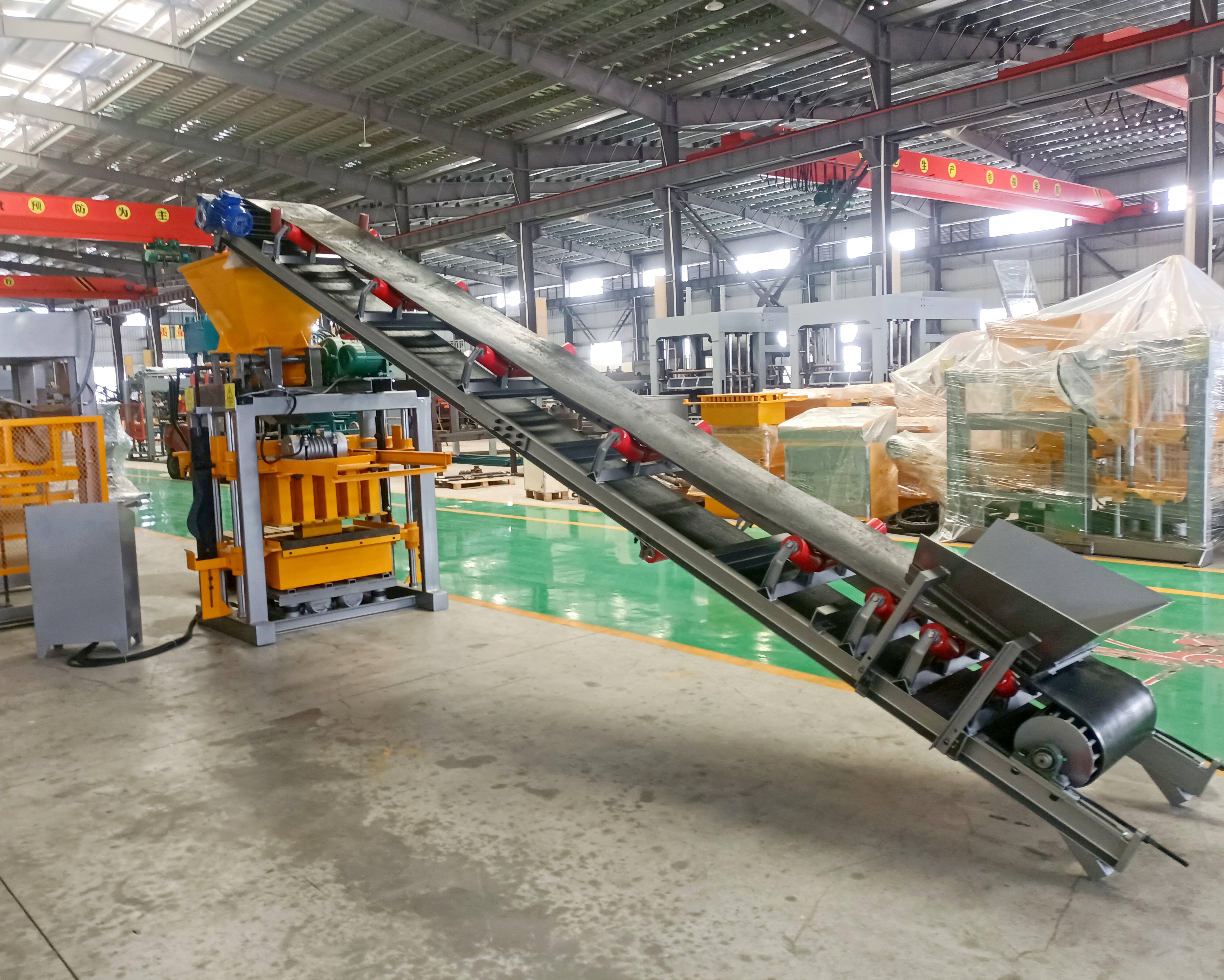

based on the QTJ4-40 and adds a mixer, a belt conveyor, a hopper and other tools, which can save the manual operation of mixing and transporting raw materials to the host machine. It is simpler and more labor-saving, and is suitable for large-scale use. Best value for money for small investors.

Main Parameter:

Pallet size

860x540mm

Pallet maximum forming area

820x500mm

Forming height

50-200mm

Cycle time

60-70sec

Type of vibration table

Vibrason

Excitation force

48KN

Total power

9.6kw

Total weight

2.1T

Detail Items:

Item

Quantity

Item

Quantity

QTJ4-40A block making machine

1

Belt conveyer

1

JW350 mixer(stand)

1

Free mould

1

Control box

1

Trolley

2

Advantages of concrete block machine

1. QTJ4-40A is the most cost-effective concrete block machine, is a small semi-automatic block forming machinethat can meet the requirements of large and small investors.

2. It is an ideal choice for laid-off workers, unemployed people and friends in rural areas to set up factories and start businesses.

3. Sand/fly ash/cement/concrete/solid and other raw materials can be used to produce various types of standard bricks, porous bricks and hollow blocks. brick.

4. The machine is designed with an automatic mixer device and a special belt conveyor to transport materials, which can greatly improve work efficiency and reduce labor intensity.

5. Using imported motors, seals and hydraulic components, the overall performance of the equipment is stable and reliable.

Our concrete block machine is equipped with a disc mixer and can become a semi-automatic block and brick production line; the top aggregate hopper can easily release aggregates to the bottom mold, greatly reducing labor intensity; using a slide rail design, the upper mold moves easily and smoothly, without Stuck.

Capacity list:

Block/Brick Type

Brick Dimensions

Pcs/pallet

Capacity(8-hour shift)

Standard brick size

240x115x53mm

26

15000pcs

6 Inch Hollow size

400x150x200mm

5

2880pcs

8 Inch Hollow size

400x200x200mm

4

2304pcs

Paving Brick size

200x100x60mm

14

7000pcs

Why Choose Us ?

1. ZCJK is a group enterprise engaged in brick making machine R&D, production, sales and after-sales for 22 years.

2. ZCJK Group has passed ISO9001 quality management system certification and CE EU certification. It has 2 invention patents and 18 utility model patents.

3. ZCJK Group has 3 dedicated after-sales teams composed of local professionals overseas, who provide on-site installation guidance and training and speak the local language.

4. We have two factories in China, the Quanzhou production base and the Wuhan headquarters. We also have a branch in Hong Kong.

5. Our R&D base is in Beijing, and free training is available.

6. Our brick making machines have been exported to more than 103 countries.

7. We have 10 different types, with prices ranging from US$3,100 to US$350,000.

8. We can provide the best ratio to help customers reduce costs and ensure product quality. Unique in raw material technology.
