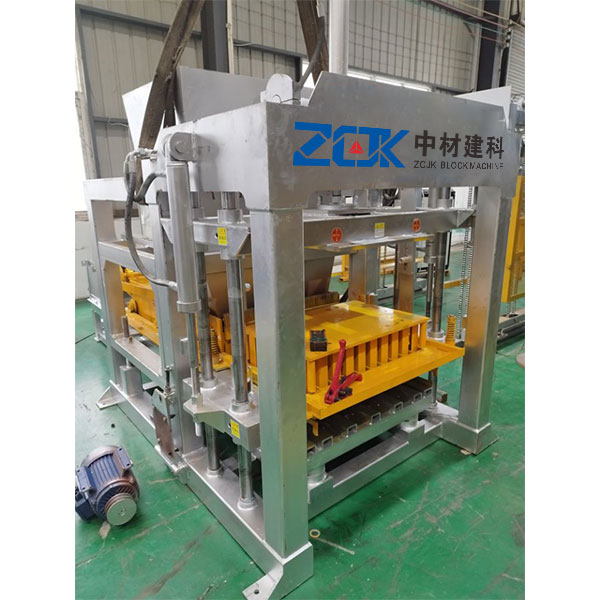

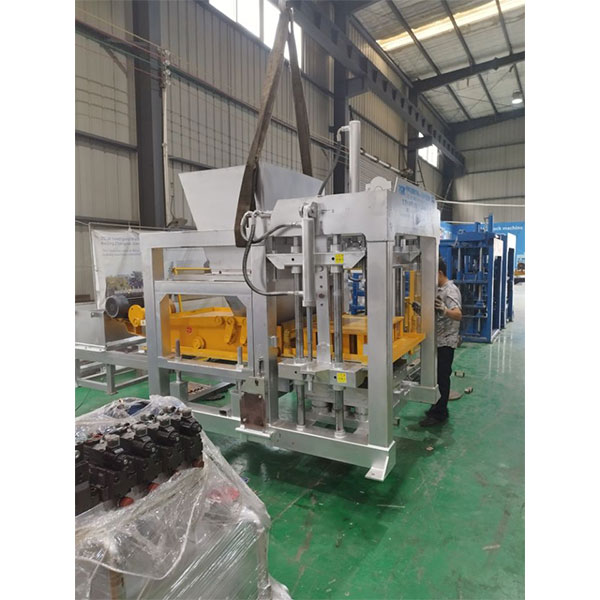

Looking for a cost-effective solution to boost your brick production? Our affordable interlocking brick machine for sale is designed to meet the needs of small and medium-sized enterprises. With advanced features like a JW500 mixer, automatic brick stacking, and a powerful vibration system, this machine offers unmatched efficiency and versatility.

Technical Parameter:

Pallet size

880x550mm

Pallet maxmum forming area

820x510mm

Forming height

50-200mm

Cycle time

20-25sec

Type of vibration

Vibration

Excitation force

60KN

Total power

32kw

Total weight

4.5T

Detail Items:

Item

Quantity

Item

Quantity

QTY4-18 Brick Machine

1

Brick conveyor

1

Pallet feeder

1

Belt Conveyor

1

JW500 Mixer

1

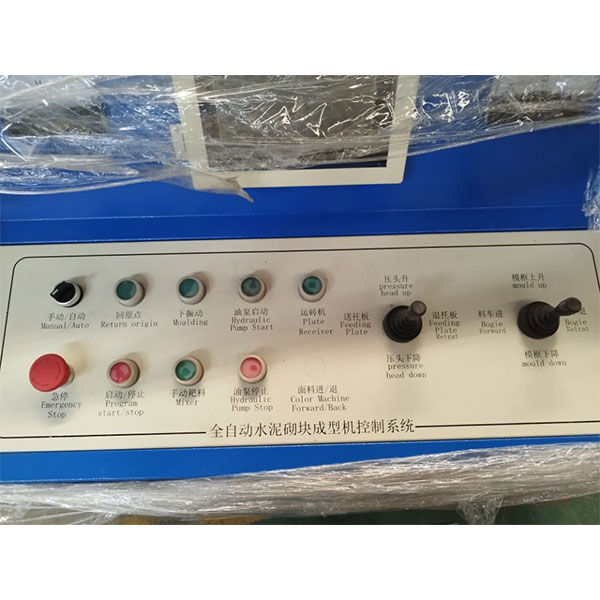

Control system

1

Automatic stacker

1

Free Mold one set

1

Free Mold one set

2

Advantages of QTY4-18 block machine

1. Complete Production Line for Maximum Efficiency:Our interlocking brick machine comes equipped with a complete production line, starting from the JW500 mixer. The belt conveyor seamlessly transports the mixed materials to the brick machine, ensuring a smooth and efficient production process. The automatic brick stacker then neatly arranges the finished bricks, saving you time and labor.

2. Enhanced Capacity and Power:The QTY4-18 interlocking brick machine is specifically designed to handle increased production demands. It features an upgraded capacity that allows you to produce more bricks simultaneously. The machine's vibration system has also been enhanced, offering stronger force and higher vibration frequency, resulting in superior brick quality.

3. Versatility for Various Brick Types:One of the standout features of our interlocking brick machine is its ability to produce different types of bricks by simply changing the molds. This versatility makes it an ideal choice for businesses looking to diversify their product offerings without investing in multiple machines.

4. Energy-Efficient Design:With a power requirement of only 38kw, our interlocking brick machine is energy-efficient, helping you reduce operational costs. Despite its low power consumption, the machine delivers a powerful vibration force of up to 60kn, ensuring that each brick is perfectly compacted and shaped.

Productivity:

Block/Brick Type

Size

Pieces/Mould

Pieces/8Hours

Standard brick

240x115x53mm

26pcs

41600pcs

Paving Brick

200x100x60mm

14pcs

20160pcs

6 Inch Hollow

400x150x200mm

5pcs

8000pcs

8 Inch Hollow

400x200x200mm

4pcs

6400pcs

Why Choose Us ?

1. ZCJK is a group enterprise engaged in brick making machine R&D, production, sales and after-sales for 22 years.

2. ZCJK Group has passed ISO9001 quality management system certification and CE EU certification. It has 2 invention patents and 18 utility model patents.

3. ZCJK Group has 3 dedicated after-sales teams composed of local professionals overseas, who provide on-site installation guidance and training and speak the local language.

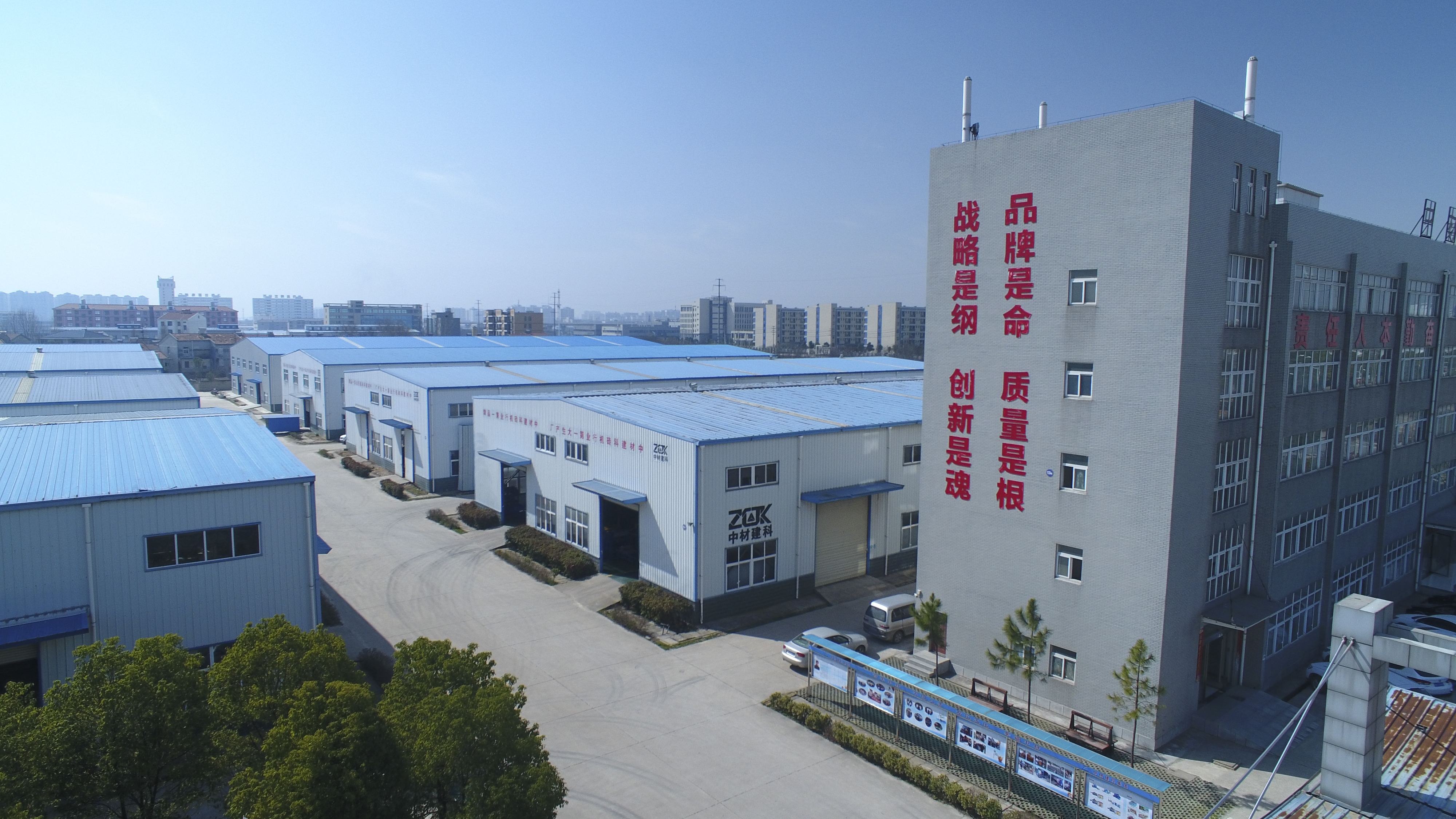

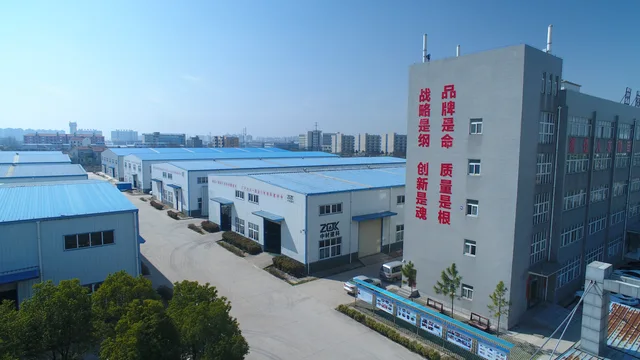

4. We have two factories in China, Quanzhou and Wuhan. There is also a branch in Guangzhou.

5. Our main factory is in Beijing, factory training is free, and we have our own R&D base.

6. Our brick making machines have been exported to more than 103 countries.

7. We have 10 different types, with prices ranging from US$3,100 to US$350,000.

8. We can provide the best ratio to help customers reduce costs and ensure product quality. Unique in raw material technology.
