Features:

QTJ4-40 Block forming machine is another new and practical model also developed by our factory , it is reasonable in design ,compact in structure and easy in operation , for this machine is equipped with special super and strong vibration motor ,the blocks manufactured with it are high in density and good in quality , this machine is designed with automatic material scraping devices and for discharging with special fork lifter so that it can largely increase the working efficiency and reduce the labor intensity

Using imported electrical appliances sealing parts and parts of hydraulic components ,the equipment's comprehensive performance is stable and reliable

It is a multi-useful machine ,which could produce road blocks ,curb stones ,blocks ,hollow brick sand other shapes of different specifications of concrete products via changing the block mould

Pallet size (mm) 860×540 Type of vibration Vibration Pallet maximum forming area (mm) 820×500 Vibration force (KN)

48

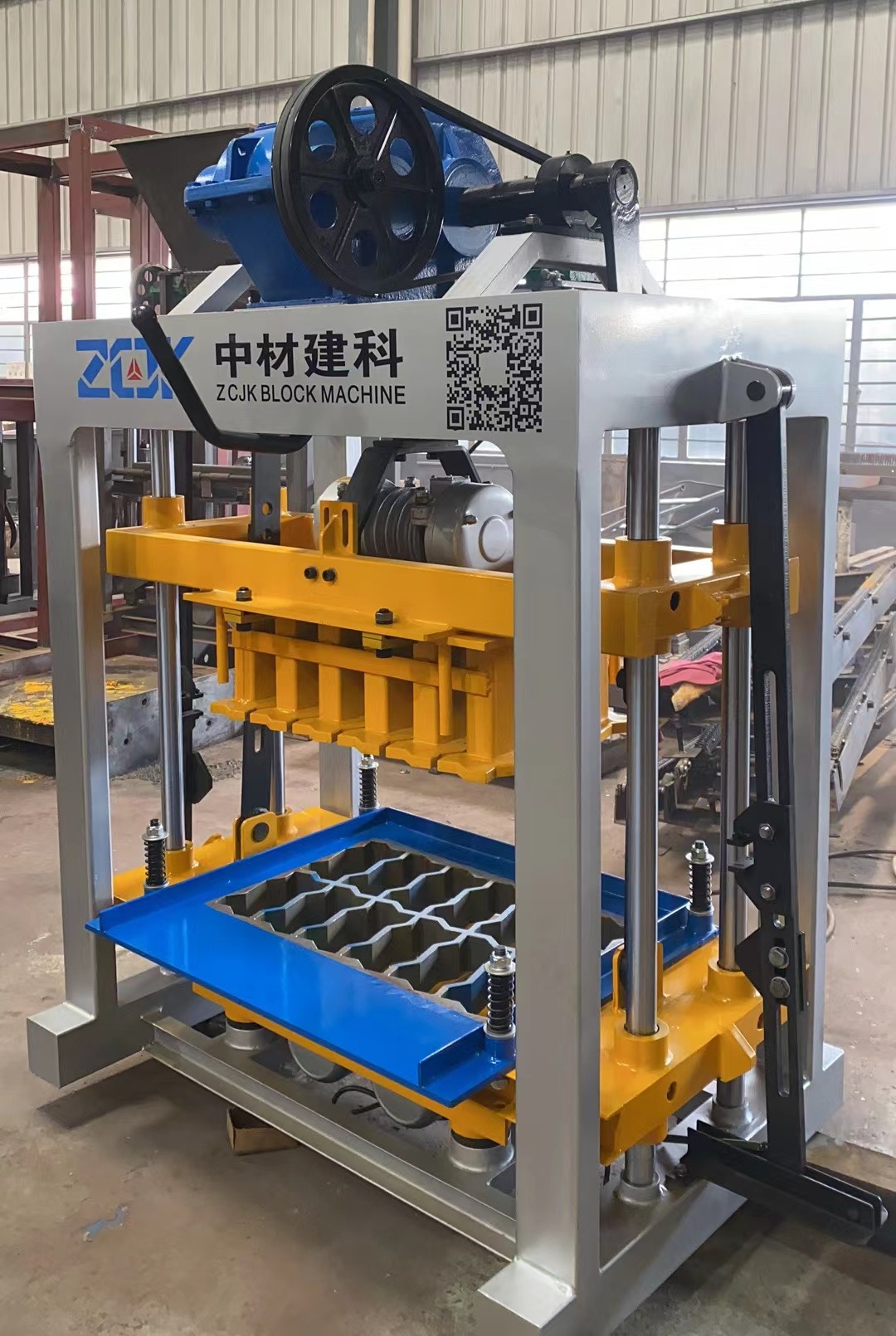

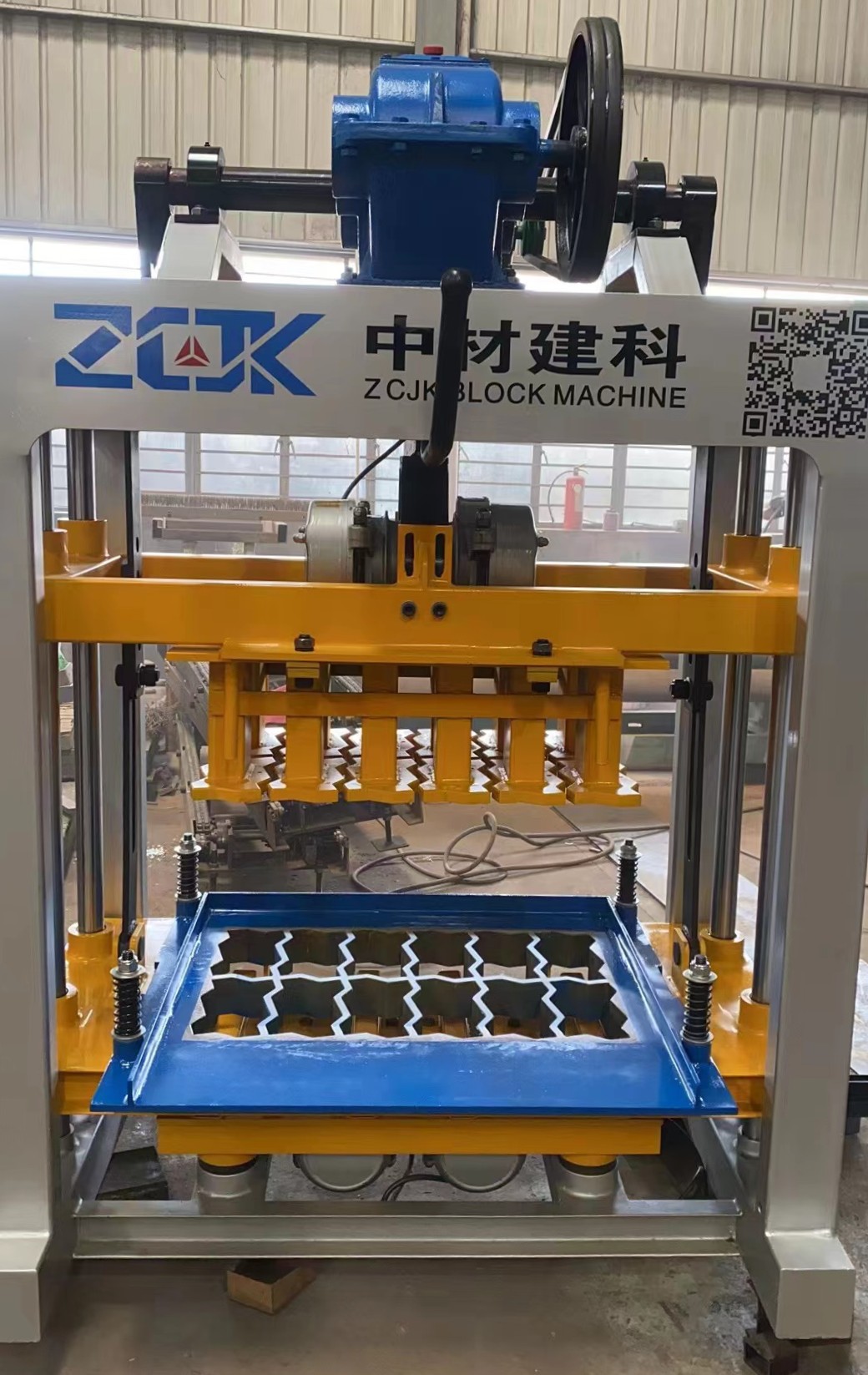

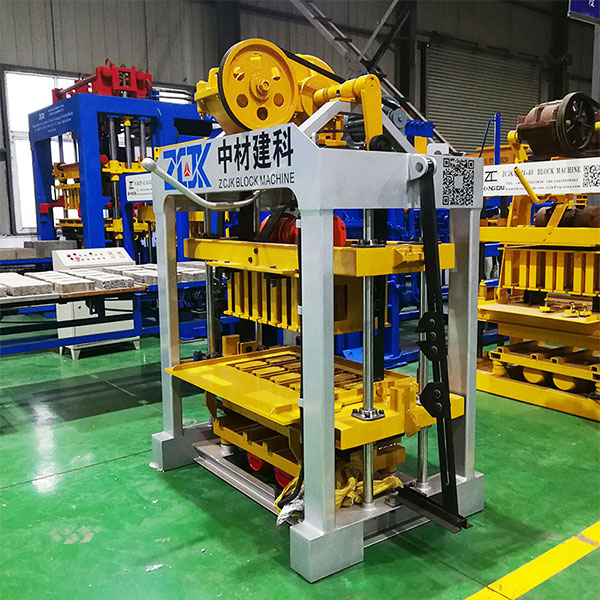

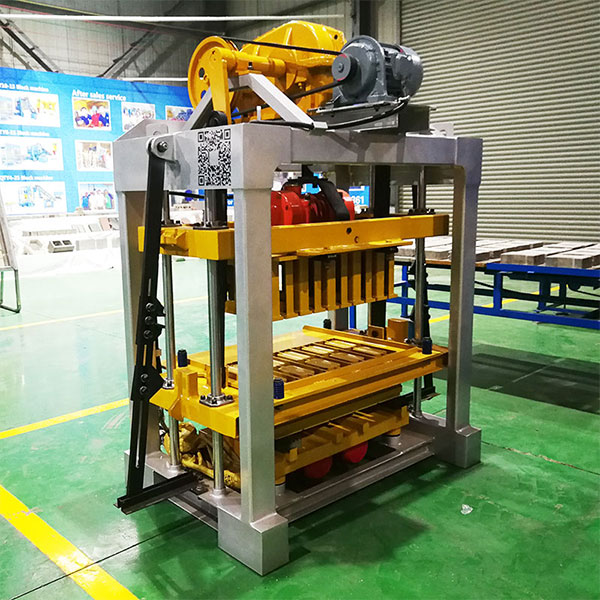

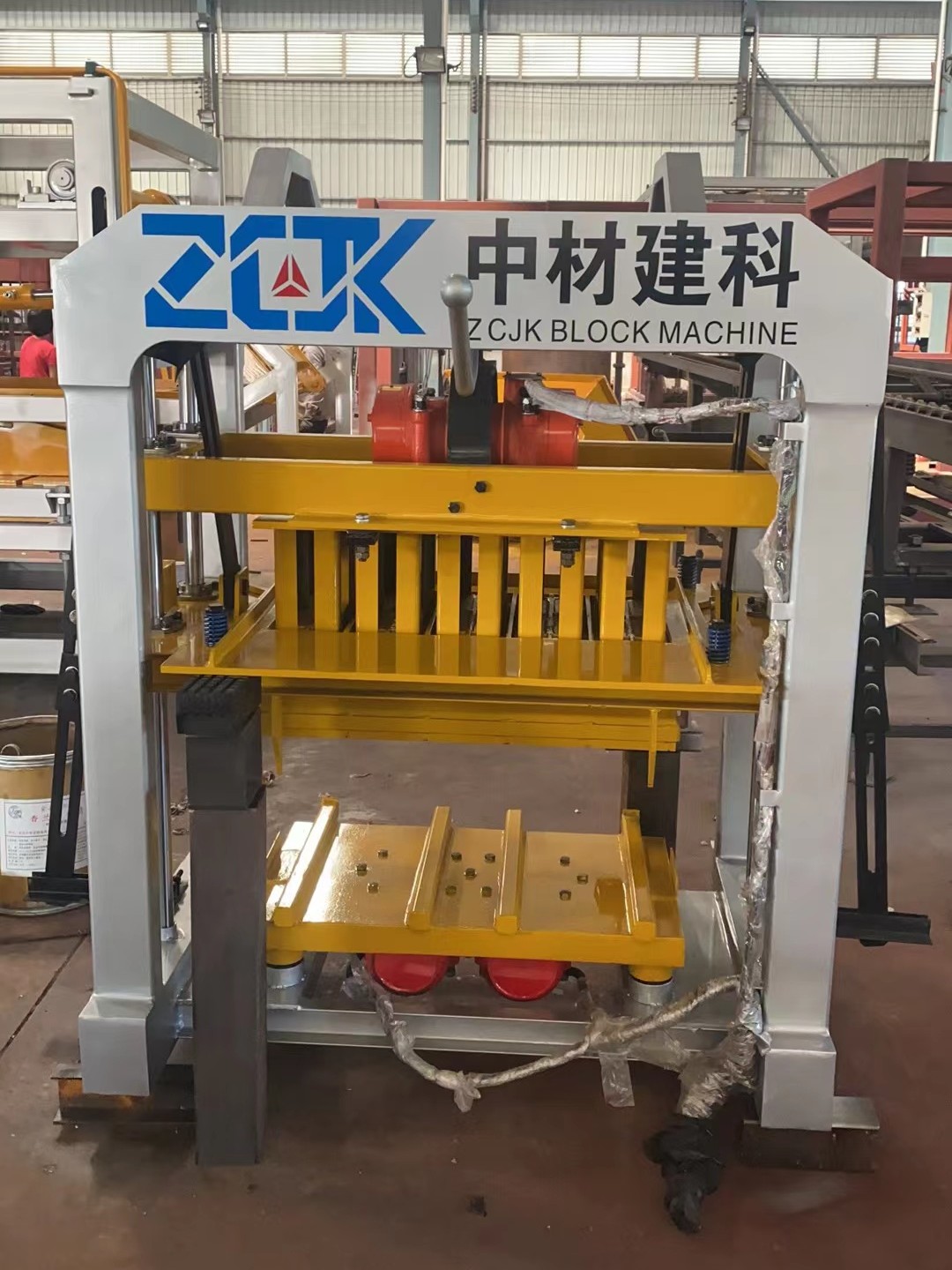

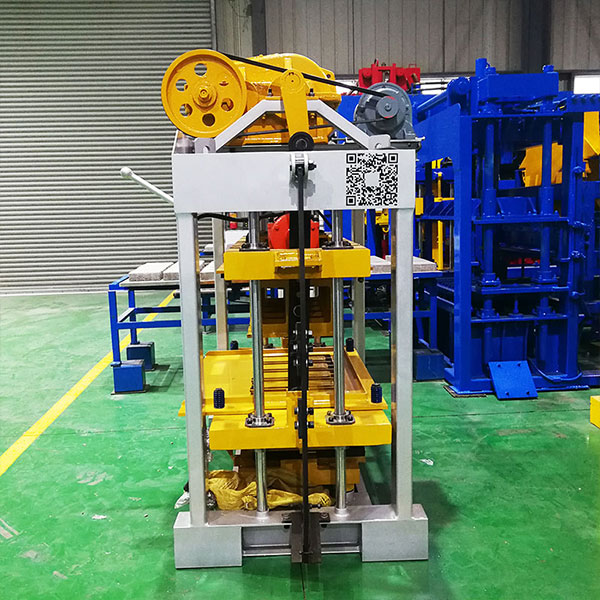

Forming height (mm) 50-200 Total power (KW) 9.6 Cycle time (sec) 60-70 Total weight (t) 1.5 Detailed pictures

Productivity:

Block/Brick Type

Size

Pieces/Mould

Pieces/8Hours

Standard brick

240x115x53mm

26pcs

12480pcs

Paving Brick

200x100x60mm

14pcs

6000pcs

6 Inch Hollow

400x150x200mm

5pcs

2400pcs

8 Inch Hollow

400x200x200mm

4pcs

1920pcs

Block made by the machine

Where the block/brick will be used About ZCJK

1. ZCJK is a group enterprise engaged in brick making machine R&D, production, sales and after-sales for 22 years.

2. ZCJK Group has passed ISO9001 quality management system certification and CE EU certification. It has 2 invention patents and 18 utility model patents.

3. ZCJK Group has 3 dedicated after-sales teams composed of local professionals overseas, who provide on-site installation guidance and training and speak the local language.

4. We have two factories in China, Quanzhou and Wuhan. There is also a branch in Guangzhou.

5. Our main factory is in Beijing, factory training is free, and we have our own R&D base.

6. Our brick making machines have been exported to more than 103 countries.

7. We have 10 different types, with prices ranging from US$3,100 to US$350,000.

8. We can provide the best ratio to help customers reduce costs and ensure product quality. Unique in raw material technology.
