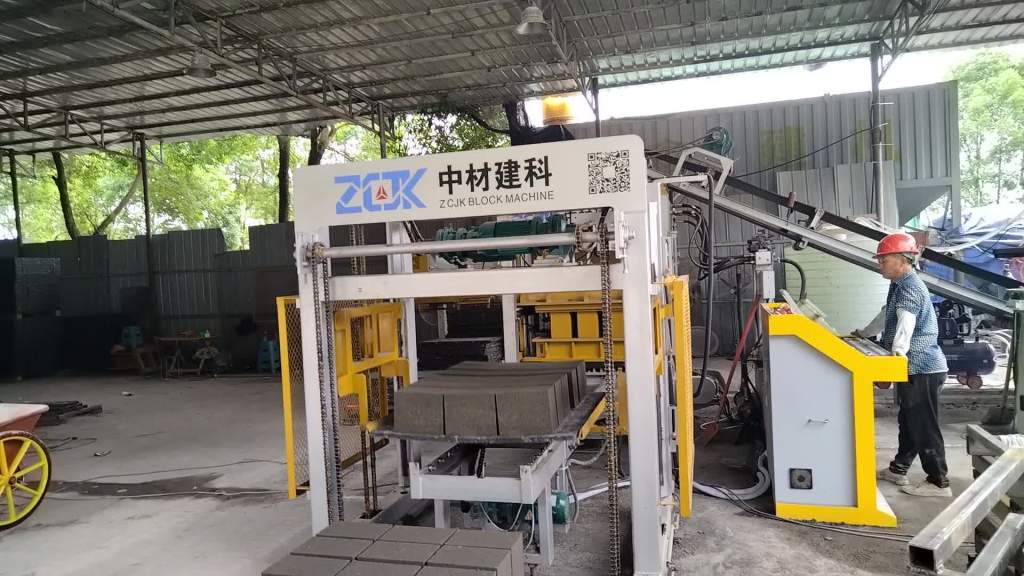

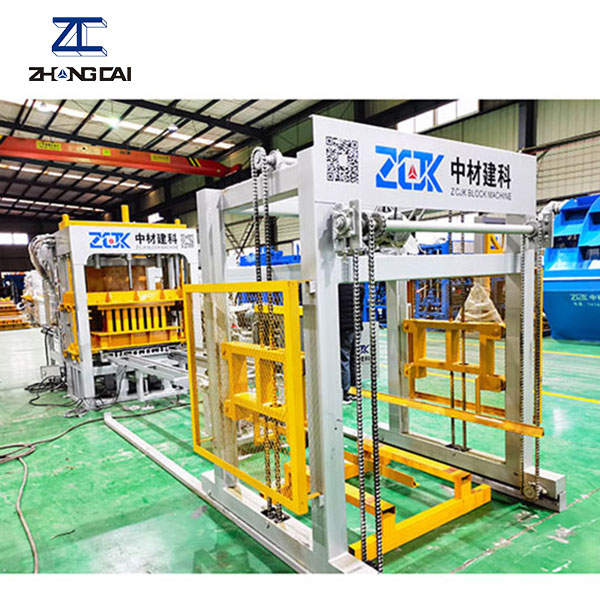

ZCJK QTY4-15 fully automatic block making machine Features:

Equipment superiority

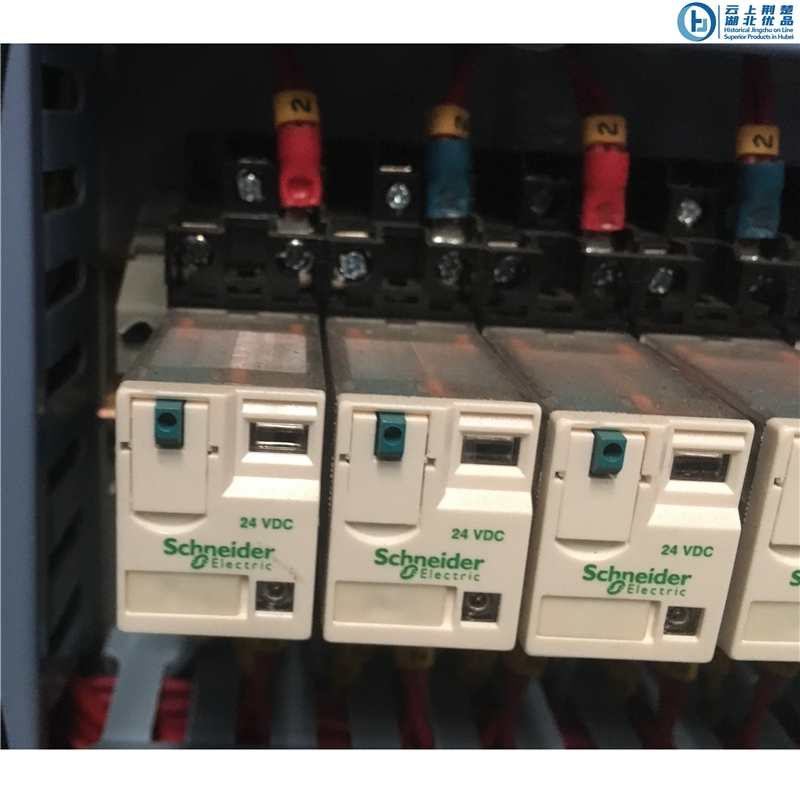

A.The electronic system uses PLC program control and screen display of Siemens ,and it can be operated automatically ,semi-automatically and manually .it can work automatically round and round .The control system is also equipped with data input and output devices ,safety work control devices and failure diagnosis devices and remote monitoring system .

B.the main hydraulic elements and seals are imported from Taiwan and japan.The hydraulic elements uses proportional valve of high dynamic performance.which can regulate oil and pressure according to different requirements , thus it can control the working of the key process accurately .

C.The main machine has a long service life .The machine frame is made of castings of high-precision and high-strength ,and it is welded by special welding techniques .Thus it is rigid ,durable ,and it can resist vibration .

D.The molding cycle time is very short but with a high efficiency of production .The machine uses table vibration plus pressing to mould and oriented reciprocating material -feeding devices ,thus it can mould in a short time with high productivity .pallet conveyor is slider-crank structure ,which turns the crank-turning movement of the circular plate into straight line reciprocating movement of the pallet conveyor ,thus the pallet suffers little impact in the start of stopping point.

E.The machine produces blocks and bricks of stable and high quality with low rate of waste products .The machine employs electronic ,hydraulic and mechanic integrated technology ,and each program can lock each other ,thus the whole process is connected smoothly .

F.the machine is multi-functional .It can produce various types of porous blocks ,standard bricks ,hollow blocks , paving blocks , curb stones ,grass land bricks and so on by changing moulds.

G.the whole part uses cast steel ,durable and with beautiful appearance .

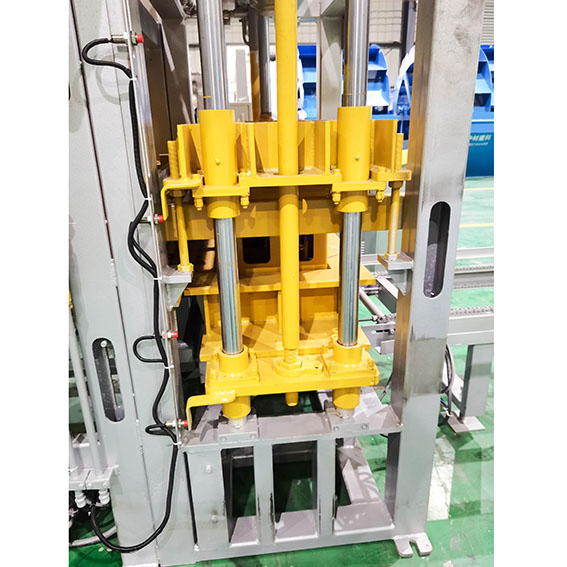

H.the upper and lower slider are made of thick plates,the column sleeve and the slider is connected by screw,which makes it convenient to change the cooper bush.

I.Crank-link mechanism is employed .It transmits the circular motion of the crank into the straight reciprocating motion of the mobile frame ,thus ensures the pallets moving smoothly and transiting products stably.

Productivity:

Block/Brick Type

Size

Pieces/Mould

Pieces/8Hours

Standard brick

240x115x53mm

30pcs

57600pcs/58m3

Paving Brick

200x100x60mm

16pcs

23040pcs/461m3

Muliti hole brick

240x115x90mm

14pcs

23520pcs/84m3

Hollow block

400x200x200mm

4pcs

6720pcs/95m3

Where the block/brick will be used About ZCJK

1. ZCJK is a group enterprise engaged in brick making machine R&D, production, sales and after-sales for 22 years.

2. ZCJK Group has passed ISO9001 quality management system certification and CE EU certification. It has 2 invention patents and 18 utility model patents.

3. ZCJK Group has 3 dedicated after-sales teams composed of local professionals overseas, who provide on-site installation guidance and training and speak the local language.

4. We have two factories in China, Quanzhou and Wuhan. There is also a branch in Guangzhou.

5. Our main factory is in Beijing, factory training is free, and we have our own R&D base.

6. Our brick making machines have been exported to more than 103 countries.

7. We have 10 different types, with prices ranging from US$3,100 to US$350,000.

8. We can provide the best ratio to help customers reduce costs and ensure product quality. Unique in raw material technology.
