I. Overview

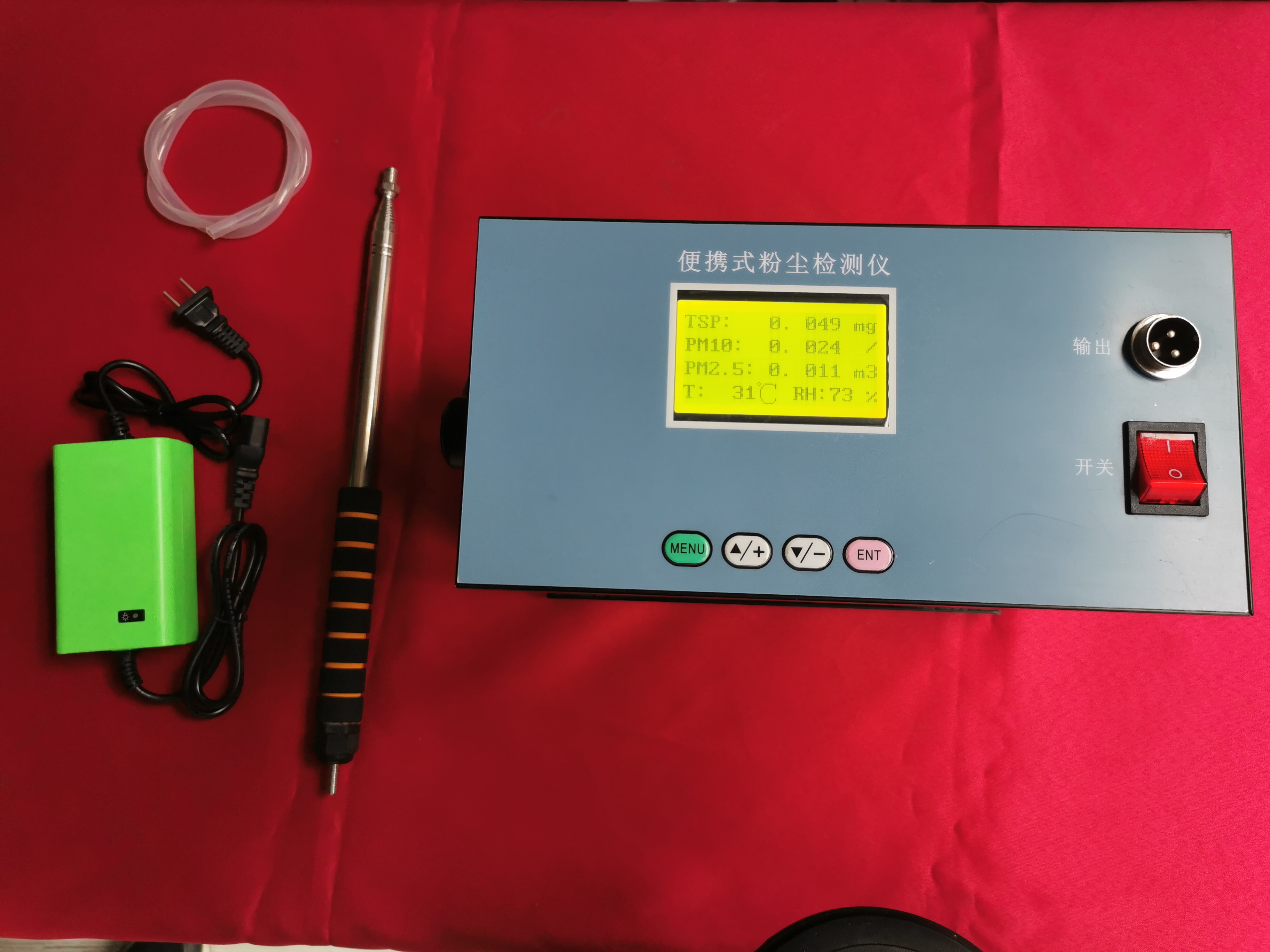

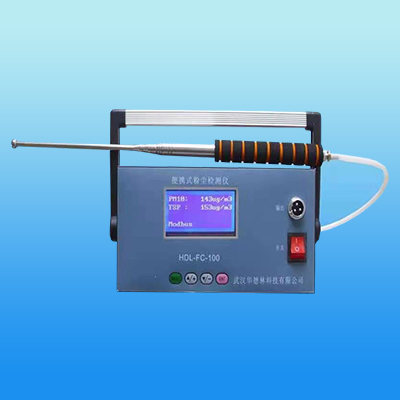

The HDL-FC-100B portable laser inhalable dust continuous detector (hereinafter referred to as the portable dust detector) is primarily used for detecting the concentration of dust particulate matter (PM10 and TSP) and providing an over-limit alarm in industrial and mining enterprises. This instrument sucks in air containing dust particles from large public indoor spaces, industrial and mining enterprises, smoke exhaust ducts, ventilation ducts, factory workshops, or production areas. It analyzes the air through a high-precision laser dust detection sensor, and the resulting data is displayed on the instrument's screen, indicating the dust concentration in that space.
The HDL-FC-100B portable laser inhalable dust continuous monitor utilizes the advanced light scattering principle, employing a semiconductor laser as the measuring light source to conduct highly sensitive non-contact measurements of dust in the air. The entire testing process is managed and controlled by a single-chip microprocessor, and a high-resolution, large-screen, high-brightness LCD display is used, providing a fully Chinese-language display.
II. Features
This instrument is small in size, easy to carry, and boasts advantages such as fast testing speed, high sensitivity, good stability, light weight, simple operation, and dual-purpose for both AC and DC. It is suitable for measurements in large factories and workshops. It ensures safe production, real-time monitoring, and is both portable and versatile.
