About this product
- Materials: Epoxy Resin, Iron Core, Enameld Wire
- Size: 190*265*377
- Color: Brown
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Guangdong, China
About this product
- Materials: Epoxy Resin, Iron Core, Enameld Wire
- Size: 190*265*377
- Color: Brown
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Guangdong, China
Product details
| Materials | Epoxy Resin, Iron Core, Enameld Wire |
|---|---|
| Size | 190*265*377 |
| Color | Brown |
Product details
| Materials | Epoxy Resin, Iron Core, Enameld Wire |
|---|---|
| Size | 190*265*377 |
| Color | Brown |
From the supplier
1. Medium Voltage Current Transformers
2. Instruction

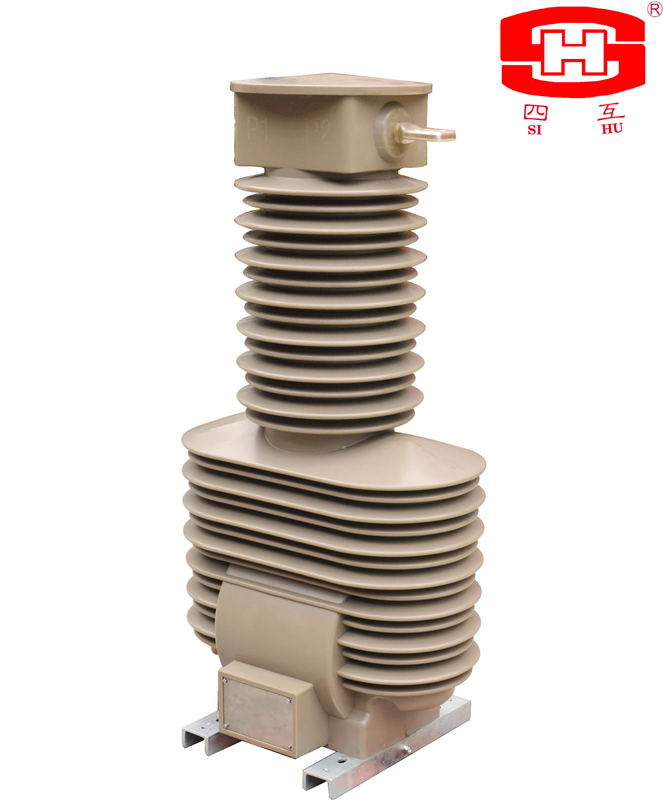

LZZW2(G)-12 outdoor current transformer is casting resin insulated, pillar structure, with protective class and fully enclosed. It is used for metering electric energy and current monitoring, relay protection in the electrical system of rated frequency 50/60Hz rated voltage 10 kV. It can be used for medial voltage AIS, or can be used for medial voltage switchgears. They can operate in all kinds of environments (such as wide range temperature (-50~60℃), high altitude, high humidity, high pollution or salt).
3. Main Technical Parameters
Rated Primary Current I1n
(A)
Rated Secondary Current I2n
(A)
Accuracy Classes
Rated Output (VA)
cosΦ=0.8
Rated Short-time Thermal Current Ith (kA/s)
Rated Dynamic Current Idyn
(kA)
Rated Insulation
Level (kV)
0.2S
0.5
5P(10P)
10~150
1
5
0.2S, 0.2, 0.5S, 0.5
5P10, 5P15, 5P20 10P10, 10P15, 10P20
15
15
20
150 I1n
2.5 Ith
12/42/75
200~250
25
63
300~400
15
20
25
31.5
80
500~600
40
100
Note: The data listed in the above table are the normal ones, or we can design them according to the customers' special requirements.
4. Outline drawing and installation dimensions
5.Payment Item: L/C or T/T (30% deposit in advance and 70% balance paid before shipping or 100% L/C at sight).
6.Packing: Plywood packing, with foam inside for protection, does not need fumigation treatment, it's in line with export packing requirements.
From the supplier
1. Medium Voltage Current Transformers
2. Instruction
LZZW2(G)-12 outdoor current transformer is casting resin insulated, pillar structure, with protective class and fully enclosed. It is used for metering electric energy and current monitoring, relay protection in the electrical system of rated frequency 50/60Hz rated voltage 10 kV. It can be used for medial voltage AIS, or can be used for medial voltage switchgears. They can operate in all kinds of environments (such as wide range temperature (-50~60℃), high altitude, high humidity, high pollution or salt).
3. Main Technical Parameters
Rated Primary Current I1n
(A)
Rated Secondary Current I2n
(A)
Accuracy Classes
Rated Output (VA)
cosΦ=0.8
Rated Short-time Thermal Current Ith (kA/s)
Rated Dynamic Current Idyn
(kA)
Rated Insulation
Level (kV)
0.2S
0.5
5P(10P)
10~150
1
5
0.2S, 0.2, 0.5S, 0.5
5P10, 5P15, 5P20 10P10, 10P15, 10P20
15
15
20
150 I1n
2.5 Ith
12/42/75
200~250
25
63
300~400
15
20
25
31.5
80
500~600
40
100
Note: The data listed in the above table are the normal ones, or we can design them according to the customers' special requirements.
4. Outline drawing and installation dimensions
5.Payment Item: L/C or T/T (30% deposit in advance and 70% balance paid before shipping or 100% L/C at sight).
6.Packing: Plywood packing, with foam inside for protection, does not need fumigation treatment, it's in line with export packing requirements.
