Oil immersed combined transformer
Guangdong Sihui Instrument Transformer works Co Ltd
See what’s includedHide breakdown
- FOB goods (100)
- $370,000
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $9,990
- Section 301 tariff (25.0%)
- $92,500
- Customs fees (MPF/HMF)
- $1,097
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $370,000
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $9,990
- Section 301 tariff (25.0%)
- $92,500
- Customs fees (MPF/HMF)
- $1,097
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Oil immersed combined transformer
Guangdong Sihui Instrument Transformer works Co LtdSee what’s includedHide breakdown
- FOB goods (100)
- $370,000
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $9,990
- Section 301 tariff (25.0%)
- $92,500
- Customs fees (MPF/HMF)
- $1,097
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $370,000
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $9,990
- Section 301 tariff (25.0%)
- $92,500
- Customs fees (MPF/HMF)
- $1,097
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Aluminum, porcelain, iron core, enameled wire
- Size: 480*350*1800
- Color: Brown
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
About this product
- Materials: Aluminum, porcelain, iron core, enameled wire
- Size: 480*350*1800
- Color: Brown
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
Product details
| Materials | Aluminum, porcelain, iron core, enameled wire |
|---|---|
| Size | 480*350*1800 |
| Color | Brown |
Product details
| Materials | Aluminum, porcelain, iron core, enameled wire |
|---|---|
| Size | 480*350*1800 |
| Color | Brown |
From the supplier
Oil-Immersed Combined Transformer _JLD_.pdf
www.gdshp.com
1. Oil-Immersed Combined Transformer (JLD)
2. Instruction

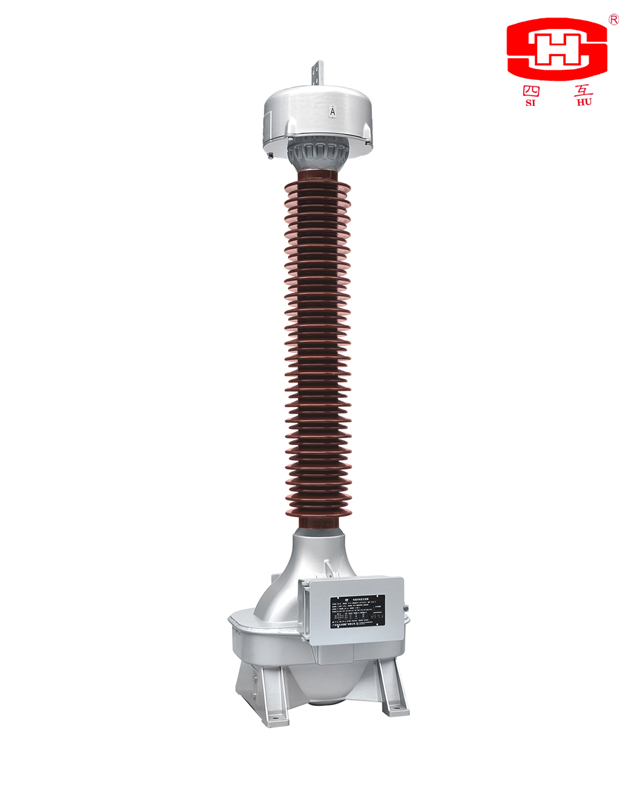

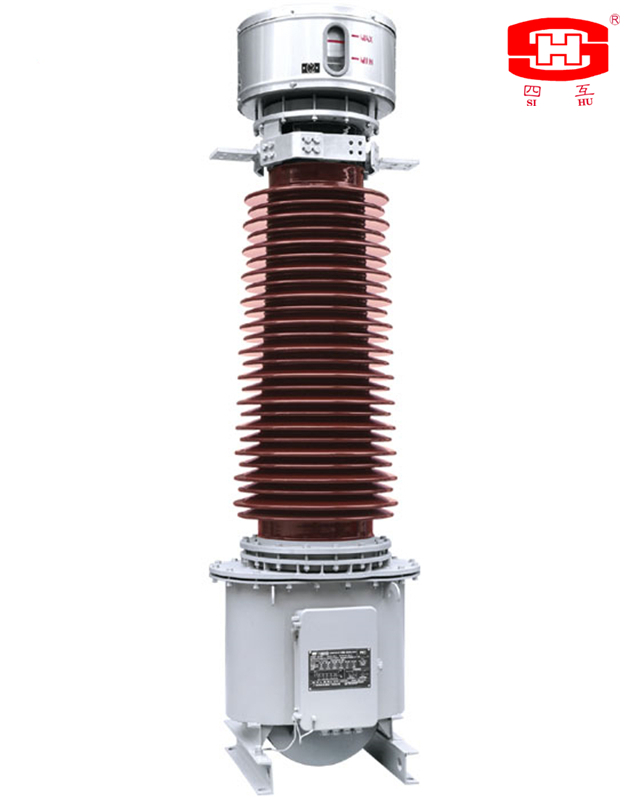

JLD-72.5 type voltage transformers are oil immersed combined current voltage transformer. The part of VT is imitation shape tank structure. The core was used cold-rolled silicon steel strip to folded. The high voltage coil adopts sectional winding method. The part of CT is inverted structure. The primary conductor passes through the center of the secondary winding and has high measurement accuracy. The secondary windings are protected within the aluminum shield. The rods part of the two body are insulated with capacitive screen structure. They are inside the porcelain bushing and reduce the amount of oil used in the transformer. We select corrugated metal expander as oil temperature variation compensator and can inspect the oil level through window. Outline dimensions drawing and structure shown in Figure 1.
