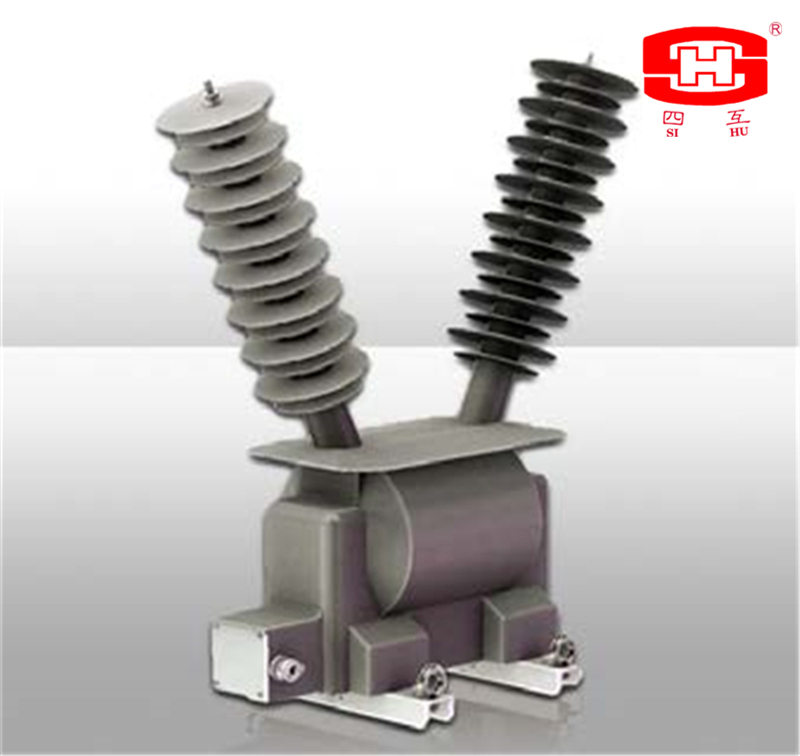

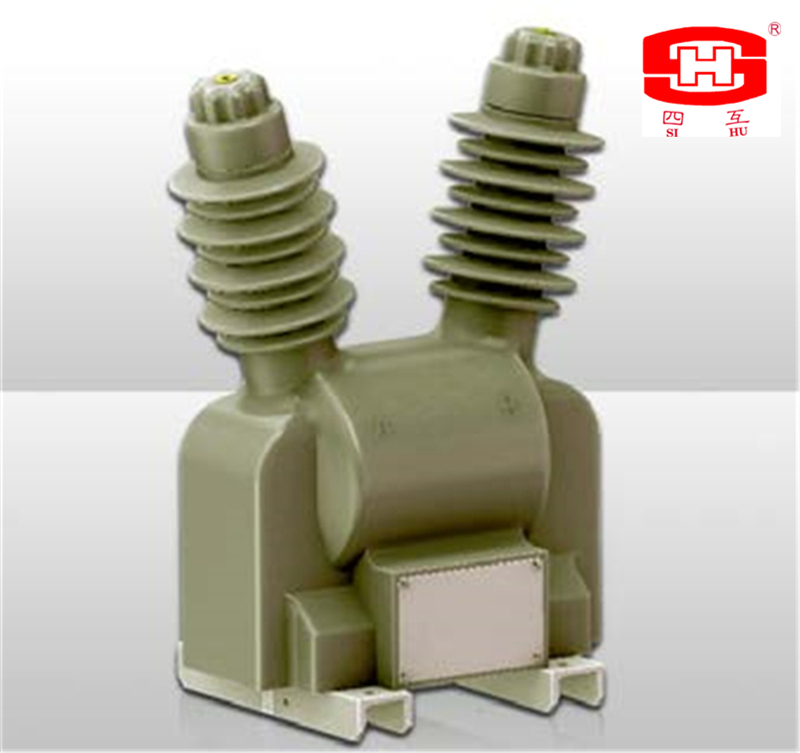

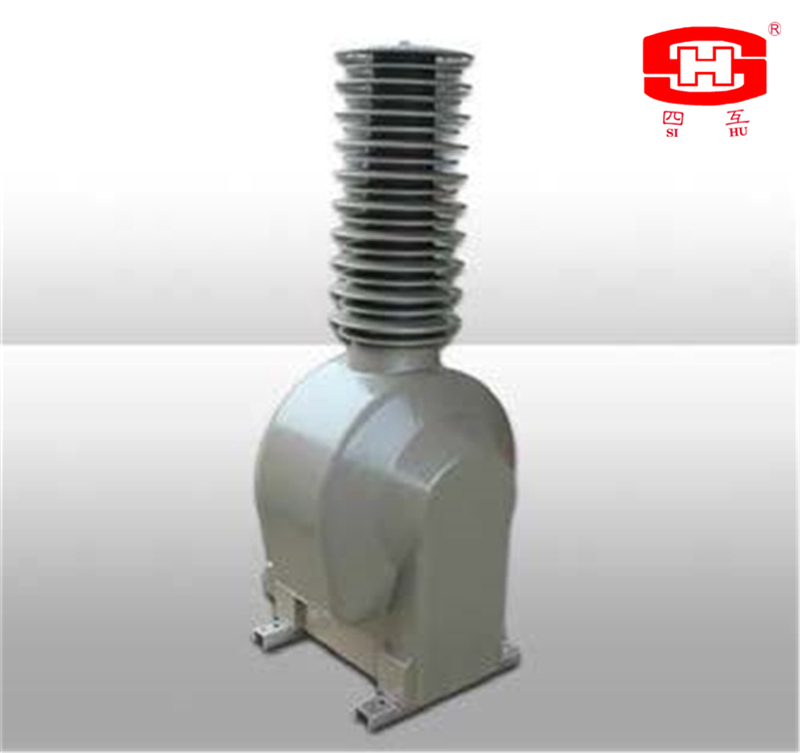

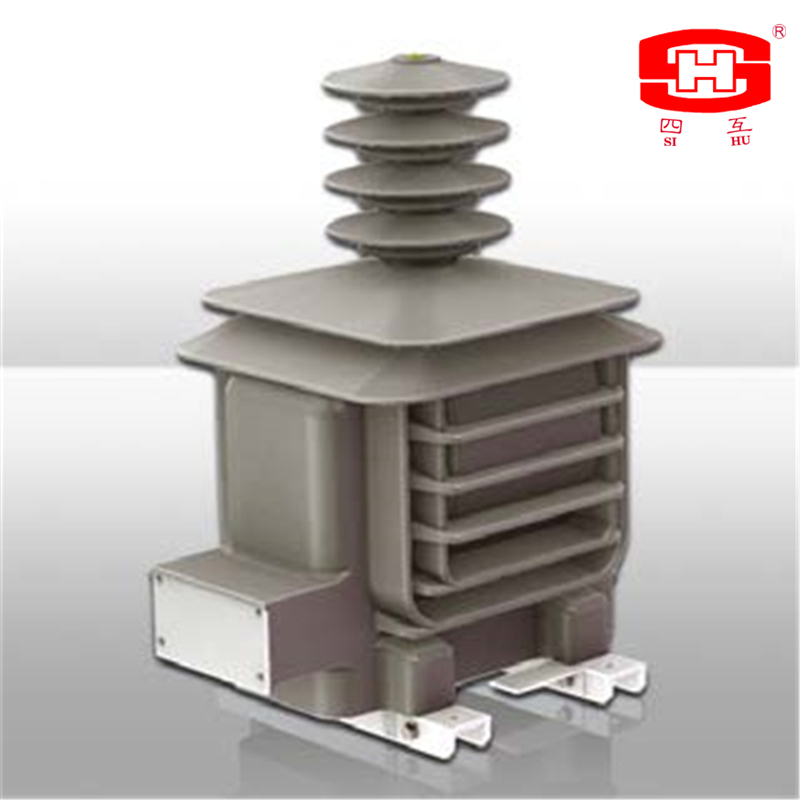

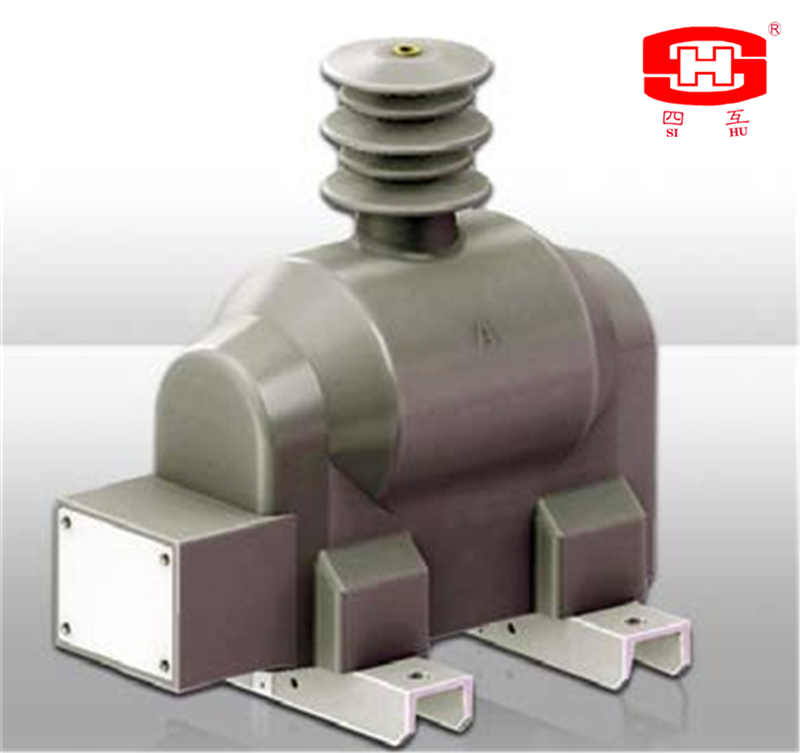

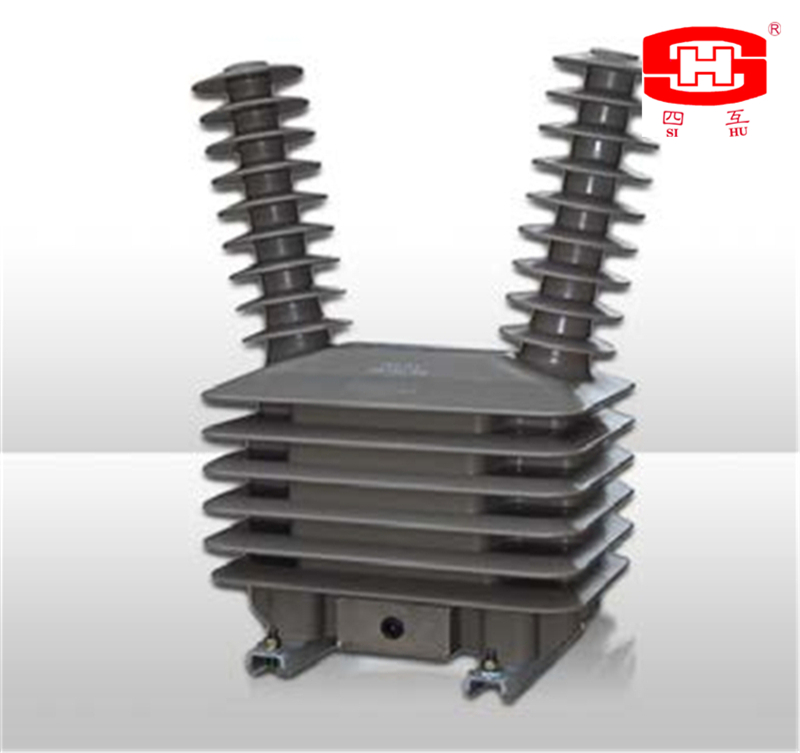

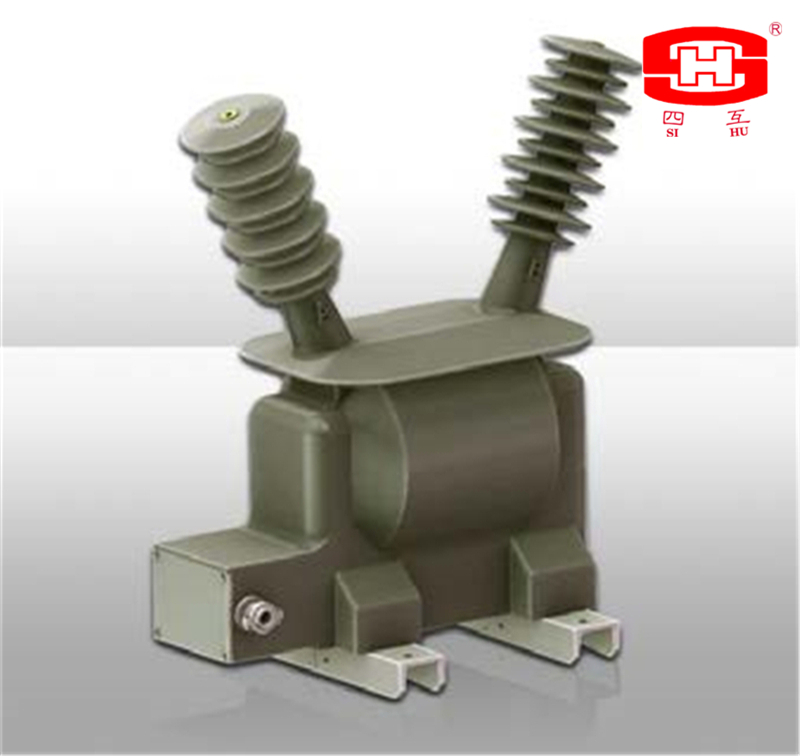

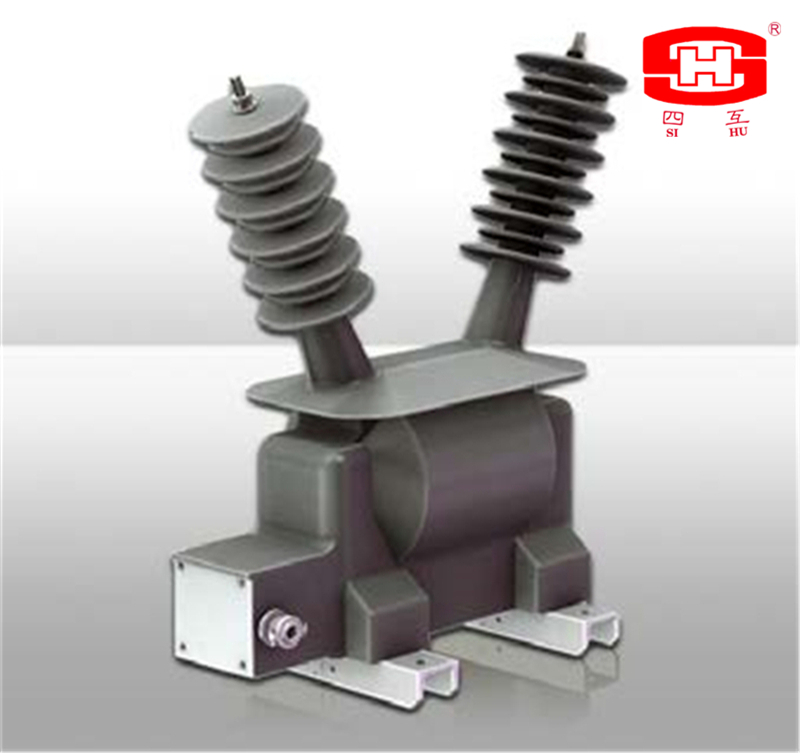

Out door Epoxy Resin Inductive Voltage Transformer
Guangdong Sihui Instrument Transformer works Co Ltd
See what’s includedHide breakdown
- FOB goods (100)
- $57,500
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $1,553
- Section 301 tariff (25.0%)
- $14,375
- Customs fees (MPF/HMF)
- $271
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $57,500
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $1,553
- Section 301 tariff (25.0%)
- $14,375
- Customs fees (MPF/HMF)
- $271
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Out door Epoxy Resin Inductive Voltage Transformer
Guangdong Sihui Instrument Transformer works Co LtdSee what’s includedHide breakdown
- FOB goods (100)
- $57,500
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $1,553
- Section 301 tariff (25.0%)
- $14,375
- Customs fees (MPF/HMF)
- $271
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $57,500
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $1,553
- Section 301 tariff (25.0%)
- $14,375
- Customs fees (MPF/HMF)
- $271
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Epoxy Resin , Iron core, Enameled wire
- Size: 344*125*22
- Color: Brown
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
About this product
- Materials: Epoxy Resin , Iron core, Enameled wire
- Size: 344*125*22
- Color: Brown
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
Product details
| Materials | Epoxy Resin , Iron core, Enameled wire |
|---|---|
| Size | 344*125*22 |
| Color | Brown |
Product details
| Materials | Epoxy Resin , Iron core, Enameled wire |
|---|---|
| Size | 344*125*22 |
| Color | Brown |
From the supplier
4. Medium Voltage Voltage Transformers.pdf
www.gdshp.com
1.Medium Voltage Voltage Transformers
2. Instruction

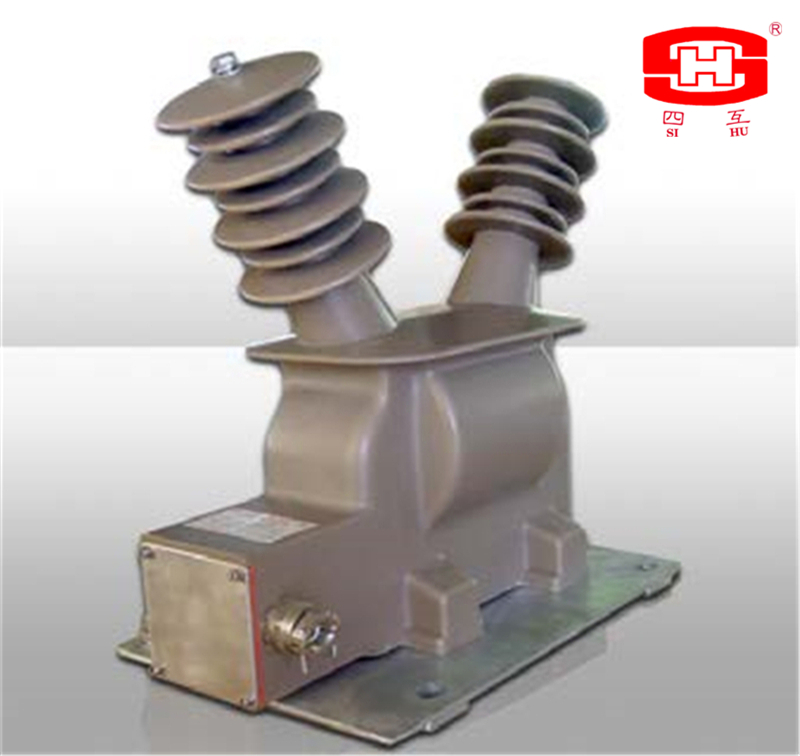

Outdoor voltage transformer of the type JDZW25(G)-20 is single phase and epoxy resin silicon rubber insulated product, it's used for metering electric energy, voltage control and relay protection in 50/60HZ rated voltage 20kV electric system.
It can be used for medial voltage AIS, or can be used for medial voltage switchgears. They can operate in all kinds of environments (such as wide range temperature (-50~60℃), high altitude, high humidity, high pollution or salt).
3. Main Technical Parameters
Rated Primary
Voltage
(kV)
Rated Secondary Voltage
(kV)
Accuracy Classes
Rated Outputs
(VA)
cosΦ=0.8
Total Limited Output
(VA)
13.8
15
15.75
20
22
0.1
0.11
0.115
0.12
0.22
0.23
0.2
10
250
0.5
30
1.0
60
3.0
120
Notes: 1) The data listed in the above table are the normal ones, or we can design them according to the customers' special requirements.
2)Standards: GB 20840.3 & IEC 61869-3.
4. Outline drawing and installation dimensions
5.Payment Item: L/C or T/T (30% deposit in advance and 70% balance paid before shipping or 100% L/C at sight).
6.Packing: Plywood packing, with foam inside for protection, does not need fumigation treatment, it's in line with export packing requirements.
From the supplier
4. Medium Voltage Voltage Transformers.pdf
www.gdshp.com
1.Medium Voltage Voltage Transformers
2. Instruction
Outdoor voltage transformer of the type JDZW25(G)-20 is single phase and epoxy resin silicon rubber insulated product, it's used for metering electric energy, voltage control and relay protection in 50/60HZ rated voltage 20kV electric system.
It can be used for medial voltage AIS, or can be used for medial voltage switchgears. They can operate in all kinds of environments (such as wide range temperature (-50~60℃), high altitude, high humidity, high pollution or salt).
3. Main Technical Parameters
Rated Primary
Voltage
(kV)
Rated Secondary Voltage
(kV)
Accuracy Classes
Rated Outputs
(VA)
cosΦ=0.8
Total Limited Output
(VA)
13.8
15
15.75
20
22
0.1
0.11
0.115
0.12
0.22
0.23
0.2
10
250
0.5
30
1.0
60
3.0
120
Notes: 1) The data listed in the above table are the normal ones, or we can design them according to the customers' special requirements.
2)Standards: GB 20840.3 & IEC 61869-3.
4. Outline drawing and installation dimensions
5.Payment Item: L/C or T/T (30% deposit in advance and 70% balance paid before shipping or 100% L/C at sight).
6.Packing: Plywood packing, with foam inside for protection, does not need fumigation treatment, it's in line with export packing requirements.
