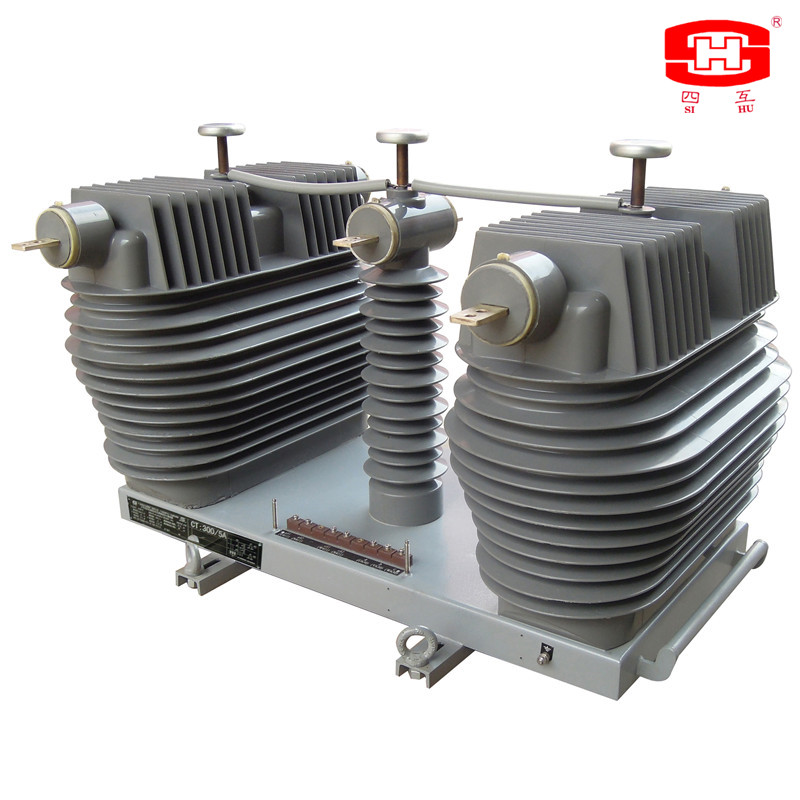

About this product
- Materials: Silicon rubber, Iron core, Enameled wire
- Size: 485*609*666
- Color: Gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
About this product
- Materials: Silicon rubber, Iron core, Enameled wire
- Size: 485*609*666
- Color: Gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
Product details
| Materials | Silicon rubber, Iron core, Enameled wire |
|---|---|
| Size | 485*609*666 |
| Color | Gray |
Product details
| Materials | Silicon rubber, Iron core, Enameled wire |
|---|---|
| Size | 485*609*666 |
| Color | Gray |
From the supplier
6. Outdoor 10kV Combined Metering Transformers_JLSGW1_.pdf
www.gdshp.com

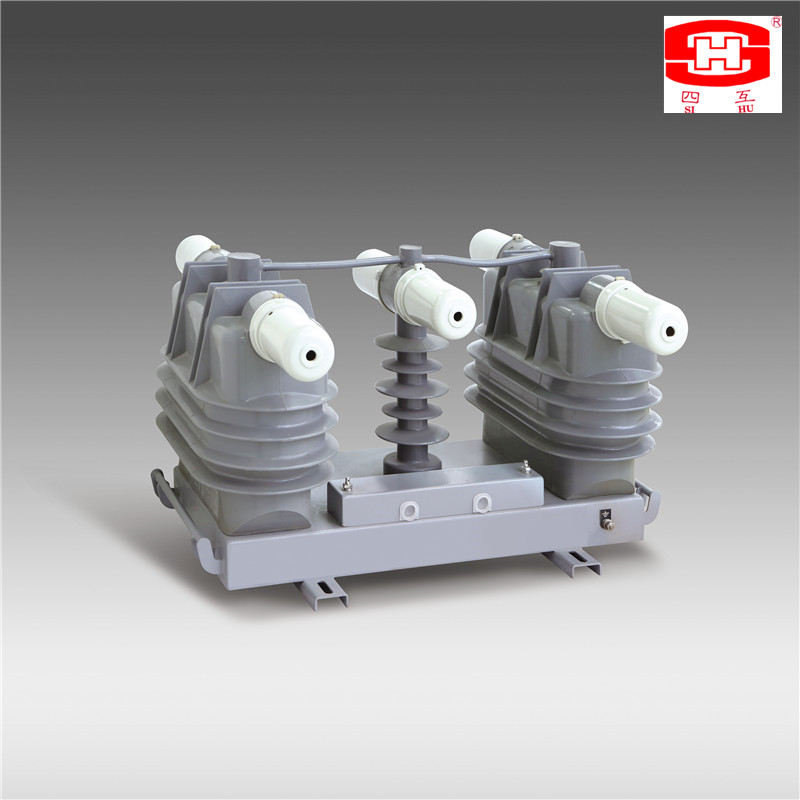

1.Outdoor 10kV Combined Metering Transformers(JLSGW1)
2.Instruction
JLSGW1-10A this combined instrument transformer is for use with electrical measuring instruments and electrical protective devices. It consists of two current transformers and two voltage transformers in the same case. Our combined instrument transformer is especially suitable for HV metering, to do so, two voltage transformers shall be connected in V type, while two current transformers connect serially to phase A and C. The instrument transformer can be fixed on the post of transmitting line. The secondary output connects directly to an independent HV metering box. Users can choose certain connection in accordance with different conditions.
3.Main Technical Parameters
Items
Frequency：50Hz No. of phase：3
VT
Rated voltage ratio（kV/kV）
10/0.1
Connection method for three phase metering
Two voltage transformers shall be connected in V type
Accuracy class
0.2
Rated secondary output（VA）
15
Limited output（VA）
500
Secondary load power factor
0.8（lag）
CT
Rated current ratio（A/A）
10~600/5
Connection method for three phase metering
2 CTs connected to A,C in primary side in serial.
Accuracy class
0.2S
Rated output（VA）
15
Secondary load power factor
0.8（lag）
Rated short-time thermal current(r.m.s) Ith（kA）
100I1n
Rated dynamic current (Peak) Idyn（kA）
2.5Ith

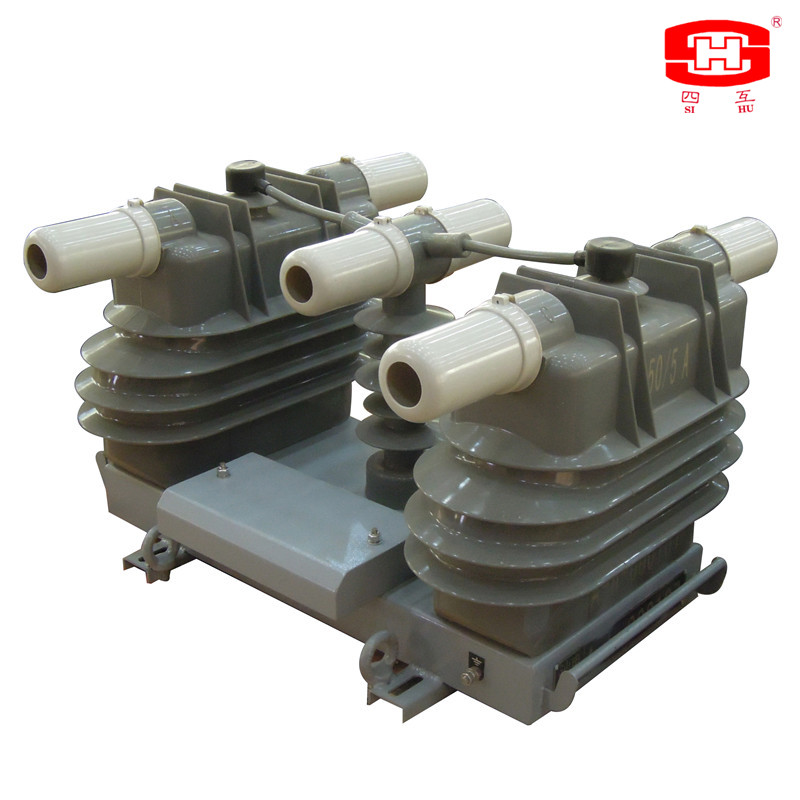

4.Product Feature
This HV measurement set consists of 2 single phase VTs, 2 single phase CTs and 1 surge arresters. The instrument transformers are insulated by outdoor epoxy resin which is suitable for outdoor use. This measurement set is with compact structure, small volume, high accuracy and excellent performance.
In order to meet the requirement of outdoor high voltage metering usage, 2 VTs are in V style connection and 2 CTs are connected serially to phase A and C. There are 2 surge arresters in the power inlet terminal. The voltage loop adopts anti-resonance design, which is rated to increase the primary current by 200% and has strong overload capacity.
5.Outline drawing and installation dimensions
6. Electrical Schematic Diagram
