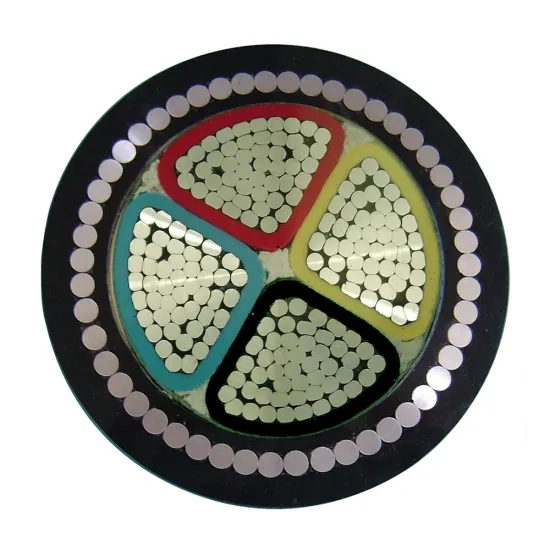

Multicore XLPE insulated PVC sheathed armored cable with aluminum conductor
shanghai qifan cable co.,ltd.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Multicore XLPE insulated PVC sheathed armored cable with aluminum conductor
shanghai qifan cable co.,ltd.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Multicore XLPE insulated PVC sheathed armored cable with aluminum conductor
- Color: Black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Shanghai, China
About this product
- Materials: Multicore XLPE insulated PVC sheathed armored cable with aluminum conductor
- Color: Black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Shanghai, China
Product details
| Materials | Multicore XLPE insulated PVC sheathed armored cable with aluminum conductor |
|---|---|
| Color | Black |
Product details
| Materials | Multicore XLPE insulated PVC sheathed armored cable with aluminum conductor |
|---|---|
| Color | Black |
From the supplier
Application:
To be used for main power supply such as in low voltage distribution power networks， indoor and outdoor areas. It can be installed in ducts, in dry or wet locations, recommended for direct burial where require higher electrical and mechanical protection.
Construction:
1. Conductor - Class 2 stranded (compacted) aluminum
2. Insulation - Cross linked polyethylene (XLPE)
3. Filler - Non-hygroscopic material
4. Binder tape - Non-hygroscopic material tape
5. Inner sheath - Polyvinyl chloride compound (PVC)
6. Armor - Galvanized steel wires
7. Binder tape - Non-hygroscopic material tape
8. Outer sheath - Polyvinyl chloride compound (PVC)
Cross Section：
2C10~2C400mm2
3C10~3C400mm2
4C10~4C400mm2
5C10~5C400mm2
2C+E16~2C+E400mm2
3C+E16~3C+E400mm2
4C+E16~4C+E400mm2
Temperature characteristics:
Conductor operating temperature: -15℃~90℃
Min. temperatrue laying condition: 0℃
Conductor emergency operating temperature: 105℃
Conductor short-circuit operating temperature (5s): 250℃
Electrical Characteristics:
Rated voltage: 0.6/1 (1.2) kV
High voltage test: 3.5kV / 5min
Color:
Insulation: According to customer requirements
Outer sheath: Black or according to customer requirements
Standard:
Cable design: IEC 60502-1 or AS/ZNS 5000.1
Conductor: IEC 60228 or AS/ZNS 1125
From the supplier
Application:
To be used for main power supply such as in low voltage distribution power networks， indoor and outdoor areas. It can be installed in ducts, in dry or wet locations, recommended for direct burial where require higher electrical and mechanical protection.
Construction:
1. Conductor - Class 2 stranded (compacted) aluminum
2. Insulation - Cross linked polyethylene (XLPE)
3. Filler - Non-hygroscopic material
4. Binder tape - Non-hygroscopic material tape
5. Inner sheath - Polyvinyl chloride compound (PVC)
6. Armor - Galvanized steel wires
7. Binder tape - Non-hygroscopic material tape
8. Outer sheath - Polyvinyl chloride compound (PVC)
Cross Section：
2C10~2C400mm2
3C10~3C400mm2
4C10~4C400mm2
5C10~5C400mm2
2C+E16~2C+E400mm2
3C+E16~3C+E400mm2
4C+E16~4C+E400mm2
Temperature characteristics:
Conductor operating temperature: -15℃~90℃
Min. temperatrue laying condition: 0℃
Conductor emergency operating temperature: 105℃
Conductor short-circuit operating temperature (5s): 250℃
Electrical Characteristics:
Rated voltage: 0.6/1 (1.2) kV
High voltage test: 3.5kV / 5min
Color:
Insulation: According to customer requirements
Outer sheath: Black or according to customer requirements
Standard:
Cable design: IEC 60502-1 or AS/ZNS 5000.1
Conductor: IEC 60228 or AS/ZNS 1125
About the supplier
Main products: Household cable, Cables
- ✓Exhibited at 6 recent Canton Fairs
- ✓Industry and Trade Company
- ✓Founded 1994
- ✓Canton Fair Premium Supplier
- ✓1 certificate on file
Light & Electrical exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
- Exhibited at 6 recent Canton Fairs
- Industry and Trade Company
- Founded 1994
- Canton Fair Premium Supplier
