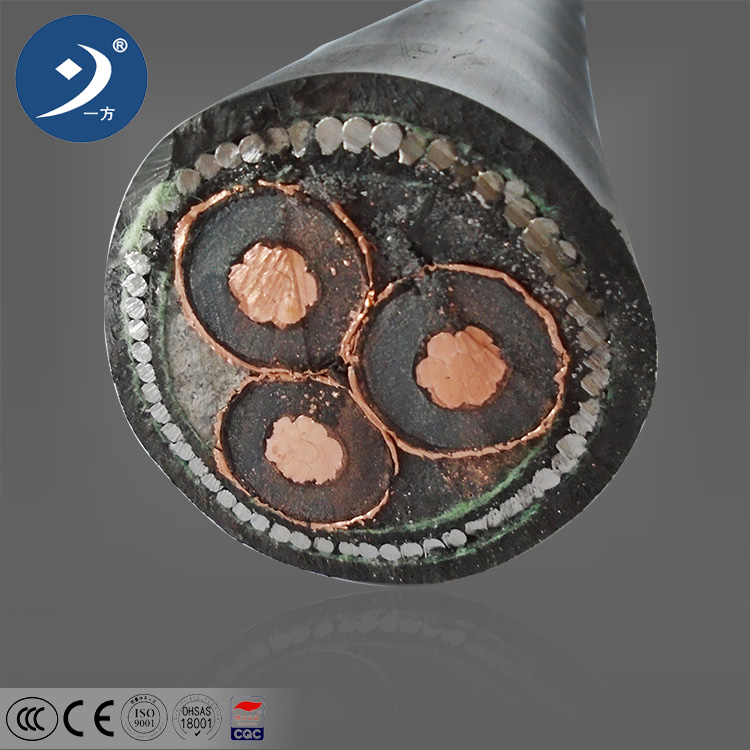

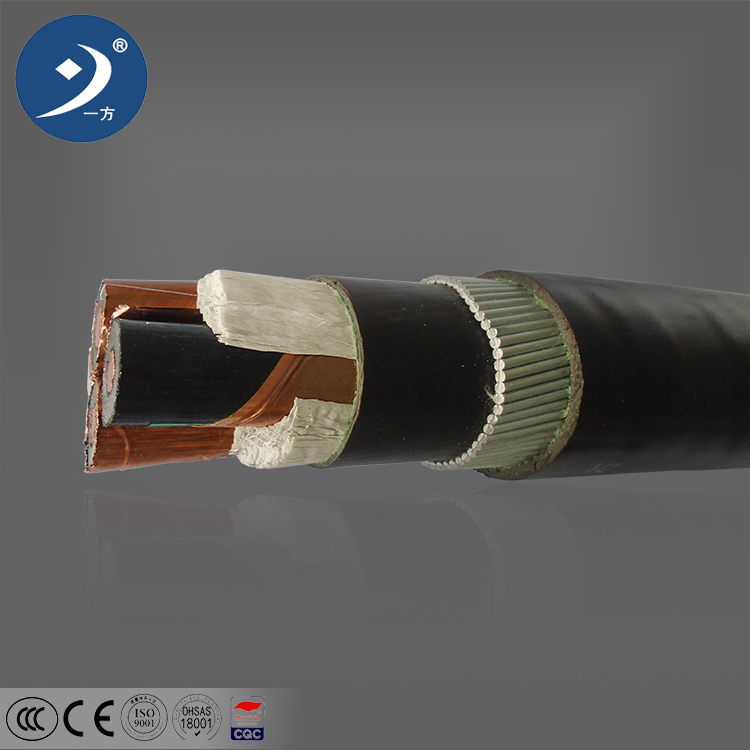

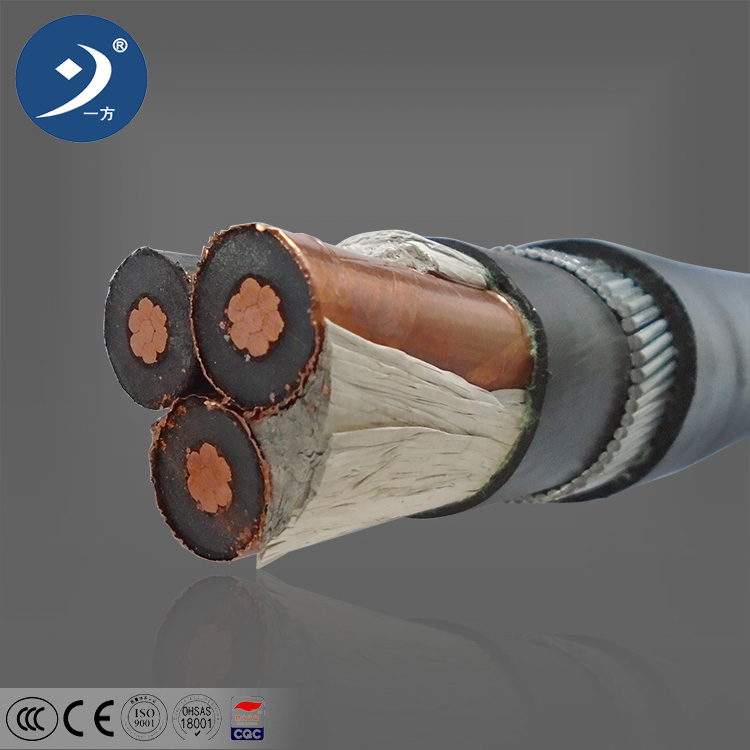

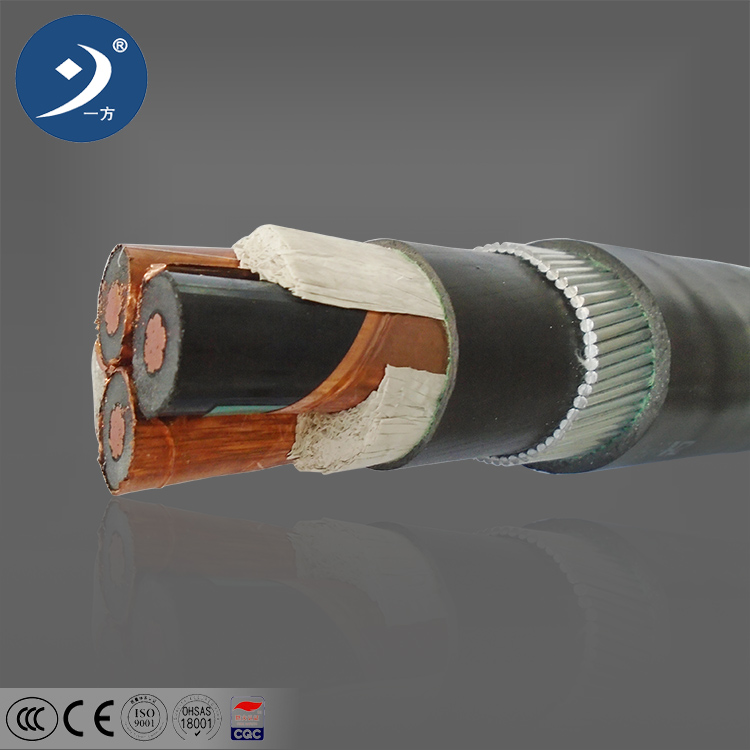

5～46kV Three Core XLPE Insulation Power Cable
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
5～46kV Three Core XLPE Insulation Power Cable
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: XLPE insulated + PVC sheathed + Cooper
- Size: 60mm*60mm
- Color: Black , Accept customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Henan, China
About this product
- Materials: XLPE insulated + PVC sheathed + Cooper
- Size: 60mm*60mm
- Color: Black , Accept customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Henan, China
Product details
| Materials | XLPE insulated + PVC sheathed + Cooper |
|---|---|
| Size | 60mm*60mm |
| Color | Black , Accept customized |
From the supplier
1.Application
Cross-linked polyethylene insulated power cable not only has excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat aging and environmental stress. Its structure is simple. The long term operating temperature is 90℃.It is convenient to use and can be laid with no restriction of different level. Our enterprise can produce both flame retardant and non-flame retardant series of XLPE power cable.
2.Construction
Scope of voltage grade and core number and cross-section
a) National standard
Rated Voltage (kV)
3.6/6
6/6
6/10
8.7/10
8.7/15
12/15
12/20
18/20
18/30
21/35
26/35
Core Number
1Core 3Core
Cross-section
mm2
1C
25～800
35～800
3C
25～400
35～400
b) IEC/BS/DIN standard
Rated Voltage (kV)
3.6/6
6/10
6.35/11
8.7/10
8.7/15
12/15
12/20
18/20
18/30
21/35
26/35
Core Number
1Core 3Core
Cross-section
mm2
1C
25～800
35～800
3C
25～400
35～400
c) ASTM standard
Rated Voltage (V)
5001-8000
8001-15000
15001-25000
25001-28000
28001-35000
35000-46000
Core Number
1Core 3Core
Cross-section
AWG or kcmil
1C
6AWG～1600kcmil
2AWG～1600kcmil
1AWG～1600kcmil
2AWG～1600kcmil
1/0AWG～1600kcmil
3C
6AWG～1600kcmil
2AWG～1600kcmil
1AWG～1600kcmil
2AWG～1600kcmil
4/0AWG～1600kcmil
3.CharacteristicD.C Resistance of finished cable at 20℃ per km is not more than the following:
Service conditions and operation parameters of Cable
A) Max. conductor operating temperature: 90℃
B) Short Circuit Temperature:250℃
C) Ambient temperature: 30℃
D) Soil temperature: 20℃
E) Depth of laying in direct : 0.8m
F) Thermal Resistance of soil : 150℃.cm/W
G) Thermal Resistance of ducts : 120℃.cm/W
4.Standard
Our XLPE Power cable can be produced according to our works’ specifications, which are equivalent to IEC, DIN, BS and ASTM, and its some indexes are superior to standards stated above.
5.cable type and main application
Type
Description
Main Application
Cu core
Al core
YJV
YJLV
Copper 、aluminum XLPE insulated PVC sheathed power cable
Suitable for indoor use, tunnels, pipes and cable trenches, and can also be laid in loose soil without mechanical strain and pressure
YJY
YJLY
Copper 、aluminum XLPE insulated PE sheathed power cable
YJV22
YJLV22
Copper 、aluminum XLPE seel tape armor PVC sheathed power cable
It is suitable for laying indoors, tunnels, pipelines, cable trenches and underground directly. Cables can withstand mechanical pressure, but cannot withstand large pulling forces.
YJY23
YJLY23
Copper 、aluminum XLPE seel tape armor PE sheathed power cable
YJV32
YJLV32
Copper 、aluminum XLPE insulated thin seel wire armor PVC sheathed power cable
It is suitable for laying in vertical shaft, underwater and under drop or vertical conditions. The cable can withstand mechanical pressure and considerable pulling force.
YJY33
YJLY33
Copper 、aluminum XLPE insulated thin seel wire armor PE sheathed power cable
YJV42
YJLV42
Copper 、aluminum XLPE insulated thick seel wire armor PVC sheathed power cable
It is suitable for laying on water, seabed, or with a drop or vertical, and can withstand large mechanical pressure and pulling force.
YJY43
YJLY43
Copper 、aluminum XLPE insulated thick seel wire armor PE sheathed power cable
Note: The performance of flame-retardant and fire-resistant series cables meets the requirements of GB / T 19666-2005 "General Rules for Flame-retardant and Fire-Resistant Wires and Cables". The model representation method is to add the combustion characteristics symbol in front of the above conventional models, and connect with "-" in the middle.
