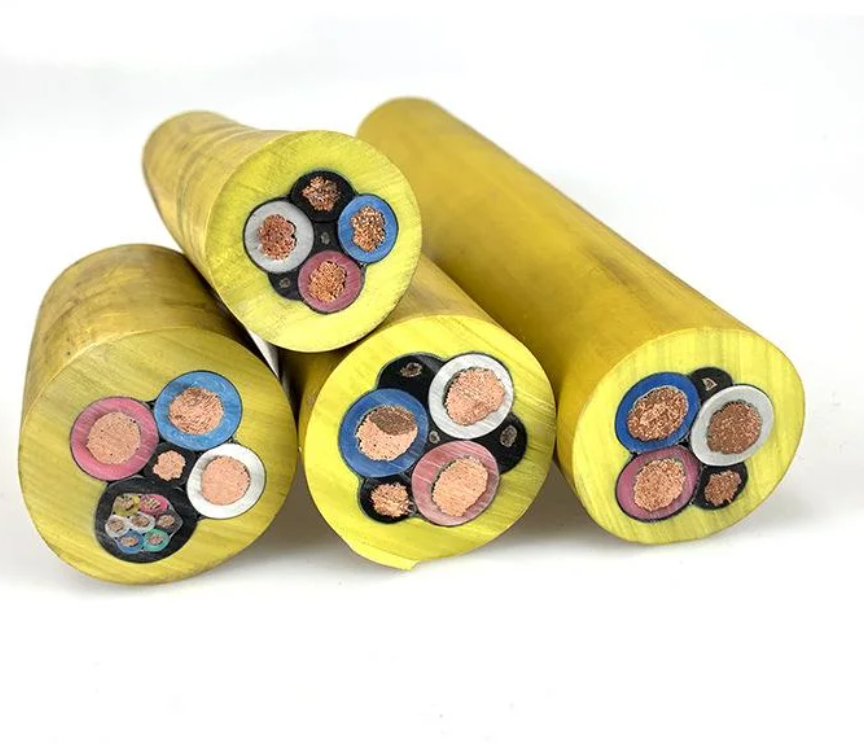

Low Voltage Mining Epr Insulation Neoprene Sheath Flexible Rubber Cable
shanghai qifan cable co.,ltd.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Low Voltage Mining Epr Insulation Neoprene Sheath Flexible Rubber Cable
shanghai qifan cable co.,ltd.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Sheath material: Other
- Conductor material: Other
- Brand: Other
- Application: Heating
- Conductor type: Other
- Material shape: RoundWire
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries
About this product
- Sheath material: Other
- Conductor material: Other
- Brand: Other
- Application: Heating
- Conductor type: Other
- Material shape: RoundWire
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries
Product details
| Sheath material | Other |
|---|---|
| Conductor material | Other |
| Brand | Other |
| Application | Heating |
| Conductor type | Other |
| Material shape | RoundWire |
| Certification | CCCCERoHSVDEISO9001 |
| Insulation material | SiliconeRubber |
| Rangeof application | Cold-ResistantFlameRetardantRefractoryLSOH |
Product details
| Sheath material | Other |
|---|---|
| Conductor material | Other |
| Brand | Other |
| Application | Heating |
| Conductor type | Other |
| Material shape | RoundWire |
| Certification | CCCCERoHSVDEISO9001 |
| Insulation material | SiliconeRubber |
| Rangeof application | Cold-ResistantFlameRetardantRefractoryLSOH |
From the supplier
Cable model
MYP-0.38/0.66kV
Scope of application
This product is suitable for underground coal mining
with the rated voltage not exceeding 0.38/0.66kV
Power connection of the device.
Construction of cable
electric conductor
The fifth soft copper conductor
Insulation
Power wire core: EPR
Ground wire core: semi-conductive rubber
Filled (optional)
Rubber tape or fiberglass rope
Sheath
A mixture of chlorinated polyethylene or other comparable materials (CPE)
Product standard
ICEA73582
Specifications range
3-core power main core: 4~150mm
Technical Parameter
Rated voltage (U 0 / U)
0.38/0.66kV
Maximum system voltage (Um)
A 1.1 x the excess of the U
Temperature Grade
Maximum operating temperature of the conductor: + 75℃
Ambient temperature: -20℃ ~ + 45℃
Cable laying temperature: not less than 0℃ (when the ambient temperature is less than 0℃,
Cables shall be preheated minimum bending radius
6D (D is the actual outer diameter of the cable
Laying method
The laying of underground cables in coal mine is divided into flat lane or well lane and chamber below 45℃
Method of laying neutralization vertical shaft or roadway or drilling above 45℃.
Finished product voltage test
Stranded bare Conductor ：3.0kV/5m
Wire core recognition
3 Main core: ● red and white ● light blue
Ground wire core: ● black
Out Sheath color
● black
Finished cable Power wire core voltage test : 3.0kV / 5min
Mode
2
mm
Power Core Conductor Dia. mm
Power Core Insulation Nom.Thickness
mm
Sheath Thickness
mm
Cable Diameter Range mm
3×25+1×16
7.0
1.8
4.5
35.5～41.0
3×35+1×16
8.0
1.8
4.5
38.5～44.5
3×50+1×16
9.6
2.0
5.0
44.5～51.0
3×70+1×25
11.5
2.0
5.0
49.0～56.0
3×95+1×25
13.3
2.2
5.5
55.5～63.0
3×120+1×35
15.0
2.2
5.5
59.0～67.0
3×150+1×50
16.8
2.4
6.0
65.5～74.0
From the supplier
Cable model
MYP-0.38/0.66kV
Scope of application
This product is suitable for underground coal mining
with the rated voltage not exceeding 0.38/0.66kV
Power connection of the device.
Construction of cable
electric conductor
The fifth soft copper conductor
Insulation
Power wire core: EPR
Ground wire core: semi-conductive rubber
Filled (optional)
Rubber tape or fiberglass rope
Sheath
A mixture of chlorinated polyethylene or other comparable materials (CPE)
Product standard
ICEA73582
Specifications range
3-core power main core: 4~150mm
Technical Parameter
Rated voltage (U 0 / U)
0.38/0.66kV
Maximum system voltage (Um)
A 1.1 x the excess of the U
Temperature Grade
Maximum operating temperature of the conductor: + 75℃
Ambient temperature: -20℃ ~ + 45℃
Cable laying temperature: not less than 0℃ (when the ambient temperature is less than 0℃,
Cables shall be preheated minimum bending radius
6D (D is the actual outer diameter of the cable
Laying method
The laying of underground cables in coal mine is divided into flat lane or well lane and chamber below 45℃
Method of laying neutralization vertical shaft or roadway or drilling above 45℃.
Finished product voltage test
Stranded bare Conductor ：3.0kV/5m
Wire core recognition
3 Main core: ● red and white ● light blue
Ground wire core: ● black
Out Sheath color
● black
Finished cable Power wire core voltage test : 3.0kV / 5min
Mode
2
mm
Power Core Conductor Dia. mm
Power Core Insulation Nom.Thickness
mm
Sheath Thickness
mm
Cable Diameter Range mm
3×25+1×16
7.0
1.8
4.5
35.5～41.0
3×35+1×16
8.0
1.8
4.5
38.5～44.5
3×50+1×16
9.6
2.0
5.0
44.5～51.0
3×70+1×25
11.5
2.0
5.0
49.0～56.0
3×95+1×25
13.3
2.2
5.5
55.5～63.0
3×120+1×35
15.0
2.2
5.5
59.0～67.0
3×150+1×50
16.8
2.4
6.0
65.5～74.0
