Electric equipment
3.6/6(7.2)kv Xlpe Insulation Armored Power Cable
shanghai qifan cable co.,ltd.6/10 fairsIndustry and Trade CompanyModel YJLV72
Exhibiting on site
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
3.6/6(7.2)kv Xlpe Insulation Armored Power Cable
shanghai qifan cable co.,ltd.6/10 fairsIndustry and Trade CompanyModel YJLV72
Exhibiting on site
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Color: Black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Shanghai, China
About this product
- Color: Black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Shanghai, China
Product details
| Color | Black |
|---|
Product details
| Color | Black |
|---|
From the supplier

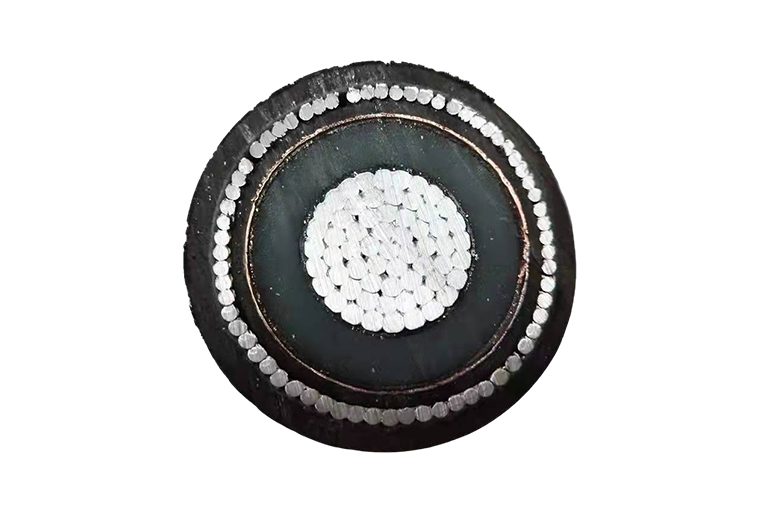

3.6/6(7.2)KV XLPE INSULATION ARMORED POWER CABLE
To be used for power distribution in medium voltage, as transformer feeders in substations. In power plants, industrial and operation installations, in residential areas and mining installations, in dry or wet locations, fixed installed in air, directly buried in the ground or in ducts, where require higher mechanical protection.
& CSA Conductor XLPE insulation Copper tape screen Aluminum wire armor Outer sheath Weight kg/km Approx. diameter mm Nominal thickness mm Nominal thickness mm Nominal diameter of Aluminum wire mm Nominal thickness mm Diameter mm YJV72(CU) YJLV72(AL) 1*25 6.0 2.5 0.12 1.6 1.8 24.4 885 733 1*35 7.0 2.5 0.12 1.6 1.8 25.4 1014 802 1*50 8.2 2.5 0.12 1.6 1.8 26.6 1171 884 1*70 10.0 2.5 0.12 1.6 1.9 28.6 1451 1029 1*95 11.6 2.5 0.12 1.6 1.9 30.2 1746 1166 1*120 13.0 2.5 0.12 1.6 2.0 31.8 2040 1309 1*150 14.6 2.5 0.12 2.0 2.0 34.2 2457 1545 1*185 16.2 2.5 0.12 2.0 2.1 36.0 2867 1729 1*240 18.4 2.6 0.12 2.0 2.2 38.6 3489 2014 1*300 20.6 2.8 0.12 2.0 2.3 41.4 4164 2320 1*400 23.8 3.0 0.12 2.5 2.4 46.4 5351 2939 1*500 26.6 3.2 0.12 2.5 2.5 50.1 6515 3453 1*630 30.0 3.2 0.12 2.5 2.6 53.9 7988 4070 1*800 34.0 3.2 0.12 2.5 2.8 58.5 9824 4838

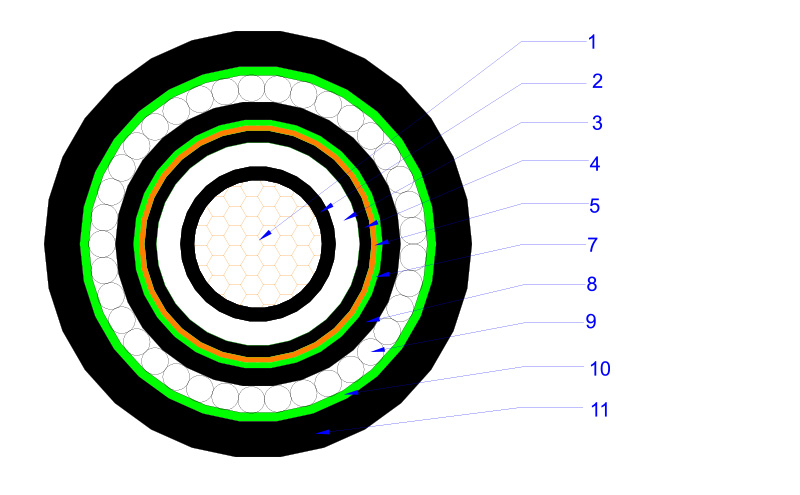

Table1 Single core CU(AL)/XLPE/CTS/PVC/AWA/PVC
No.
& CSA Conductor XLPE insulation Copper tape screen Aluminum wire armor Outer sheath Weight kg/km Approx. diameter mm Nominal thickness mm Nominal thickness mm Nominal diameter of Aluminum wire mm Nominal thickness mm Diameter mm YJV72(CU) YJLV72(AL) 1*25 6.0 2.5 0.12 1.6 1.8 24.4 885 733 1*35 7.0 2.5 0.12 1.6 1.8 25.4 1014 802 1*50 8.2 2.5 0.12 1.6 1.8 26.6 1171 884 1*70 10.0 2.5 0.12 1.6 1.9 28.6 1451 1029 1*95 11.6 2.5 0.12 1.6 1.9 30.2 1746 1166 1*120 13.0 2.5 0.12 1.6 2.0 31.8 2040 1309 1*150 14.6 2.5 0.12 2.0 2.0 34.2 2457 1545 1*185 16.2 2.5 0.12 2.0 2.1 36.0 2867 1729 1*240 18.4 2.6 0.12 2.0 2.2 38.6 3489 2014 1*300 20.6 2.8 0.12 2.0 2.3 41.4 4164 2320 1*400 23.8 3.0 0.12 2.5 2.4 46.4 5351 2939 1*500 26.6 3.2 0.12 2.5 2.5 50.1 6515 3453 1*630 30.0 3.2 0.12 2.5 2.6 53.9 7988 4070 1*800 34.0 3.2 0.12 2.5 2.8 58.5 9824 4838
From the supplier
3.6/6(7.2)KV XLPE INSULATION ARMORED POWER CABLE
To be used for power distribution in medium voltage, as transformer feeders in substations. In power plants, industrial and operation installations, in residential areas and mining installations, in dry or wet locations, fixed installed in air, directly buried in the ground or in ducts, where require higher mechanical protection.
& CSA Conductor XLPE insulation Copper tape screen Aluminum wire armor Outer sheath Weight kg/km Approx. diameter mm Nominal thickness mm Nominal thickness mm Nominal diameter of Aluminum wire mm Nominal thickness mm Diameter mm YJV72(CU) YJLV72(AL) 1*25 6.0 2.5 0.12 1.6 1.8 24.4 885 733 1*35 7.0 2.5 0.12 1.6 1.8 25.4 1014 802 1*50 8.2 2.5 0.12 1.6 1.8 26.6 1171 884 1*70 10.0 2.5 0.12 1.6 1.9 28.6 1451 1029 1*95 11.6 2.5 0.12 1.6 1.9 30.2 1746 1166 1*120 13.0 2.5 0.12 1.6 2.0 31.8 2040 1309 1*150 14.6 2.5 0.12 2.0 2.0 34.2 2457 1545 1*185 16.2 2.5 0.12 2.0 2.1 36.0 2867 1729 1*240 18.4 2.6 0.12 2.0 2.2 38.6 3489 2014 1*300 20.6 2.8 0.12 2.0 2.3 41.4 4164 2320 1*400 23.8 3.0 0.12 2.5 2.4 46.4 5351 2939 1*500 26.6 3.2 0.12 2.5 2.5 50.1 6515 3453 1*630 30.0 3.2 0.12 2.5 2.6 53.9 7988 4070 1*800 34.0 3.2 0.12 2.5 2.8 58.5 9824 4838
Table1 Single core CU(AL)/XLPE/CTS/PVC/AWA/PVC
No.
& CSA Conductor XLPE insulation Copper tape screen Aluminum wire armor Outer sheath Weight kg/km Approx. diameter mm Nominal thickness mm Nominal thickness mm Nominal diameter of Aluminum wire mm Nominal thickness mm Diameter mm YJV72(CU) YJLV72(AL) 1*25 6.0 2.5 0.12 1.6 1.8 24.4 885 733 1*35 7.0 2.5 0.12 1.6 1.8 25.4 1014 802 1*50 8.2 2.5 0.12 1.6 1.8 26.6 1171 884 1*70 10.0 2.5 0.12 1.6 1.9 28.6 1451 1029 1*95 11.6 2.5 0.12 1.6 1.9 30.2 1746 1166 1*120 13.0 2.5 0.12 1.6 2.0 31.8 2040 1309 1*150 14.6 2.5 0.12 2.0 2.0 34.2 2457 1545 1*185 16.2 2.5 0.12 2.0 2.1 36.0 2867 1729 1*240 18.4 2.6 0.12 2.0 2.2 38.6 3489 2014 1*300 20.6 2.8 0.12 2.0 2.3 41.4 4164 2320 1*400 23.8 3.0 0.12 2.5 2.4 46.4 5351 2939 1*500 26.6 3.2 0.12 2.5 2.5 50.1 6515 3453 1*630 30.0 3.2 0.12 2.5 2.6 53.9 7988 4070 1*800 34.0 3.2 0.12 2.5 2.8 58.5 9824 4838
