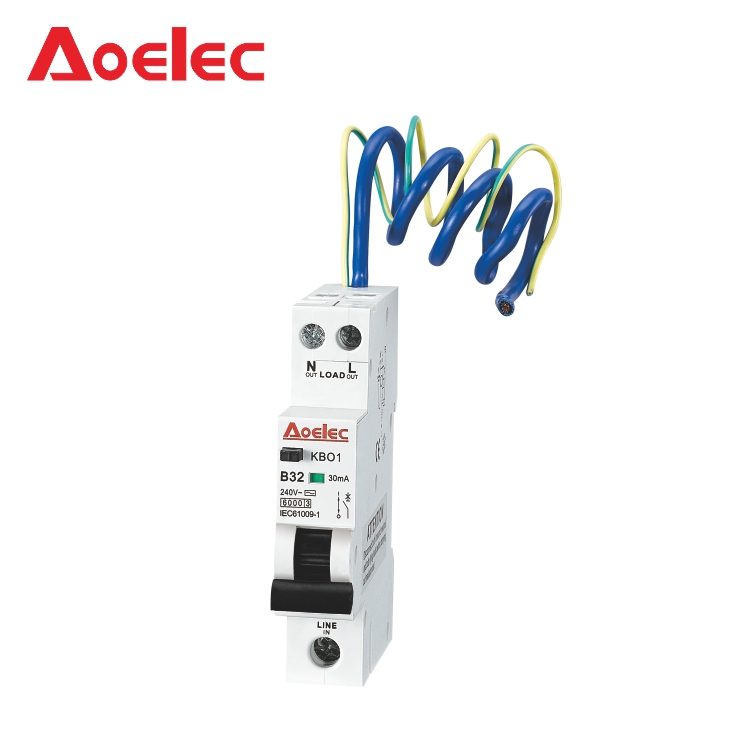

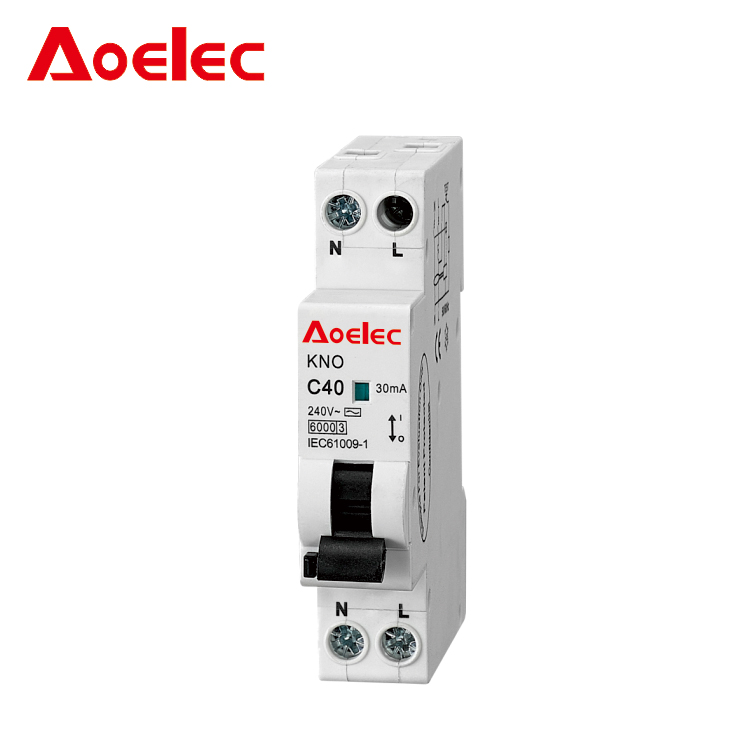

Residual Circuit Breaker Overcurrent
SHANGHAI YONGJI ELECTRICAL CO.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
Residual Circuit Breaker Overcurrent
SHANGHAI YONGJI ELECTRICAL CO.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Size: 81
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Size: 81
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Size | 81 |
|---|
Product details
| Size | 81 |
|---|
From the supplier
Construction and Feature
Operating machanism adopt double contact with DPN form, N pole opening first, then breaking.
Leakage protecion adopt electronic type integrated circuit, Contact ON/OFF state display.
Trigger has middle-position function and a clamshell to put tags in and characteristic stripes on both sides.
Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolation.
Technical Data
Residual current characteristics: AC, A
Pole No.: 1P+N
Tripping curve: B, C
Rated short-circuit breaking capacity: 4.5kA
Rated current (A): 6, 10, 16, 20, 25, 32
Rated voltage: 240V
Rated frequency: 50Hz
Rated residual operating current(A): 0.03
Tripping duration: instantaneous≤0.1s
Electro-mechanical endurance: 4000 cycles
From the supplier
Construction and Feature
Operating machanism adopt double contact with DPN form, N pole opening first, then breaking.
Leakage protecion adopt electronic type integrated circuit, Contact ON/OFF state display.
Trigger has middle-position function and a clamshell to put tags in and characteristic stripes on both sides.
Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolation.
Technical Data
Residual current characteristics: AC, A
Pole No.: 1P+N
Tripping curve: B, C
Rated short-circuit breaking capacity: 4.5kA
Rated current (A): 6, 10, 16, 20, 25, 32
Rated voltage: 240V
Rated frequency: 50Hz
Rated residual operating current(A): 0.03
Tripping duration: instantaneous≤0.1s
Electro-mechanical endurance: 4000 cycles
