LFS-01 Vacuum Pressure Switch Vacuum cleaner pneumatic switch vacuum machine pressure switch micro positive and negative pressure switch
ZHEJIANG LEFOO CONTROLS CO., LTD.
See what’s includedHide breakdown
- FOB goods (1,000)
- $521
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (2.7%)
- $14
- Section 301 tariff (25.0%)
- $130
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (1,000)
- $521
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (2.7%)
- $14
- Section 301 tariff (25.0%)
- $130
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
LFS-01 Vacuum Pressure Switch Vacuum cleaner pneumatic switch vacuum machine pressure switch micro positive and negative pressure switch
ZHEJIANG LEFOO CONTROLS CO., LTD.See what’s includedHide breakdown
- FOB goods (1,000)
- $521
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (2.7%)
- $14
- Section 301 tariff (25.0%)
- $130
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (1,000)
- $521
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (2.7%)
- $14
- Section 301 tariff (25.0%)
- $130
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 25.5*19*19.2
- Color: Pink
- Size: Min
- Feature: Other
- Material: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Size: 25.5*19*19.2
- Color: Pink
- Size: Min
- Feature: Other
- Material: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Size | 25.5*19*19.2 |
|---|---|
| Color | Pink |
| Size | Min |
| Feature | Other |
| Material | Other |
Product details
| Size | 25.5*19*19.2 |
|---|---|
| Color | Pink |
| Size | Min |
| Feature | Other |
| Material | Other |
From the supplier

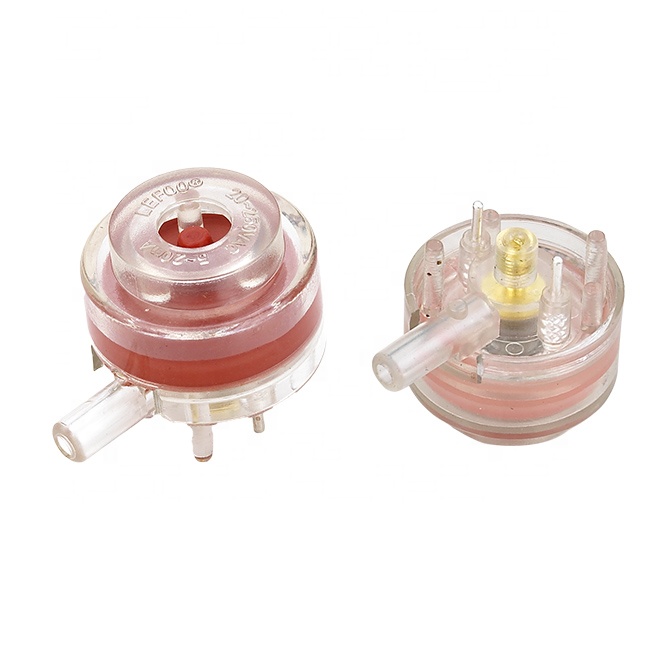

LFS-01 vacuum pressure switch is applied to the detection of both negative and positive pressure, such as the family vacuum cleaner.
It is provided with solder pin connections and is specially designed for mounting on "Printed Circuit Boards", but can also be provided with different wire leads, terminals, and socket. It is designed as an economical interface between pressure systems and Printed Circuit Boards with almost no hysteresis.
Specification
Model
LFS-01
Electrical Function
1 pole NO
Switch Rating
20 mA, 250 V [ cULus ]
Temperature
-10~95°C
Electrical Connections
Solder pins 1.0 mm, 10mm between away from each other; or wire leads with different insulation, diameter and length, socket
Pressure Range
Vacuum: 10mbar to 800mbar Pressure: 10mbar to 500mbar (1mbar=100Pa)
Sample Line Connections
Inlet 4.0 mm for tube connection
Medium
Non-hazardous gas only
Fixing Methods
Soldering on PCB
Agency ApprovalUL, CULMaterial
Housing
Polycarbonate
Contact Carrying Parts
Brass Silver Plated (Gold plating on request)
Membrane
Silicone Rubber
From the supplier
LFS-01 vacuum pressure switch is applied to the detection of both negative and positive pressure, such as the family vacuum cleaner.
It is provided with solder pin connections and is specially designed for mounting on "Printed Circuit Boards", but can also be provided with different wire leads, terminals, and socket. It is designed as an economical interface between pressure systems and Printed Circuit Boards with almost no hysteresis.
Specification
Model
LFS-01
Electrical Function
1 pole NO
Switch Rating
20 mA, 250 V [ cULus ]
Temperature
-10~95°C
Electrical Connections
Solder pins 1.0 mm, 10mm between away from each other; or wire leads with different insulation, diameter and length, socket
Pressure Range
Vacuum: 10mbar to 800mbar Pressure: 10mbar to 500mbar (1mbar=100Pa)
Sample Line Connections
Inlet 4.0 mm for tube connection
Medium
Non-hazardous gas only
Fixing Methods
Soldering on PCB
Agency ApprovalUL, CULMaterial
Housing
Polycarbonate
Contact Carrying Parts
Brass Silver Plated (Gold plating on request)
Membrane
Silicone Rubber
