LFS-03 Miniature Pressure Vacuum Control Vacuum cleaner pressure switch vacuum packing machine pressure switch pneumatic switch
ZHEJIANG LEFOO CONTROLS CO., LTD.
See what’s includedHide breakdown
- FOB goods (1,000)
- $521
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (2.7%)
- $14
- Section 301 tariff (25.0%)
- $130
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (1,000)
- $521
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (2.7%)
- $14
- Section 301 tariff (25.0%)
- $130
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
LFS-03 Miniature Pressure Vacuum Control Vacuum cleaner pressure switch vacuum packing machine pressure switch pneumatic switch
ZHEJIANG LEFOO CONTROLS CO., LTD.See what’s includedHide breakdown
- FOB goods (1,000)
- $521
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (2.7%)
- $14
- Section 301 tariff (25.0%)
- $130
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (1,000)
- $521
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (2.7%)
- $14
- Section 301 tariff (25.0%)
- $130
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 31.8*34.5
- Color: Black
- Material: Other
- Size: Miniature
- Feature: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Size: 31.8*34.5
- Color: Black
- Material: Other
- Size: Miniature
- Feature: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Size | 31.8*34.5 |
|---|---|
| Color | Black |
| Material | Other |
| Size | Miniature |
| Feature | Other |
Product details
| Size | 31.8*34.5 |
|---|---|
| Color | Black |
| Material | Other |
| Size | Miniature |
| Feature | Other |
From the supplier

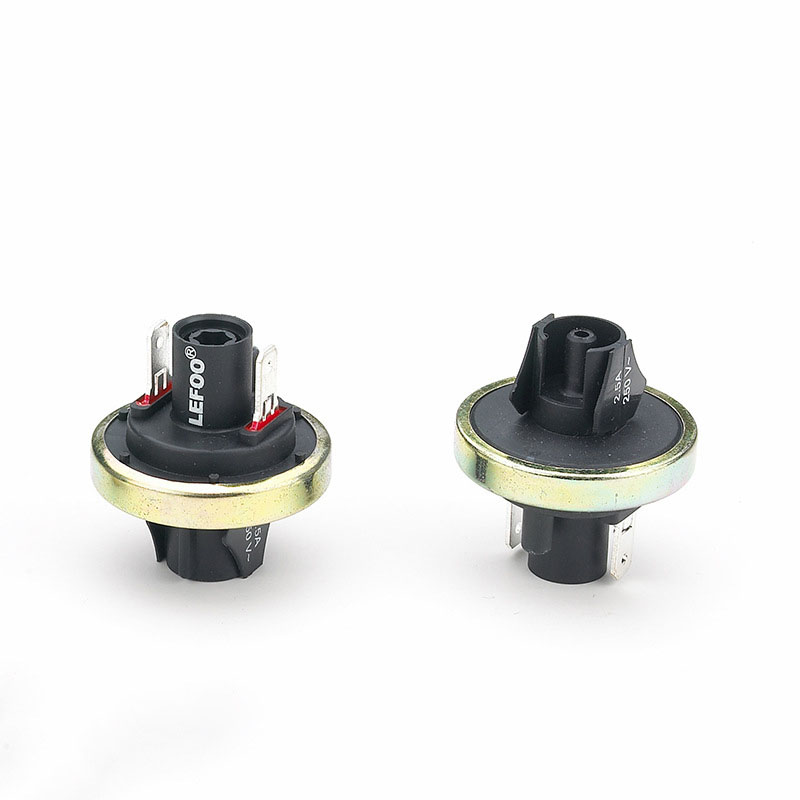

LFS-03 can be is applied to detection of positive or negative pressure. It can be used as a gauge or differential pressure switch with almost no hysteresis. If 2 switch points are required, 2 pressure switches with different calibrations should be employed.
The method of fixing the tab terminals to the switch body does not allow for absolute air sealing. The switch is therefore not recommended for applications where the static vacuum has to be maintained. However, special models with additional pressure spring which allow for the vacuum to be connected to the pressure inlet side are available on request.
Specification
Model
LFS-03
Electrical Function
1 pole NO
1 pole NC
Switch Rating
1 pole NO:
2.5(0.5) A 250V~1E4
1 A250 V~5E4(max 800 mbar)
20 mA 250 V~5E4(max 800 mbar)
1 Pole NC:
2.5(0.5) A 250V~1E4
0.5 A250 V~5E4(max 800 mbar)
20 mA 250 V~5E4
Temperature
Ambient: -10 to +85?
Electrical Connections
Tab terminals 6.4 x0.8 mm
Tab terminals 4.8 x0.8 mm(1 pole NO only)
PressureRange
Pressure: +15 to +2500 mbar
Tolerance: +/- 10% NO; +/- 15% NC
Vacuum: -600 to -15 mbar
Tolerance: +/- 15%
Sample Line Connections
Pressure and vacuum: Inlet 4.0 or5.5 mm(up to 500 mbar)
Threaded inlet M10 x1 mmor 1/4 gas
Switch hysteresis
Almost no hysteresis
Max. working pressure
3000 mbar
Medium
Nonhazardous gas only
Fixing Methods
Plastics clips (version with inlet only)
Materials
Lower body: PA 66
Upper body: PA 66
Adjust. screw: PA 66
Contact carrying parts: Brass Silver plated (gold plating on request)
Membrane: Nitrile, EPDM, (Silicone, Perbunan on request) according to application
Conversion: 1mbar = 100 Pa 1 in/H2O= 249 Pa
From the supplier
LFS-03 can be is applied to detection of positive or negative pressure. It can be used as a gauge or differential pressure switch with almost no hysteresis. If 2 switch points are required, 2 pressure switches with different calibrations should be employed.
The method of fixing the tab terminals to the switch body does not allow for absolute air sealing. The switch is therefore not recommended for applications where the static vacuum has to be maintained. However, special models with additional pressure spring which allow for the vacuum to be connected to the pressure inlet side are available on request.
Specification
Model
LFS-03
Electrical Function
1 pole NO
1 pole NC
Switch Rating
1 pole NO:
2.5(0.5) A 250V~1E4
1 A250 V~5E4(max 800 mbar)
20 mA 250 V~5E4(max 800 mbar)
1 Pole NC:
2.5(0.5) A 250V~1E4
0.5 A250 V~5E4(max 800 mbar)
20 mA 250 V~5E4
Temperature
Ambient: -10 to +85?
Electrical Connections
Tab terminals 6.4 x0.8 mm
Tab terminals 4.8 x0.8 mm(1 pole NO only)
PressureRange
Pressure: +15 to +2500 mbar
Tolerance: +/- 10% NO; +/- 15% NC
Vacuum: -600 to -15 mbar
Tolerance: +/- 15%
Sample Line Connections
Pressure and vacuum: Inlet 4.0 or5.5 mm(up to 500 mbar)
Threaded inlet M10 x1 mmor 1/4 gas
Switch hysteresis
Almost no hysteresis
Max. working pressure
3000 mbar
Medium
Nonhazardous gas only
Fixing Methods
Plastics clips (version with inlet only)
Materials
Lower body: PA 66
Upper body: PA 66
Adjust. screw: PA 66
Contact carrying parts: Brass Silver plated (gold plating on request)
Membrane: Nitrile, EPDM, (Silicone, Perbunan on request) according to application
Conversion: 1mbar = 100 Pa 1 in/H2O= 249 Pa
