About this product
- Size: 42.9*30*30
- Color: White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Size: 42.9*30*30
- Color: White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Size | 42.9*30*30 |
|---|---|
| Color | White |
Product details
| Size | 42.9*30*30 |
|---|---|
| Color | White |
From the supplier
LFDS10X uses highly reliable sensor to measure the pressure, its output can be switch signals or analog signals. LFDS10X is suitable for all kinds industrial field.

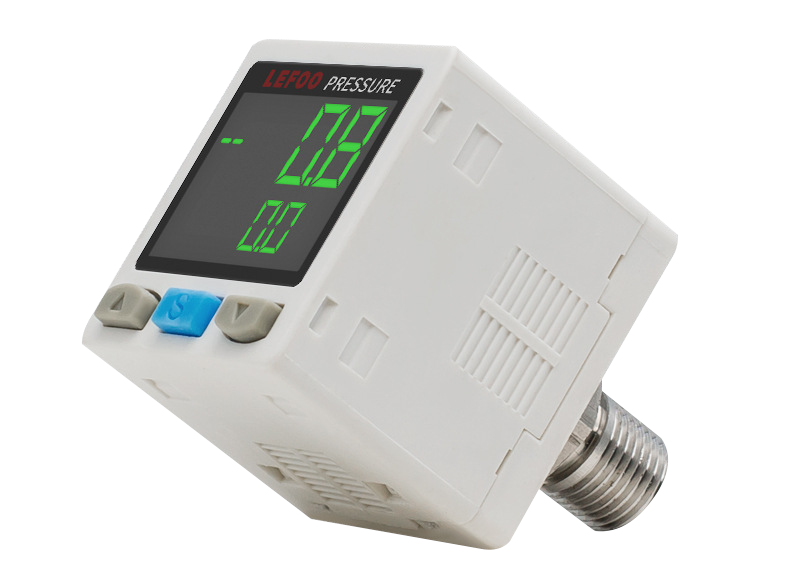

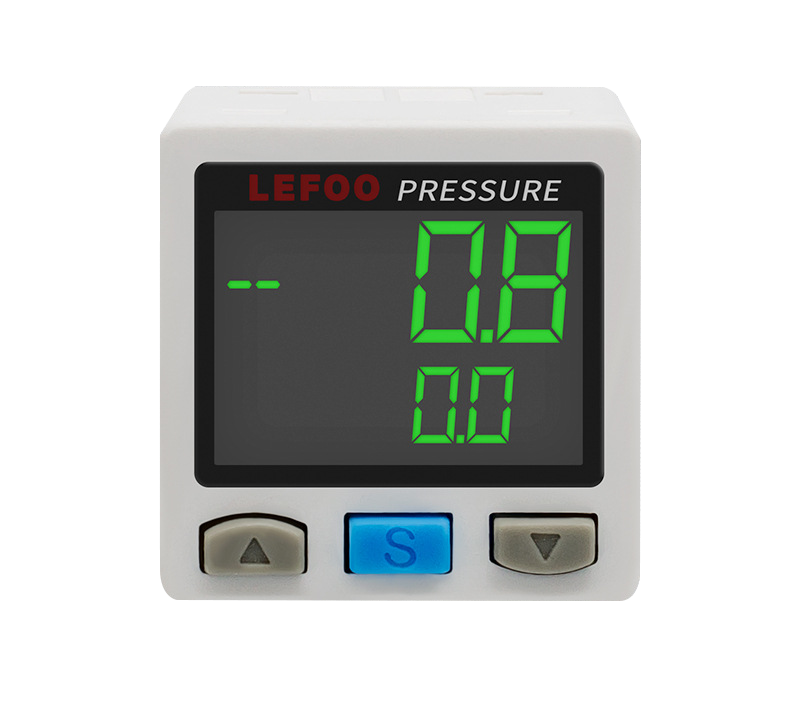

The double-LED digital display and three-keys menu setting function make the product more convenient to use. There are many internal setting items, users can adjust the working parameters, which is flexible and convenient.

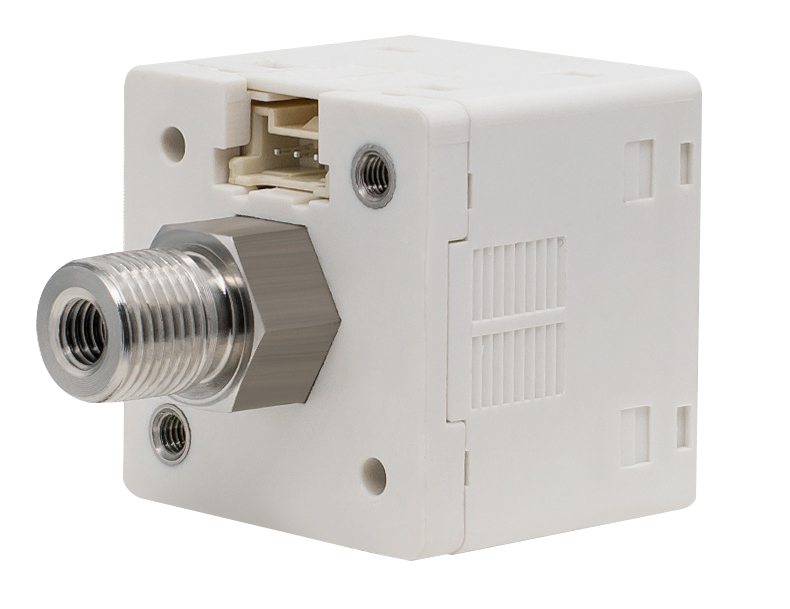

Multiple connections can fully satisfy different installing demand. This series of products have the features of small size, shock resistant, long life span, clear display, simple operation and etc.
Series No.
LFDS102
LFDS101
PressureRange
-100~100kPa
-100~1000kPa
Proof Pressure
3 time full scale
1.5 times full scale
Fluid
Air, Non-Corrosive Gas
Air, Non-Corrosive Gas
Power Supply
12~24VDC
12~24VDC
Consumption Current
Switch Output
NPN or PNP open collector output
Max Current:100mA
Voltage decrease
NPN or PNP open collector output
Max Current:100mA
Voltage decrease
Output working
Normally Open/Normally Closed
Normally Open/Normally Closed
Hysteresis
1-8 Stage - default 3 stage
1-8 stage - default 3 stage
Repeatibility
±0.3%F.S
±0.3%F.S
Comprehensive Accuracy
±1%F.S
±1%F.S
Response Time
2.55102525050010005000ms
2.55102525050010005000ms
Analog
Output
Voltage Output
1-5V±5%
1-5V±5%
Current Output
4-20mA±5%
4-20mA±5%
Storage Temperature
-10°C - 60°C
-10°C - 60°C
Operation Temperature
0°C - 50°C
0°C - 50°C
Temperature Characteristic
±2.5% F.S(basing on 25°C)
±2.5% F.S(basing on 25°C)
Accessory
CN-14A-C2( with2mconnection cable)
CN-14A-C2( with2mconnection cable)
Model
LFDS102SENW
LFDS101SENW
LFDS102AEPW
LFDS102VENW
Range
-100~100kPa
-100~1000kPa
-100~100kPa
-100~100kPa
Switch
2 circuit
2 circuit
1 circuit
1 circuit
Pressure Connection
G1/8 male + M5 female thread
G1/8 male + M5 female thread
G1/8 male + M5 female thread
G1/8 male + M5 female thread
Electrical Connection
2NPN
2NPN
1PNP + 1 current output
1PNP + 1 voltage output
Analog Current Output
N/A
N/A
1 circuit
N/A
Analog Voltage Output
N/A
N/A
N/A
1 circuit
