About this product
- Size: 47.5*45.6
- Color: Black
- Size: Miniature
- Feature: Other
- Material: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Size: 47.5*45.6
- Color: Black
- Size: Miniature
- Feature: Other
- Material: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Size | 47.5*45.6 |
|---|---|
| Color | Black |
| Size | Miniature |
| Feature | Other |
| Material | Other |
Product details
| Size | 47.5*45.6 |
|---|---|
| Color | Black |
| Size | Miniature |
| Feature | Other |
| Material | Other |
From the supplier

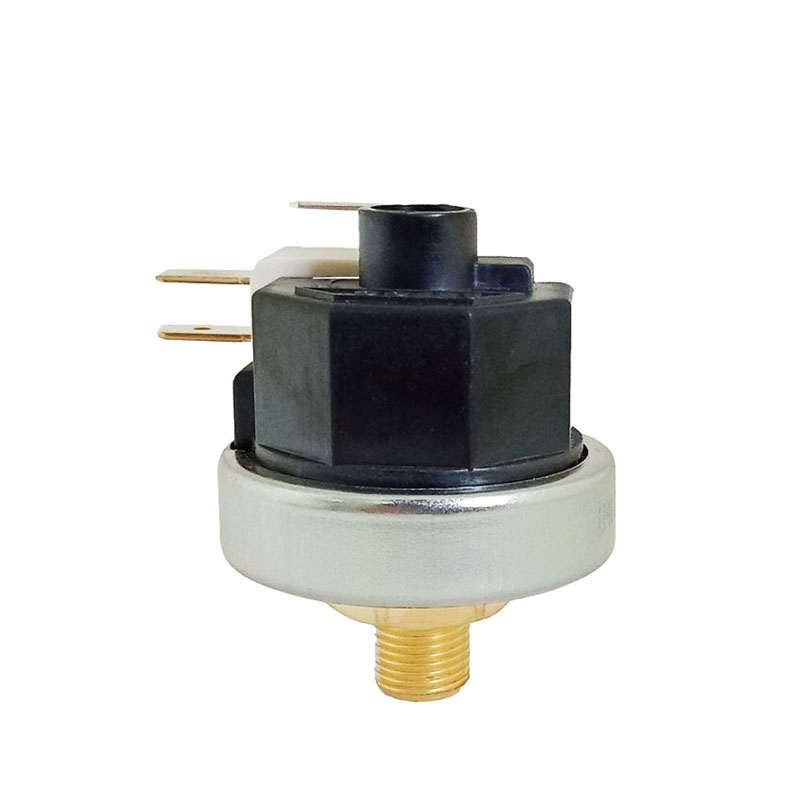

LF25 pressure switch is designed for control pressure with higher current capacity. It is widely used in steam cleaner, steam sadiron, and other pressure control system. It provides SPST or SPDT contact form and switches Dead band (also referred to as mechanical differential or hysteresis).
LF25 switch utilize high-quality miniature snap-action switches. The switch is diaphragm operated. Diaphragm material can be selected for the operating medium, temperature range, and other parameters. During the development of a specification, the actuation point can be adjusted by the designer. In production, the factory setting is required.
Specification
Model
LF25
Medium
Non-hazardous gas, liquid or steam
Operating Pressure
0.2-0.6 bar
0.5-1.5Bar
1.2-2.5bar
1.5-4bar
3-7bar
5-9bar
Proof Pressure
3bar
4bar
5bar
6bar
8bar
10bar
Differential
0.2±0.1bar
0.2±0.1bar
0.2±0.1bar
0.25±0.15bar
0.35±0.20bar
0.6±0.20bar
Operating Temperature Range
+85 / +125 Maximum
Contact Arrangement
SPST or SPDT
Electric Rating
SPST or SPDT/ Normal Close: 16(4) A-250VAC; Other ratings are available on request
Terminals
6.35 or 4.88mmmale Q.C. ; Insulation cover available as necessary
Connection
NPT 1/8-27 or NPT1/4-18 male, G1/8 male
Conversion?1Kgf/cm2=14.2PSI 1Bar=14.5PSI
Products Description
From the supplier
LF25 pressure switch is designed for control pressure with higher current capacity. It is widely used in steam cleaner, steam sadiron, and other pressure control system. It provides SPST or SPDT contact form and switches Dead band (also referred to as mechanical differential or hysteresis).
LF25 switch utilize high-quality miniature snap-action switches. The switch is diaphragm operated. Diaphragm material can be selected for the operating medium, temperature range, and other parameters. During the development of a specification, the actuation point can be adjusted by the designer. In production, the factory setting is required.
Specification
Model
LF25
Medium
Non-hazardous gas, liquid or steam
Operating Pressure
0.2-0.6 bar
0.5-1.5Bar
1.2-2.5bar
1.5-4bar
3-7bar
5-9bar
Proof Pressure
3bar
4bar
5bar
6bar
8bar
10bar
Differential
0.2±0.1bar
0.2±0.1bar
0.2±0.1bar
0.25±0.15bar
0.35±0.20bar
0.6±0.20bar
Operating Temperature Range
+85 / +125 Maximum
Contact Arrangement
SPST or SPDT
Electric Rating
SPST or SPDT/ Normal Close: 16(4) A-250VAC; Other ratings are available on request
Terminals
6.35 or 4.88mmmale Q.C. ; Insulation cover available as necessary
Connection
NPT 1/8-27 or NPT1/4-18 male, G1/8 male
Conversion?1Kgf/cm2=14.2PSI 1Bar=14.5PSI
Products Description
