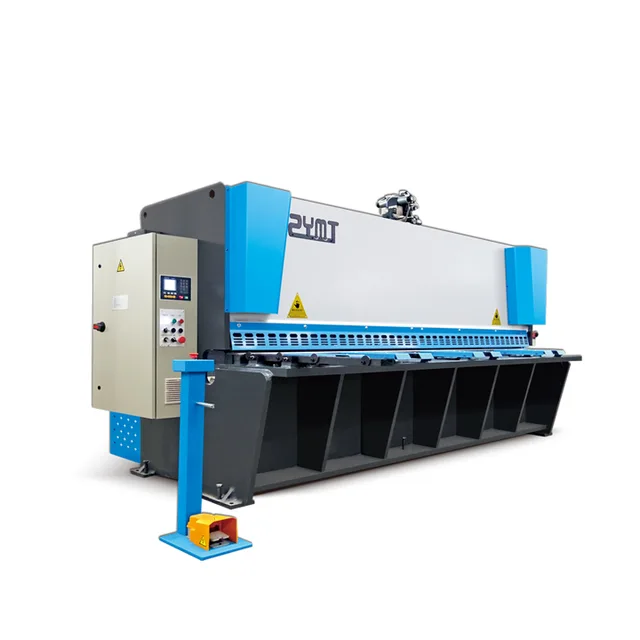

QC12K NC Hydraulic Swing Beam Shearing Machine With E21SMain Feature

● Fully steel welded structure, with excellent rigidity and stability;
● Assisting blade pedestal on worktable is convenient for micro adjustment;
● Support ball is provided on worktable convenient operating for rolling plate;
● Provided with counting function for shearing to decrease the numerous artifical counting
● NC Hydraulic Shearing Machine advanced hydraulic integrated system is employed and the pipeline connection is minimized to ensure the system reliability and safety;
● International standard electrics and switches;
● Front arms with ruler fixed on worktable;
● Blades gap adjustment by hand wheel;
● Motorised back gauge, reduce speed through gear;
● Can equip kinds of NC controllers: Eustun E21S/E200S, Delem DAC360, Maper HT071, Elgo P40 ect.

Standard Components

● Estun E21S NC controller
● Germany BOSCH-REXROTH hydraulic system
● Germany SIEMENS motor
● Sunny oil pump
● Taiwan HIWIN ball screw
● France Schneider electrics
● Manual blade gap adjustment
● Light alignment device
● Blade material 6CrW2Si

Optional

● E200PS, DAC360, P40
● Rear pneumatic support
● Light curtain
● Front feeding table

Controller Function

E21s
1.Back gauge control
2.Control for general AC motors, frequency inverter
3.Intelligent positioning
4.Stock counter
5.Program memory of up to 40 programs up to 25steps per program
6.One side positioning
7.Retract function
8.One key backup/restore of parameters
9.Mm/inch
10.Chinese/English

Main MotorGerman famous brand Siemens motor improves the life span of the hydraulic shearing machine and keeps the machine working in low noise environment.

Hydraulic System

ZYMT Using Germany Bosch Rexroth valve make it more reliable and easy for maintenance.
Low sensitivity to oil pollution and assure of long service life

Electrical SystemSchneider electrical components make the CNC press brake machine performing well even the electricity is not stable and customers can easily get the replacement anywhere in the world.

Front Table

Transfer balls on table can reduce surface scratches on the sheet and front support arms with ruler for easy feeding.

Ball Clearance Adjustment

Indicator-based adjustment of blades clearance is easy, convenient and swift.

Ball Screw

Backgauge system with Hiwin ball screw and slick rod for high precision.

Blade

Top blade with 2 cutting edges bottom blade with 4 cutting edges to provide a longer life span and reducing down time.
6CrW2Si Blades wit high tensile strength for cutting carbon steel and stainless steel.

Safety fence

Protective guards on each side can protect the user during operation

Hydraulic Hold-down Pads

The lower end of the press cylinder is made of non-metal material, which has certain elasticity and large friction coefficient.

When cutting the sheet, the press pad can be in close contact with the material plate to provide sufficient friction to

effectively prevent the plate from being shaken during the shearing process.

Optional configurationPneumatic Support

Light Curtain

Front Feeding Table

Technical ParametersModelCutting thickness  Cutting length          Cutting angelMaterial IntensionBackgauge travelCutting timesMain power  Approx. weightOverall Dimension(mm)(mm)(°)(KN/CM) (mm)(T/min)(KW)(Kg)LxWxH(mm)4x2500425001°30′≤45020-600165.538003040x1610x16204x3200432001°30′≤45020-600145.550003840x1610x16204x4000440001°30′≤45020-600105.565004600x1700x17004x6000460001°30′≤45020-60087.5110006460x2100x32006x2500625001°30′≤45020-600147.550003040x1610x16206x3200632001°30′≤45020-600127.560003840x1610x16206x4000640001°30′≤45020-60087.582004620x1750x17006x5000650001°30′≤45020-600611105005400x1800x19006x6000660001°30′≤45020-600511165006480x2100x23008x2500825001°30′≤45020-600101160003040x1700x17008x3200832001°30′≤45020-60081172003860x1700x17008x4000840001°30′≤45020-60081188004640x1700x17008x5000850001°30′≤45020-600811115005400x2100x20008x6000860001°30′≤45020-600811180006480x2100x235010x25001025002°≤45020-60091173003040x1700x170010x32001032002°≤45020-60091180003860x1700x170010x40001040002°≤45020-600811120504650x2100x200010x60001060002°≤45020-1000515240006500x2100x230012x25001225002°≤45020-600918.590003140x2150x200012x32001232002°≤45020-600918.5108003880x2150x200012x40001240002°≤45020-1000818.5130004680x2150x200012x50001250002°≤45020-1000618.5160005900x2150x200012x60001260002°≤45020-1000518.5295006900x2600x270012x80001280002°≤45020-1000518.5465009000x3500x350016x25001625002°30′≤45020-600922110003140x2150x200016x32001632002°30′≤45020-600822130003880x2150x200016x40001640002°30′≤45020-1000822163004650x2150x220016x50001650002°30′≤45020-1000622200005900x2600x270016x60001660002°30′≤45020-1000522360006900x2700x270016x80001680002°30′≤45020-1000522750009000x3500x350020x25002025003°≤45020-1000822158003440x2300x250020x32002032003°≤45020-1000822185004150x2350x270020x40002040003°≤45020-1000522215004850x2600x270020x60002060003°≤45020-1000430470006700x3000x300025x25002525003°≤45020-1000837190003200x2700x290025x32002532003°≤45020-1000537230004200x2700x290030x25003025003°≤45020-1000437235003300x2900x300030x32003032003°30′≤45020-1000440260004200x2900x320040x25004025004°≤45020-1000355380003200x3300x300040x32004032004°≤45020-1000355490004300x3300x3200Competitive Advantage
