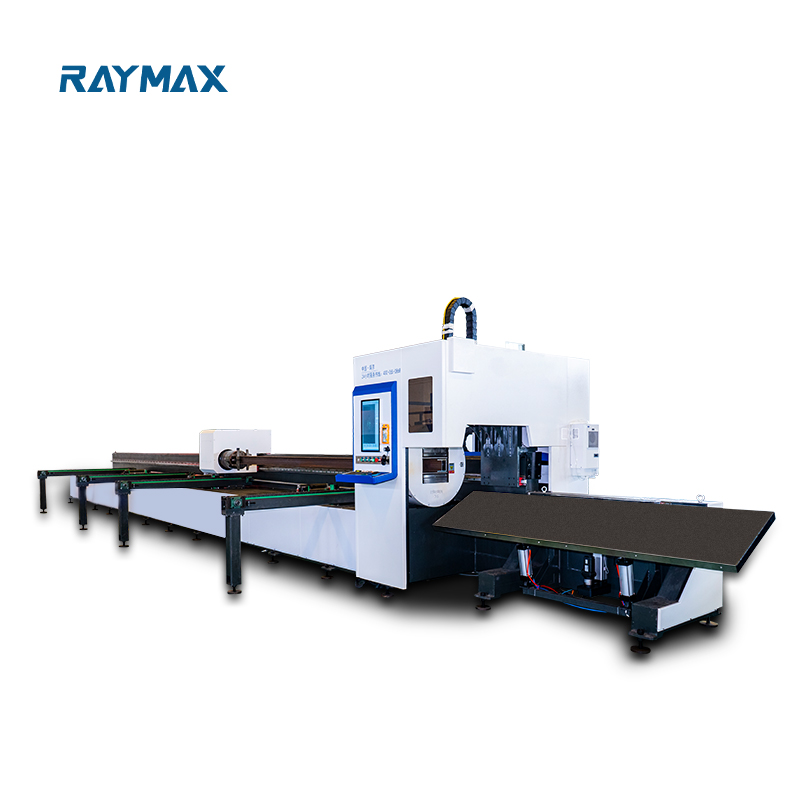

ZY-HFT Series Closed Type Fiber Laser Cutting Machine
Main Feature



● Bigger adjustment range: Focus on cutting carbon steel plate and tube within 15mm thickness,

and stainless steel plate and tube within 8mm thickness .
● Less power consumption: Fiber laser technology improves the power efficiency and

greatly reduces the power consumption of the system, no laser maintenance is needed.
● More Efficiency: Servo motor bilateral drive
● High Speed: Without manual operation, it can focus automatically, greatly increase the processing speed.
● Multiple Uses: This fiber laser cutting machine is designed for pipes and sheets,

it can save more than half of the space and cost, which effectively improve the production efficiency and ROI.
● High precision: Clamps can position the sheet to provent the moving of the sheet which will ensure the accuracy of the processing
● Fractional support installation: Solve the deformation problems in the process of long tube cutting

Standard Components

● Switzerland Raytools Laser Head
● Domestics Famous Brand Maxphotonics Laser source
● Taiwan YYC Rack and HIWIN Linear Rail
● Germany Neugart Reducer
● Japan Panasonic Servo Motor and Drive
● Shanghai Cypcut Cutting System
● Japan SMC+AirTAG Pneumatic Component
● China Tongfei water cooling
● Machine Platform and Accessories

Optional

● Germany Precitec Cutting Head
● Germany IPG Laser source
● USA N-light Laser source
● Voltage Stabilizer

Bed

Steel plate plug welder rack, with heat treatment to avoid frame deformation within 20 years.

Laser Cutting Head

The ZYMT's Raytools laser cutting head with auto sensor function which is from Switzerland is suitable for

different focal lengths and controlled by the system. For the sheet metal with different thicknesses,

the focal point will be automatically adjusted in cutting process to achieve the best cutting effect.

Controller

Cypcut control system. Professional CAD / CAM automatic programming software and automatic nesting software,

support both Chinese and English interface, rich process parameters, to maximize the savings of raw materials.

Laser Source

The brand of our fiber laser source including Raycus (China), Max  (China), nLight (USA), IPG (Germany),

with the power from 500W to 12,000W.

Electrical System

ZYMT fiber laser cutter adopt Schneider electrics to ensure the stable performance of the machine.

Panasonic Servo Motor&driver

With the Panasonic transmission system to improve cutting speed and precision, and it works more stable.

Gear Rack & Linear Guide

The laser head is moved along the HIWIN linear guides (Taiwan) with a thickness of 35 mm and YYC gear rack.

The moving speed of X and Y axis can be max 120m/min which is very helpful to improve the production efficiency.

Tube Cutting

It can cut a plurality of cylindrical intersecting line holes of different directions and different diameters on the main pipe,

and satisfy the condition that the branch pipe axis is perpendicularly intersected with the eccentricity and non-eccentricity of the main pipe axis.

Water cooling system

The water cooling system takes away the heat generated during the operation of the machine and protects the machine from damage.

Cutting samples

Working principle

Cutting Capacity

Cutting thickness and speedMaterial/gasThickness1000W
Speed m/min1500W
Speed m/min2000W
Speed m/min2500W
Speed m/min3000W
Speed m/minCarbon steel
O215-1510-2010-2010-2010-2025-105-105-105-155-1532.5-3.53.5-4.53.5-4.53.5-4.53.5-4.541.8-2.52.6-33-43.3-4.23.3-4.251.3-1.82.1-2.62.7-3.33-3.63-3.661-1.41.7-2.32.0-2.62.5-32.7-3.280.6-11.1-1.61.5-21.7-2.22-2.5100.5-0.80.8-1.21.1-1.51.4-1.81.7-2.1120.3-0.50.7-10.9-1.21-1.31.1-1.414 0.6-0.80.8-10.9-1.11-1.316 0.5-0.70.7-0.90.7-0.90.7-0.920 0.4-0.60.5-0.70.5-0.70.5-0.7Stainless steel
Air/Nitrogen115-3535-5850-7550-7550-7525-107-1317-2524-3430-4032-54-65-86-107-1140.6-1.32.4-3.43.4-4.65-6.56.5-8.250.4-0.91.3-2.12.1-3.13-4.24-5.460.2-0.50.7-1.11.2-1.71.6-2.32-2.98 0.2-0.40.4-0.70.6-10.9-1.310  0.2-0.40.5-0.80.8-1.212   0.3-0.80.5-0.7Aluminum
Nitrogen1 25-3850-7350-7350-732 7-910-1315-18.520-253 4-56-7.38-9.810-124     5 0.6-0.92.1-2.52.9-3.53.8-4.66 0.3-0.51.4-1.82-2.52.7-3.28  0.6-0.90.9-1.21.4-1.810   0.2-0.40.5-0.8Brass
Nitrogen1 25-3540-5050-6560-752 6-913-1618-2224-293 2.5-35-5.68-8.810.5-11.54 0.8-1.12.2-2.63.3-3.84.8-5.35 0.5-0.81.3-1.72.4-2.73.3-3.76 0.15-0.250.7-11.2-1.52.1-2.58   0.4-0.60.8-1.110    0.4-0.7Copper
O21 14-2227-3535-4546-582 4-68-1111-1413-183 1-33-45-6.56.5-8.25  0.5-1.11.4-1.82-2.86   0.8-1.11.3-1.6
