About this product
- Materials: Steel
- Size: 28000*1500*1400mm
- Color: Customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Liaoning, China
About this product
- Materials: Steel
- Size: 28000*1500*1400mm
- Color: Customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Liaoning, China
Product details
| Materials | Steel |
|---|---|
| Size | 28000*1500*1400mm |
| Color | Customized |
Product details
| Materials | Steel |
|---|---|
| Size | 28000*1500*1400mm |
| Color | Customized |
From the supplier

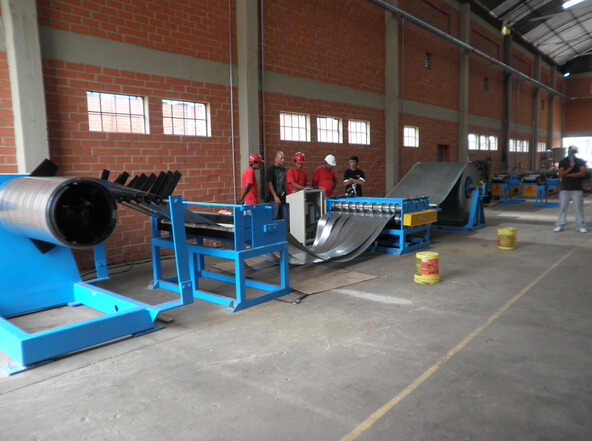

Slitting Line
Function: Cut the metal coil into slats of various widths required, and then collect the slats into small rolls for the next process
Application: used for slitting of coils of color steel coils, galvanized iron, cold-rolled steel strips, stainless steel strips, aluminum strips, steel strips, etc.
Main features: Mainly used for sheet slitting (processing thickness 0.2-1.5mm), hydraulic automatic slitting line, simple operation and high efficiency.
Main equipment:

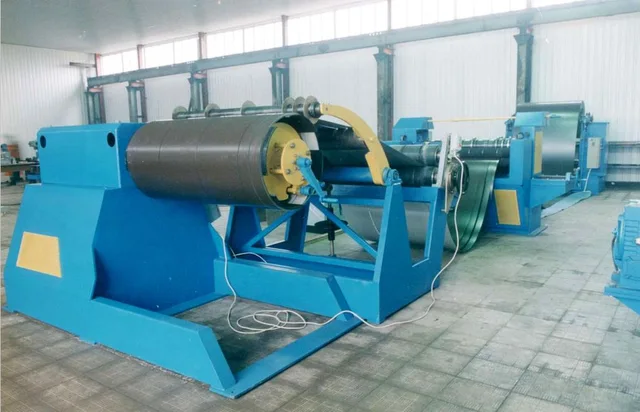

Automatic decoiler:
- 1. Machine size：1500*1300*1300(mm)，Weight：1.5ton
- 2. Bearing：6ton electric de-coiler，including Damping device
- 3. Main axle：Φ100*50mm，seamless tube,equipped with support seat
- 4. Plate wall:20mm
- 5. Base:12mm*200mm*300mm square tube
- 6. Motor power :4.0kw
- 7. Frequency converter:5.5kw
- 8. Inner diameter of coil：470-520mm
- 9. Outside diameter of coil：≦1400mm
Guide straightening machine：
- 1. Guide straightening counting：13 rollers leveling
- 2. Guide straightening axle；Φ90mm
- 3. Motor power：4.0kw
- 4. Frequency converter:5.5kw
- 5. Guide straightening width：1250mm
- 6. Guide straightening thickness：≦1.5mm
Lengthways slitting machine:
- 1. Lengthways slitting cutting axle：Φ150mm
- 2. Cutting specification ：Φ100mm，material：40cr
- 3. Blade:2 sets cutter, through add cutter set to adjust slitting quantity arbitrary
- 4. Allowed cutting thickness：0.2-1.5 mm
- 5. Allowed cutting width：≦1250mm
- 6. Cutting line speed：v＝15meter/min
- 7. Minimum cutting width：100mm
Rolling-up machine:
- 1． Volume head specification：Φ508max/Φ480min×1250
- 2． Max coil weight：≤7ton，Configure support seat
- 3． Motor power：15kw
- 4． Frequency converter:18.5kw
- 5． Main shafe: 203mm*50mm,seamless tube
- 6． Tensioning cylinder:160mm*80mm travel
- 7． Rolling-up speed：v＝20meter/min
- 8． Car motor power:3.0kw
- 9． Electronic control system: The whole line will be controlled by PLC
system,touch screen operation
Technological process：
Decoiler—Guide straightening machine—Lengthways slitting machine—Support table—Tensioning device —Rolling-up coiler
Our comapny certification:
We are willing to supply goods with high quality but competive price and superior service to friends all over the world. Hope to establish business relationship with you!
