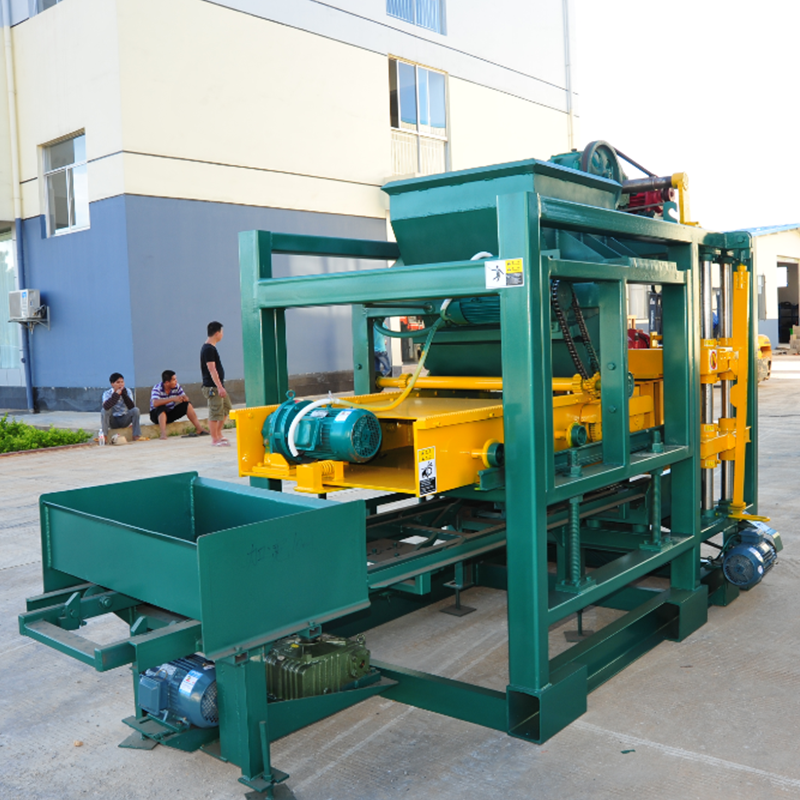

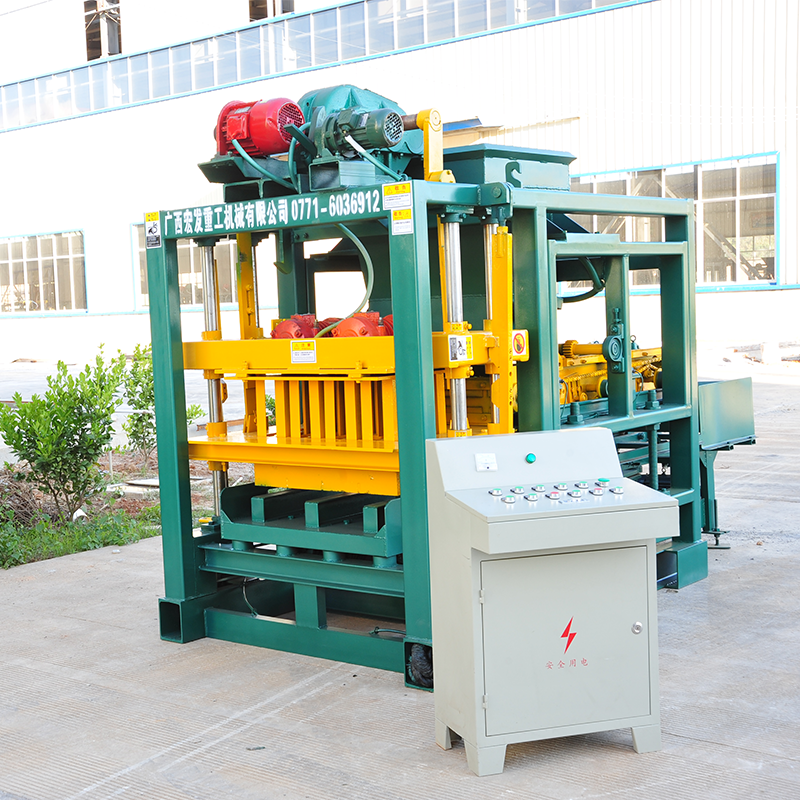

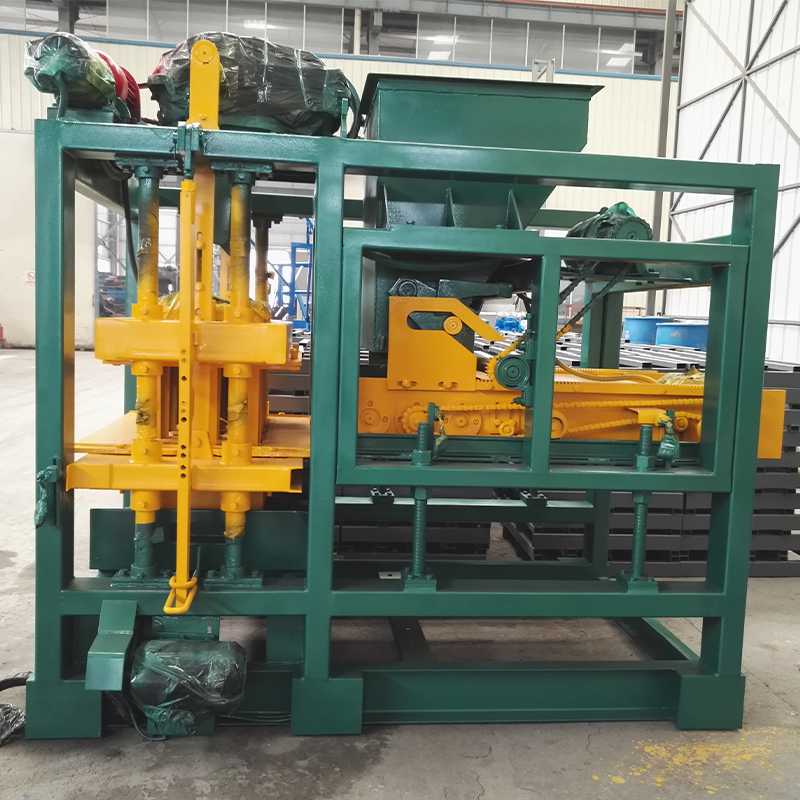

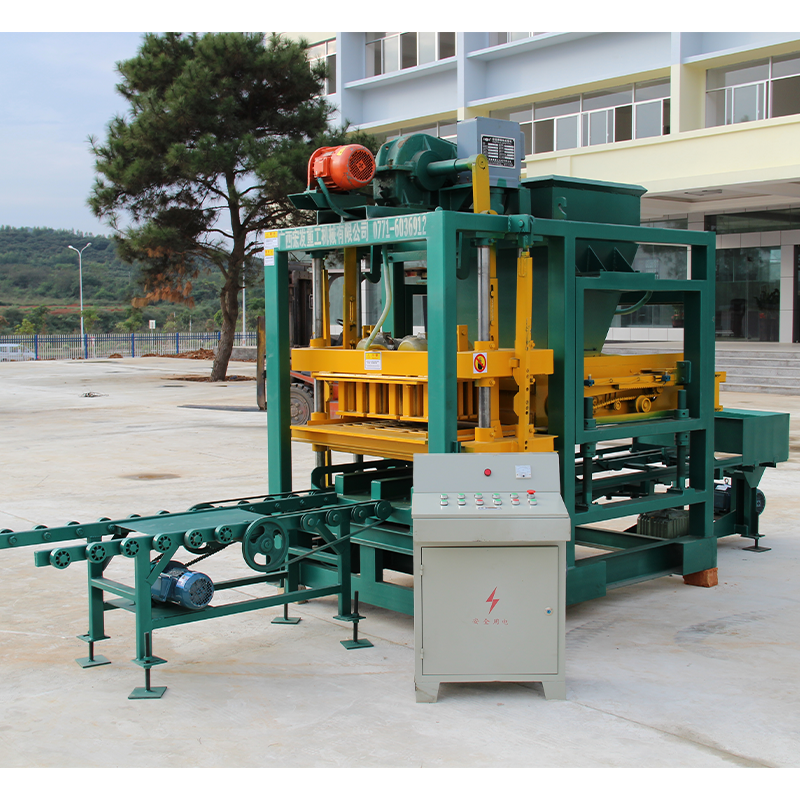

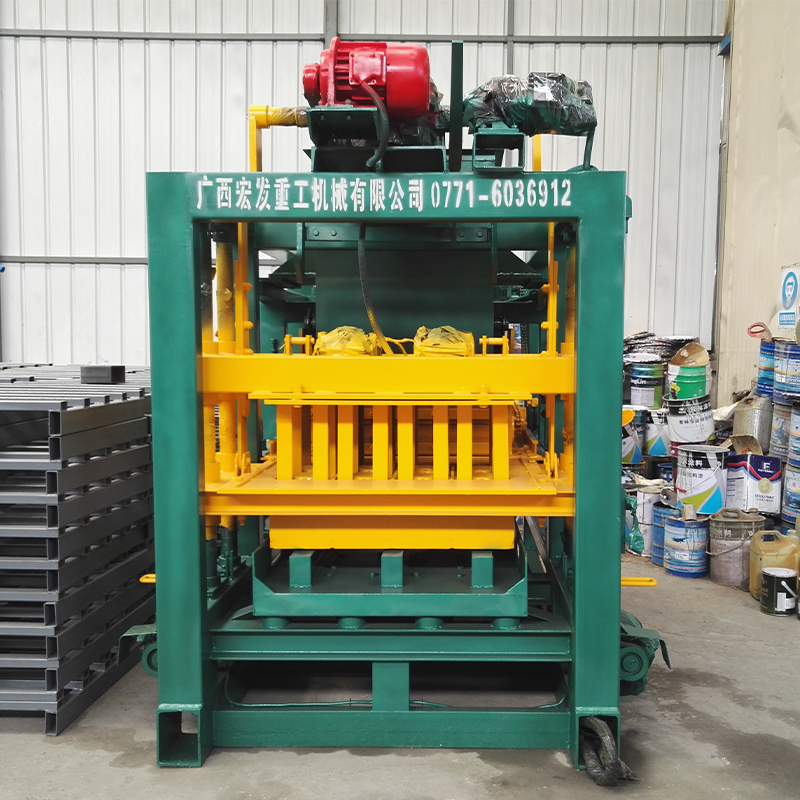

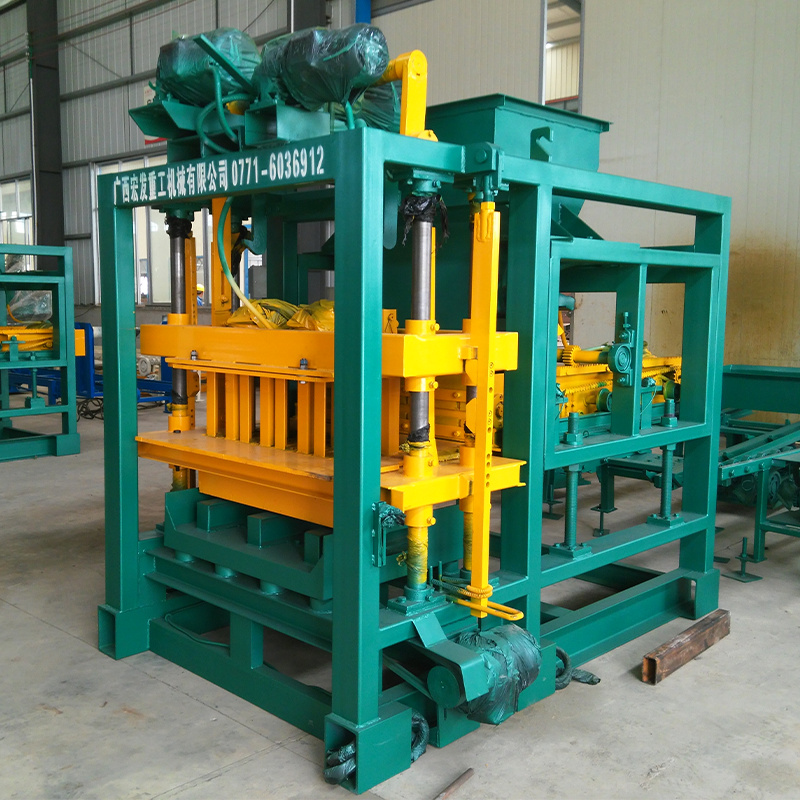

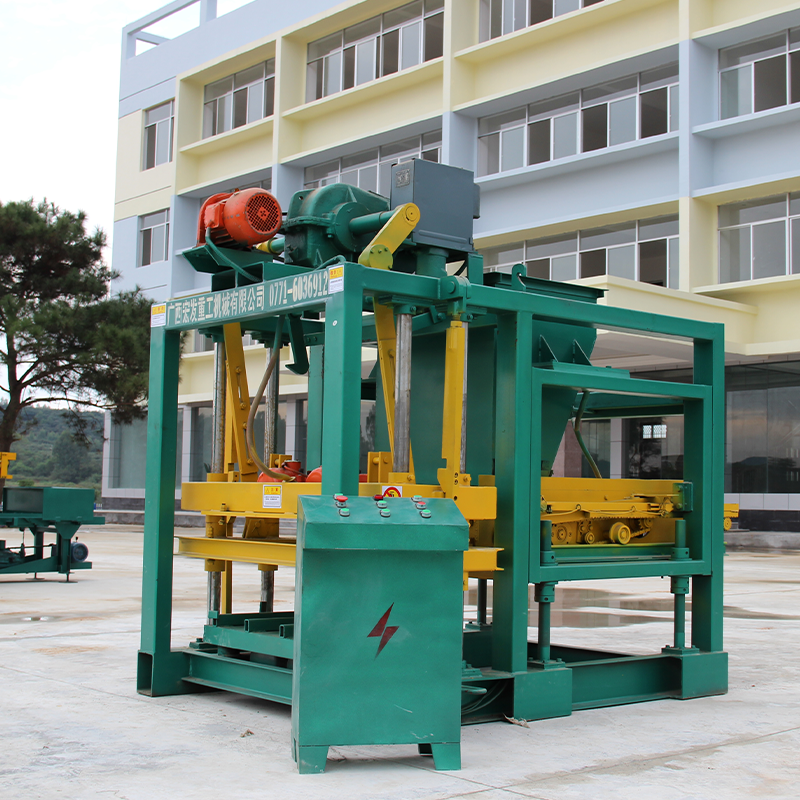

HFB546M block making machine
- FOB goods (100)
- $1,375,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $48,125
- Section 301 tariff (25.0%)
- $343,750
- Customs fees (MPF/HMF)
- $2,353
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
HFB546M block making machine
- FOB goods (100)
- $1,375,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $48,125
- Section 301 tariff (25.0%)
- $343,750
- Customs fees (MPF/HMF)
- $2,353
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Manganese steel
- Size: 5600*1850*2400
- Color: optional
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangxi, China
About this product
- Materials: Manganese steel
- Size: 5600*1850*2400
- Color: optional
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangxi, China
Product details
| Materials | Manganese steel |
|---|---|
| Size | 5600*1850*2400 |
| Color | optional |
From the supplier
1.Introduction
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Control system:
PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn't need a professional person but only need a simple trained one to the operator.
Product scope:
It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
Advantage of this machine
HFB546M block making machine is a kind of good product developed by our company newly ,adopts flat vibration ,mould vibration ,and squeeze compression vibration ,manufactures the blocks with average density and high strength.,And the unique dose charging device and the strong material-distributing structure ensure the block's quality of various materials
The host machine including pallet feeder, materials feeder, materials hopper, pressing system, vibrating system, control system, block conveyor. So this machine is a very good option for block making. Low investment and high capacity and multifunction is the advantage of this machine.
2.Main Technical Specifications:
Overall Dimension
5600×1850×2400 mm
Rated pressure
16MPa
Main vibration form
Platform vibration
Acceleration of vibration
15-20g
Cycle Time
15-25s
Vibrating Frequency
4600 r/minute
Vibration
380KN
Motors Power
17KW
Pallet Size
850*480 mm
(material option: PVC, GMT, bamboo,wood)
Weight
4T
Raw Materials
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes.
Applied Products
Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
3.Capacity
HFB546M Block Making Machine
Item
Size(mm)
Molding cycle
Pcs/Mold
Pcs/hour
Pcs/8hours
Hollow block
400*200*200
20-25s
4
576-720
4608-5760
Solid brick
240*115*53
18-23s
21
3275-4200
26200-33600
Hollow block
400*150*200
20-25s
5
720-900
5760-7200
4.Our Company
China Guangxi Hongfa Heavy Machinery Co.,Ltd established in 2011. We focus on Lightweight panel production Line, AAC Block Production Line, Fully-automatic Concrete Block Production Line, Artificial Quartz Plate Production Line, Concrete Tile Machine, Concrete Pipe Machine, Bidirectional Hydraulic Brick Marker, Mining Machinery, Concrete Batching Plant, Stereo Parking Equipment, etc. We won many honors through outstanding products and advanced technology. We always treat products quality as life and customer as god. We are professional manufacturer so that we could ont only help you to choose suitable equipment, but also give useful advices on your factory.
