Five axis machining center VB63-5AX
- FOB goods (100)
- $36,500,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $1,277,500
- Section 301 tariff (25.0%)
- $9,125,000
- Customs fees (MPF/HMF)
- $46,260
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Five axis machining center VB63-5AX
- FOB goods (100)
- $36,500,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $1,277,500
- Section 301 tariff (25.0%)
- $9,125,000
- Customs fees (MPF/HMF)
- $46,260
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: metal
- Color: black and grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: metal
- Color: black and grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | metal |
|---|---|
| Color | black and grey |
From the supplier

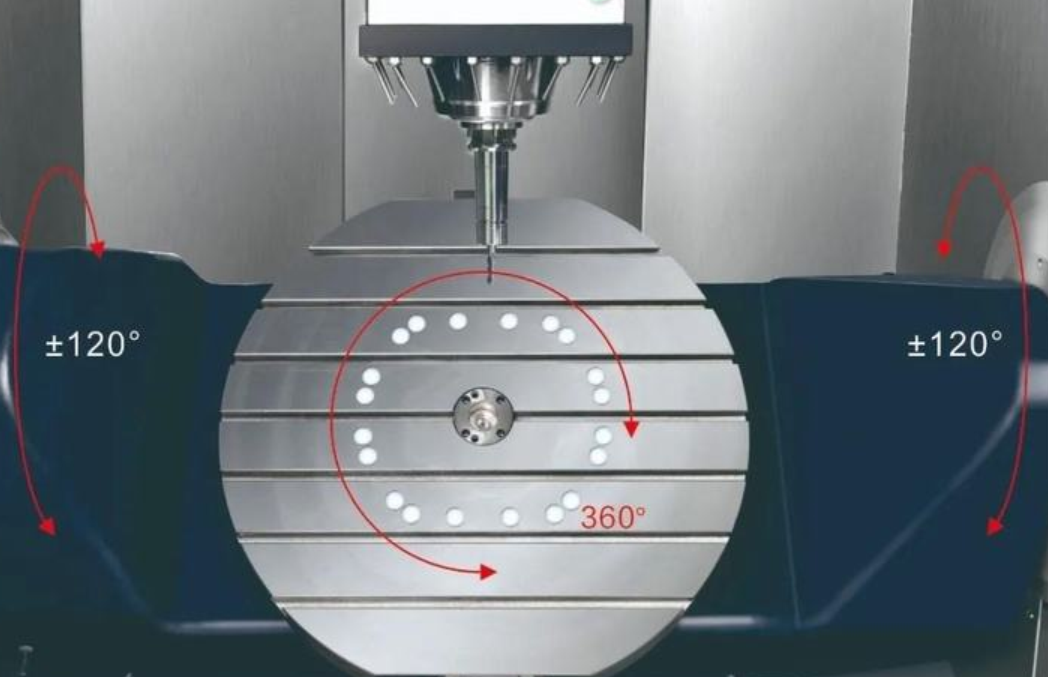

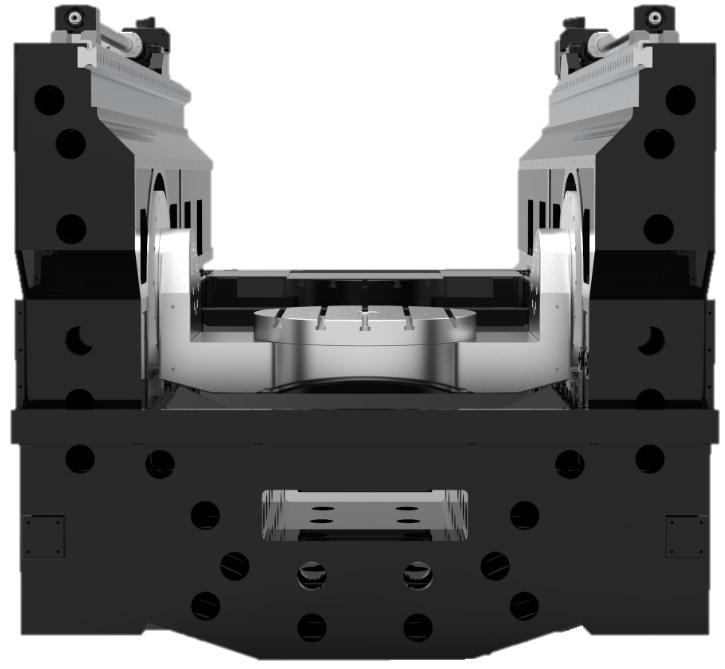

WMTCNC brand VB63-5AX 5-Axis Simultaneous CNC Vertical Machining Center is a high-efficiency, high-precision machining equipment. The workpiece can complete complex processing procedures in one clamping process so that this equipment can adapt to the processing of modern molds such as auto parts and aircraft structural parts. Pentaaxis means our device has five axes. The X/Y/Z axis and the ac axis form linkage processing, so it is very good at space surface processing, special-shaped processing, hollow processing, punching, oblique hole, oblique cutting, etc., and its uses are diverse.
Specification
specification VB63-5AX Processing range X axis travel mm 800 Y axis travel mm 800+400(Tool change travel） Z axis travel mm 600 Distance from spindle nose to worktable surface mm 150-750 A axis ±120° C axis Continuous 360° Worktable Worktable Size mm Φ630 Max. swing dia. of workpiece mm Φ850 Max. loading of worktable kg 850 T-slot width mm 14 Center hole size mm Φ50H7 A-axis locking torque N·m 2×2500 C-axis locking torque N·m 2800 Feed X/Y/Z rapid feed speed m/min 50/50/50 A/C axis spindle rpm 60/120 Spindle Spindle taper HSK-A63 Max. working speed r/min 18000 Rated power kW 38 Rated torque N·m 95 Position X/Y/Z positioning accuracy mm 0.008（Overall length） X/Y/Z re-positioning accuracy mm 0.004（Overall length） A/C axis positioning accuracy ″ 10 A/C axis re-positioning accuracy ″ 4 Tool Type Umbrella type Tool magazine capacity 40 Max. tool size mm Φ75/Φ120/300 (Full tool diameter / empty adjacent tool diameter / length) Max. tool weight kg 6 Other Air source pressure mPa 0.65Details
About the supplier
Main products: Lathe,Miller,Press brake,Grinding machine,CNC Machining center,Drilling machine,Planing Machine/Slotting Machine,Drilling and Milling Machine,Milling Lathe
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2014
- ✓1 certificate on file
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2014
- 1 certificate on file
