This machine is specially designed for cutting silicon steel coils into silicon strips for transformer cores, welding machine cores, and reactor cores.

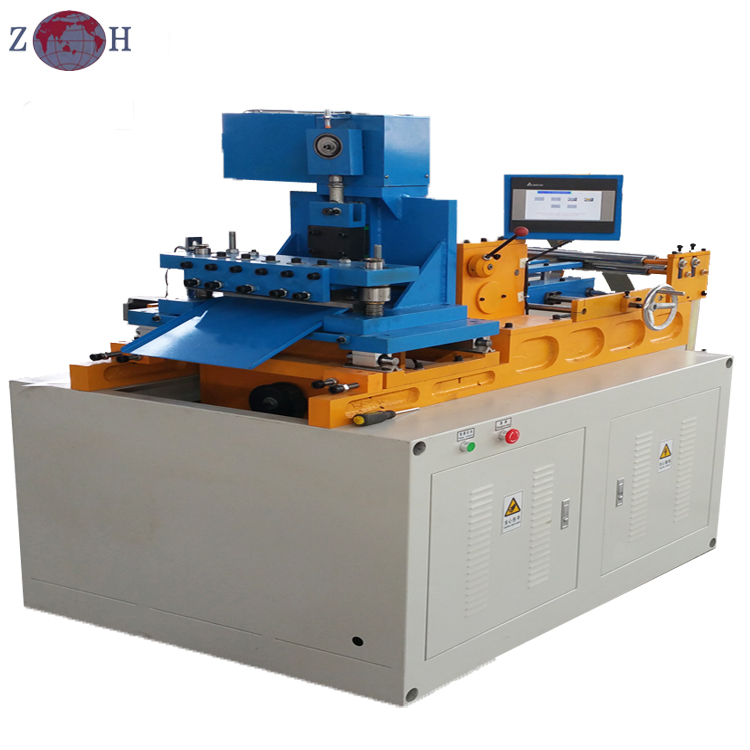

JN-3002S cutting machine is full servo motor driven, high speed feeding, punching and cutting, for max. silicon steel strip width 300mm.

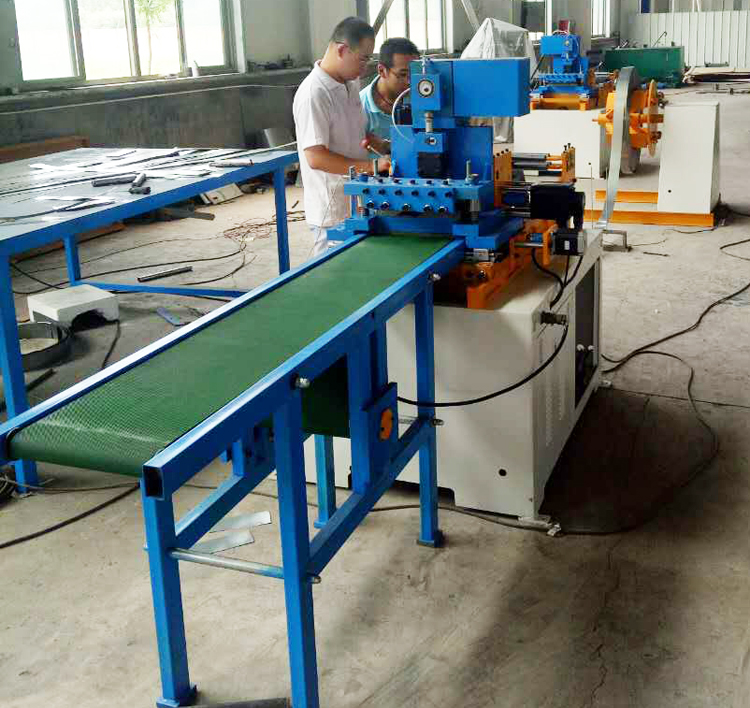

Inverter controlled motorized belt can work with cutting. Only a certain preset pieces are finished and stacked, this belt will move.

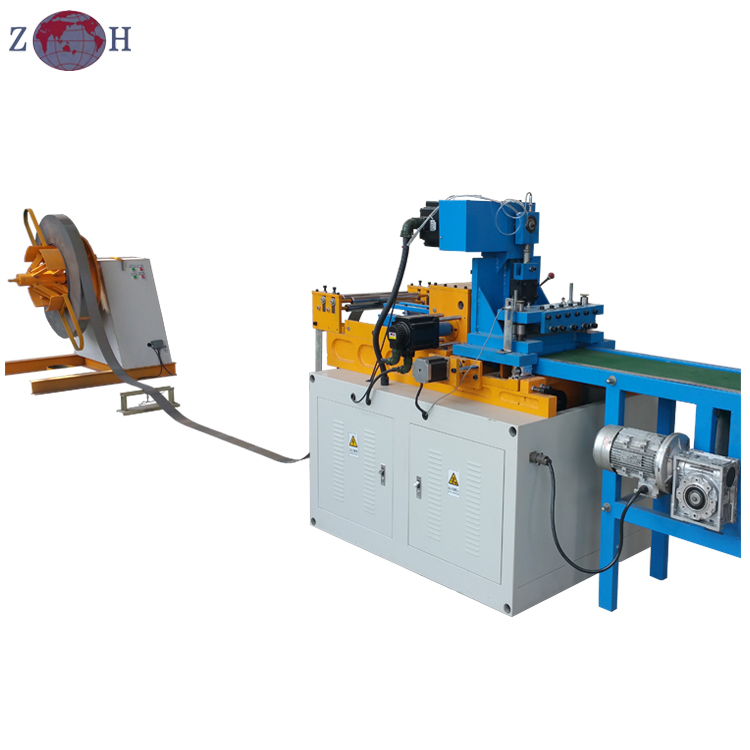

Production flow: decoiling, servo feeding, servo punching, servo cutting, belt collecting.
Buildup of the machine:
- 1) Inverter-controlled mechanical expansion decoiler:
- - Motor power: 2.2kW
- - Max. coil weight: 1000kg
- - Max. coil width: 300mm
- - Coil inner diameter: 480-520mm
- - Coil outer diameter: 1200mm
2) High speed feeding machine
- - Servo motor driving: Delta servo motor, 2kW
- - Feeding precision: +/-0.02mm
- - Feeding speed: max. 100m/min
- - Feeding roller material: special mould steel in high hardness
3) Punching device
- - Suitable hole diameter: 8-25mm
- - High speed punching, 80-150 times per minute
- - Hole position tolerance: +/-0.02mm
- - Punching motor power: servo motor 3kW
- - Punching die: high hardness carbide alloy, life more than 1,200,000 times before grinding, not less than 20 times grinding (one size punching tool is included on the machine)
- - Hole position and hole numbers can be pre-set on the touch screen
4) Straight cutting device
- - High speed cutting, 80-150 times per minute
- - Cut-to-length tolerance: +/-0.02mm
- - Cutting motor power: servo motor 2.2kW
- - Cutting blade: high hardness carbide alloy, life more than 2,000,000 times before grinding, more than 20 grinding times
- - Quantity and length are pre-set on the touch screen
5) Transmitting belt: 1.2m long, inverter control, motor power 1.5kW
6) Control system
- - Delta PLC
- - Delta touch screen 7”
- - Quantity and length can be pre-set on the touch screen
- - Special round column cutting function included:
- - With descending cutting function which can be used in reactor core cutting.
Main technical data
No.
Item
Data
1
Type Code
JN-3002S
2
CRGO thickness
0.23-0.6mm
3
CRGO coil width
30-300mm
4
Cutting length
1-999999mm
5
Cut-to-length tolerance
+/-0.02mm
6
Hole position tolerance
+/-0.02mm
7
Hole numbers
0-12
8
Burr height
Less than 0.02mm
9
Feeding speed
Max. 100m/min
10
Cutting speed
80~150 pieces per minute
11
Punching die
Carbide alloy
12
Cutting blade
Carbide alloy
13
Die & blade life
More than 1.2 million times before grinding
14
Servo motors
Delta from Taiwan
15
Main machine dimension
1600 x 1160 x 1650mm
16
Transmitting belt dimension
1800 x 800 x 1000mm
17
Motorized decoiler dimension
1500 x 1170 x 1350mm
18
Total weight
About 1200kg
