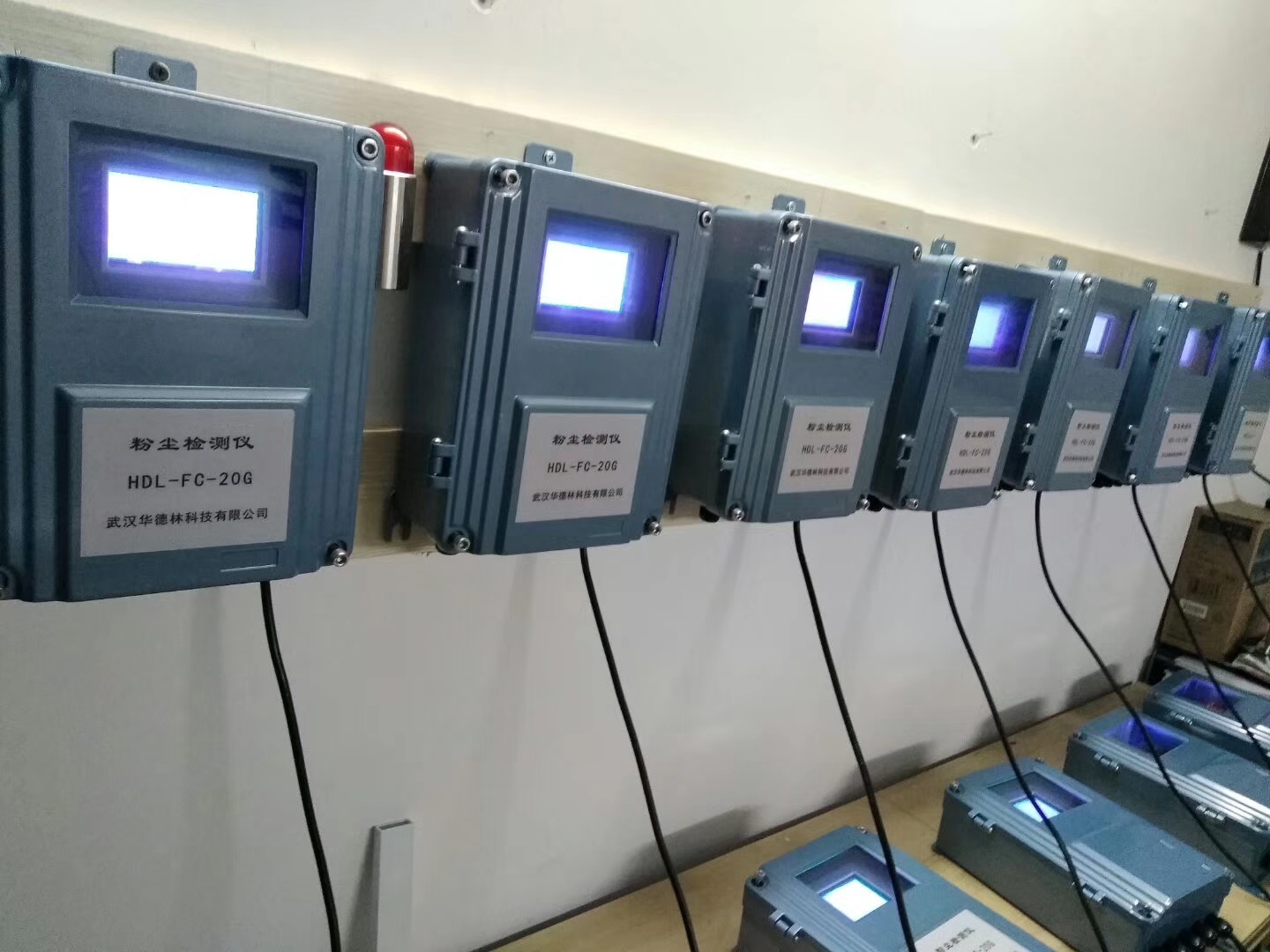

Online dust detector Model: HDL-FC-20G
I. Overview
The HDL-FC-20G online laser inhalable dust continuous detector (hereinafter referred to as the online dust detector) is primarily used for detecting the concentration of dust particulate matter (PM10 and TSP) and providing an over-limit alarm in industrial and mining enterprises. This instrument draws air containing dust particles from large public indoor spaces, industrial and mining enterprises, factory workshops, or production areas into the instrument, and analyzes it using a high-precision laser dust detection sensor. The resulting data is displayed on the instrument's display screen, indicating the dust concentration value in that space.
The HDL-FC-20G online laser inhalable dust continuous detector utilizes the advanced light scattering principle, employing a semiconductor laser as the measuring light source to conduct highly sensitive and non-contact measurements of dust in the air. The entire testing process is managed and controlled by a single-chip microprocessor, and a high-resolution, large-screen, high-brightness liquid crystal display with full Chinese display is adopted.
II. Main Technical Indicators
Dust measurement ranges: PM10 and TSP (PM2.5 optional)
Dust measurement range: 0.001~40.0mg/m³;
Detection sensitivity: 0.001mg/m³; repeatability error: ≤±3%;
Air sampling flow rate: 2.L/min (0.1 ft3/min);
Sampling time: 10 seconds. Directly readable dust concentration (ug/m3).
It features an alarm setting function for excessive dust concentration, with the concentration threshold being arbitrarily adjustable.

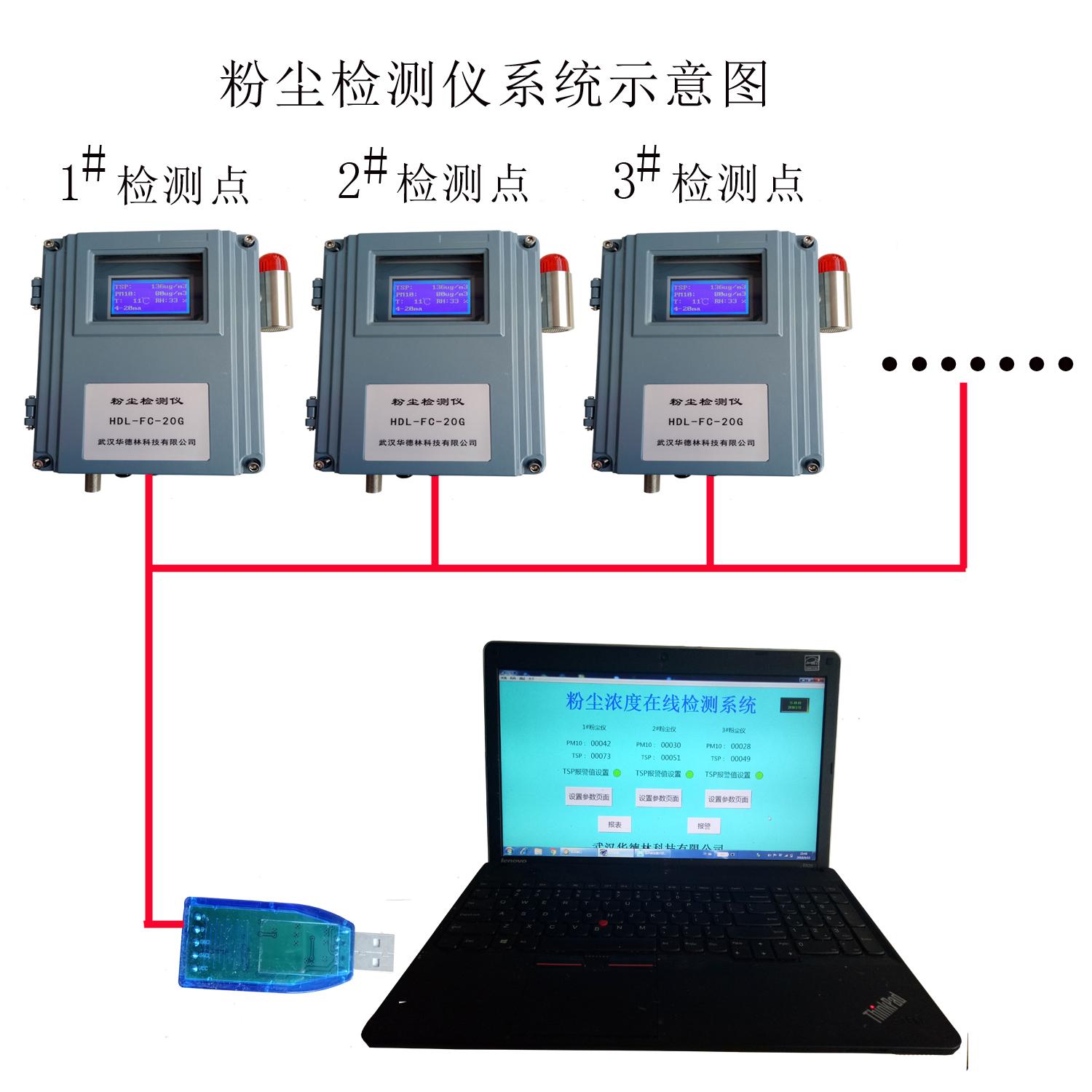

Equipped with RS485 interface, 4-20mA current output, and switch-value alarm output. It can be connected to a computer for data transmission, remote monitoring, and printing of detection results.
The instrument is equipped with a programmable clock chip to provide accurate date and time information for measurements. 9. It features a self-cleaning calibration function.
Working environment: Temperature (-30 to 75℃); Humidity RH (20 to 80) %
Operating power supply: 220V AC power supply; or 5V DC
The service life of the instrument is more than six years
• Dimensions: 280mm × 210 mm × 100mm;
Weight: approximately 3KG;
III. Features
This instrument is small in size, easy to install, and boasts advantages such as fast testing speed, high sensitivity, good stability, light weight, simple operation, and dual-purpose for both AC and DC. It is suitable for measurement in large factories and workshop settings, ensuring safe production and real-time monitoring. It features an alarm function and provides a fast, real-time display in full Chinese.
IV. Instrument configuration
One host machine
One alarm device
Communication software (optional)
V. Applicable occasions
The HDL-FC-20G online dust detector is suitable for rapid determination of inhalable particulate matter (PM10 and TSP) concentrations in public places, detection of dust concentrations at industrial and mining enterprise production sites, monitoring of inhalable dust concentrations in the field of environmental protection, and evaluation of the purification efficiency of air purifiers. It can also be used for real-time detection of dust concentrations in production workshops, factories, and other areas, with alarm function,
