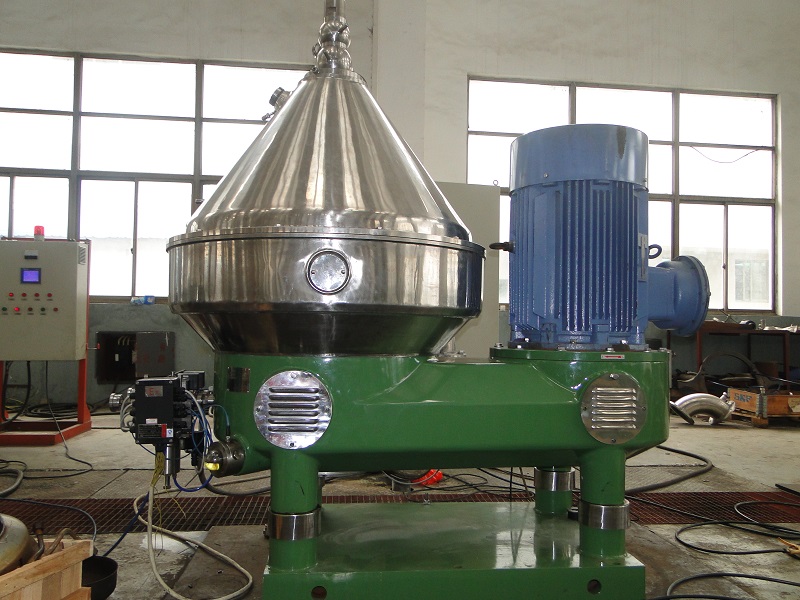

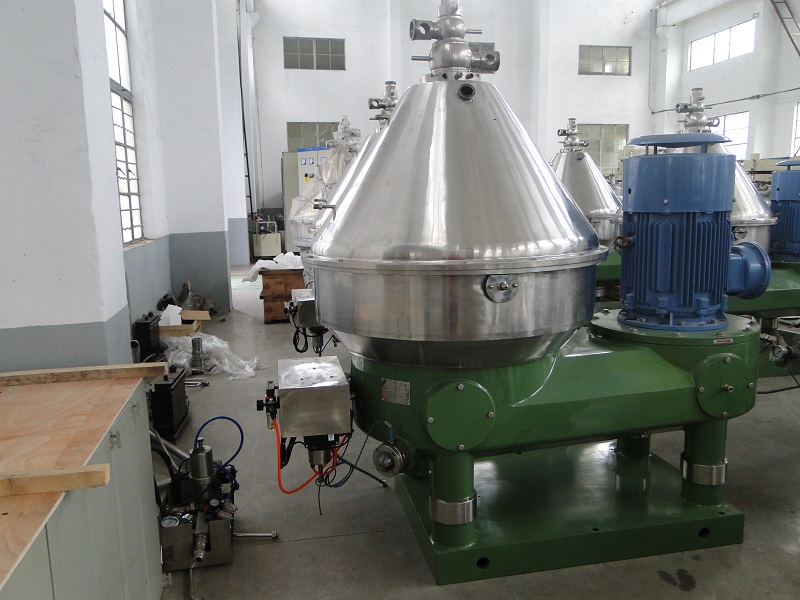

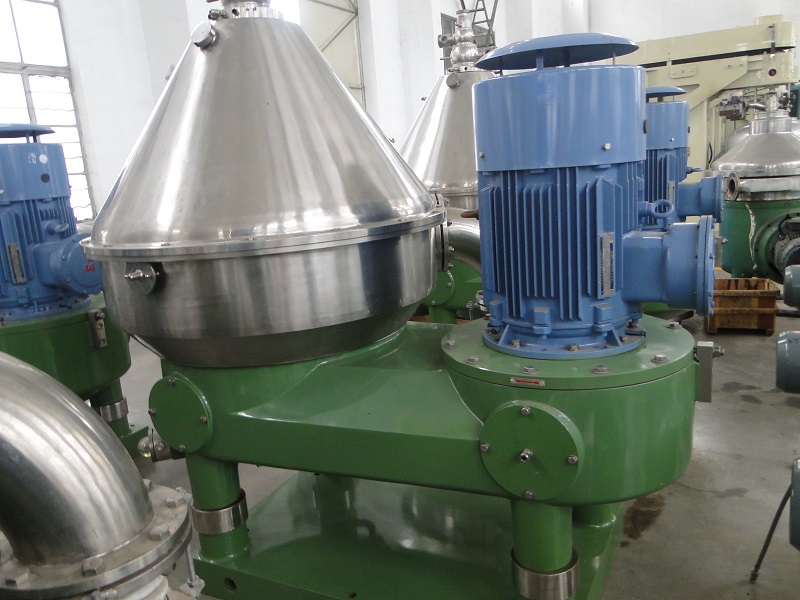

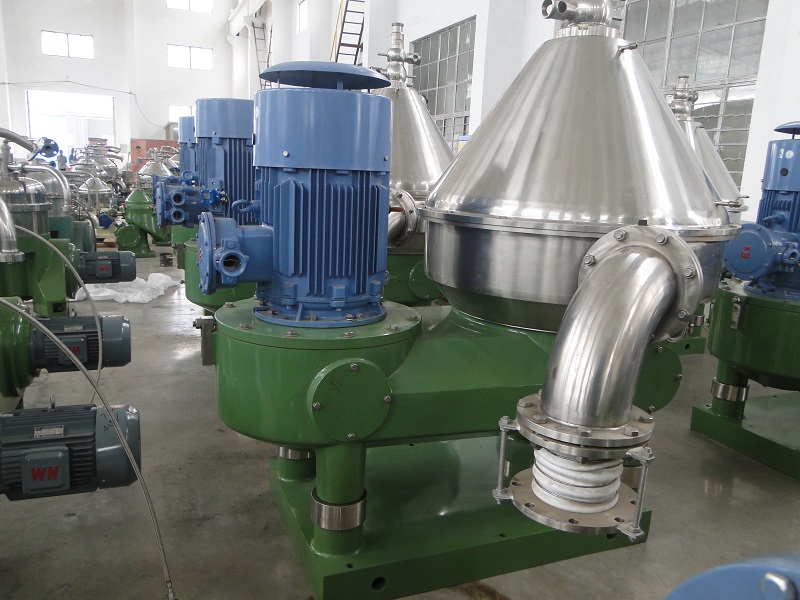

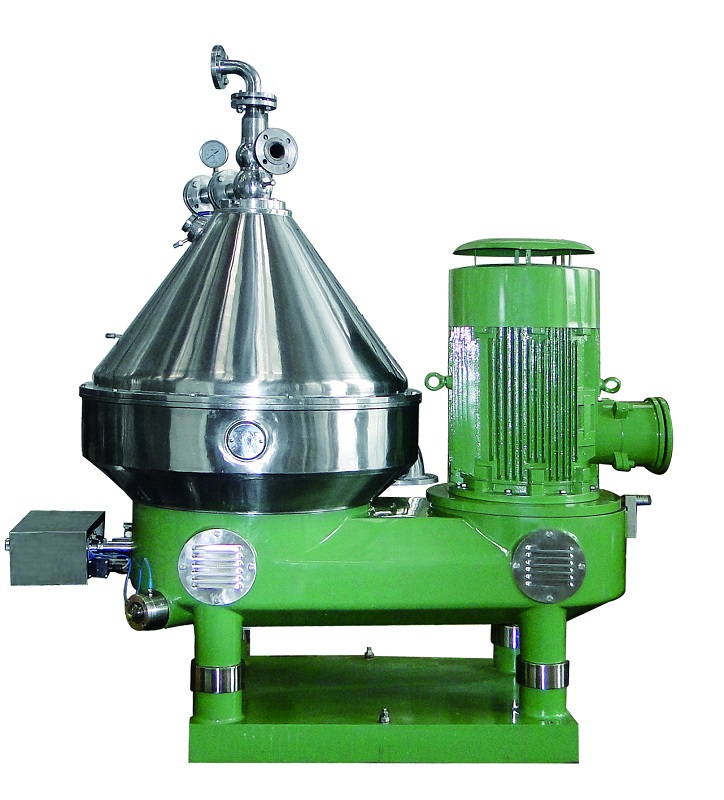

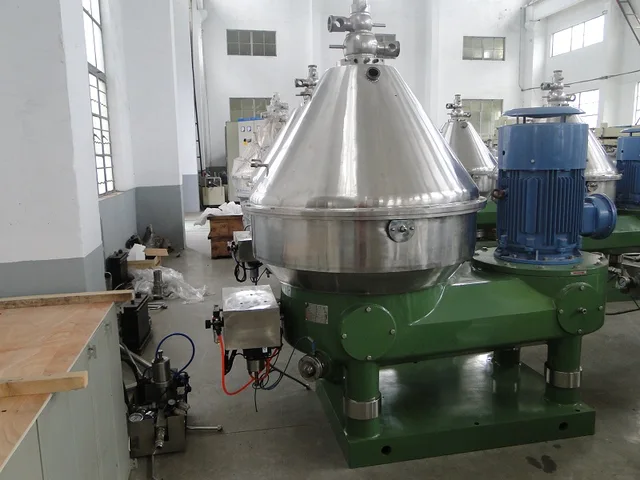

DHFX separator can discharge automatically with ring valve, and it is controlled automatically by computer system and Industrial Personal Computer. It can discharge regularly and quantificationally without stopping feeding, and has many advantages as high automation, can be suitable for many process lines, easy to adjust or regulate, and obtain satisfactory separation effect.

Adopt belt for transferring driving power. The VFD controls the motor and driving it start slowly, run the vertical shaft to its rated speed, so that make the whole starting stably.

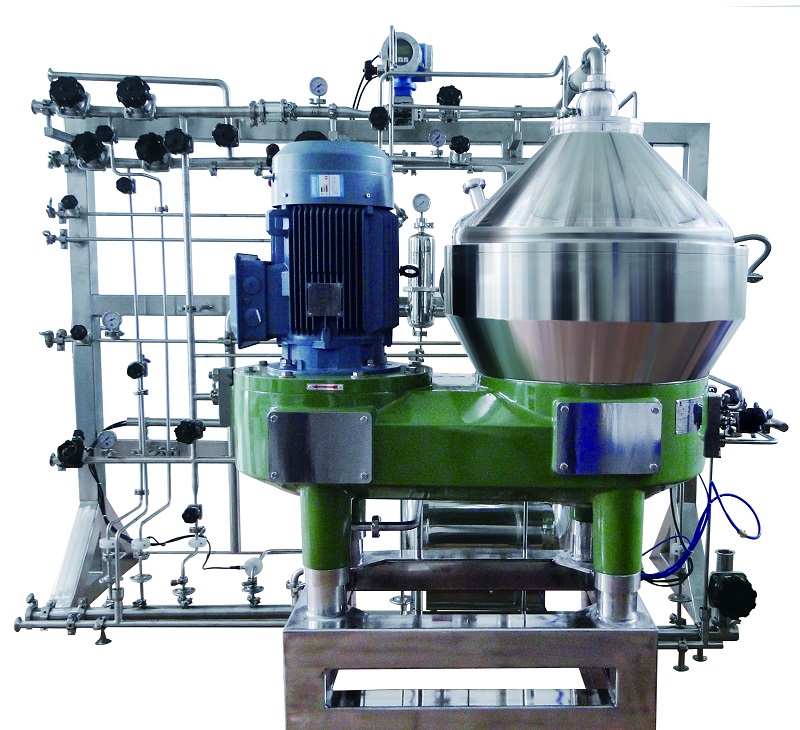

The separator is mainly used for solid and liquid separation in the process of escherichia coli and insulin processing, and can also be used for the separation of liquid and a small amount of solid in milk, beverage, medicine and other industries. Separator module is mainly composed of separator, electromagnetic flow meter, diaphragm valve, slag pump, frame, pipe and automatic control cabinet.

The separated material will be input into the heart of the separator, i.e. the drum. By the strong centrifugal force field, the material passes the separation partition consists of disk string, the solid in higher specific gravity (heavy phase) will move toward the big end along disk wall, accumulate at the residue-settling area, and be discharged regularly; The liquid in lower specific gravity (light phase) will move toward the small end along disk wall, then assemble at the small centripetal pump, and output by it. The max pressure shall not more than 0.4Mpa.

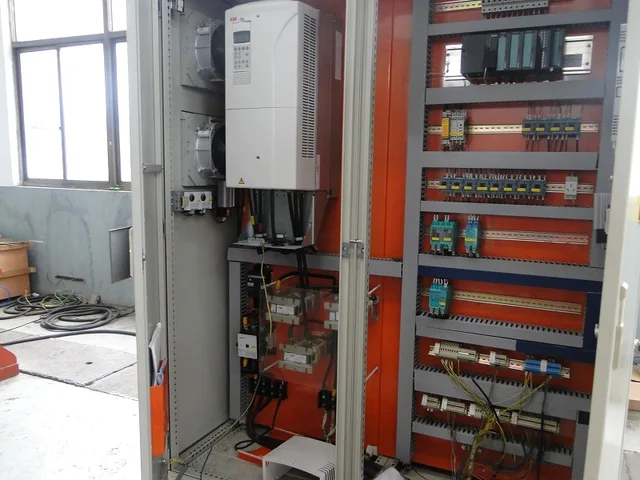

The separator discharge residue automatically by ring valve, during its operation, you can adjust the separating, residue-extracting periods and extraction volume depending on the materials to separate perfectly. The separator is controlled by computer system and PLC, it’s easy and simple to operate, the display is straightforward and it is highly automated.
