1.Range of Application
Indoor 300/500V AWG PVC Insulated Copper Wire
Power plant, Household Appliances, meters and telecommunication equipment with AC voltage up to and including 450/750.

2.Product Introduction:

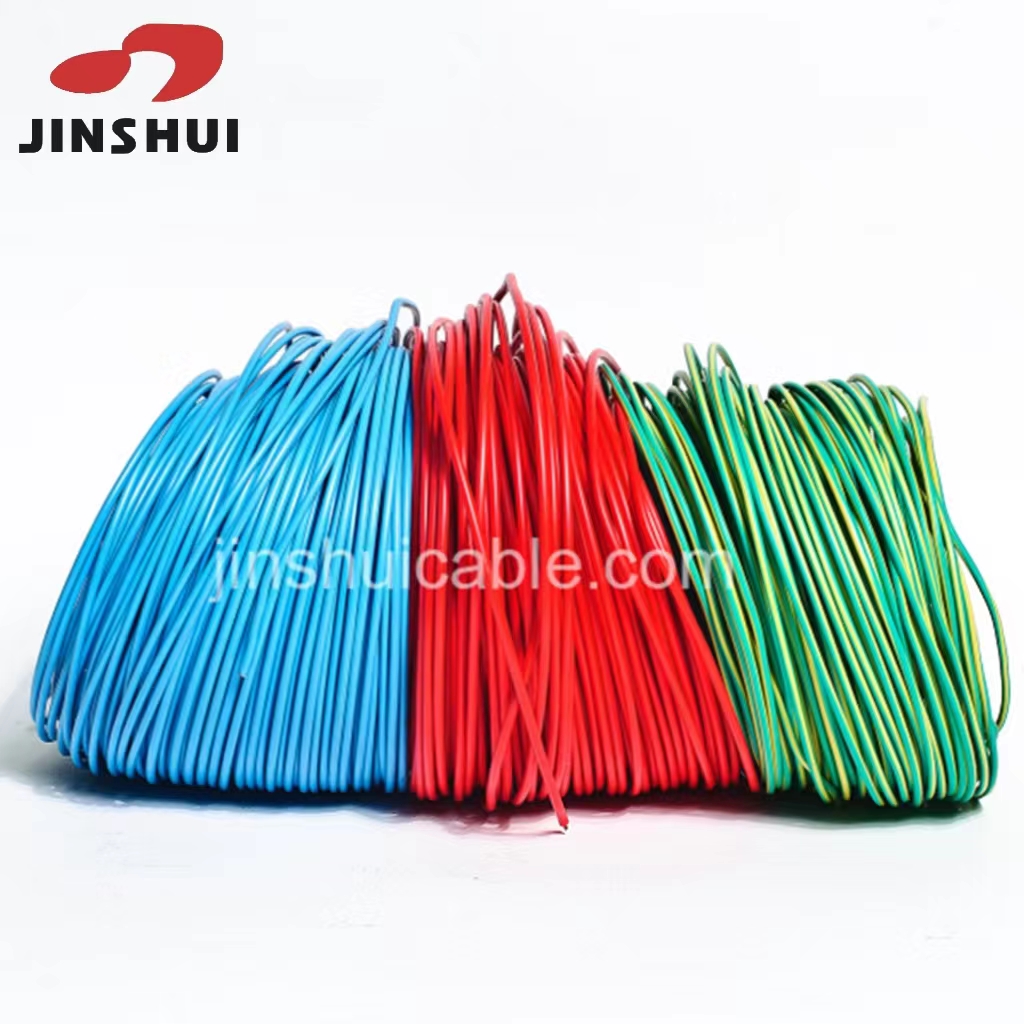

Indoor 300/500V AWG PVC Insulated Copper Wire
*Product : PVC insulated electric wire
*Conductor: Single or stranded copper
*PVC insulation
*Rated voltage: 300/500V,450/750V
*The long-time working temperature should not beyond 70ºC.
*Adopt standard thickness, easy truncation.

3.Service Conditions
Indoor 300/500V AWG PVC Insulated Copper Wire
Working temperature:Not more than 105ºC for RV-105 model.The other no more than 70ºC.

4.Model and Name
Indoor 300/500V AWG PVC Insulated Copper Wire

Model

Name

RV

Copper Core PVC Insulation Flexible Wire

RVB

Copper Core PVC Insulation Flat Flexible Wire

RVS

Copper Core PVC Insulation Twisted Flexible Wire

RVV

Copper Core PVC Insulation Sheath Round Flexible Wire

RVVB

Copper Core PVC Insulation Sheath Flat Flexible Wire

RV-90

Copper Core Heat-resistak Losc PVC Flexible Wire

5.Part of specification size and technical data:
Indoor 300/500V AWG PVC Insulated Copper Wire

Nominal section (mm²)

No./Diameter

(mm)

Max. overall Diameter (mm)

Cooper Weight

(kg/100m)

Plastic Weight

(kg/100m)

Total Weight (kg/100m) 0.75 1/0.97 2.25 0.66 0.48 1.14

1

1/1.13 2.4 0.89 0.53 1.42 1.5 1/1.38 2.9 1.33 0.75 2.08 2.5 1/1.78 3.4 2.2 1.1 3.16 4 1/2.25 3.9 3.54 1.31 4.73 6 1/2.76 4.4 5.33 1.42 6.72 10 7/1.35 6.2 9.02 2.6 11.7 16 7/1.70 7.2 14.3 3 17.3 25 7/2.14 9 22.7 4.8 27.5 35 7/2.52 10.1 31.4 5.6 37 50 19/1.78 11.9 42.8 7.5 50.3 70 19/2.14 13.7 62 8.5 70.5 95 19/2.52 16 85.7 11.3 97 120 37/2.03 17.6 108.4 12.6 121 150 37/2.25 19.5 133.2 15.8 149 185 37/2.52 22 167.1 20.4 187.5 240 61/2.24 25 218.7 26.8 245.5 300 61/2.50 27.5 271.5 29 300.5 400 61/2.85 31 352.5 35.8 388.3

Size:1.5-400mm2, Other sizes can also be produced as you required.

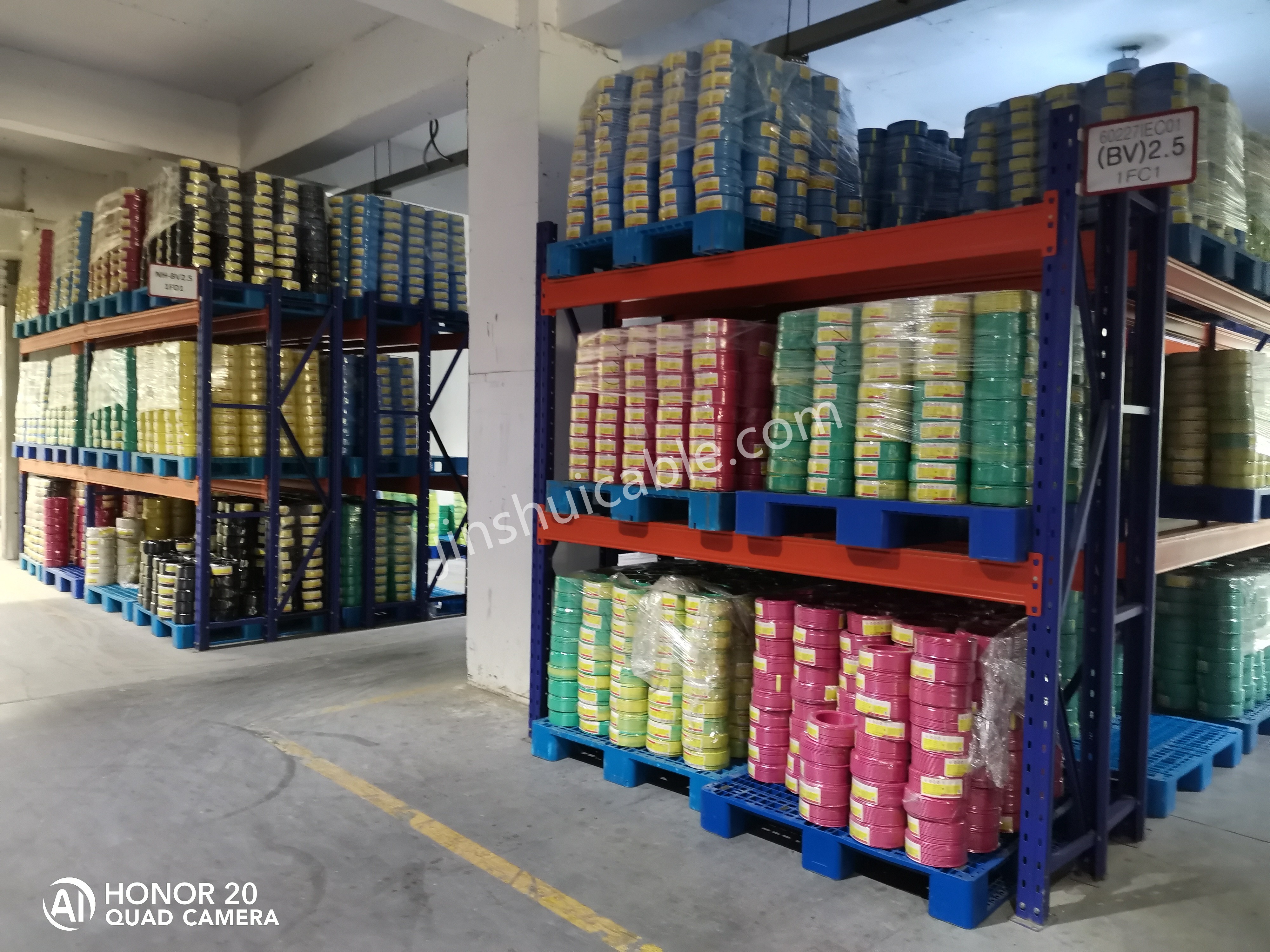

Packaging and shipping

Inner packing: Easy pull box, plastic film, plastic reel ,wooden reel.

Outer packing: Carton box, pallet available.

Other packages are available according to client's request.

Company Description
Zhengzhou Jinshui Industry & Commerce Co.Ltd is located in the national class Zhengzhou high and new technology industries zone in Zhengzhou, Henan province. We have owned a number of exclusive essential manufacture technologies and has pass ISO 9001 Quality Management Systerm, ISO 14001 Environmental Management Systerm, OHSAS18001 occupational Heath Management Systerm, ISO 10012 Measurement Management Systerm and others from China and abroad.

Our product range is as following:
*Bare conductors(AAC, AAAC, ACSR, Galvanized steel wire)
*Aerial Bounded Cable (Duplex, Triplex, Quadruplex)
* PVC insulated wire (Rated voltage to 450/750V)
*THHN/THWN wire
*PVC insulated Power Cable
*XLPE insulated Power Cable
*Rubber sheathed Cable
*Control Cable
*Welding Cable
*Cable Accessories

We take part in many fairs and exhibitions in China and abroad. Our aim is to be our customer's factory in Zhengzhou, China. We are here to help you placing orders of cost-effective electric cable and keep tracking your products and shipment.

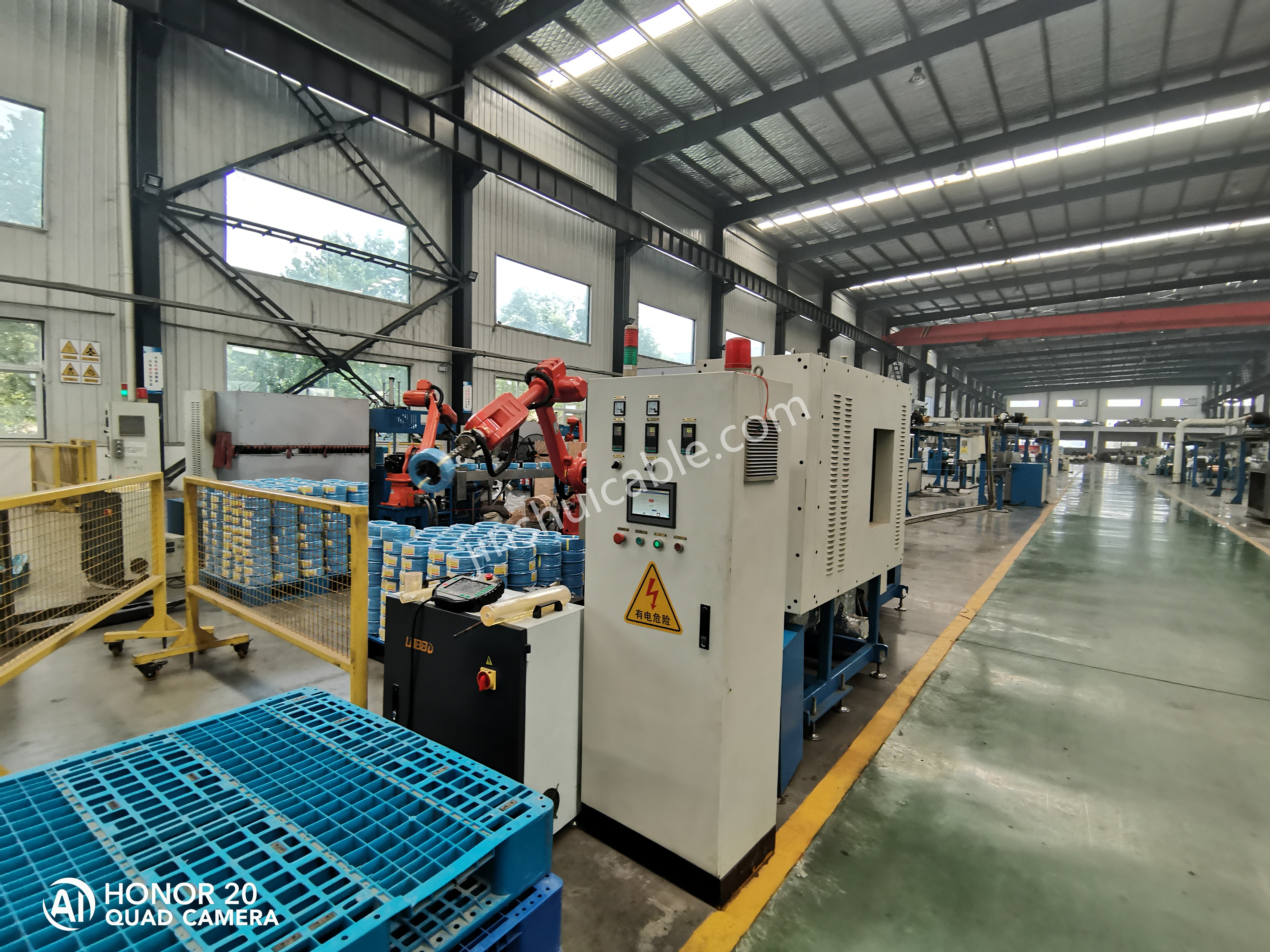

Our Factory
1. Professional production lines, experienced worker, ensure the production of every thing is fine and accurate.

2. We choose excellent raw materials carefully to ensure the quality and meet the need of customers.

3. Mechanical testing of Cables is done to determine the quality and mechanical characteristics before delivery.
