Product Description

XLPE is a new type of environmentally friendly product with high-temperature resistance and environmental resistance. It is made of the thermosetting plastic. The electrical properties of XLPE cables produced by zhengzhou jinshui wire cable are almost as good as those of polyethylene, and the long-term working temperature is relatively higher than that of polyethylene. At the same time, the mechanical properties are better than PE, and the aging resistance is better. Often used in places with high environmental resistance requirements.

Product Features

XLPE insulated power cabie has a number of advantages over paper insulated and PVC insulated cable. XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmetal stress resisting anti-chemical corrossion, and it is simple construction, using convenient and higher operating of long term temperature. it can be laid with no drop restriction.
Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology (peroxide, silane and irradiation crosslinking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen freeand non-smoke nonhalogented and three classes of A,B,C.

Product Structure
Conductor: Aluminum / Copper Conductor
Insulation Screen: Semi-conductive XLPE
Core: Single / Three core
Conductor Screen: XLPE
Cable Tape: Water Swellable Semi-conductive Tape
Cable Outer Sheath: XLPE / PVC / PE

Product Type

Type

Cu/XLPE/SWA/PVC, Al/XLPE/SWA/PVC

Voltage

0.6/1 kV

Cores

1C, 2C, 3C, 4C, 5C, 3C+1E,4C+1E, 3C+2E

Range of Nominal cross section

1.5 mm2 - 630 mm2

Application

Power Cable Steel Wire Armoured applies to electrical power transmission and distribution lines with AC rated voltage U0/U up to and including 0.6/1 kV. For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces, and certain force

Standard

IEC 60502, BS 7870, GB/T12706

Technical Parameters of our Power Cable

1). Standard: IEC60502; GB/T12706;IEC 60840;IEC62067;GB/T 11017;GB/Z 18890

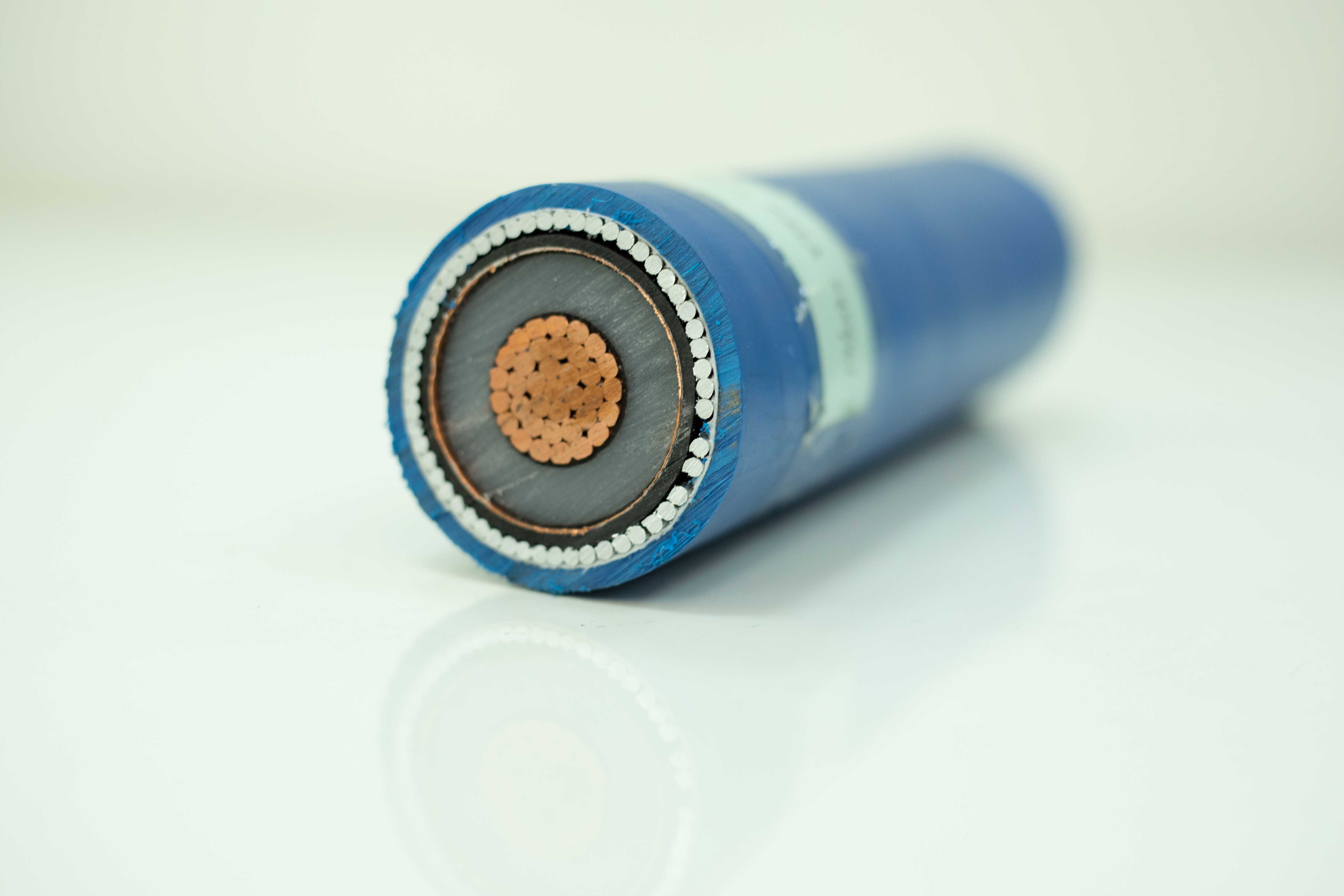

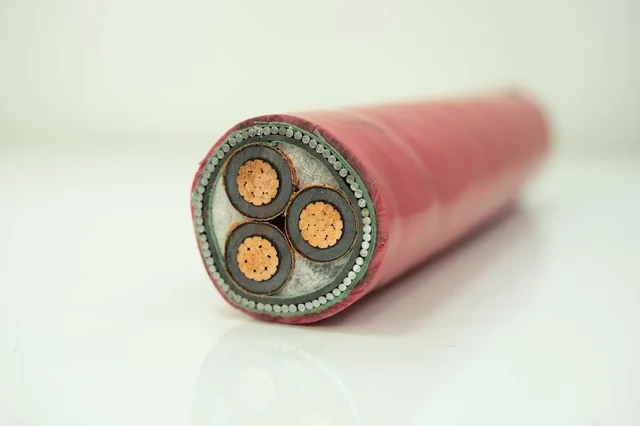

2). Detailed description or construction:

?Conductor: compacted or uncompacted copper or aluminium

?Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)

?Filler: Polypropylene filament with lapped binding tape

?Binder: Binding tape

?Inner sheath: Polyvinyl chloride (PVC)

?Armour: Galvanized steel wire armored (SWA) or steel tape armored (STA)

?Sheath: Polyvinyl chloride (PVC)

3). The rated voltages U0/U(Um) of the cables considered in this standard are as follows:

U0/U(Um) =0.6/1(1.2)-3.6/6(7.2)-6/10(12)-6.35/11(12)-8.7/15(17.5)-12/20(24)-12.7/22(24)-18/30(36)-19/33(36)-26/35(40.5)KV

4). Voltage:

0.6/1kV, 1.8/3kV, 3.6/6kV, 6/10kV,6.35/11kV, 8.7/15kV, 12/20kV,12.7/22kV, 18/30kV,19/33kV,26/35kV

5). Application:

For laying indoors, in tunnel or cable trench with large difference of level able to bear external mechanical forces.

6). Marking: According to the customers' requirements.
