Heating systems radiant electric constant wattage cable floor heating cable

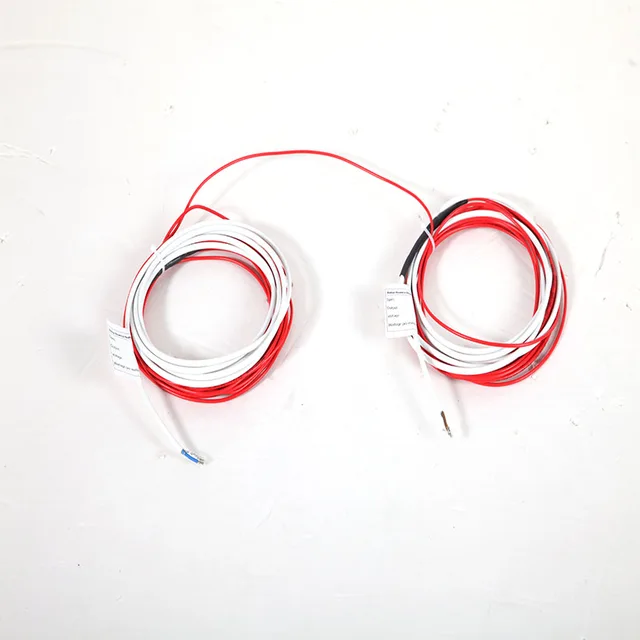

T-cable

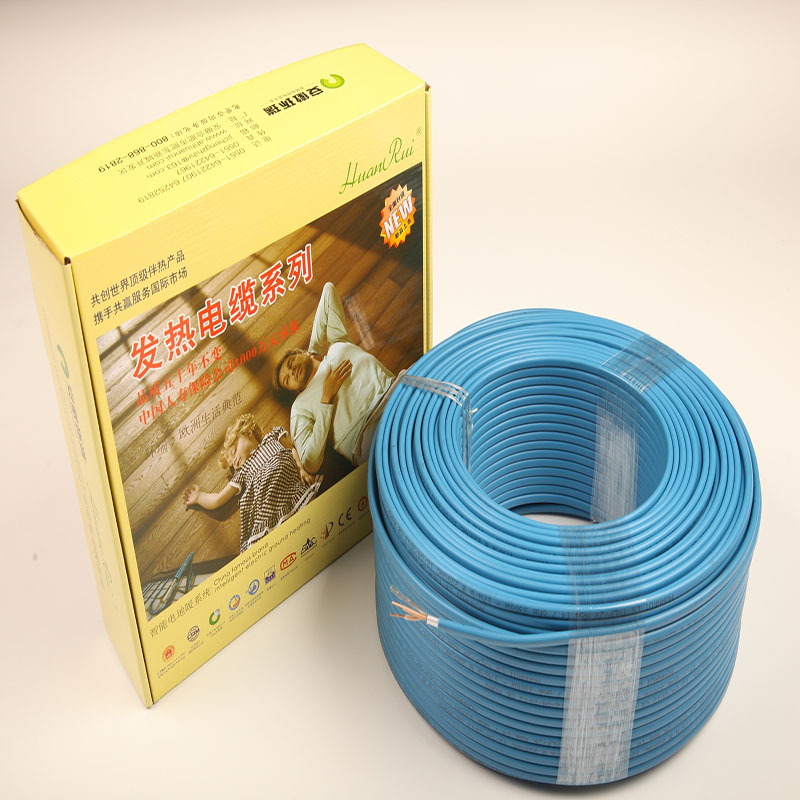

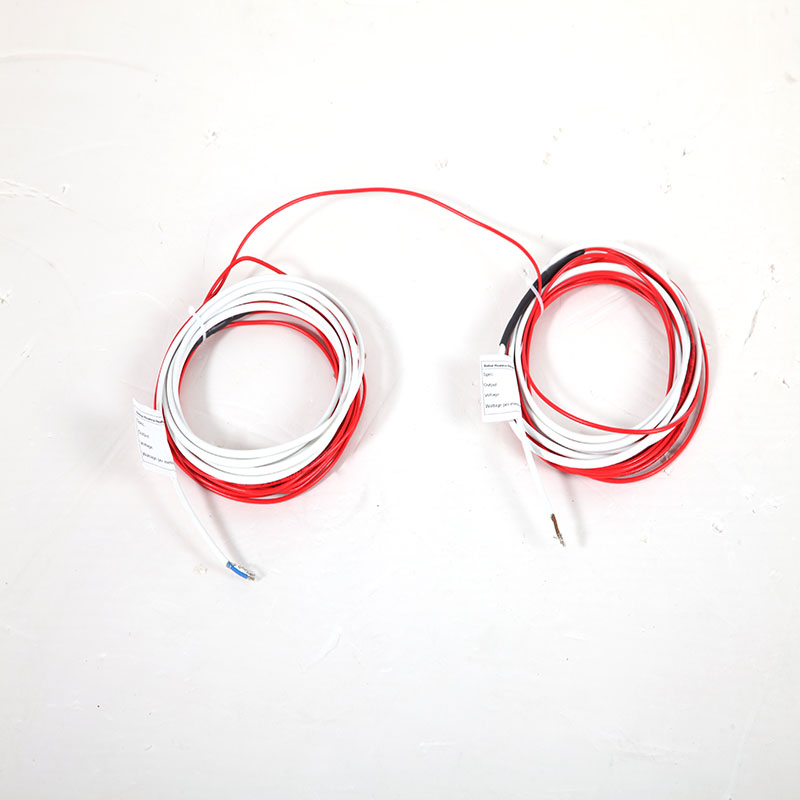

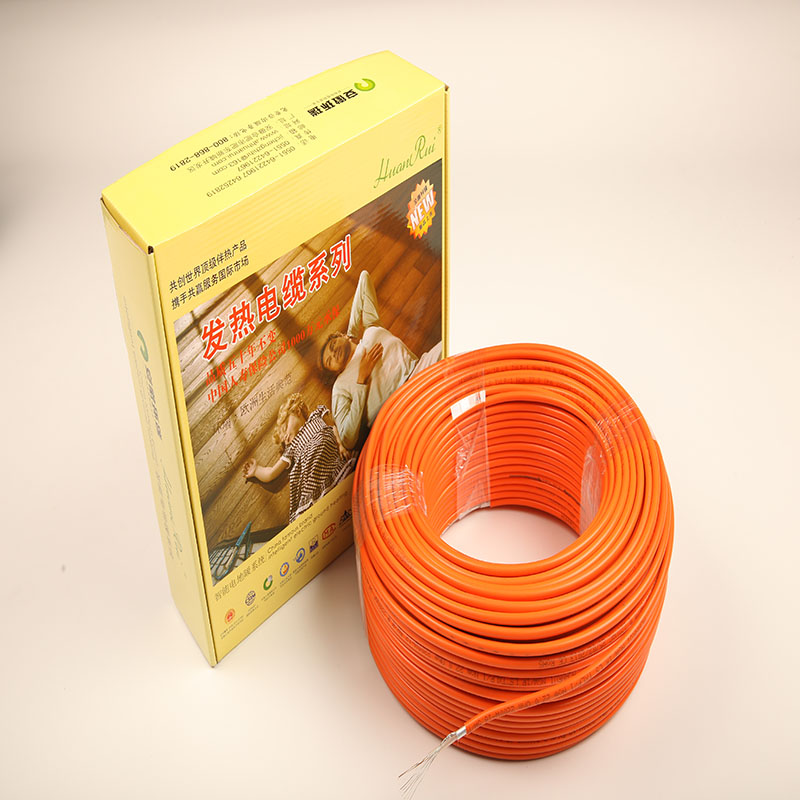

T-cable electric floor heating wire is designed to be as thin as possible, only 3.6 mm, we have two kinds of output power, ensure the economic and energy saving and decrease the floor level to the maximum extend.

Features

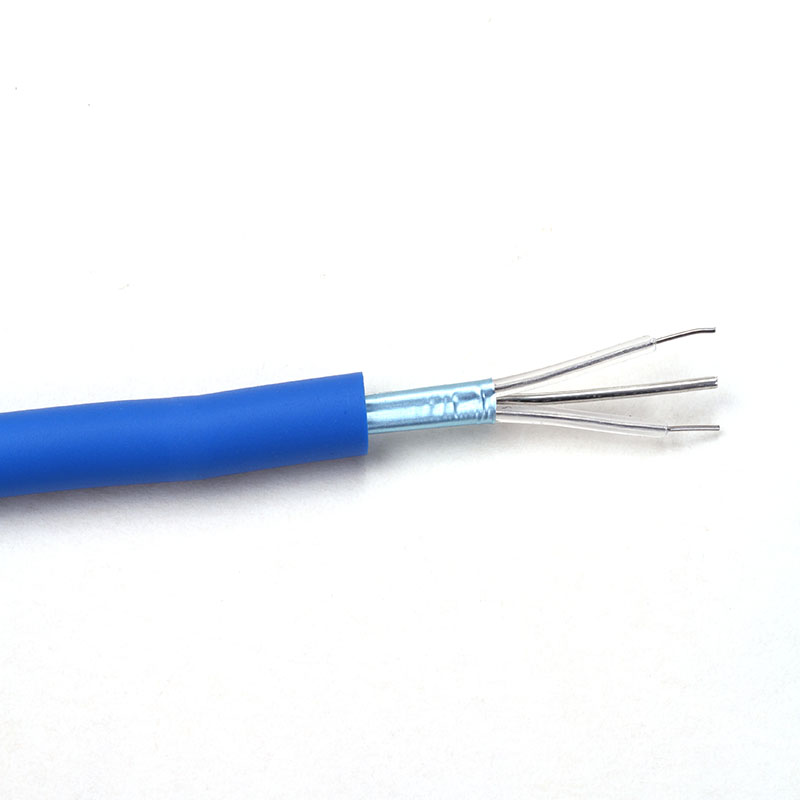

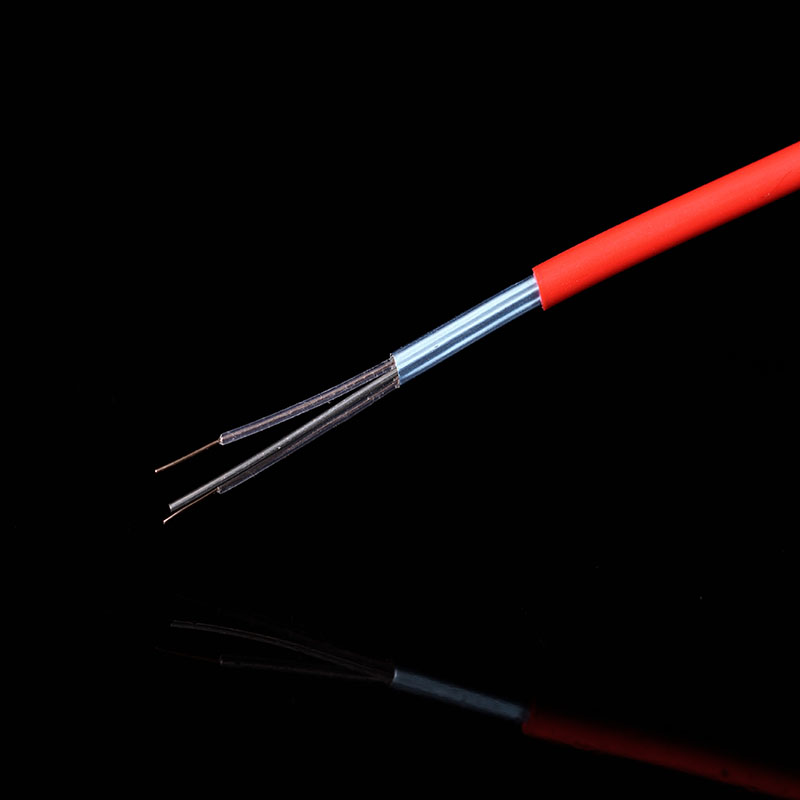

Twin conductor cable

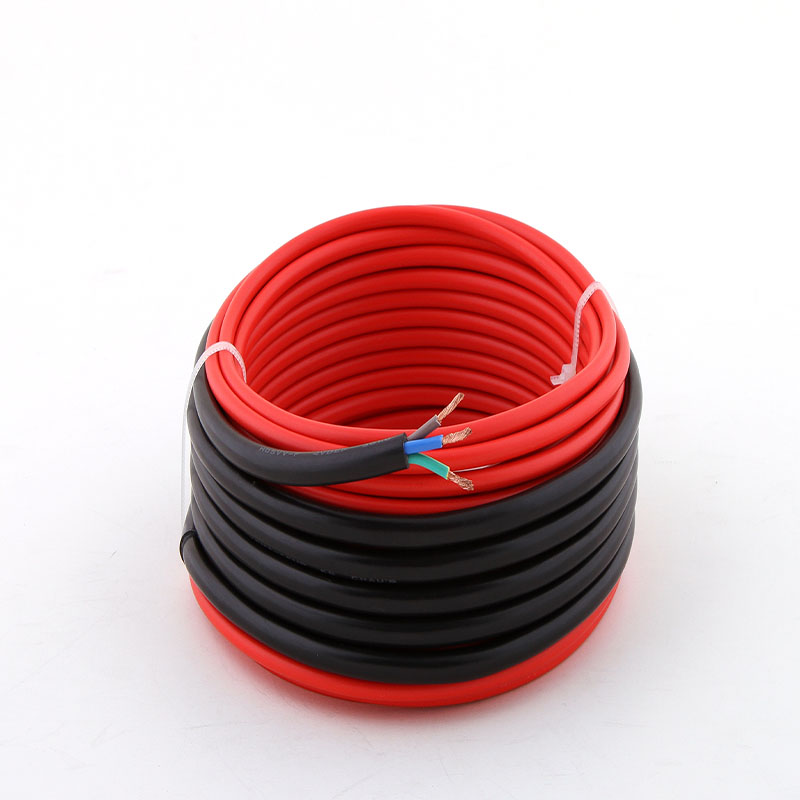

Cold Lead: 2.5 m length
Flexible installation
Emit zero EMF(electromagnetic fields)
Durable construction
Single point safety connection
25-Years limited warranty

Applications

Electric floor heating wire is designed for installation under tile, wooden floor, marble.
Output power have 12 w/m, 18 w/m, can set the one square meters power as the actual need.
Renovated and Ultra thin cable
Min Installation Temp: 5°C
Max Ambient Temp: 30°C
Heating cable Length: 12.5-150.0 m (12 w/m)/7.5-154.2 m (18 w/m)

Underfloor heating cable and snow melting & deicing heating cable :



item name

power voltage

output

T-CABLE

(2CORE  for underfloor warming,CE/CSA CERTIFIED)

110-120v/220-240v

12 &18W/M

I-CABLE

(2CORE  for underfloor warming)

110-120v/220-240v

20W/M

S-CABLE

(1CORE for underfloor warming)

110-120v/220-240v

10 &15W/M

HR-CABLE

(2CORE for snow-melting)

110-120v/220-240v

28W/M

HM-CABLE

 (2CORE for snow-melting)

110-120v/220-240v

30W/M

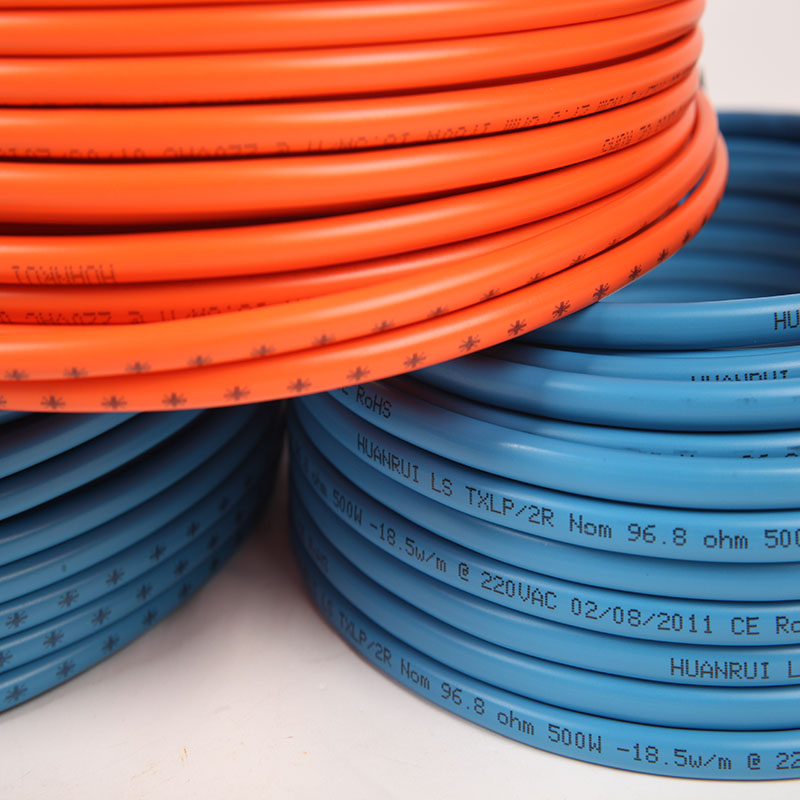

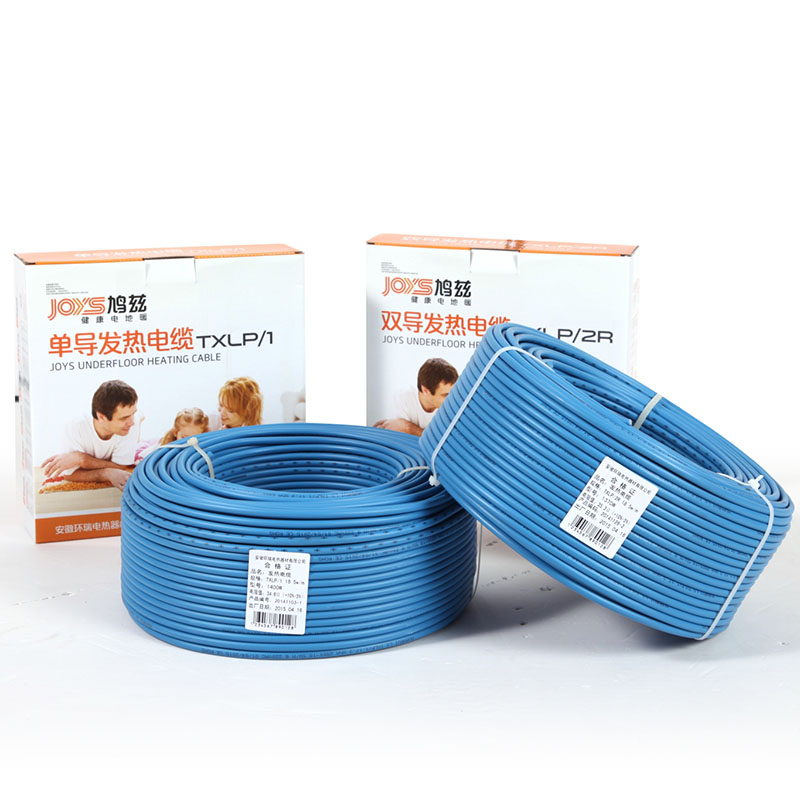

TXLP-2R

(2CORE for snow-melting, GROUDN AND FLOOR WARMING )

110-120v/220-240v17W/18.5W/M



MOQ 1000 meters
OEM and ODM available

Product Adantages

Electric floor heating wire is the ideal solution for those complicated floor areas where mat is not suitable; our systems are all rated at 12 w and 18 w per linear meter. This mean the closer you space the cable, the higher the output. These cables are suitable for use directly beneath tiled floors. They can also be used under some carpet/vinyl and wooden floors providing a suitable layer of leveling compound is applied to the cables first.

CertificationsRelated Products

Underfloor heating mat electric floor heating system

T-mat underfloor heating mat electric floor heating systems use a twin conductor heating cable for easy of installation and very low EMF. The mat thickness of only 4.0 mm enables underfloor heating installations into most quality two-part adhesive with a minimum increase in floor height.

Roof and gutter deicing cable heat tracing system

LSR heat tracing system is ideally used for process temperature maintenance and frost protection of regular diameter pipelines, tanks, valves, flanges, roof & gutter de-icing, snow melting and other application where low temperature is needed. It is suitable for hazardous area, also non-hazardous area and corrosive area with fluoropolymer outer jacket. UV stabilized thermoplastic elastomer outer jacket is provided to cover the braid for wet applications and exposure to the sun.

Product Name:Ultra Thin 150w/sqm Laminate Heating Mat F-mat

Introduction:
Simple to install, the foil heater delivers a consistent and even heat distribution. It can also be installed under the floor in wet areas without the need for additional earth grids. The thermal properties of the reinforced aluminium foil used in the heater help to spread the heat evenly.
Improved savings can also be achieved by using foil underfloor heating in conjunction with the Insulated Underlay as it dramatically reduces heat-up times by at least 50%. It is suitable for all applications, providing primary or secondary heating in all rooms or projects that adheres to Building Regulations.
The Foil Heater System is ideal for installation in regular shaped rooms, such as living rooms and bedrooms.

Technical Data:
Cable structure                 Twin conductor
Conductor                        Solid heating core
Insulation                         Fluoropolymer
Cable spacing                   50mm
Cable diameter                 1.0mm
Connector                        Out splice
Min. installation temperature     5°C
Rated voltage                     230Vac
Power output                      80W/m2        150W/m2
Resistance tolerance           +10/-5 %

Cold lead                           2.5m length

Certifications                      CE/EAC

Features:
Twin conductor heating cable
Only one cold tail for ease of installation
Ultra thin, only 1.8 mm
Emit zero EMF(electromagnetic field)
Flexible installation
Durable structure
100% screened

Applications:
F-mat is designed for wooden floor, laminate floor and under carpet heating.

80 W/m2 150 W/m2 provided for customers choose.

MOQ: 50 pcs

Part Number

Mat dimensions /m*m

Heating Area/m2

Output power/Watts

Resistance/Ω

F-mat80-80

0.5x2

1

80

661.25

F-mat80-120

0.5x3

1.5

120

440.83

F-mat80-160

0.5x4

2

160

330.63

F-mat80-200

0.5x5

2.5

200

264.50

F-mat80-240

0.5x6

3

240

220.42

F-mat80-280

0.5x7

3.5

280

188.93

F-mat80-320

0.5x8

4

320

165.31

F-mat80-360

0.5x9

4.5

360

146.94

F-mat80-400

0.5x10

5

400

132.25

F-mat80-480

0.5x12

6

480

110.21

F-mat80-560

0.5x14

7

560

94.46

F-mat80-640

0.5x16

8

640

82.66

F-mat80-720

0.5x18

9

720

73.47

F-mat80-800

0.5x20

10

800

66.13

F-mat80-880

0.5x22

11

880

60.11

F-mat80-960

0.5x24

12

960

55.10

Part Number

Mat dimensions/m*m

Heating Area/m2

Output power/Watts

Resistance/Ω

F-mat150-150

0.5x2

1

150

352.67

F-mat150-225

0.5x3

1.5

225

235.11

F-mat150-300

0.5x4

2

300

176.33

F-mat150-375

0.5x5

2.5

375

141.07

F-mat150-450

0.5x6

3

450

117.56

F-mat150-525

0.5x7

3.5

525

100.76

F-mat150-600

0.5x8

4

600

88.17

F-mat150-675

0.5x9

4.5

675

78.37

F-mat150-750

0.5x10

5

750

70.53

F-mat150-900

0.5x12

6

900

58.78

F-mat150-1050

0.5x14

7

1050

50.38

F-mat150-1200

0.5x16

8

1200

44.08

F-mat150-1350

0.5x18

9

1350

39.19

F-mat150-1500

0.5x20

10

1500

35.27

F-mat150-1650

0.5x22

11

1650

32.06

F-mat150-1800

0.5x24

12

1800

29.39
