Product Application

The PVC insulated wire belong to the series of laying wires,which are mainly suitable for laying at the fixed places.They are widesly used as connectors of driving,lighting,electric equipments,instrument and telecommunication equipments with rated voltage to 450/750V.Part of the plastic wires are used at the equipment with AC rated voltage upto 300/500V.and its working temperature is different according to different insulation materials, mainly 70 and 90 degrees temperature, etc.

Product Category

According to the conductor type, including solid conductor PVC insulated electrical wire, standed PVC insulated wire, Flexible PVC insulated wire with different colors.

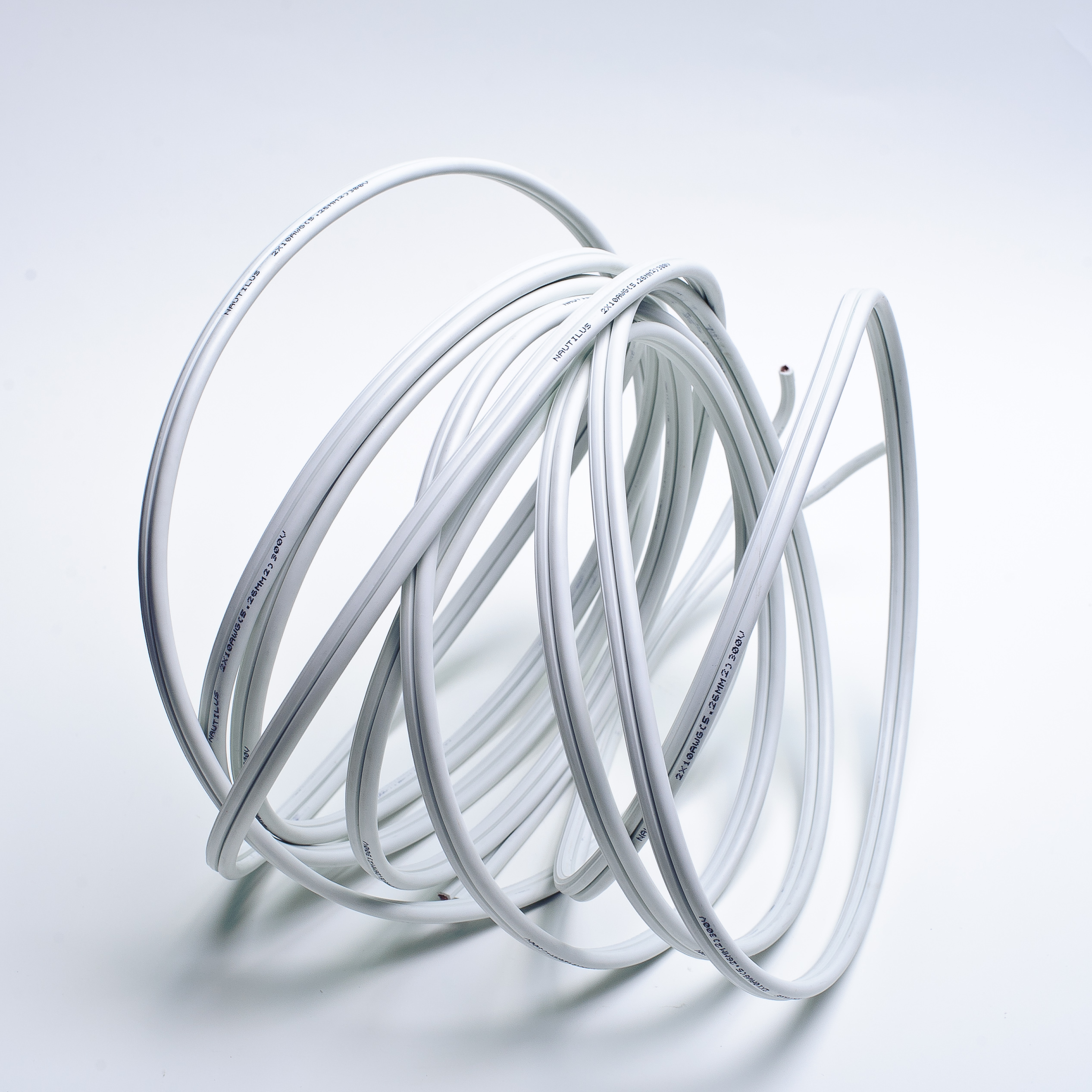

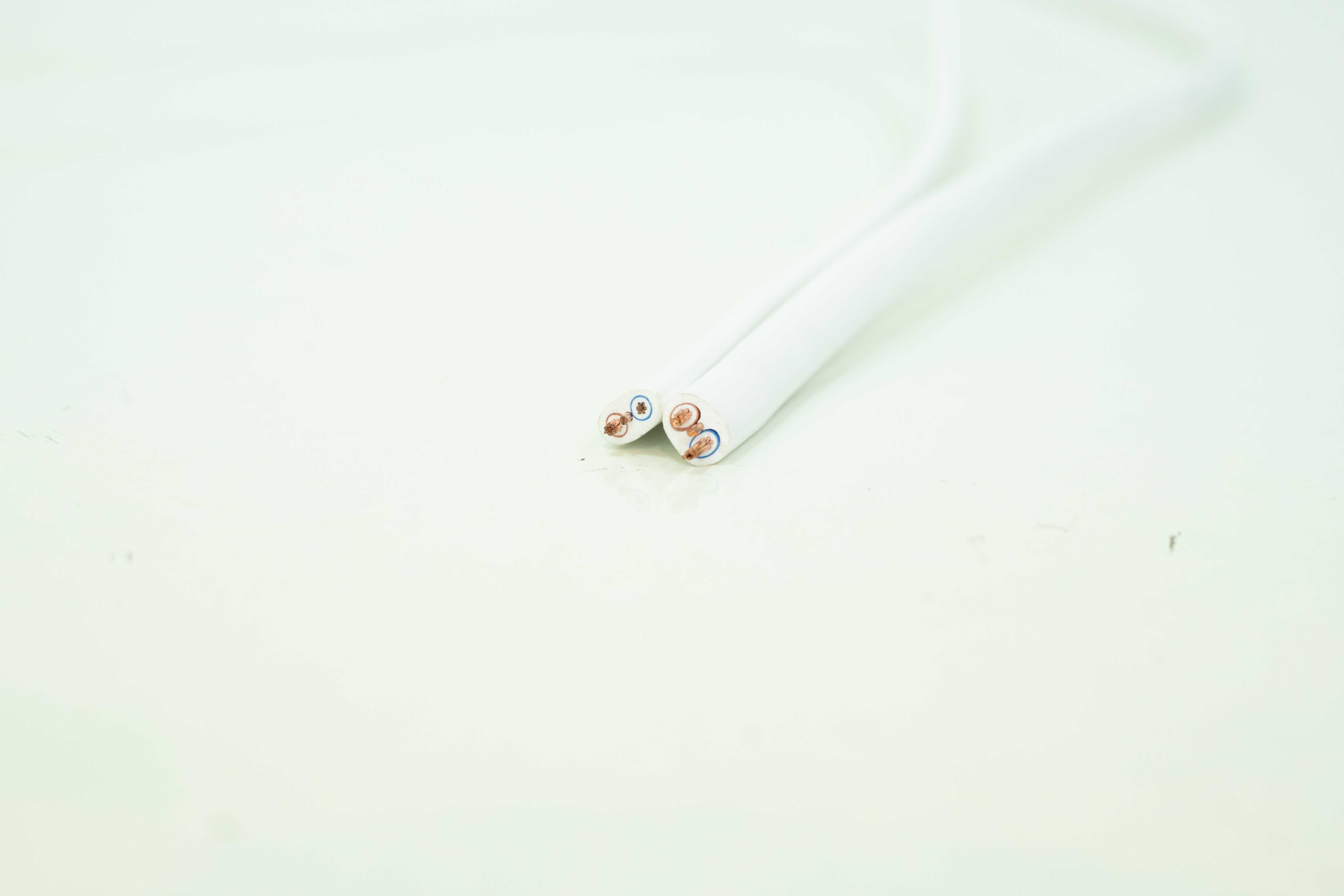

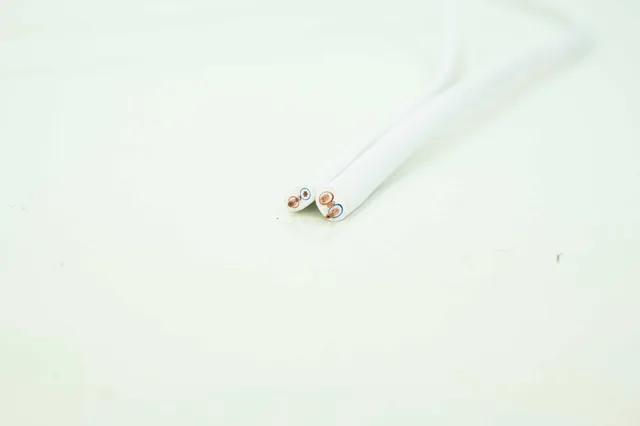

According to its shape, including flat wire, round wires, etc. with different colors

Accoding to its core number, including single core wires, multi-core wire, etc. with different colors.

Production Scope:
Voltage 1KV or below
Conductor type: Flexible, Stranded or solid (class 1, 2, 5 and 6)
Cross Section Area: 0.12mm2 to 600mm2
Color of insulation: yellow/green, red, black, blue, brown, grey etc.

Product parameters

Nominal Section

Structure of Cores Core x No./Dia

Max. Outer Dia

(mm2)

Reference Weight(kg/km)

Conductor Resistance at 20oC≤(Ω/km)

(mm2)

(mm)

Aluminum

Copper

Copper

Aluminum

Copper

Aluminum

2x0.75

2x1/0.97

4.6x7.0

43.7

24.5

2x1.0

2x1/1.13

4.8x7.4

51.0

18.1

2x1.5

2x1/1.38

5.4x8.4

65.9

12.1

2x2.5

2x1/1.78

6.2x9.8

6.2x9.8

95.7

64.9

7.41

11.8

2x4

2x7/0.85

6.8x11.0

7.2x11.5

146.0

80.7

4.61

7.39

2x6

2x7/1.04

7.4x12.0

8.0x13.0

200.0

104

3.08

4.91

2x10

2x7/1.35

9.6x16.0

9.6x16.0

323.0

177

1.83

3.08

3x0.75

3x1/0.97

4.6x9.4

62.6

24.5

3x1.0

3x1/1.13

4.8x9.8

74.3

18.10

3x1.5

3x1/1.38

5.4x11.5

95.6

12.10

3x2.5

3x1/1.78

6.2x13.5

6.2x13.5

140

93.9

7.41

11.8

3x4

3x7/0.85

7.0x15.0

7.4x16.5

220

123

7.41

7.39

3x6

3x7/1.04

7.4x17.0

8.0x18.0

295

153

4.61

4.91

3x10

3x7/0.35

9.6x22.5

9.6x22.5

485

261

1.83

3.08

Production inspection

FAQ
(1) Are you the factory or trading company?
We are the manufacturer and 12 years gold supplier on alibaba.We are engaged in exporting cables for nearly 15 years.
(2) When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(3) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(4) What is the payment terms?
30% deposit by T/T,70% T/T after checking the copy of B/L. Or irrevocable L/C at sight .
(5) What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

Welcome your kind enquiry!
