1.Range of Application
Indoor 300/500V AWG PVC Insulated Copper Wire
Power plant, Household Appliances, meters and telecommunication equipment with AC voltage up to and including 450/750.

2.Product Introduction:
Indoor 300/500V AWG PVC Insulated Copper Wire

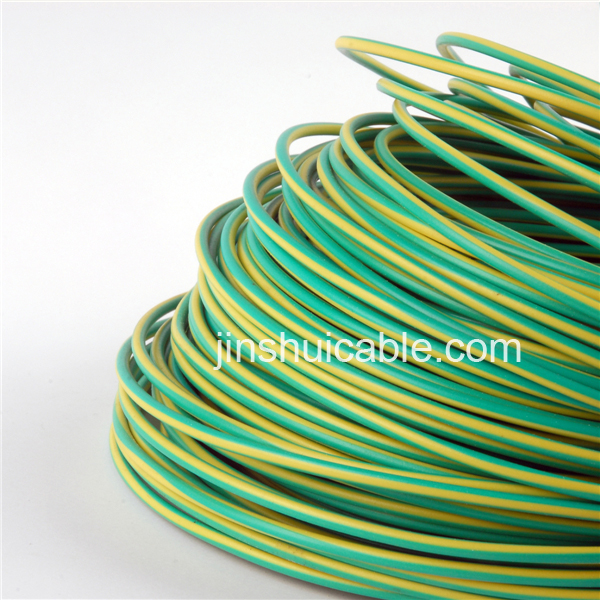

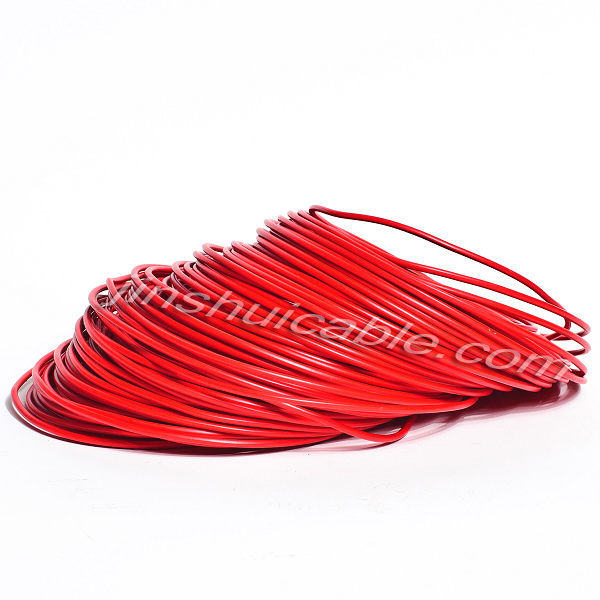

*Product : PVC insulated electric wire
*Conductor: Single or stranded copper
*PVC insulation
*Rated voltage: 300/500V,450/750V
*The long-time working temperature should not beyond 70ºC.
*Adopt standard thickness, easy truncation.

3.Service Conditions
Indoor 300/500V AWG PVC Insulated Copper Wire
Working temperature:Not more than 105ºC for RV-105 model.The other no more than 70ºC.

4.Model and Name:see table1
Indoor 300/500V AWG PVC Insulated Copper Wire

Model

Name

RV

Copper Core PVC Insulation Flexible Wire

RVB

Copper Core PVC Insulation Flat Flexible Wire

RVS

Copper Core PVC Insulation Twisted Flexible Wire

RVV

Copper Core PVC Insulation Sheath Round Flexible Wire

RVVB

Copper Core PVC Insulation Sheath Flat Flexible Wire

RV-90

Copper Core Heat-resistak Losc PVC Flexible Wire

5.Part of specification size and technical data:
Indoor 300/500V AWG PVC Insulated Copper Wire

Nominal section (mm²)

No./Diameter

(mm)

Max. overall Diameter (mm)

Cooper Weight

(kg/100m)

Plastic Weight

(kg/100m)

Total Weight (kg/100m) 0.75 1/0.97 2.25 0.66 0.48 1.14

1

1/1.13 2.4 0.89 0.53 1.42 1.5 1/1.38 2.9 1.33 0.75 2.08 2.5 1/1.78 3.4 2.2 1.1 3.16 4 1/2.25 3.9 3.54 1.31 4.73 6 1/2.76 4.4 5.33 1.42 6.72 10 7/1.35 6.2 9.02 2.6 11.7 16 7/1.70 7.2 14.3 3 17.3 25 7/2.14 9 22.7 4.8 27.5 35 7/2.52 10.1 31.4 5.6 37 50 19/1.78 11.9 42.8 7.5 50.3 70 19/2.14 13.7 62 8.5 70.5 95 19/2.52 16 85.7 11.3 97 120 37/2.03 17.6 108.4 12.6 121 150 37/2.25 19.5 133.2 15.8 149 185 37/2.52 22 167.1 20.4 187.5 240 61/2.24 25 218.7 26.8 245.5 300 61/2.50 27.5 271.5 29 300.5 400 61/2.85 31 352.5 35.8 388.3

Size:1.5-400mm2, Other sizes can also be produced as you required.

Packaging and shippin

Inner packing: Easy pull box, plastic film, plastic reel ,wooden reel.

Outer packing: Carton box, pallet available.

Other packages are available according to client's request.

Company Description

Zhengzhou Jinshui Industry & Commerce Co.,Ltd is a professional cable manufacturer and exporter with more than 20 years experience, located in Zhengzhou, China. Products mainly include bare conductor, aerial bundled cable(ABC), building wire, XLPE insulated Power Cable, coaxial cable, etc. With high-quality products and professional service, we have gained the trust from many customers and established long-term business relationship with them. Products have been exported to more than 30 countries.

Our product range is as following:
*Bare conductors(AAC, AAAC, ACSR, Galvanized steel wire)
*Aerial Bounded Cable (Duplex, Triplex, Quadruplex)
* PVC insulated wire (Rated voltage to 450/750V)
*THHN/THWN wire
*PVC insulated Power Cable
*XLPE insulated Power Cable
*Rubber sheathed Cable
*Control Cable
*Welding Cable
*Cable Accessories

We take part in many fairs and exhibitions in China and abroad. Our aim is to be our customer's factory in Zhengzhou, China. We are here to help you placing orders of cost-effective electric cable and keep tracking your products and shipment.

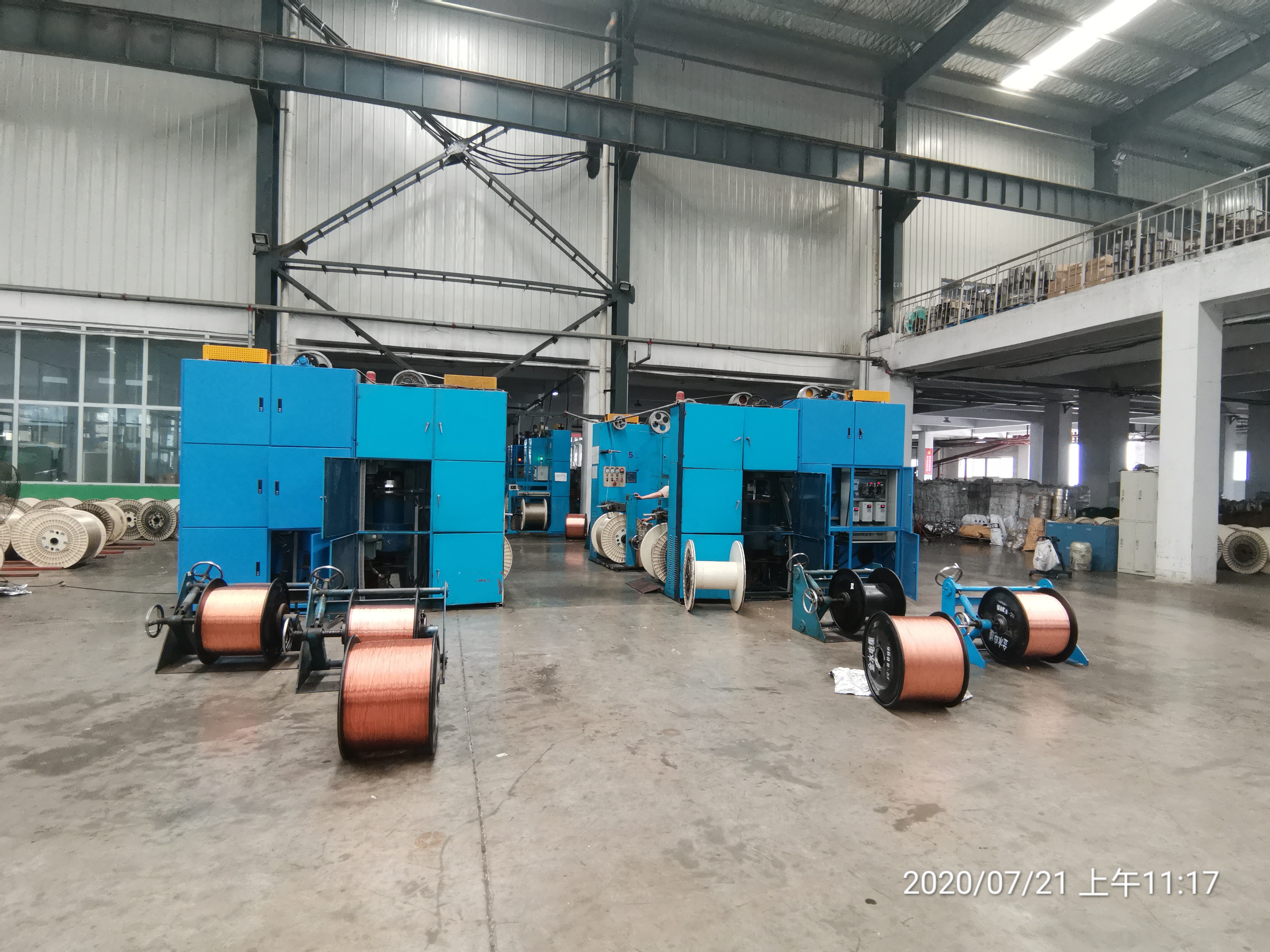

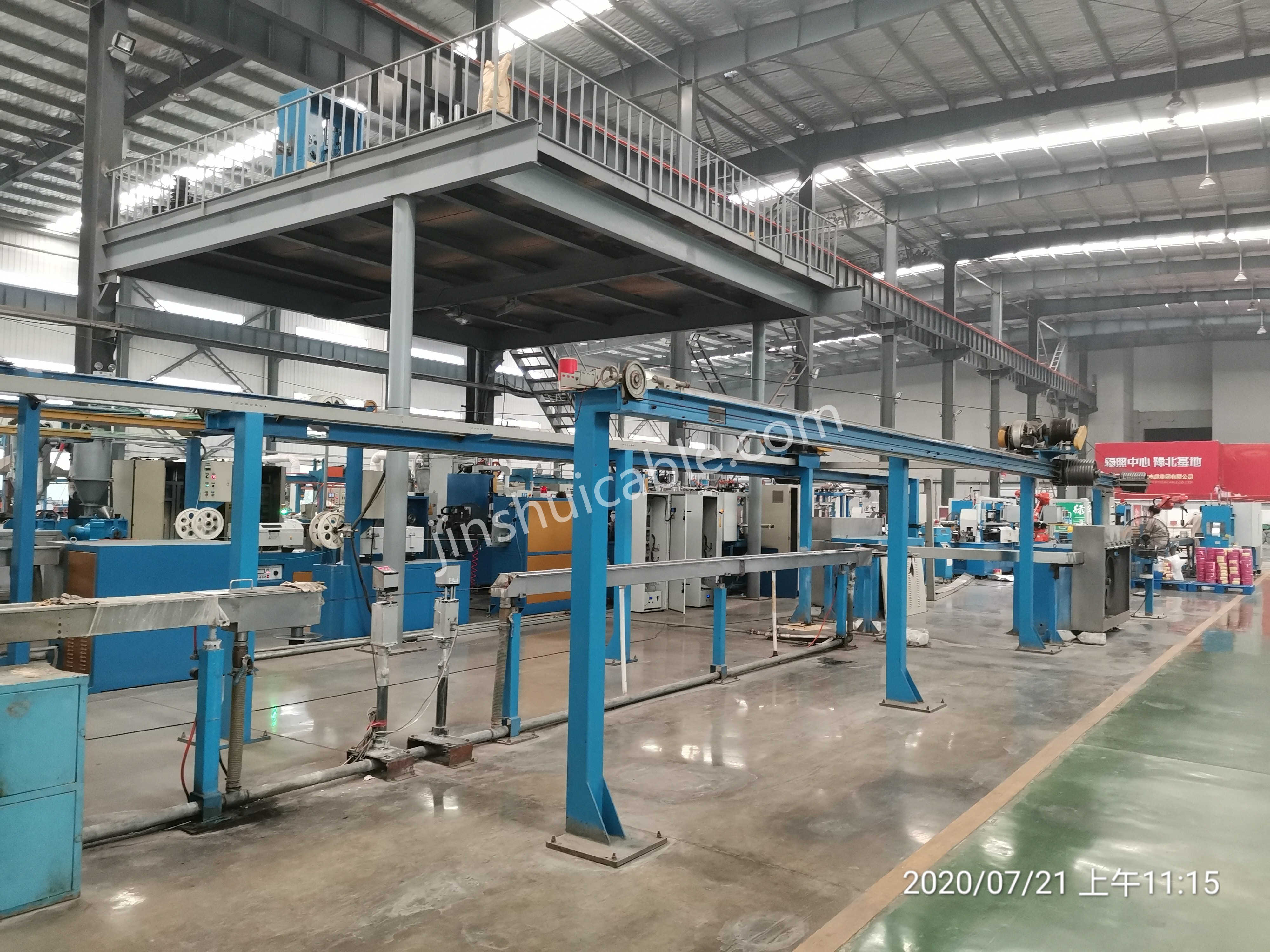

Our Factory
1. Professional production lines, experienced worker, ensure the production of every thing is fine and accurate.

2. We choose excellent raw materials carefully to ensure the quality and meet the need of customers.

3. Mechanical testing of Cables is done to determine the quality and mechanical characteristics before delivery.

FAQ
=====================================================
(1) Are you the factory or trading company?
We are the manufacturer and 12 years gold supplier on alibaba.We are engaged in exporting cables for nearly 15 years.
(2) When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(3) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(4) What is the payment terms?
30% deposit by T/T,70% T/T after checking the copy of B/L. Or irrevocable L/C at sight .
(5) What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.



Welcome your kind enquiry!
