ADDF-32 6A~32A Arc Fault Circuit Interrupter AFDD+MCB Miniature Circuit Breaker, AC230/240v, 50Hz PA66
Adidi Electric(Suzhou)Co.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
ADDF-32 6A~32A Arc Fault Circuit Interrupter AFDD+MCB Miniature Circuit Breaker, AC230/240v, 50Hz PA66
Adidi Electric(Suzhou)Co.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: plastic
- Size: mm
- Color: grey
- Arc-extinguishing medium: Other
- Installation: Other
- Certification: CCCCECB
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Suzhou, Jiangsu, China
About this product
- Materials: plastic
- Size: mm
- Color: grey
- Arc-extinguishing medium: Other
- Installation: Other
- Certification: CCCCECB
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Suzhou, Jiangsu, China
Product details
| Materials | plastic |
|---|---|
| Size | mm |
| Color | grey |
| Arc-extinguishing medium | Other |
| Installation | Other |
| Certification | CCCCECB |
| Poles number | Other |
Product details
| Materials | plastic |
|---|---|
| Size | mm |
| Color | grey |
| Arc-extinguishing medium | Other |
| Installation | Other |
| Certification | CCCCECB |
| Poles number | Other |
From the supplier

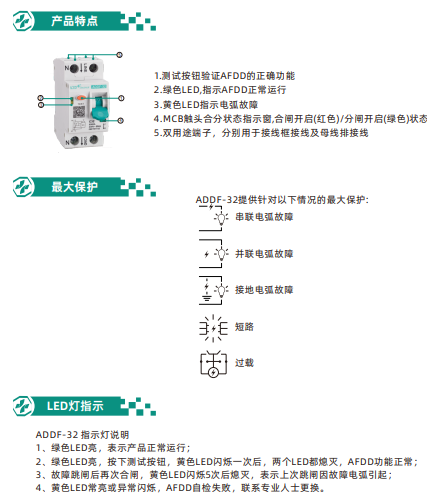

The ADDF-32 is an arc - fault detection device (AFDD) integrated with MCB function, aiming to reduce the risk of electrical fire. This product can effectively detect electrical arcs, which are potential fire hazards, disconnect the affected circuit, and provide comprehensive protection in any type of building. It is strongly recommended to install AFDD in residential locations, fire - risk locations caused by large amounts of flammable materials, flammable building materials locations, and locations with irreplaceable goods.
Technical Parameters

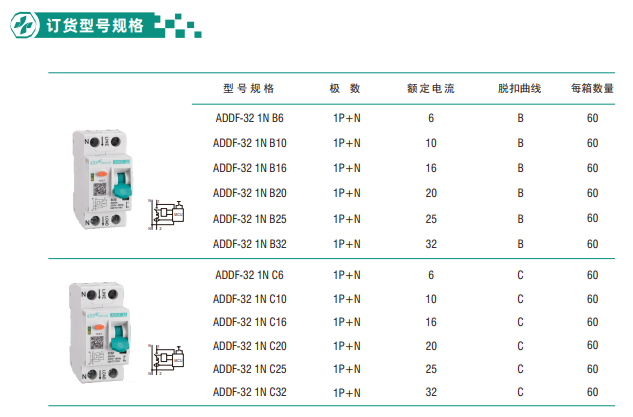

ContentTechnical ParametersStandardsIEC/EN62606; IEC/EN60898-1ApprovalsCB, CE, CQCNumber of poles1P+N (with uninterrupted N pole)Rated current In, A6, 10, 16, 20, 25, 32Rated voltage Ue, VAC230/240Rated insulation voltage Ui, V500Rated frequency, Hz50Rated short-circuit breaking capacity Icn, A6000Rated impulse withstand voltage Uimp, V4000Dielectric strength test voltage for 1min, V2000Mechanical and electrical endurance, cycles20000Protection degreeIP20Connection capacity, mm²25Terminal tightening torque, N.m2.5Ambient temperature,℃-25~+40
From the supplier
The ADDF-32 is an arc - fault detection device (AFDD) integrated with MCB function, aiming to reduce the risk of electrical fire. This product can effectively detect electrical arcs, which are potential fire hazards, disconnect the affected circuit, and provide comprehensive protection in any type of building. It is strongly recommended to install AFDD in residential locations, fire - risk locations caused by large amounts of flammable materials, flammable building materials locations, and locations with irreplaceable goods.
Technical Parameters
ContentTechnical ParametersStandardsIEC/EN62606; IEC/EN60898-1ApprovalsCB, CE, CQCNumber of poles1P+N (with uninterrupted N pole)Rated current In, A6, 10, 16, 20, 25, 32Rated voltage Ue, VAC230/240Rated insulation voltage Ui, V500Rated frequency, Hz50Rated short-circuit breaking capacity Icn, A6000Rated impulse withstand voltage Uimp, V4000Dielectric strength test voltage for 1min, V2000Mechanical and electrical endurance, cycles20000Protection degreeIP20Connection capacity, mm²25Terminal tightening torque, N.m2.5Ambient temperature,℃-25~+40
About the supplier
Main products: AC breaker, Circuit breaker, Small breaker ( low-voltage apparatus), Switch disconnector/Circuit breaker, Surge protector, Earth Leakage Circuit Breaker, GFCI (Ground Fault Circuit Interrupter), Signal Lamp Circuit Breaker
- ✓Manufacturer
- ✓Founded 2015
- ✓7 certificates on file
Light & Electrical exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
- Manufacturer
- Founded 2015
- 7 certificates on file
