About this product
- Materials: SS304
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: SS304
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | SS304 |
|---|
From the supplier
MACHINE PHOTOS AND TECHNICAL DETAILS
1

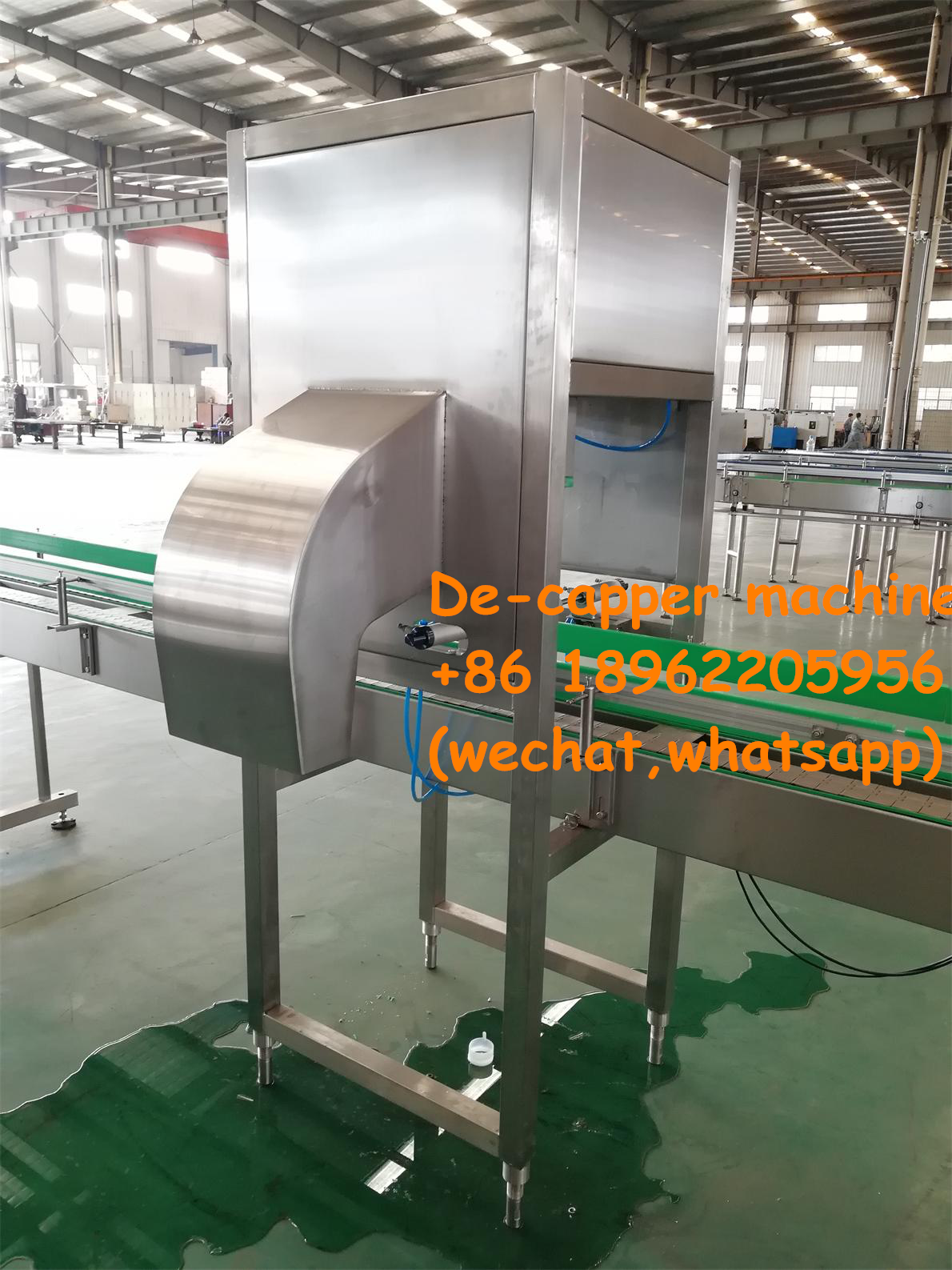

De-capper machine
BGJ-1
300BPH
1
Material: SUS304
Application:
Used to remove the cap from bottles.
Qty of de-capping machine: one pc
Capacity: 300b/h
Dimension of barrel: Ф276×490
Structure type: cylinder moving
Air source: pressure 0.6~0.8 Mpa, air consumption 0.3m3/min
Machine size: 800X600x1800mm
Weight: about 200KG
2

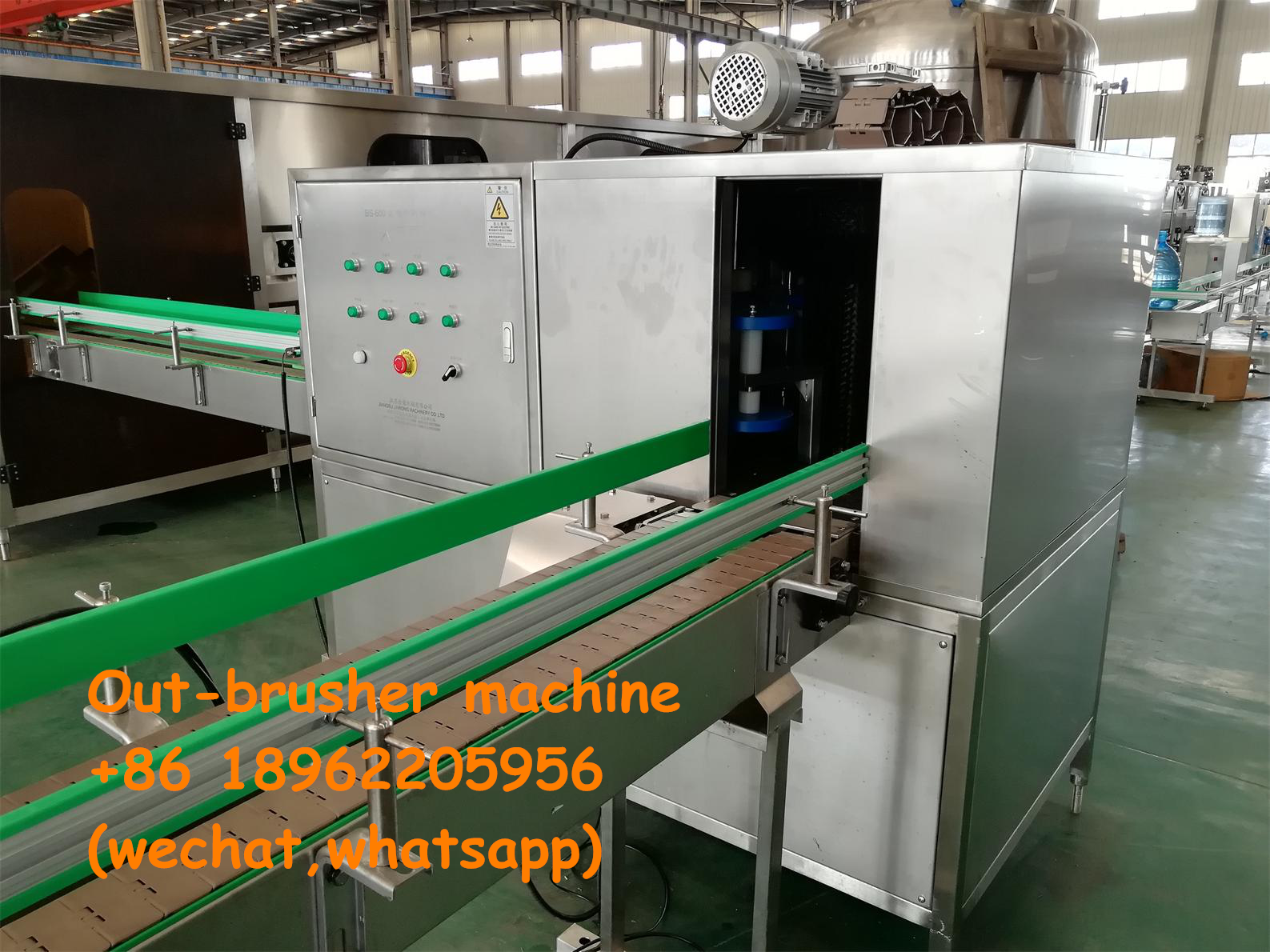

Bottle brushing machine
WST-1
300BPH
1
Application:
Used for 5 gallon bottle brushing
Material: SUS304
Dimension of bottle: Ф276×490
Capacity: 300B/H
Structure type: gear wheel driving
Main electrical elements: Siemens
Overall dimension(mm): 1080x850x1100
Machine power: 1.7KW
Weight: about 0.8 Ton
3

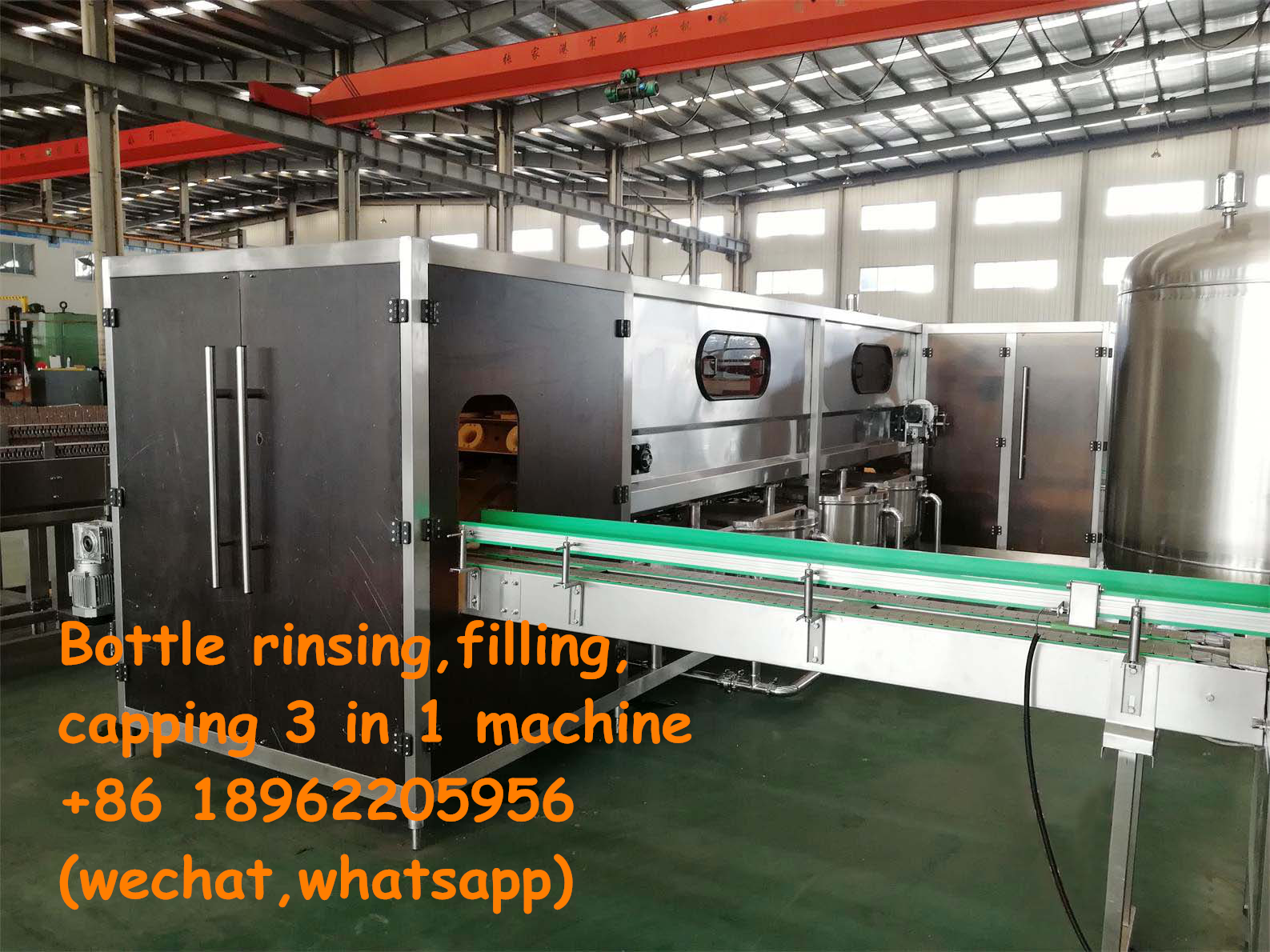

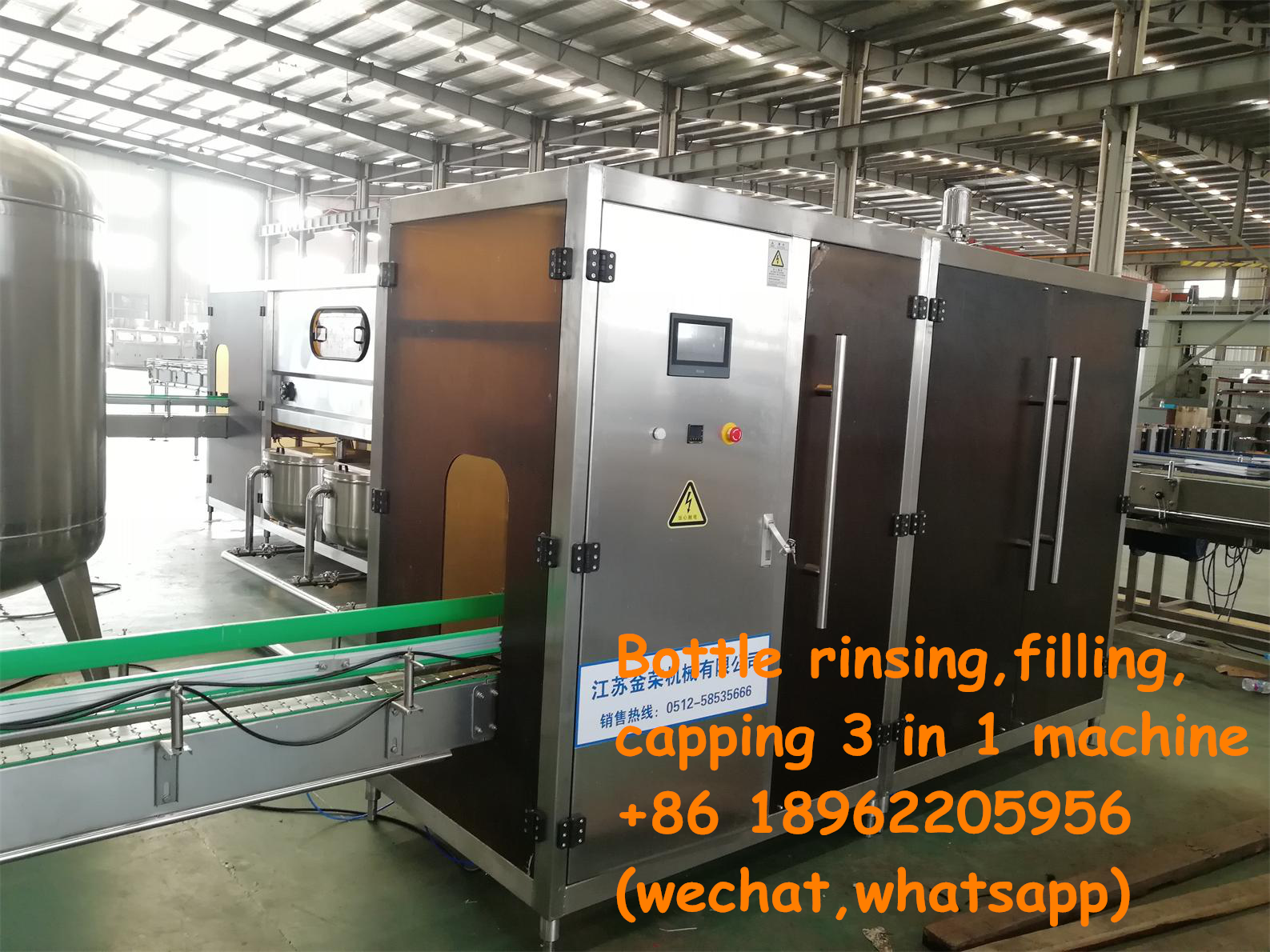

Bottle rinsing,filling,capping 3in1 machine
QGF-300
300BPH
1
Main technical parameter
Model: QGF-300
Filling Heads:2
Filling Volume:5 Gallon
Size of bottle:ф276×490mm
Capacity: 300 bottles per hour
Volume of using water: Filling 6T/H; (hot)alkali washing 2 T/H (cycled);
Air source: pressure 0.5-0.6Mpa, air consumption: 0.4m3/min
Structure: air cylinder driving
Overall dimension(mm): 6000*2300*1800
Total weight：about 1.5T
Items
Products Name
Brand
Origin
1
Frequency converter
Siemens
Germany
2
PLC
Siemens
Germany
3
Circuit breaker
Siemens
Germany
4
Circuit contactor
Siemens
Germany
5
Thermal relay
Siemens
Germany
6
Proximity switch
Omron
Japan
7
Fiber switch
Omron
Japan
8
Touch screen:
Kinco
Taiwan
9
Pneumatic components
AIRTAC
Taiwan
10
pump
CNP
China
4

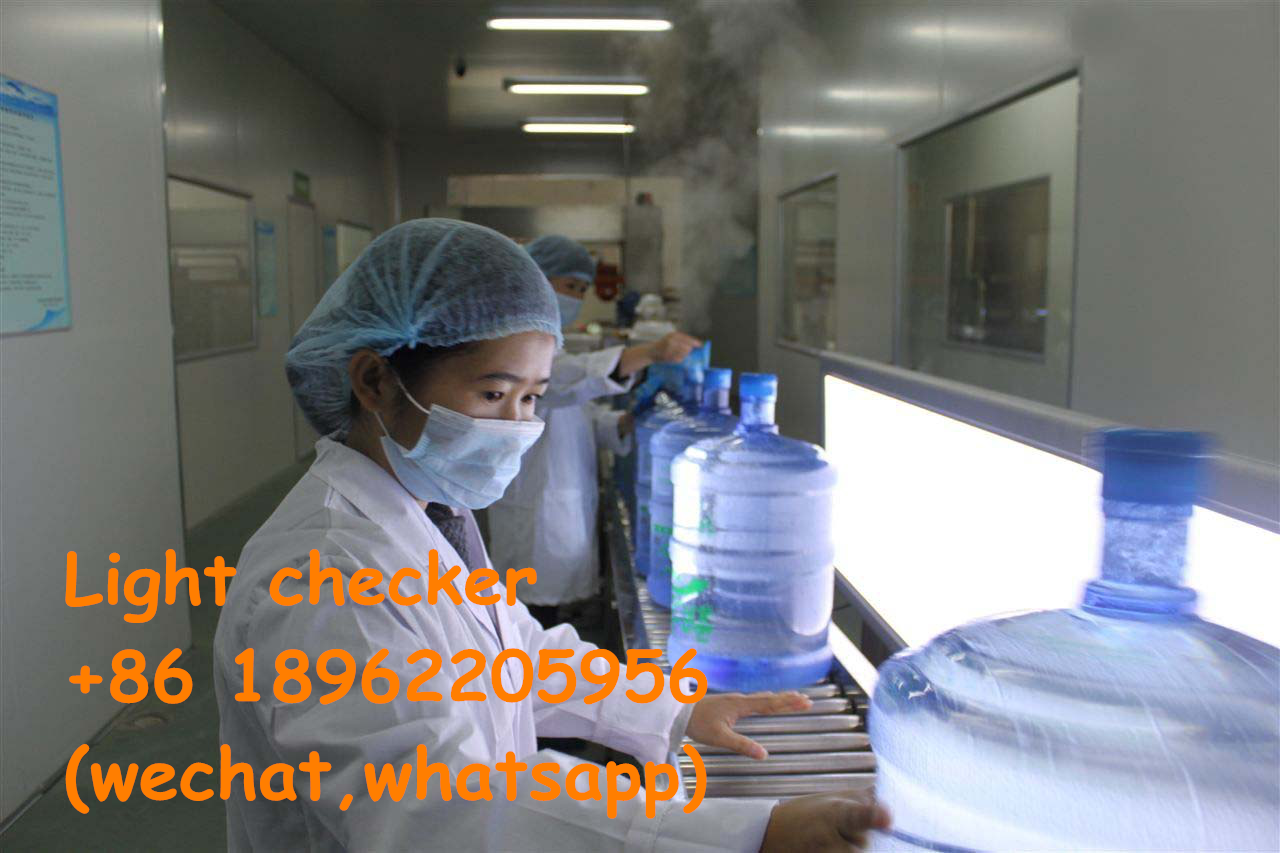

Light checker
DJ-1
300BPH
1
The light checker is used to check if there is some granules in the water ,it is widely used in the water ，juice, soft drink etc. production line
capacity: 2000~20000bph
Dimension: 750mm*130mm*350mm
The power of light : 18W
Quantity of lights: 2pcs
5

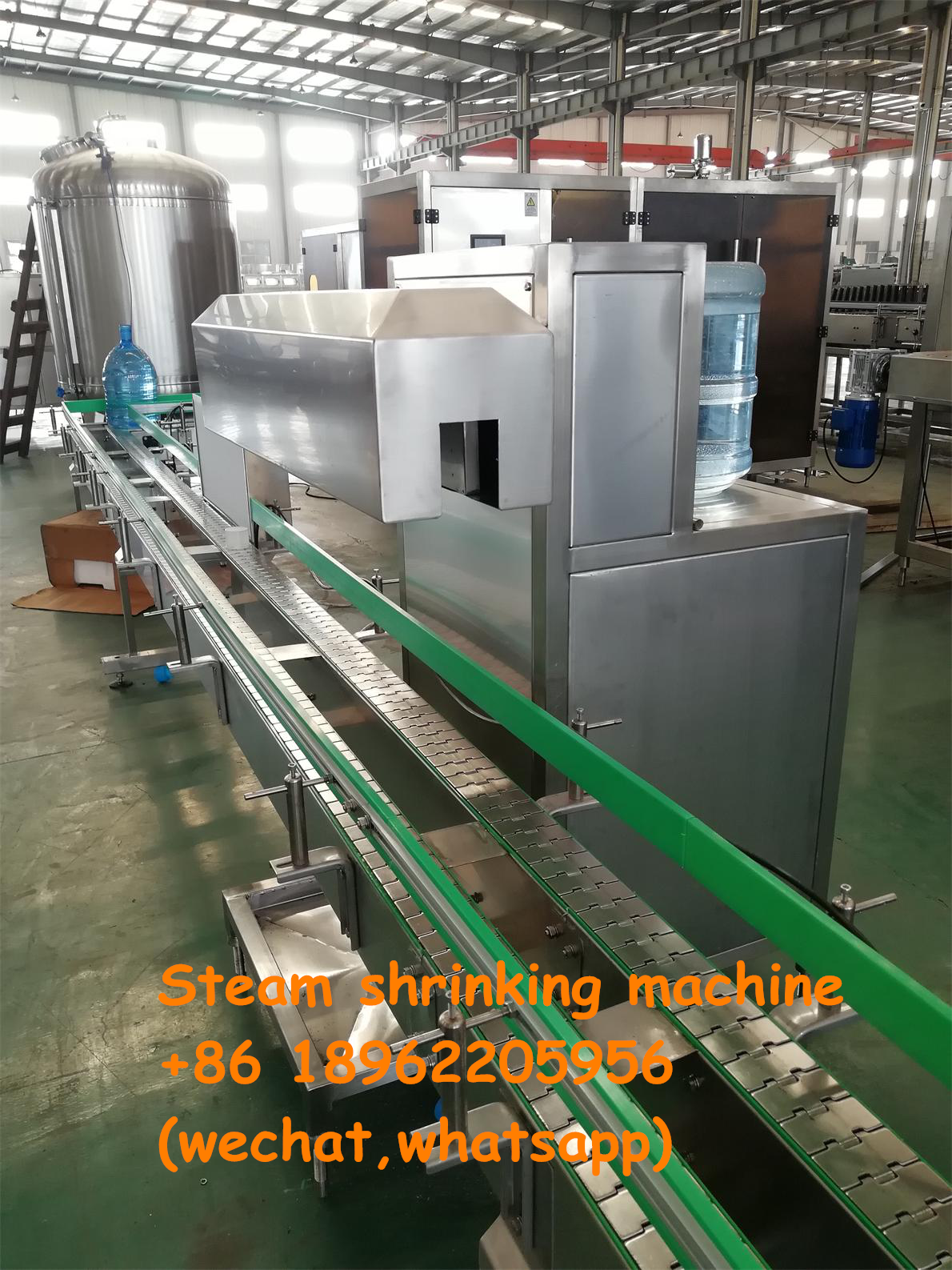

Steam shrinking machine
BBSF-1
300BPH
1
Application:
Used to shrink the plastic sleeve on bottle neck
Shrinking type: steam shrinking
Working principle:
Heating water into steam, then shrink the sleeve by the steam
Machine material: SUS304
Capacity: 300B/H
Power: 3kw
Machine size: 800X600X1200
6

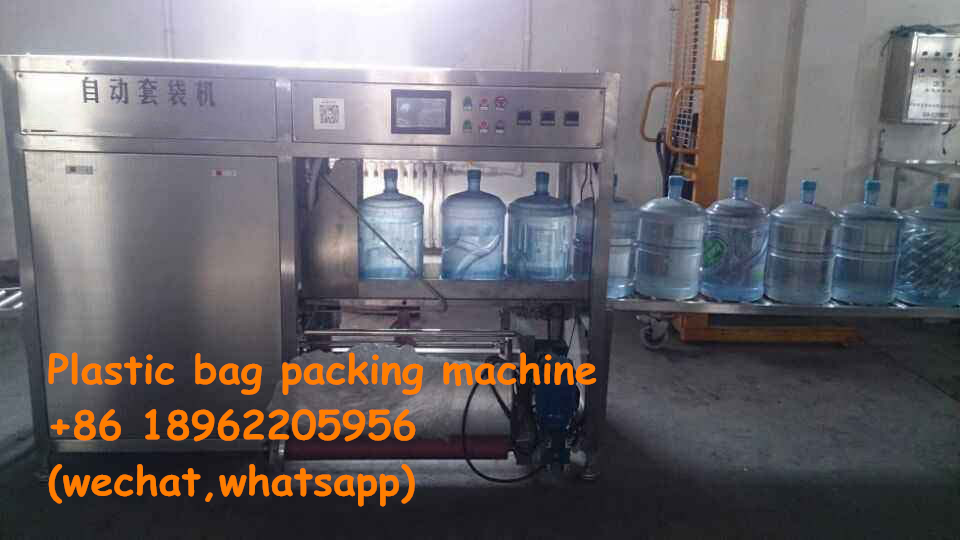

Plastic bag packing machine
TDJ-1
300BPH
1
Application:
Used to seal the plastic film on 5 gallon bottle.
Machine material: SUS304
Capacity: 300bottle/Hour
Sealing type: electrical sealing
Machine size: 1900*1100*1700mm
7

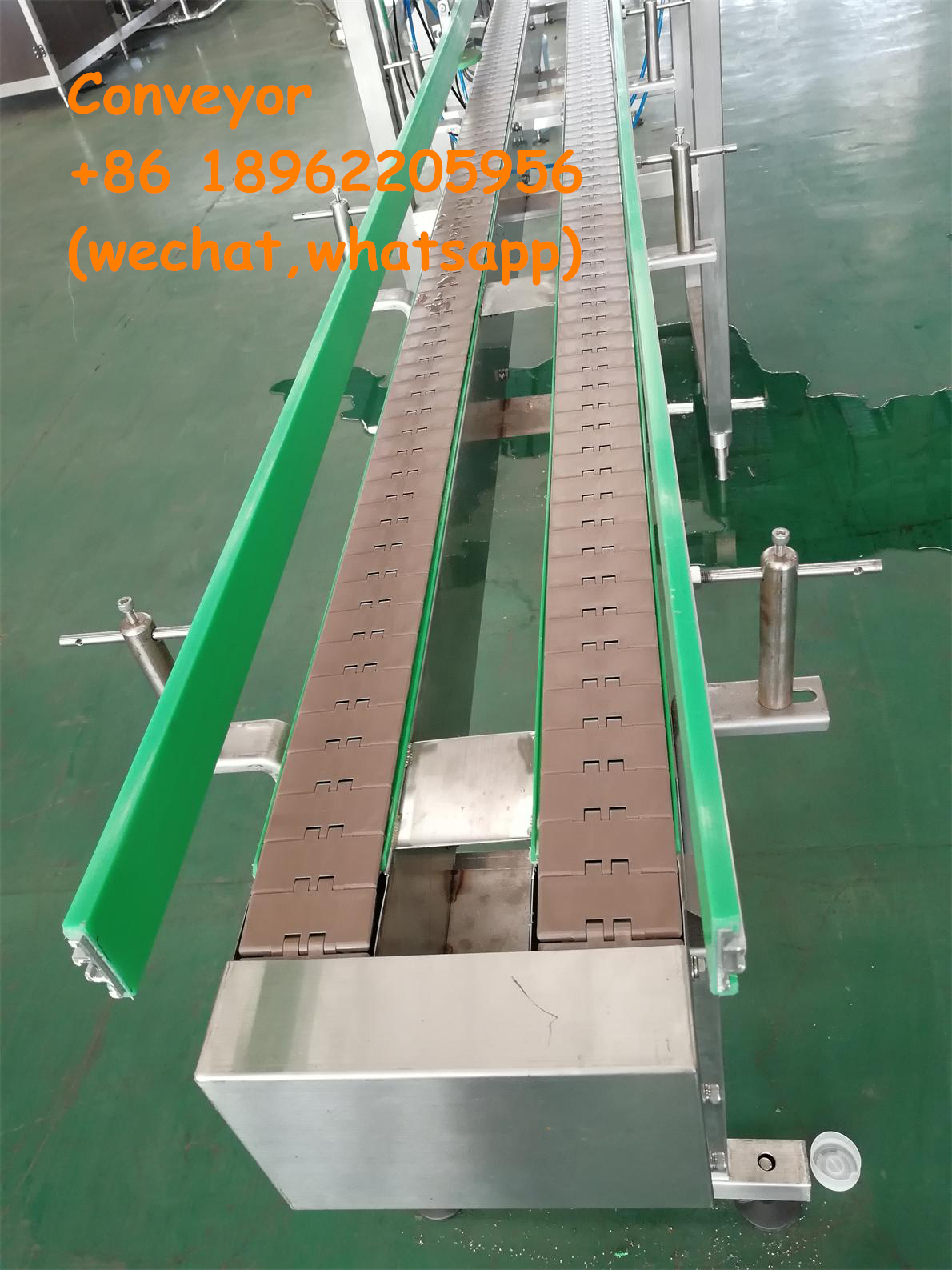

Conveyor system
SC-3
300BPH
1set
