Contact person:Jack Ni   Whatsapp/Wechat:+86 18962205956

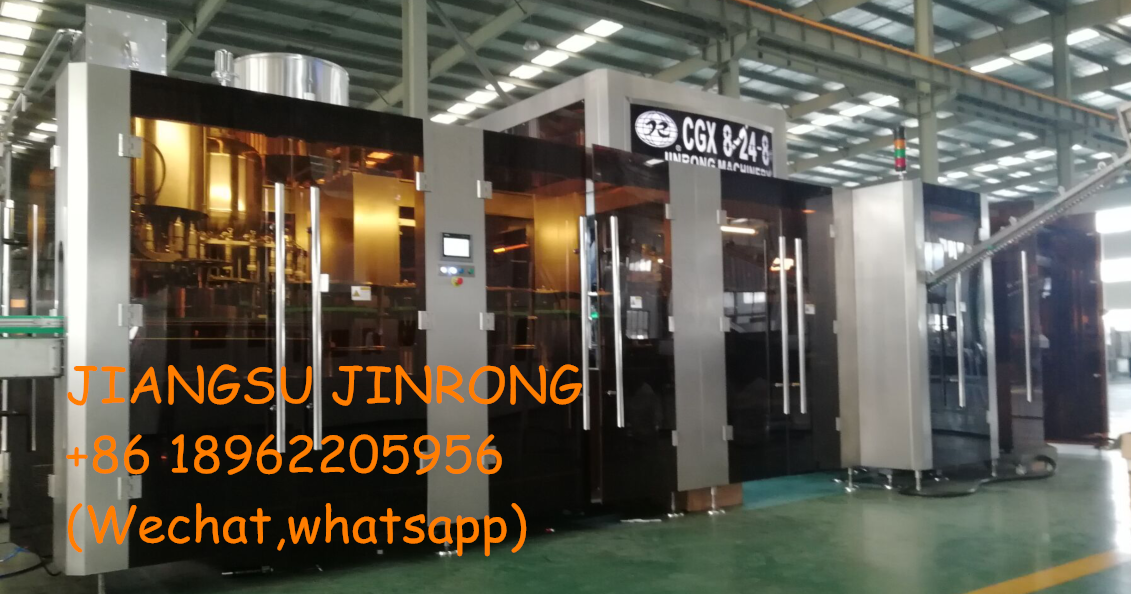

1.全自动旋转式吹瓶,灌装, 旋盖机

Full automatic rotary bottle blowing filling,capping machine

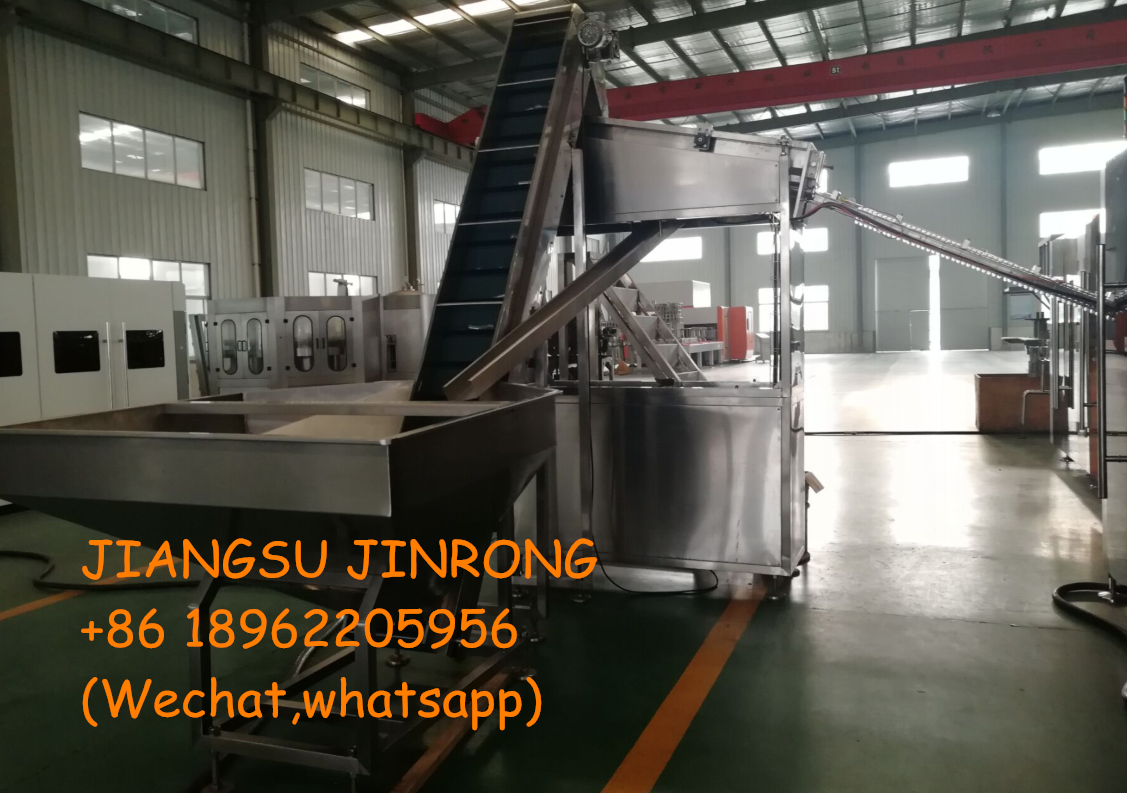

上坯理坯embryo setting:

瓶坯除尘Bottle preform dust:

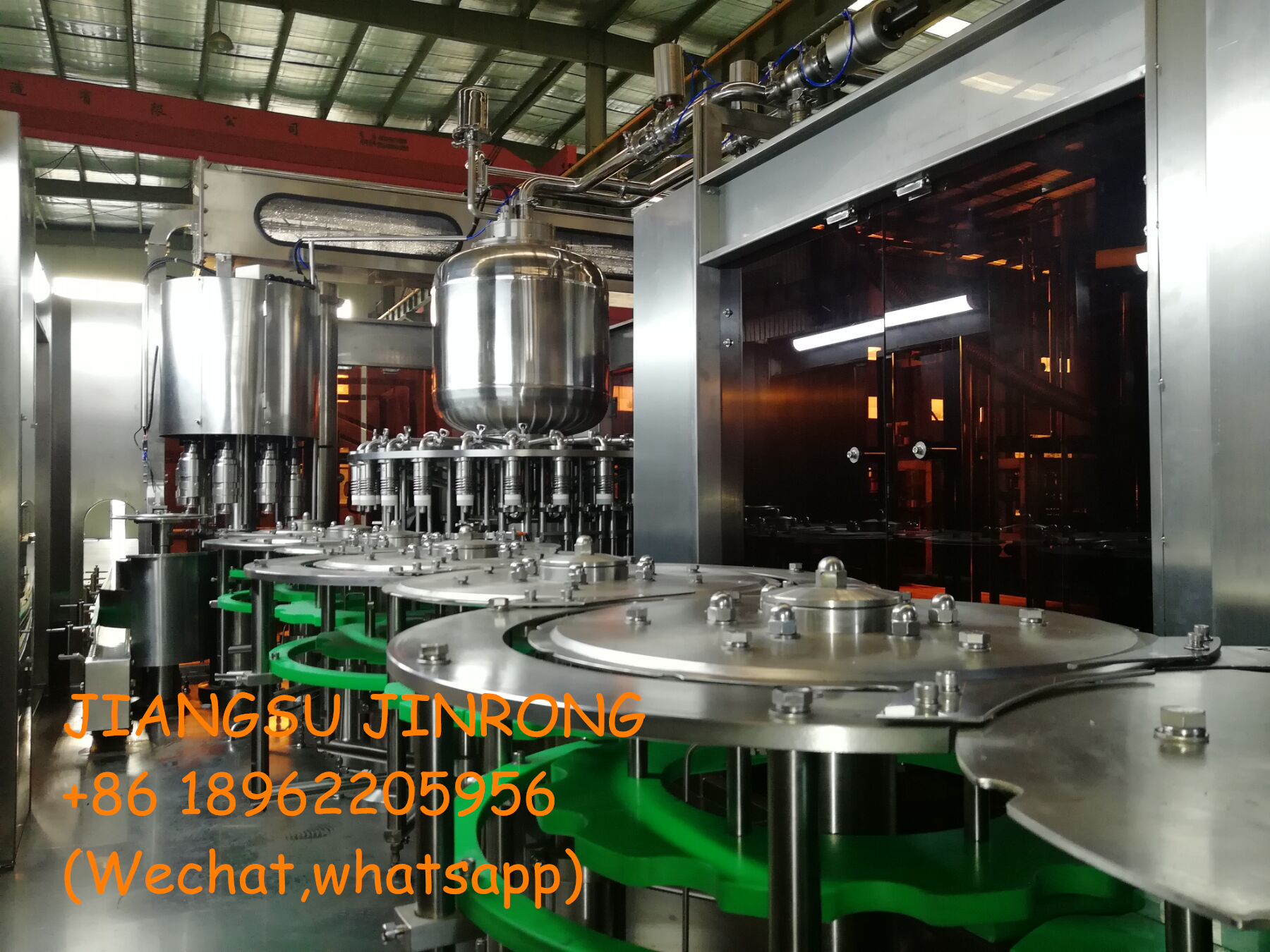

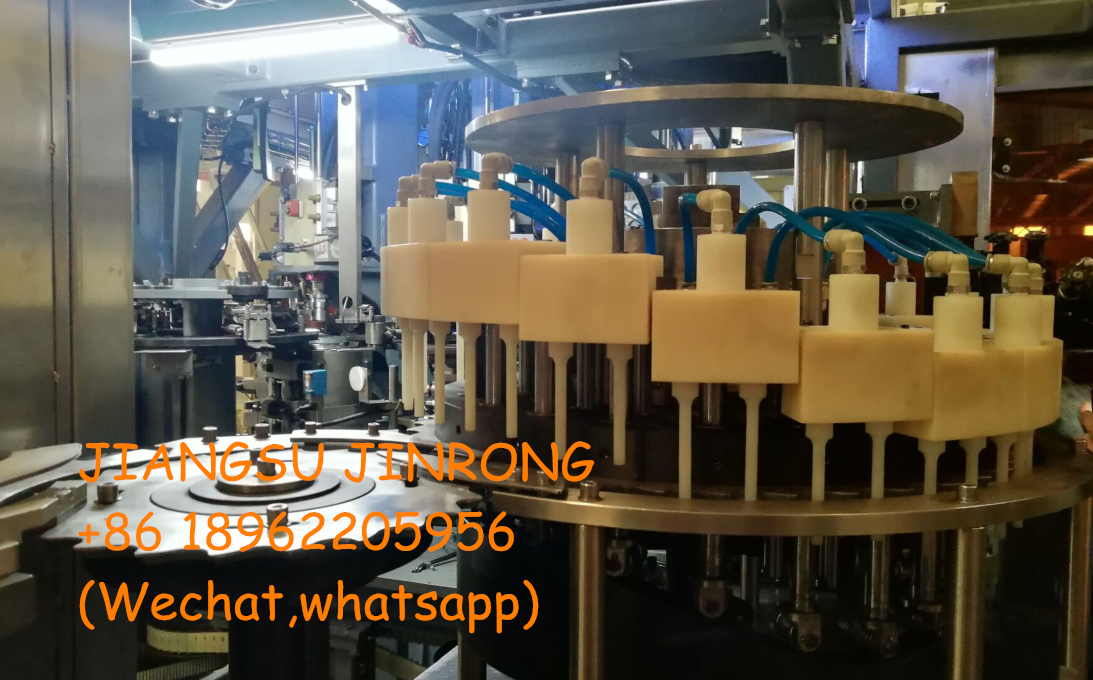

灌装旋盖The filling screw cap:

一, 技术参数Technical parameters:

                          CGX8-24-8

型号 Model

CGX8-24-8

最大产量The largest production(0.5升PET水瓶water bottle)

14000BPH

制瓶容积Bottle blowing volume(PET水瓶water bottle)

0.2-2L

制瓶最大直径或对角线尺寸

Maximum diameter or diagonal dimension of flask

120mm

制瓶最大高度Maximum height for bottle making

350mm

瓶坯原料Mold material

PET

瓶坯内径Bottle embryo inner diameter

Φ14-φ26mm

瓶坯高度Bottle embryo height

190mm

环境温度The environment temperature

10-40℃

湿度humidity

不结露 No condensation

吹瓶主机 Bottle blowing host

模具数量The mould number

8腔 cavities

主驱动电机功率Main drive motor power

4.0KW

排坯理坯电机功率Blanking motor power

1.47KW

电压/频率/相数Voltage/frequency/phase number

380V±10%/50±1%HZ/三相四线+地线

或可根据客户需要定制Three phase four wire + ground wire

Or can be customized according to customer needs

坯斗容积Grey bucket volume

1M³

最大理坯速度Maximum bloom speed

15000BPH

加温机Heating machine

加温箱数量Number of heating boxes

10组主灯箱+2组角灯,10 sets of main light boxes +2 sets of corner lights

每个加温箱灯管数量(水瓶)Number of lamp tubes per heating box(water bottle)

8根 8 piece

灯管功率The lamp power

第一层3KW 其余2.5KW The first layer is 3KW and the rest is 2.5kw

装机功率Installed power

220KW

使用功率The use of power

依制品According to the products

电压/频率/相数Voltage/frequency/phase number

380V±10%/50±1%HZ/三相四线+地线

或可根据客户需要定制Three phase four wire + ground wire Or can be customized according to customer needs

加温头节距Warm head pitch

40

风机功率The fan power

4.05KW

灌装主机Filling host

灌装工位The filling station

24

电机总功率Total motor power

10KW

电压/频率/相数Voltage/frequency/phase number

380V±10%/50±1%HZ/三相四线+地线

或可根据客户需要定制Three phase four wire + ground wire Or can be customized according to customer needs

压缩气体压力及消耗量Compressed gas pressure and consumption

吹瓶气: 食品级纯净气(清洁, 干燥, 无油)Flask gas: food-grade pure gas (clean, dry, oil-free)

3.8-4.0Mpa

动作气(清洁, 干燥, 无油)Action gas (clean, dry, oil-free)

0.7-0.8Mpa

0.8Mpa压缩空气消耗量Compressed air consumption

-4m³/min

4.0Mpa压缩空气消耗量Compressed air consumption

-9m³/min(依制品According to the products)

冷却水The cooling water

压力Pressure

0.5-0.6（MAX0.8）Mpa

吹瓶主机冷却水用量

(水温8-12℃)Amount of cooling water for bottle blowing machine

(the water temperature is 8 to 12 ℃)

8-10m³/h(接口1”)

加温机冷却水用量

(水温最高20℃)

Heating machine cooling water consumption (the highest water temperature 20 ℃)

6m³/h(接口1”)

机器尺寸The machine size

吹瓶主机Bottle blowing host

3.4m(长)*2.5m(宽)*3.35m(高)

加温机Heating machine

4.2m(长)*1.35m(宽)*2.1m(高)

排坯理坯机Blanking machine

3.9m(长)*4.25m(宽)*3.3m(高)

灌装旋盖机Filling and capping machine

4m(长)*2.5m(宽)*2.2m(高)

电柜Electric cabinet

2.4m(长)*1m(宽)*2m(高)

二, 主要配置Main configuration:

序号No.

名称Name

品牌Brand

1

拉伸电磁阀Tension solenoid valve

英国诺冠Norgren

2

高压组合阀High pressure combination valve

英国诺冠Norgren

3

拉伸气缸The drawing cylinder

英国诺冠Norgren

4

低压电磁阀Low pressure solenoid valve

SMC

5

动作气缸The action of cylinder

SMC

6

直线导轨Linear guide

力士乐Rexroth

7

主电机Main motor

SEW

8

高压过滤器High pressure filter

WALKER

9

冷却水管接头Cooling pipe joint

派克Pike

10

油压缓冲器Oil pressure buffer

西杰克West jack

11

法兰轴承Flange bearing

GGB

12

PLC

西门子Siemens

13

触摸屏Touch screen

西门子Siemens

14

变频器The inverter

丹弗斯Danvers

15

调功模块power adjustment module

佳乐Carens

16

灌装电机The filling motor

SEW

17

塑料轴承Plastic bearings

IGUS

18

旋吹回转支撑Whirl support

罗特艾德Rothe Erde

19

灌装回转支撑Filling rotation support

马鞍山Ma’anshan

20

自动加油系统Automatic refueling system

贝奇尔BIJUR

2, 空压系统Air compressor system

(1)产 量capacity: 9.6m³/min

(2)压 力pressure: 4Mpa

(3)总功率The total power: 120KW(含冷水机Cold water containing machine)

(4)配 置Configuration: 空压机主机, 空气过滤器, 空气冷冻干燥机, 高压储气罐.

Air compressor ,Air filter,Freeze drying machine,air tank

3.模具(镁铝合金)Mould( magnalium)

内胆材质: 进口镁铝合金Inner liner material: magnalium
