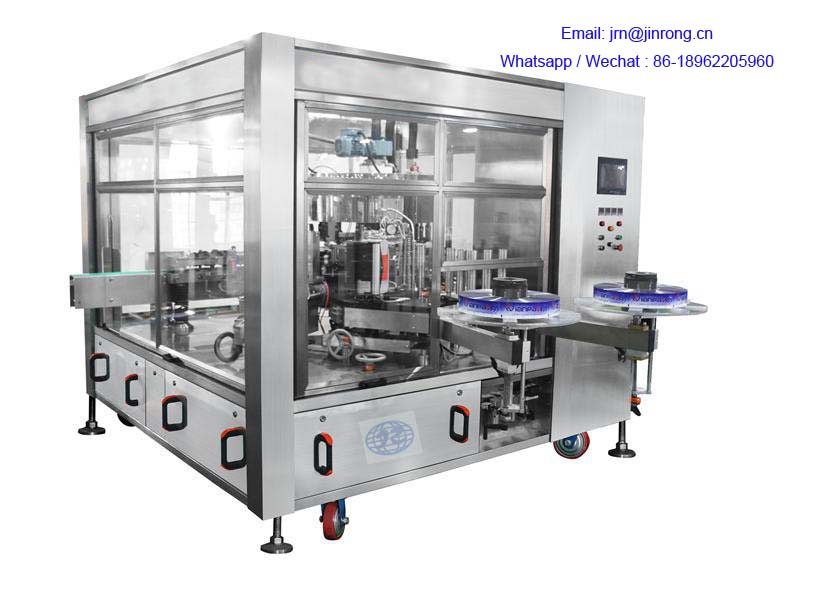

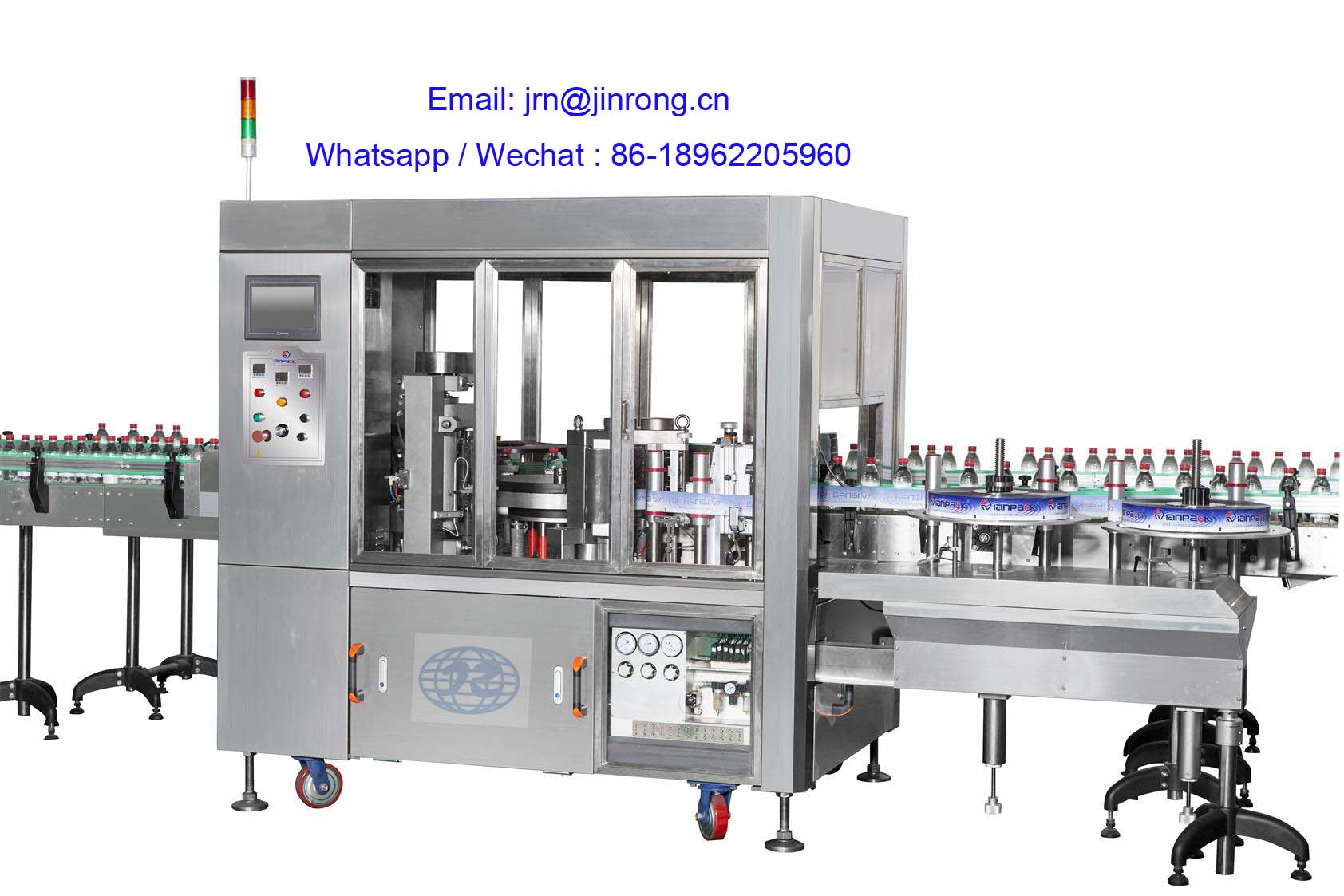

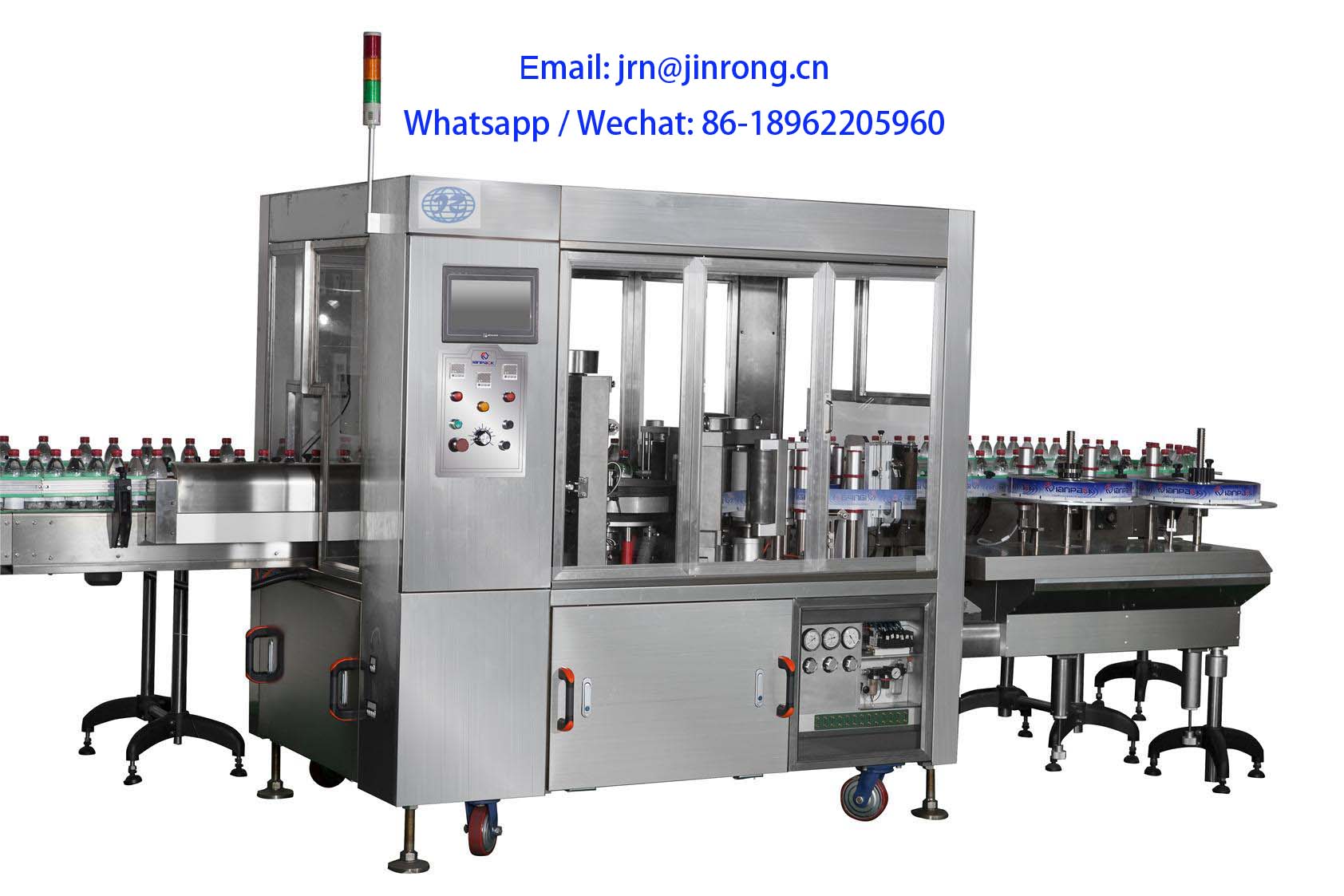

Specification：

Machine size:：5000L*1600W*2000H(mm)

5 meters conveyor belt included

Weight：about 2 T

Label roll inner size：6 inches

Bottle height：300ml-1500ml

Bottle diameter：55-120mm

Label height：40 mm ~180mm

Label thickness：0.04-0.05mm

Label length: 120-340mm

Speed: 12K=12000B/hr，210/min

Consumed Power： 10 KW

Consume of air ： 1Mpa

Production efficiency: Production for continuous 24 hours no less than 95% (without change label time)

Labeling precision: ±1.5mm

Machine online high: 1000±100(mm)

Description:

Fully enclosed Host: door stop

send bottles: Screw or star wheel

Feeding bottle: cylinder

Sperate bottle: Stars Wheel

Sending label: servo encoder control

Illumination: LED, top + bottom access operation lamp lights + control box lights

fixed feeding shelf: Removable standard planar fast. (Optional double frame)

Touch screen: single touch

cabinet work: Column cabinet ,pneumatic

corrective devices:  Germany E + L

Alarm system: warning light & buzzer, lack of material, marked off, door

Label system: Physical adjustable friction brake feed

Transmission systems: machine connections, independent label transmission

Glue system: ianpack Integrated hot melt glue system

Label cutting system: adopts multiple steps of label cutting devices, long service time

16) Electricity cabinet cooling system: fan or Seifert air conditioner

Feature:

Body is built with stainless steel, aluminum alloy and square steel tubes

welded tubes ensure stable and smooth operations at high speed performance

Centralized lubricating system for simple and effortless on maintenance, lubrication and cleanness

Round plate type suction label

Automatically detect and adjust the production speed

Emergency Stop Safety Device disables the machine when senses an abnormality

Automatic tension control.

Automated label proofreading and Cutting System

Automatic warning system and alarm will be activated when it is out of label

10) Mould of the whole machine adopts quick disassembling structure, easy to change or adjust

11) The whole machine production speed bottle output signal control, automatic speed change, back-end bottle blocked, will reduce speed, back-end no bottle, will increase speed

12) The whole machine production speed bottle input signal control, automatic speed change, front-end bottle blocked, will increase speed, front-end no bottle, will reduce speed

   Configuration

Name

Brand

Parameter

Note

Qty

Servo motor

Delta

1.5KW

1PC

Servo drive

Delta

1.5KW

1PC

Switch power

Taiwan Mean Well

24V

4.5A

1PC

PLC

Delta

DVP60ES2

1PC

Contactor

Schneider

DC24V

1PC

Schneider

AC220V

1PC

SSR

（FOTEK）SSR-40DA

40A

32V

4PCS

Inverter drive

Panasonic

VF0 400V 3.7KM

380V

1PC

Air switch

Schneider

16A

4P

1PC

Schneider

32A

2P

1PC

Fuse

Korea Kacon

16A

4PCS

Fuse

Korea Kacon

6A

2PCS

Fuse

Korea Kacon

2A

2PCS

Connector

Taiwan Tend

10A

47PCS

Taiwan Tend

30A

8PCS

Fan

220V

1PC

Button

Schneider

Black

Normally open point

3PCS

Schneider

Red

Without locking

2PCS

Schneider

Green

+lamp+self-lock

1PC

Schneider

Blue

Normally open+lamp

1PC

Schneider

Red

Indicator

1PC

Schneider

Orange

Indicator

1PC

Temperature controller

OMRON

E5CWL

5PCS

Potentiometer

10K

1PC

HMI

TaiwanWeinview

MT6070

1PC

Pulse coder

OMRON

E6C2-CWZ6C

1PC

Contact switch

Omron

WLD2-Q

2PCS

Contact switch

MOUJEN

MJ2-1713

15A 220V

1PC

Electric eye

Keyence

G42

6PCS

Color code electric eye

Panasonic

LX101

1PC

Negative pressure fan

Taiwan Lion Goal

1.5KW

1PC

Air cylinder

AirTAC

4PCS

Glue feeding system

ianpack

1PC

Main motor

SEW

3KW

1PC
