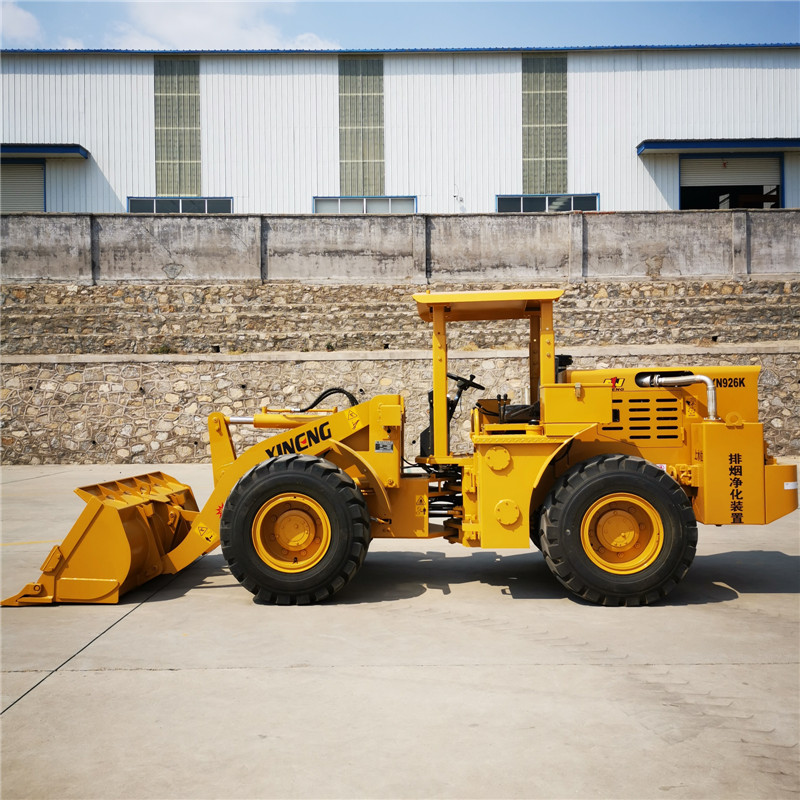

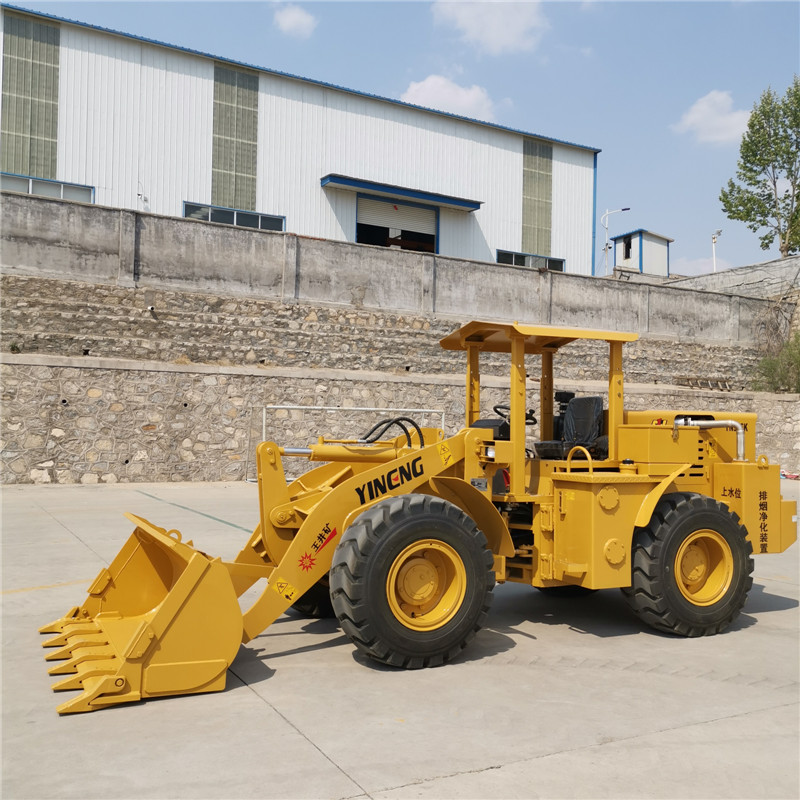

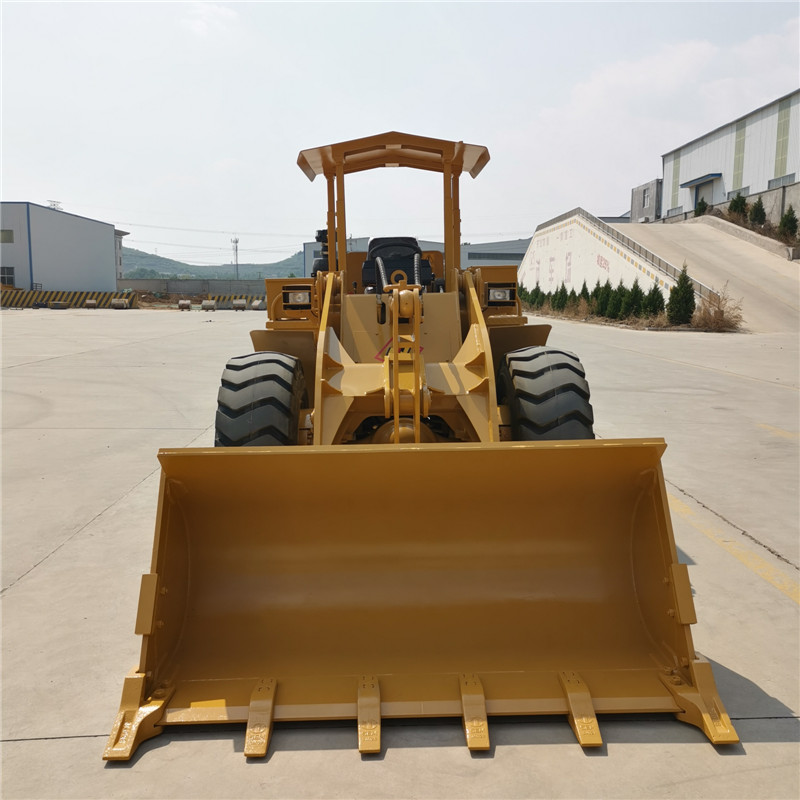

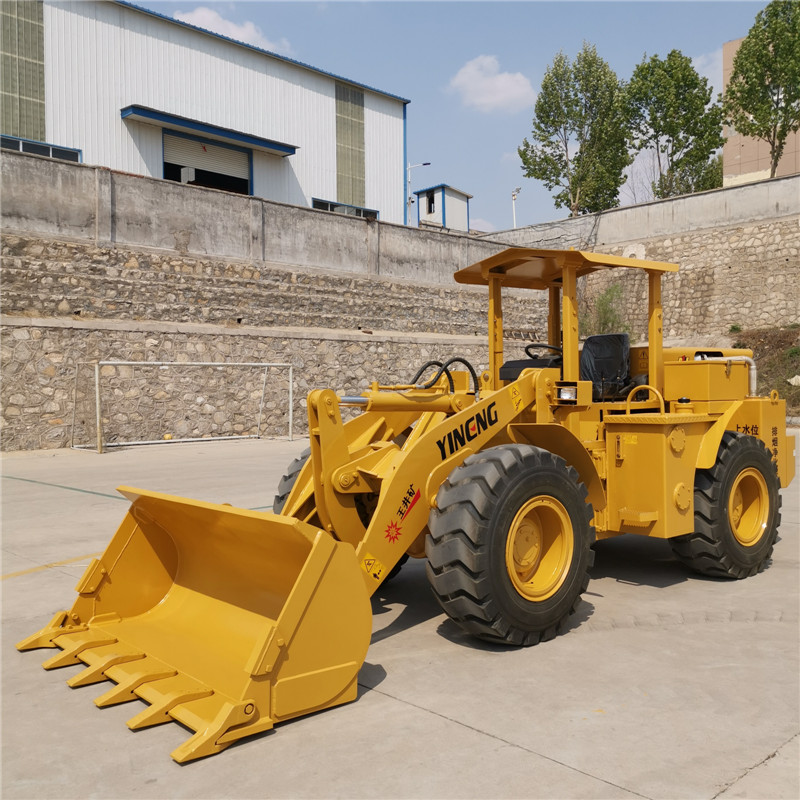

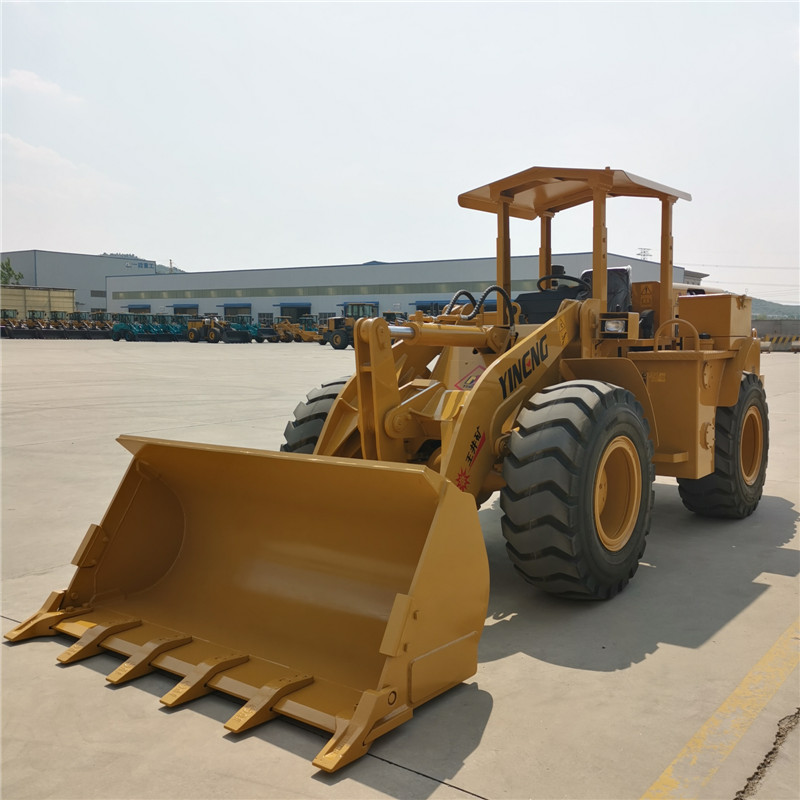

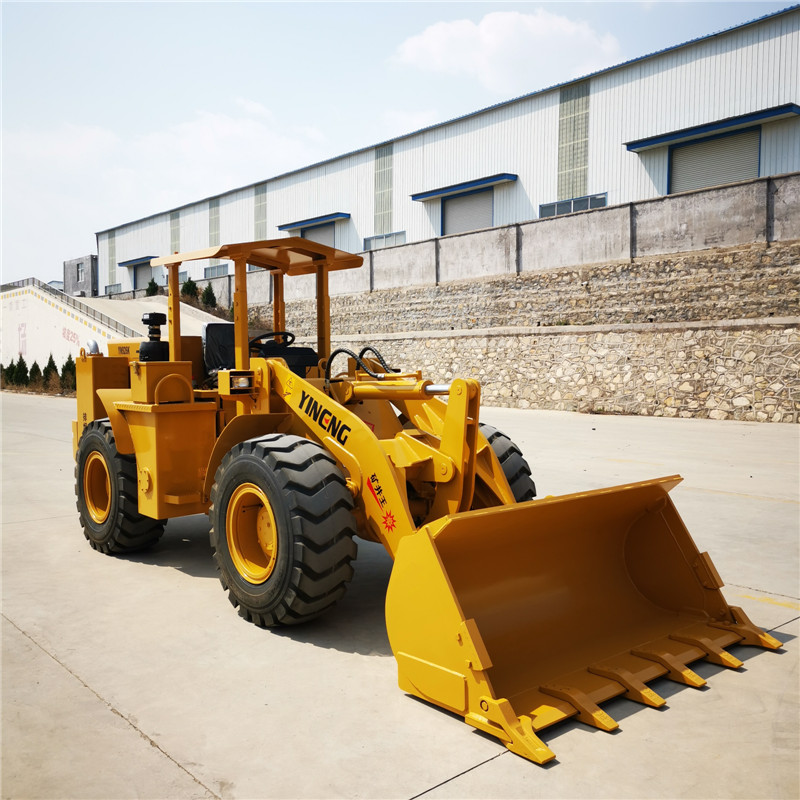

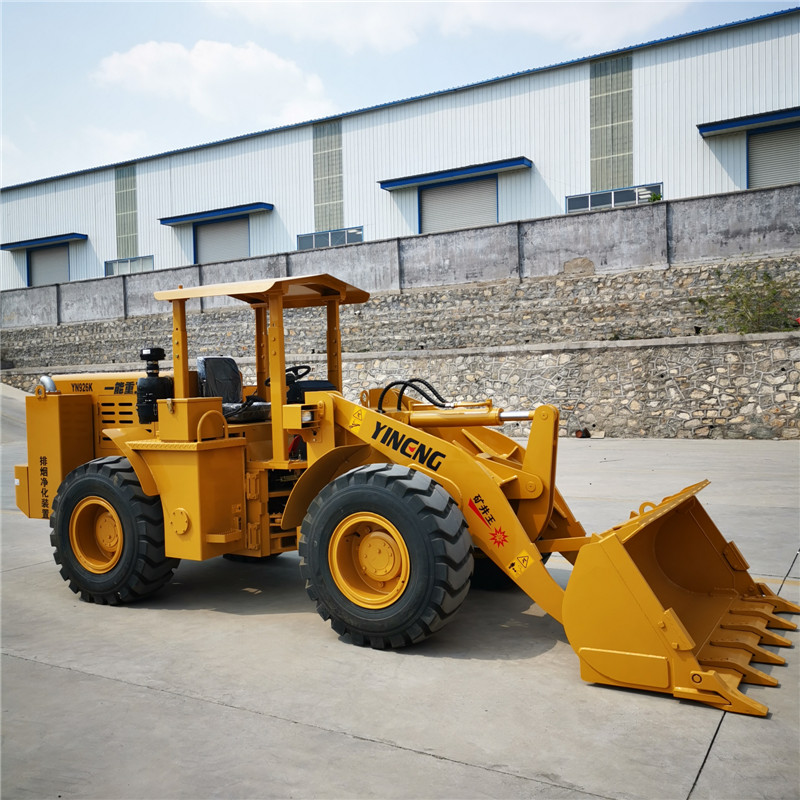

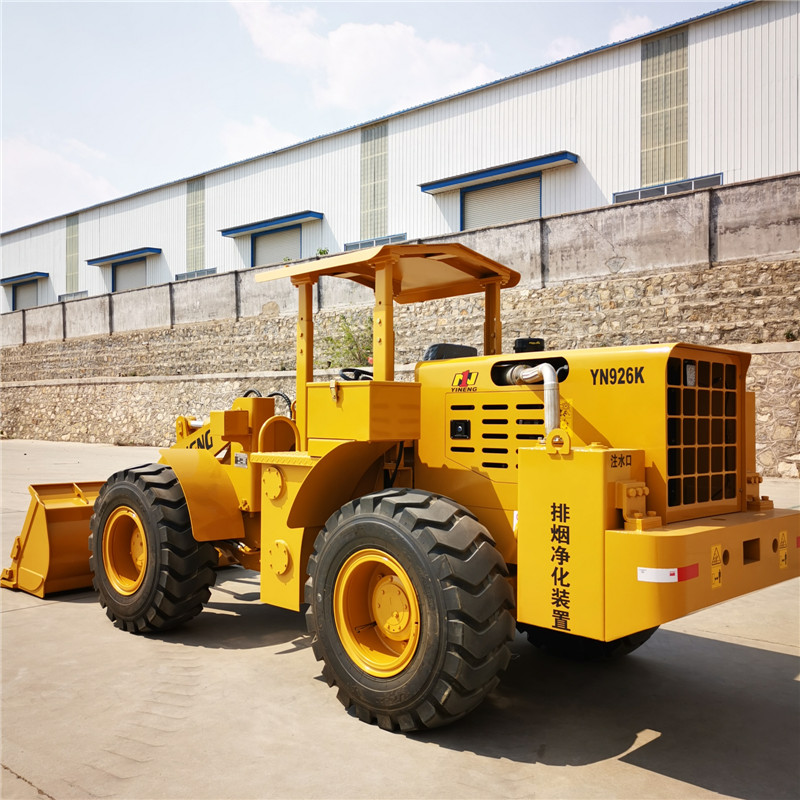

YN926K Underground Mining Loader
Taian Luneng Import& Export Co.,Ltd.
See what’s includedHide breakdown
- FOB goods (100)
- $1,695,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $59,325
- Section 301 tariff (25.0%)
- $423,750
- Customs fees (MPF/HMF)
- $2,753
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,695,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $59,325
- Section 301 tariff (25.0%)
- $423,750
- Customs fees (MPF/HMF)
- $2,753
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
YN926K Underground Mining Loader
Taian Luneng Import& Export Co.,Ltd.See what’s includedHide breakdown
- FOB goods (100)
- $1,695,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $59,325
- Section 301 tariff (25.0%)
- $423,750
- Customs fees (MPF/HMF)
- $2,753
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,695,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $59,325
- Section 301 tariff (25.0%)
- $423,750
- Customs fees (MPF/HMF)
- $2,753
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Q345 manganes steel plate
- Size: 5760*1910*2370
- Color: Yellow and Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Materials: Q345 manganes steel plate
- Size: 5760*1910*2370
- Color: Yellow and Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Materials | Q345 manganes steel plate |
|---|---|
| Size | 5760*1910*2370 |
| Color | Yellow and Grey |
Product details
| Materials | Q345 manganes steel plate |
|---|---|
| Size | 5760*1910*2370 |
| Color | Yellow and Grey |
From the supplier
Features&Parameters
★YTO diesel engine LR4B3-G92X1A-U2 is adopted, with strong power;
★The exhaust purification device produces less smoke and protect envi¬ronment better;
★Applying hydrodynamic transmission technology, single stage, 3 ele¬ments torque converter owns simple structure and high reliability;
★Single pump, split flow working hydraulic system makes lower consump¬tion and excellent performance;
★Double sealed hydraulic pipeline joints avoid oil leakage obviously;
★Load sensing fully hydraulic steering system makes operation easy;
★Air over hydraulic brake system; Caliper disc brakes;
★Working device with automatically leveling ability at high position;
★Integral, luxury instrument board;

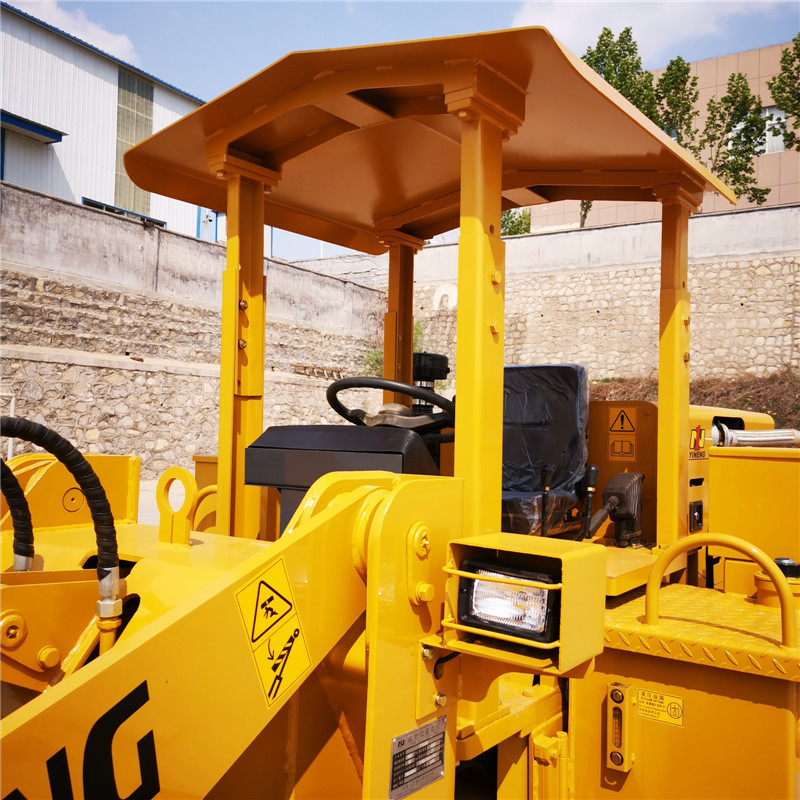

★Newly designed, luxury cabin.
Item
Specifications
Item
Specifications
Bucket capacity
0.7 m3
Max. grade ability
30°
Rated load
2000kg
Rated power
60kW/2400rpm
Dumping height
2230mm
Tyre
16/70-20
Max. breakout force
55kN
Overall dimensions
5760 x1910 x2370mm
Max. drawing force
45kN
Operating weight
6000kg
From the supplier
Features&Parameters
★YTO diesel engine LR4B3-G92X1A-U2 is adopted, with strong power;
★The exhaust purification device produces less smoke and protect envi¬ronment better;
★Applying hydrodynamic transmission technology, single stage, 3 ele¬ments torque converter owns simple structure and high reliability;
★Single pump, split flow working hydraulic system makes lower consump¬tion and excellent performance;
★Double sealed hydraulic pipeline joints avoid oil leakage obviously;
★Load sensing fully hydraulic steering system makes operation easy;
★Air over hydraulic brake system; Caliper disc brakes;
★Working device with automatically leveling ability at high position;
★Integral, luxury instrument board;
★Newly designed, luxury cabin.
Item
Specifications
Item
Specifications
Bucket capacity
0.7 m3
Max. grade ability
30°
Rated load
2000kg
Rated power
60kW/2400rpm
Dumping height
2230mm
Tyre
16/70-20
Max. breakout force
55kN
Overall dimensions
5760 x1910 x2370mm
Max. drawing force
45kN
Operating weight
6000kg
