YN920CD Off-road Forklift
Taian Luneng Import& Export Co.,Ltd.
See what’s includedHide breakdown
- FOB goods (100)
- $1,700,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $59,500
- Section 301 tariff (25.0%)
- $425,000
- Customs fees (MPF/HMF)
- $2,760
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,700,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $59,500
- Section 301 tariff (25.0%)
- $425,000
- Customs fees (MPF/HMF)
- $2,760
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
YN920CD Off-road Forklift
Taian Luneng Import& Export Co.,Ltd.See what’s includedHide breakdown
- FOB goods (100)
- $1,700,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $59,500
- Section 301 tariff (25.0%)
- $425,000
- Customs fees (MPF/HMF)
- $2,760
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,700,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $59,500
- Section 301 tariff (25.0%)
- $425,000
- Customs fees (MPF/HMF)
- $2,760
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Q345 Manganese Steel Plate
- Size: 6380*1800*2670mm
- Color: Yellow & Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Materials: Q345 Manganese Steel Plate
- Size: 6380*1800*2670mm
- Color: Yellow & Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Materials | Q345 Manganese Steel Plate |
|---|---|
| Size | 6380*1800*2670mm |
| Color | Yellow & Grey |
Product details
| Materials | Q345 Manganese Steel Plate |
|---|---|
| Size | 6380*1800*2670mm |
| Color | Yellow & Grey |
From the supplier

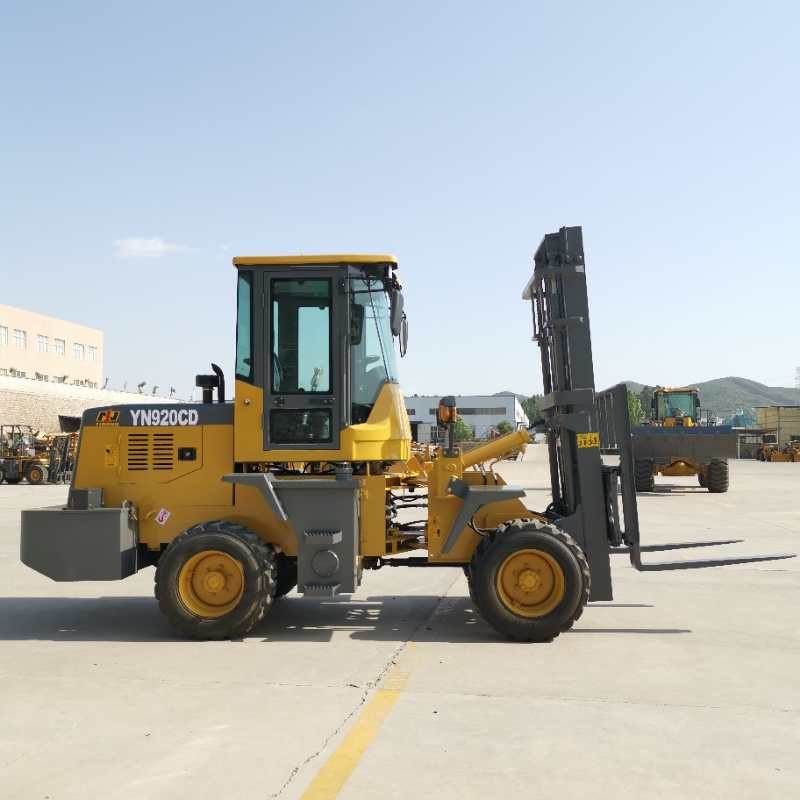

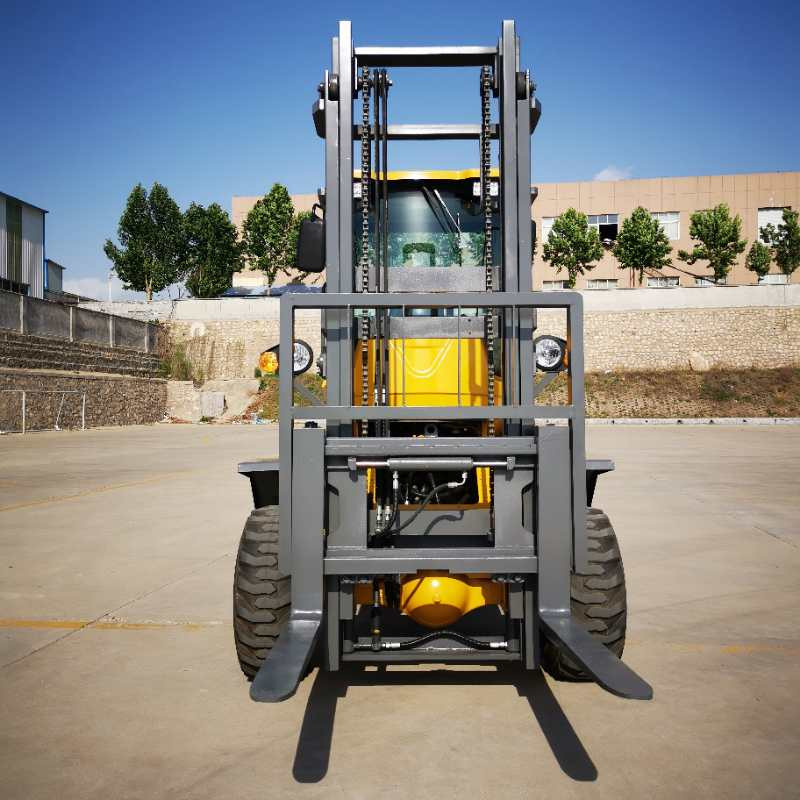

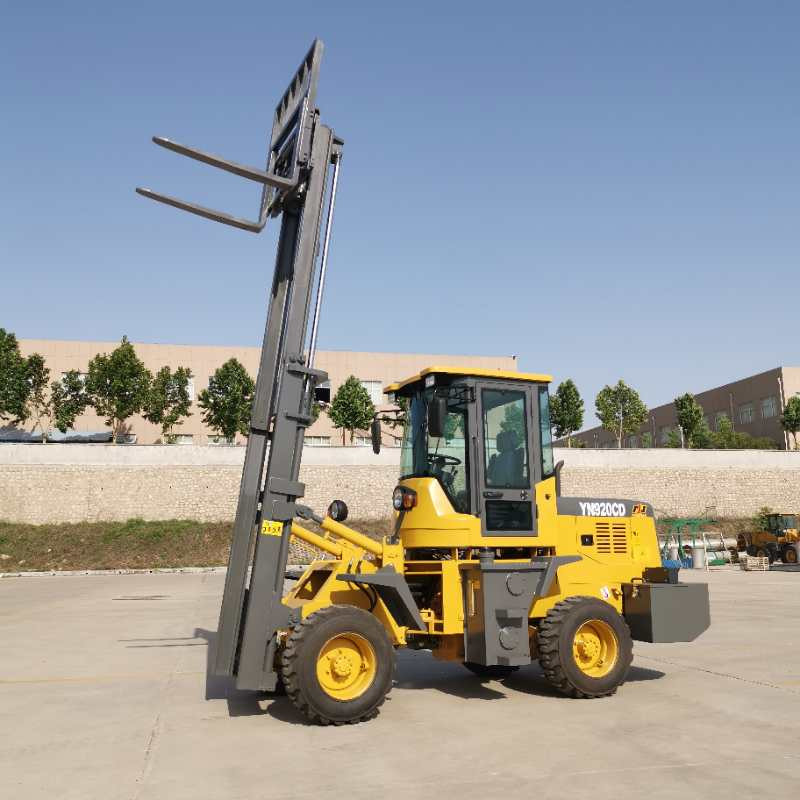

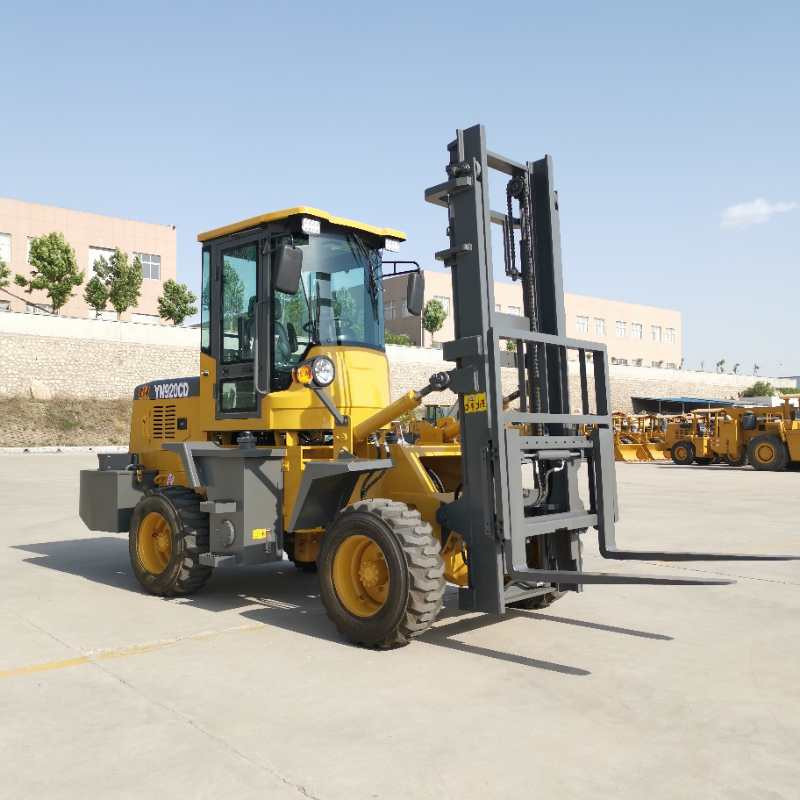

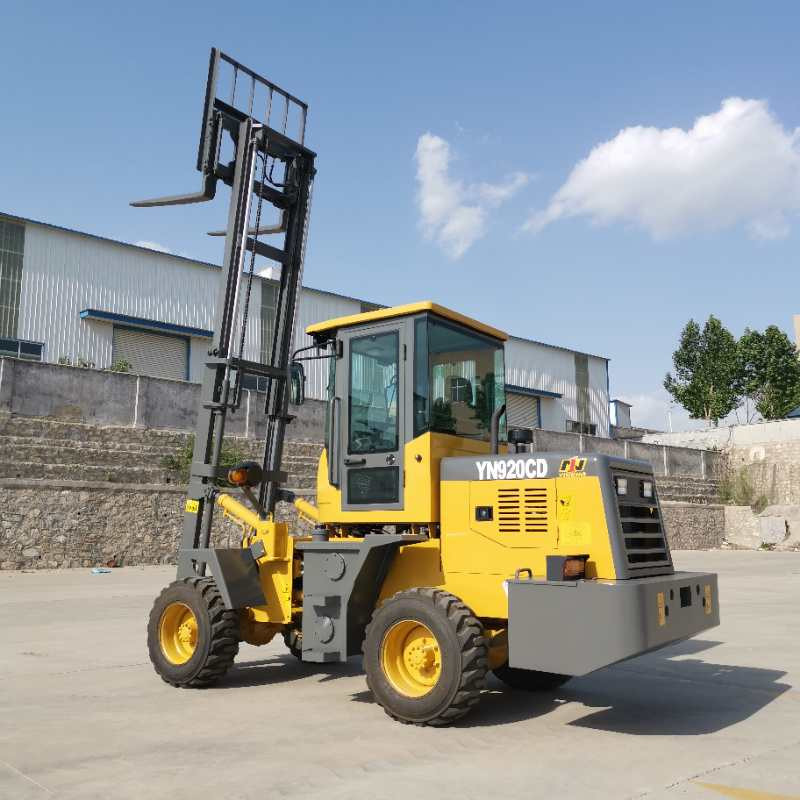

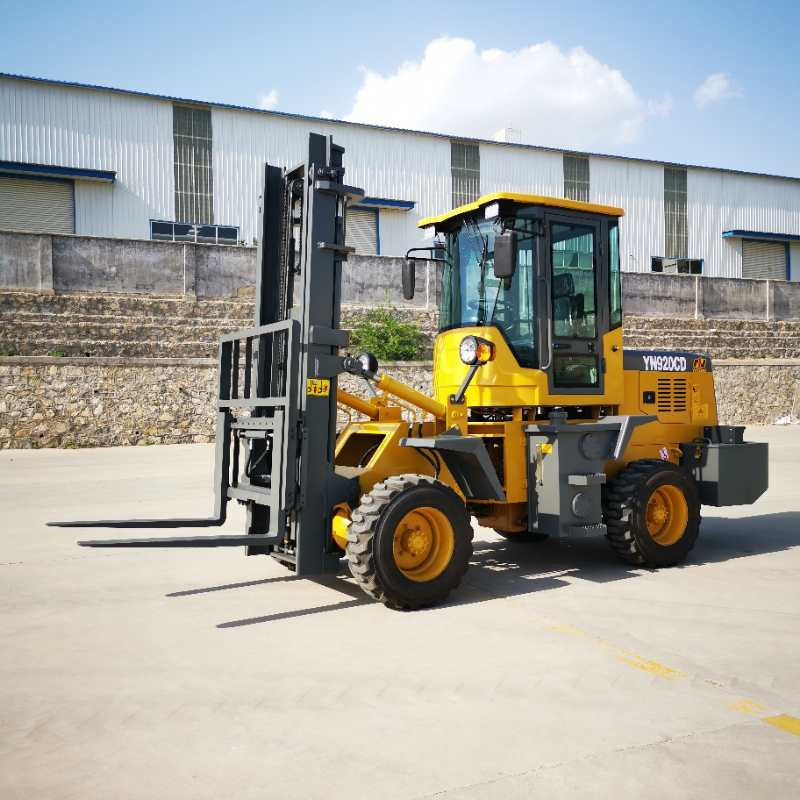

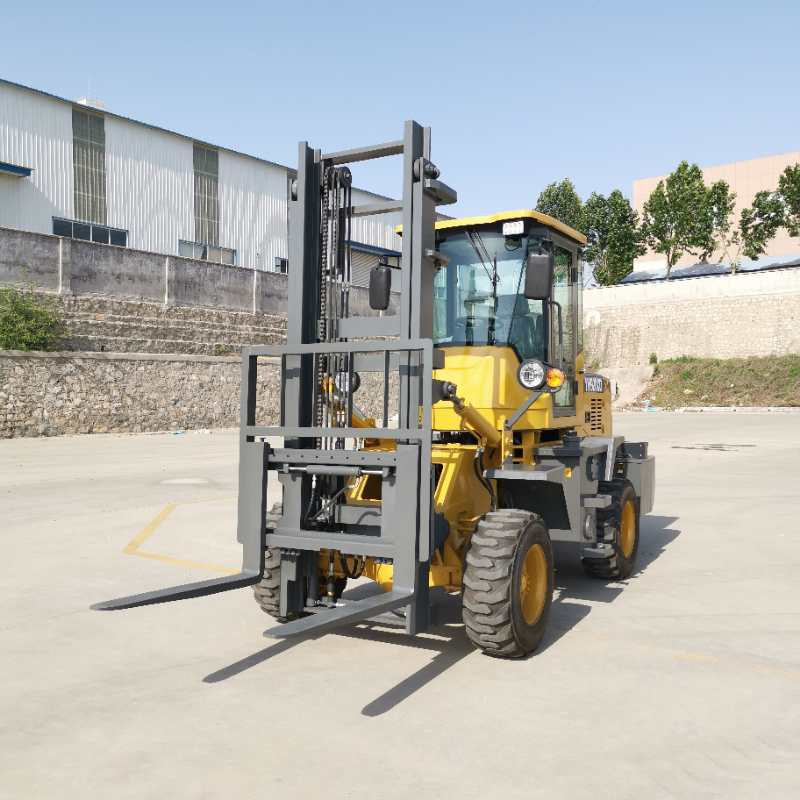

YN920CD Off-road Forklift
It adopts articulated frame, hydraulic-mechanical transmission, lower-pressure, wide-base tyre and four wheel driving, owning good adhesive property, great drawbar force, and excellent cross-country ability.
The working part adopts special channel steel. Equipped with holding apparatus, it is suitable for straw piling and loading job on farms.
2. YN920CD Technical Specifications：
Rated load
2500kg / 2000kg
Load center distance
600mm
Max. lifting height
H3000 / H4000mm
Dip angle of mask frame
Front 6º / rear 12º
Lifting speed
600mm/s

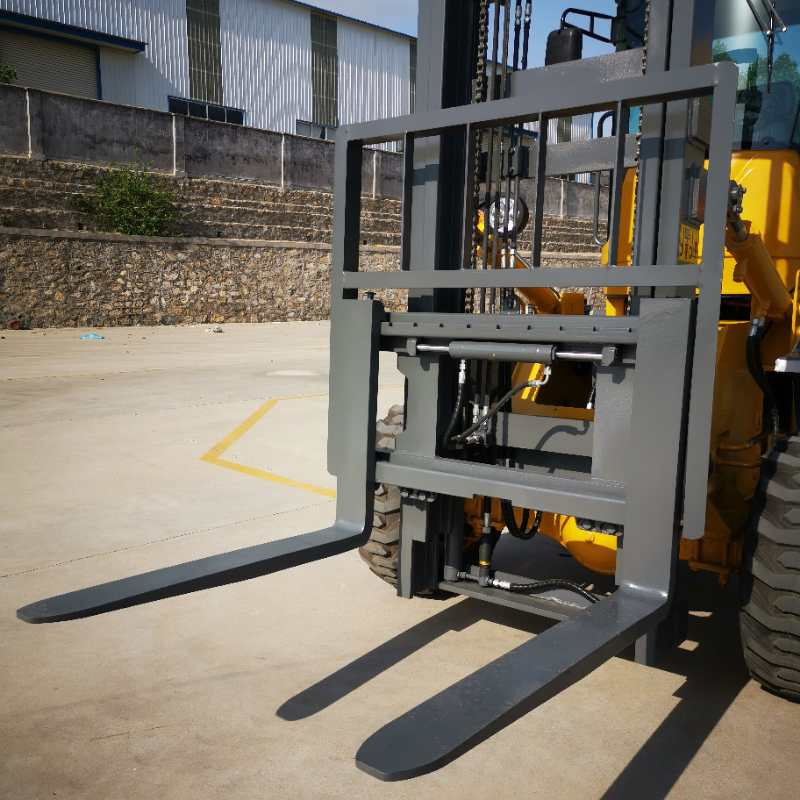

Standard fork length
1350mm
Max. speed
23 km/h
Min. ground clearance
240mm
Swing angle of rear axle
12º
Wheel base
2120mm
Wheel tread
1480mm
Steering angle
35°each direction
Engine model
Xinchai A495BG-500
Rated power
36.8KW/50HP
Tire
12-16.5
Overall length( Without fork)
4280mm
Overall width
1800mm
Loader height（mm)
2760mm
Mast height（mm)
H3000: 2190mm / H4000: 2740mm
Operating weight
5000kg
From the supplier
YN920CD Off-road Forklift
It adopts articulated frame, hydraulic-mechanical transmission, lower-pressure, wide-base tyre and four wheel driving, owning good adhesive property, great drawbar force, and excellent cross-country ability.
The working part adopts special channel steel. Equipped with holding apparatus, it is suitable for straw piling and loading job on farms.
2. YN920CD Technical Specifications：
Rated load
2500kg / 2000kg
Load center distance
600mm
Max. lifting height
H3000 / H4000mm
Dip angle of mask frame
Front 6º / rear 12º
Lifting speed
600mm/s
Standard fork length
1350mm
Max. speed
23 km/h
Min. ground clearance
240mm
Swing angle of rear axle
12º
Wheel base
2120mm
Wheel tread
1480mm
Steering angle
35°each direction
Engine model
Xinchai A495BG-500
Rated power
36.8KW/50HP
Tire
12-16.5
Overall length( Without fork)
4280mm
Overall width
1800mm
Loader height（mm)
2760mm
Mast height（mm)
H3000: 2190mm / H4000: 2740mm
Operating weight
5000kg
About the supplier
Main products: Other Construction Machinery,Excavators,Forklifts,Mining Machinery,Other Civil Construction Engineering Machinery
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2008
Manufacturing exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2008
