Introduction

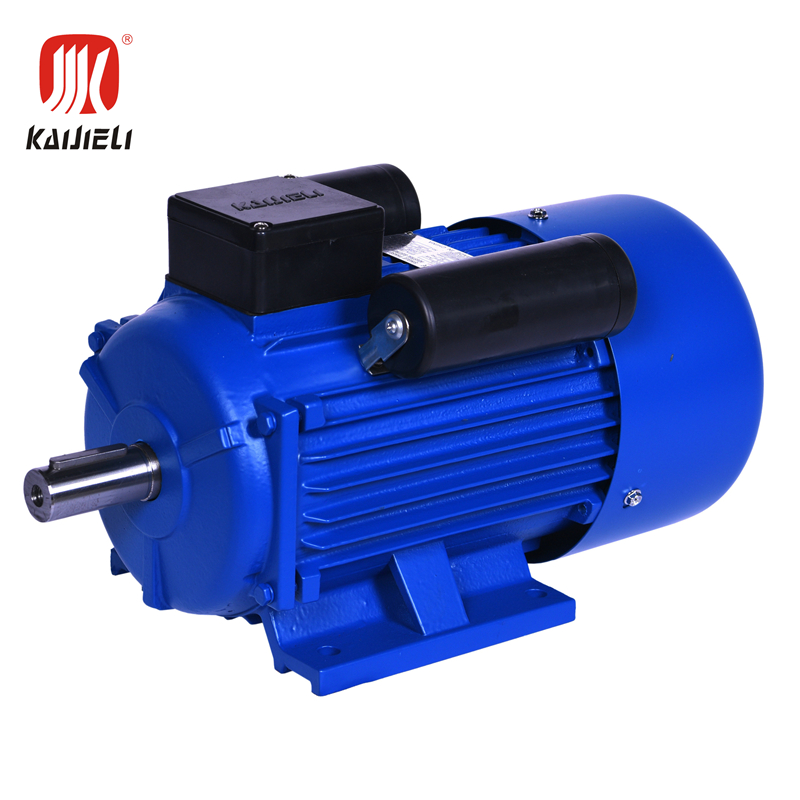

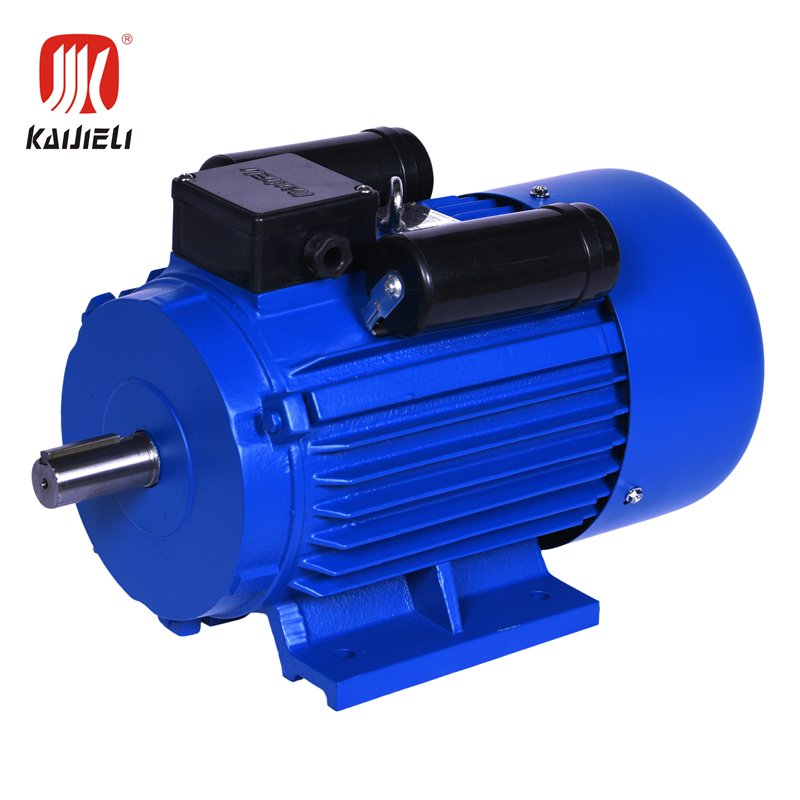

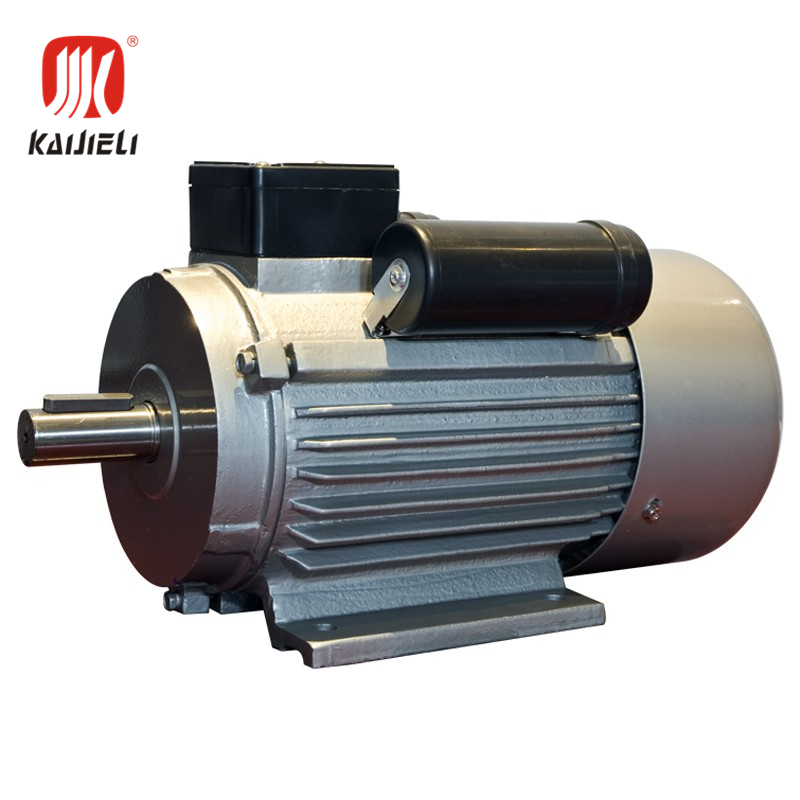

YC Series High-Power Single-Phase Motor: Suitable for driving small lathes, water pumps, particularly for households and workshops with only single-phase power supply. Features advanced technology design, high-quality materials, beautiful appearance, advanced performance, convenient maintenance, and reliable operation. Complies with relevant IEC standards.

YC Series Motor is fully enclosed fan-cooled. Output power 3HP and below adopts capacitor starting with starting torque greater than 3 times at 50Hz under rated voltage and greater than 2.75 times at 60Hz. Output power 4HP and above adopts capacitor starting and operation, concentrating advantages such as large starting torque, smooth operation, low temperature rise, low noise, and strong overload capacity.

YCL Industrial Series high-power single-phase capacitor-start induction motor, suitable for driving small machine tools and water pumps, especially suitable for home workshops with only single-phase power supply. This series of motors features advanced technology design using high-quality materials with beautiful appearance, advanced performance, convenient maintenance, reliable operation, low temperature rise, low noise, small starting current, large starting torque and other features, complying with relevant IEC standards.

YCL Series Motors Same Appearance as YC Motors. Temperature Rise Reduced 8.74K, Efficiency Increased 4.21%, Power Factor Increased 0.16 vs YC Series

YC series heavy-duty single-phase motors are suitable for small size machine tools and water pumps, especially suitable for family workshops where only single-phase power be supplied. These series motors are designed with the latest technology, manufactured with the quality materials, have following features: good performance, safe and reliable operation, nice appearance, convenient maintenance, meet the IEC standards.

YC series motors are of IP44 totally enclosed fan-cooled (TEFC) type, capacitor starting for rated output up to 3HP, on rated voltage and 50Hz, the starting torque is three times more than the rated torque, while 60Hz is 2.75 times more. Capacitors start and run type for motors 4HP and above. It has following features: high starting torque, smooth running,

low temperature rise, low noise and greater overload performance. YCL series heavy-duty capacitor start and run, single phase induction motors are suitable for driving small-size turning machine, especially suitable for household and workshop where only single-phase power be supplied. This series of motors are designed with advanced technique and made of high quality materials. It also has following features: low noise, low temperature rise, small starting current, high starting torque, reliable operation, easy maintenance and nice appearance, they also meet the relative standards of IEC. YCL series motors are similar to YC series in appearance. Comparing with the same output ofYC series motors, YCL series temperature rise is reduced 8.74k on average, efficiency is increased 4.21%, power factor is increased 0.16.

TECHNICAL DATAHousing metrial:  Cast IronOutput range:0.18KW~7.5KWPole:2/4Terminal Box:Top/Side MountedProtection Class:IP44Insulation Class:BBearing:C&U, SKF, NSK, NTN
Frequency:50/60HZEfficiency Standard:IEC60034-30 IE2
Operating ConditionsAmbient temperature:-15º C~40º CAltitude:not exceed 1000mRated voltage:110V, 115V, 120V, 220V, 230V, 240V(at buyer' s option)Rated frequency:50HZ 60HZ(at buyer' s option)Cooling method:IC 411Duty:S1

Company Overview:

Certifications:

Process:

1. Stamping of lamination;

2. Rotor die-casting;

3. Winding and inserting - both manual and semi-automatically;

4. Vacuum varnishing;

5. Machining shaft, housing, end shields, etc;

6. Rotor balancing;

7. Painting - both wet paint and powder coating;

8. Assembly;

9. Packing;

10. Inspecting spare parts every processing;

11. 100% test after each process and final test before packing.

About Us:

KAIGONG ELECTRIC (SUZHOU) CO.,LTD is located in New District, Suzhou City. Our factory center is in Fuan City, Fujian Province.
We always adhere to the policy of high standard, high quality and high efficiency and devoted ourselves to
the research and sales of the qenerators, machine tools and other spare parts. It is a creative
technology company comprising the manufacture, sales and research of electric motors and
generators.We have 2 national invention patents. Our products in"KAIJIELI" brand are exported to
more than 50 countries and districts in Europe, South America, Middle East, South Asia, Southeast Asia
etc. We have steady sales channels and more than 50 agencies both at home and abroad.It is the
leading company in the industry and the total annual sales is Keeping growing.

RAQ:
Delivery time:Within 35 days working day since we receive the deposit.
MOQ: 1 set is acceptable.
Payment term: 30% T/T deposite,70%T/T balance before shipment; Or L/C 100% At Sight;
Packaging: Standard export package (Wrapping film and bubble pad or plywood case);
Frequency and voltage: 50HZ/60HZ; 110V / 220V,230V/ 400V, 220V/380V-440V ect;
Manufacturing standard: ISO9001:2008, CE, CCC, TUV, SGS.
