Introduction

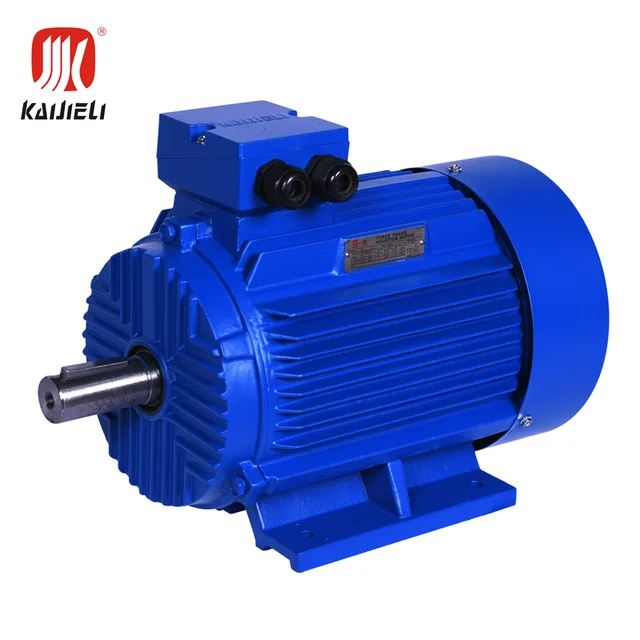

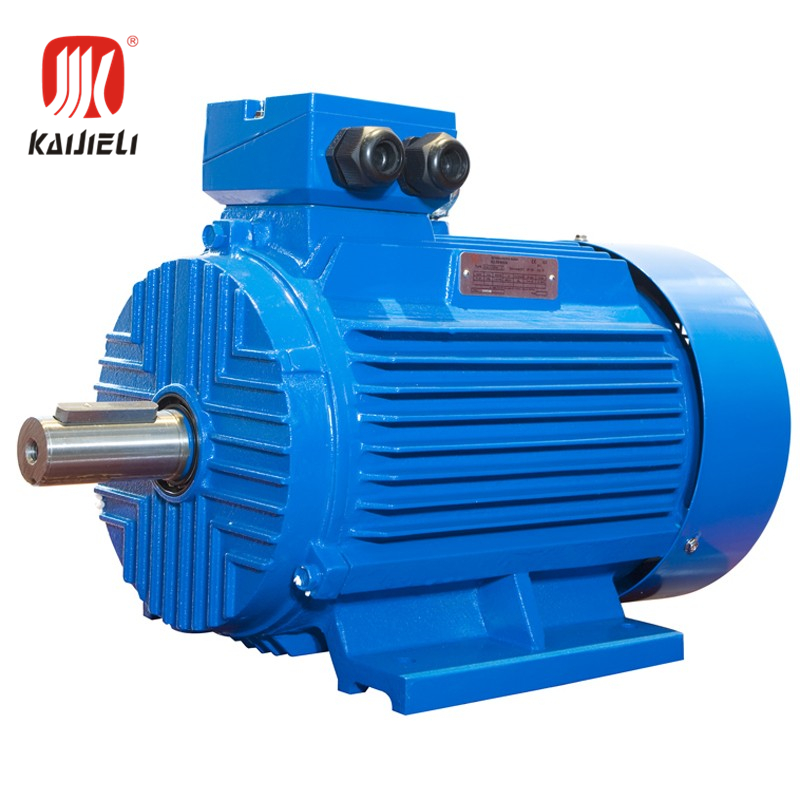

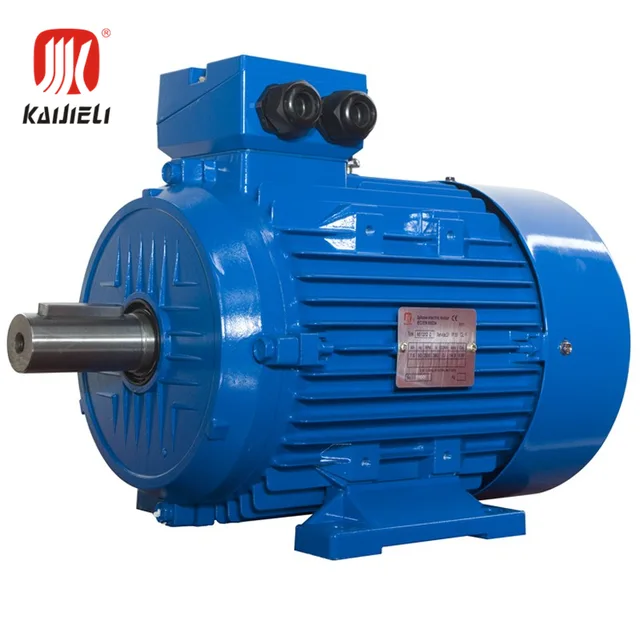

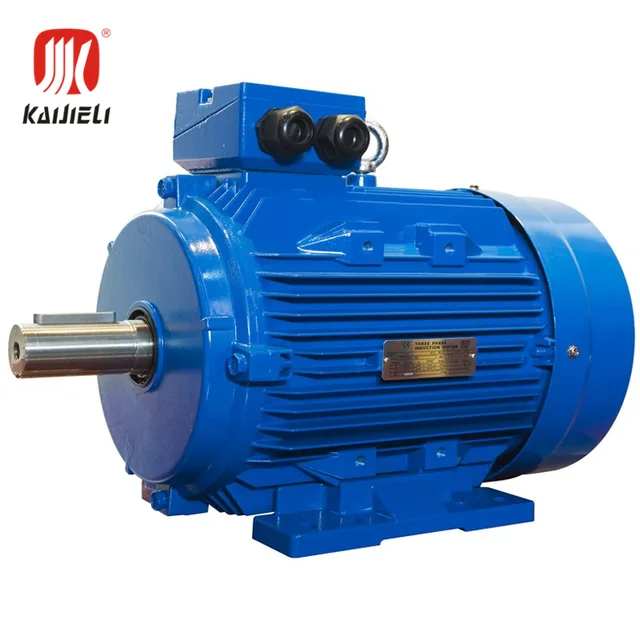

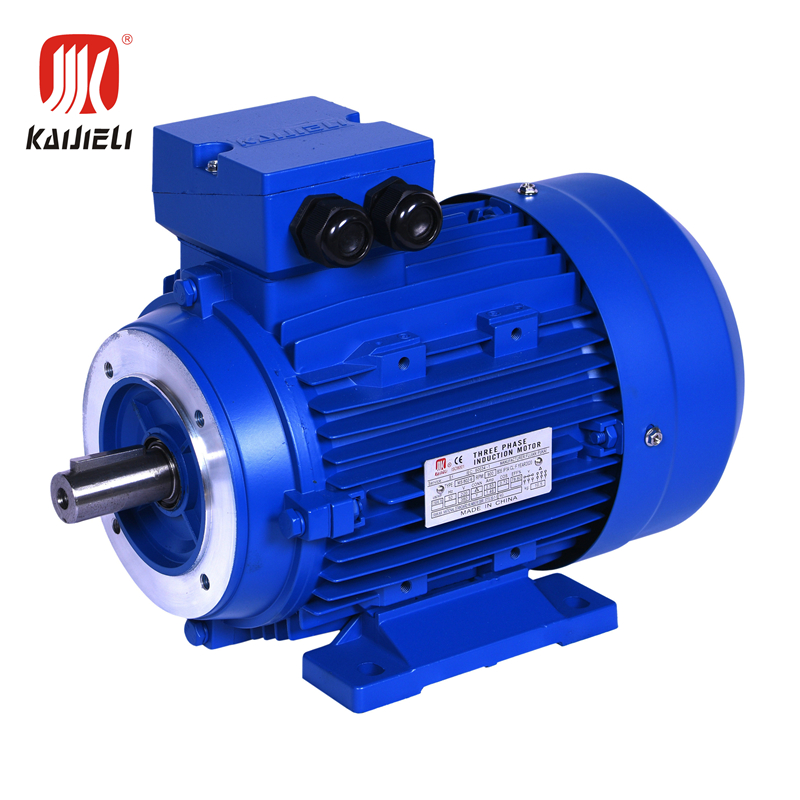

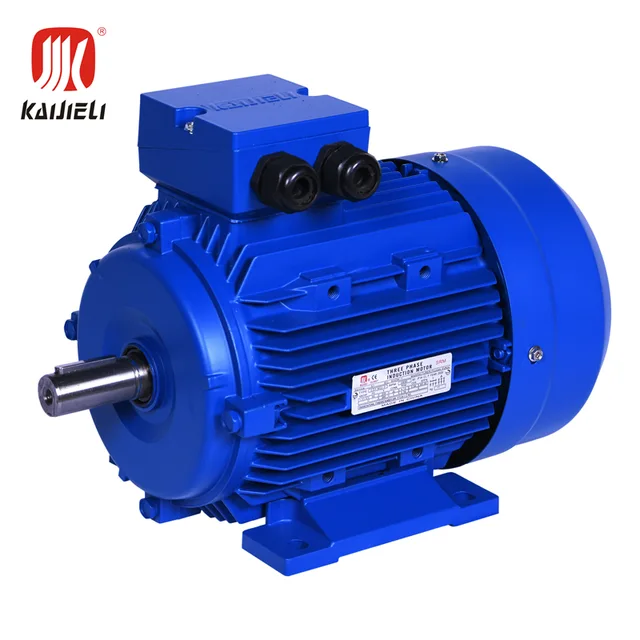

CDF, SDF Series Three-Phase Asynchronous Motors designed by our company on the basis of Y2 series specifically for European and American markets. Its power rating, installation dimensions are exactly the same as Y2 series, efficiency reaches European EFF2 standard, and can reach EFF1 standard upon request. Adopts F-class insulation, protection grade IP55, with PTC thermistor, uses SKF or NSK, NTN bearings, 160 and above with oil nipple structure.

Adopting the national uniform design, Y2 series three-phase induction motors are in conformity with IEC 34-1 and JB/T8680 standards, also up to the international advanced level of the 90's. As the substitute of Y series induction motors, it possesses sophisticated features such as new construction, good appearance, slight vibration, low noise etc. CDF, SDF series three phase motors are newly designed by our company for the European and American markets on the basis of Y2 series. Its rated power and mounting sizes are quite the same as Y2 series. The efficiency of CDF and SDF can meets standards of EFF2 and EFF1. The motors are adopted in class F (Temperature rise B) insulation and IP55 protection. Motors can be equipped with PTC, as well as re-greasing system for frame size 160 and above, bearings of SKF, NSK or NTN at optional.

TECHNICAL DATAHousing metrial:  Cast Iron/aluminumOutput range:0.55KW~315KWPole:2/4/6Terminal Box:Top/Side MountedProtection Class:IP55Insulation Class:F/HBearing:SKF/NSK/ChineseFrequency:50/60HZEfficiency Standard:IEC60034-30 IE2
Operating ConditionsAmbient temperature:-15º C~40º CAltitude:not exceed 1000mRated voltage:380V(at buyer' s option)Rated frequency:50HZ 60HZ(at buyer' s option)Cooling method:IC 411Duty:S1

Technical Performance:

1)Adjusting rate of stable voltage ±0.5%

2)Adjusting rate of instant voltage: ≥-15% ~ ≤+20%

3)Adjusting range of voltage: ≥±25%

4)Standard H insulation class.

All wound components are impregnated with materials and processes disigned specifically to provide the high build required for static windings and the high mechanical strength required for rotating components.

5)Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

6)Protection class: IP21-23(NEMA1) enclose is standard for all industrial alternators;

Company Overview:

Certifications:

Process:

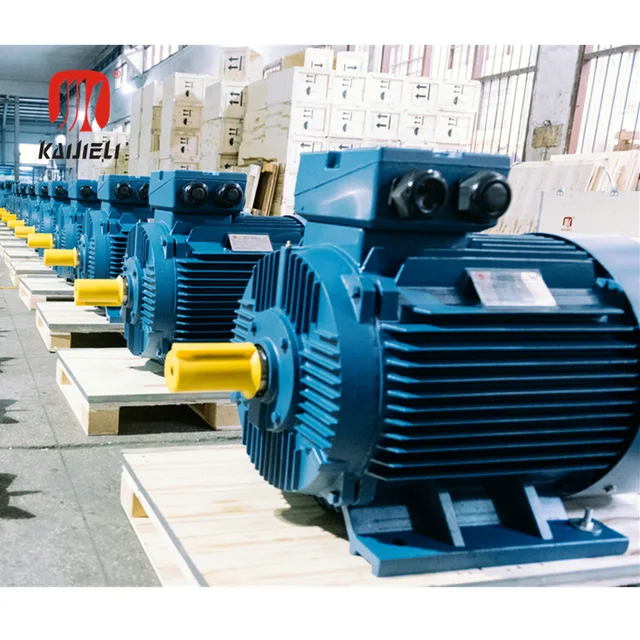

1. Stamping of lamination;

2. Rotor die-casting;

3. Winding and inserting - both manual and semi-automatically;

4. Vacuum varnishing;

5. Machining shaft, housing, end shields, etc;

6. Rotor balancing;

7. Painting - both wet paint and powder coating;

8. Assembly;

9. Packing;

10. Inspecting spare parts every processing;

11. 100% test after each process and final test before packing.

About Us:

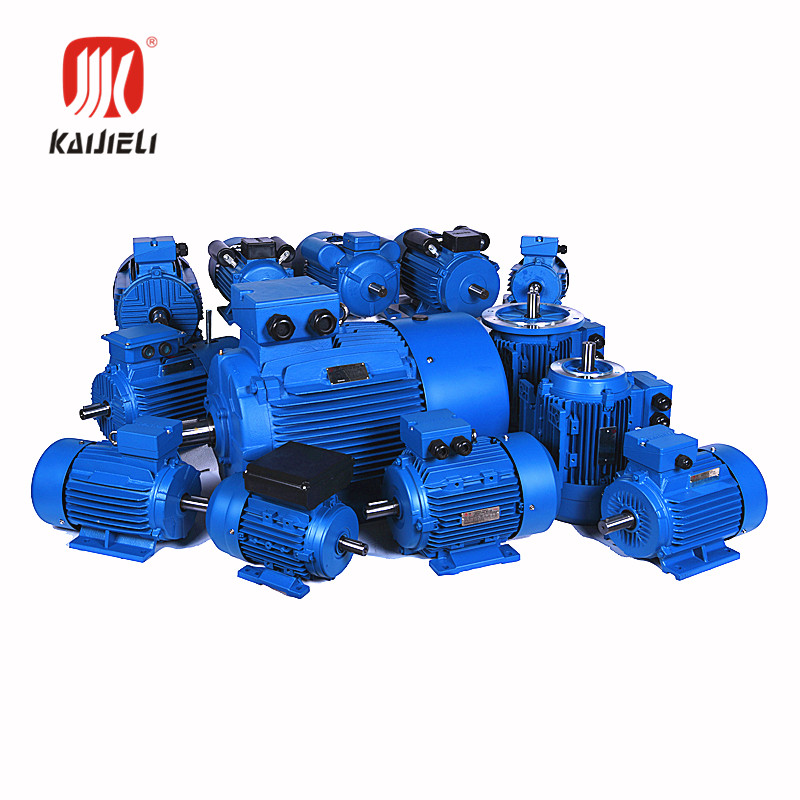

KAIGONG ELECTRIC (SUZHOU) CO.,LTD is located in New District, Suzhou City. Our factory center is in Fuan City, Fujian Province.
We always adhere to the policy of high standard, high quality and high efficiency and devoted ourselves to
the research and sales of the qenerators, machine tools and other spare parts. It is a creative
technology company comprising the manufacture, sales and research of electric motors and
generators.We have 2 national invention patents. Our products in"KAIJIELI" brand are exported to
more than 50 countries and districts in Europe, South America, Middle East, South Asia, Southeast Asia
etc. We have steady sales channels and more than 50 agencies both at home and abroad.It is the
leading company in the industry and the total annual sales is Keeping growing.

RAQ:
Delivery time:Within 35 days working day since we receive the deposit.
MOQ: 1 set is acceptable.
Payment term: 30% T/T deposite,70%T/T balance before shipment; Or L/C 100% At Sight;
Packaging: Standard export package (Wrapping film and bubble pad or plywood case);
Frequency and voltage: 50HZ/60HZ; 110V / 220V,230V/ 400V, 220V/380V-440V ect;
Manufacturing standard: ISO9001:2008, CE, CCC, TUV, SGS.
