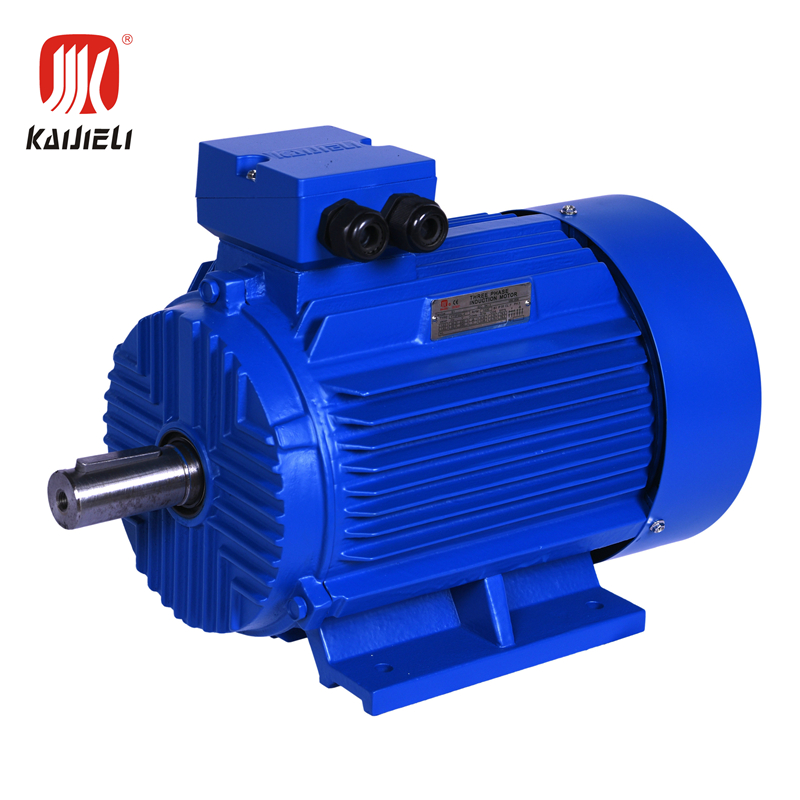

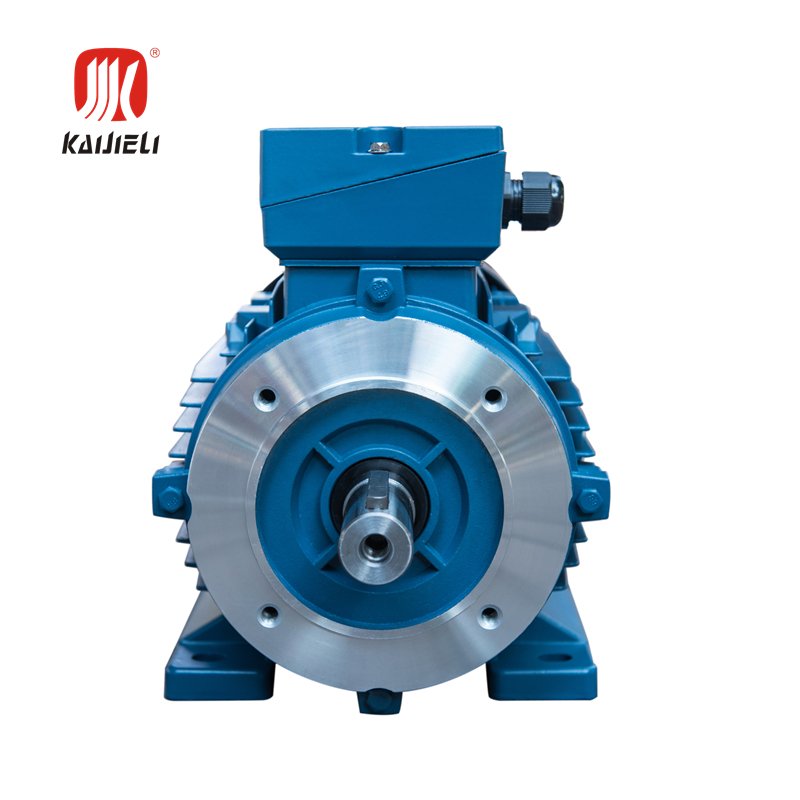

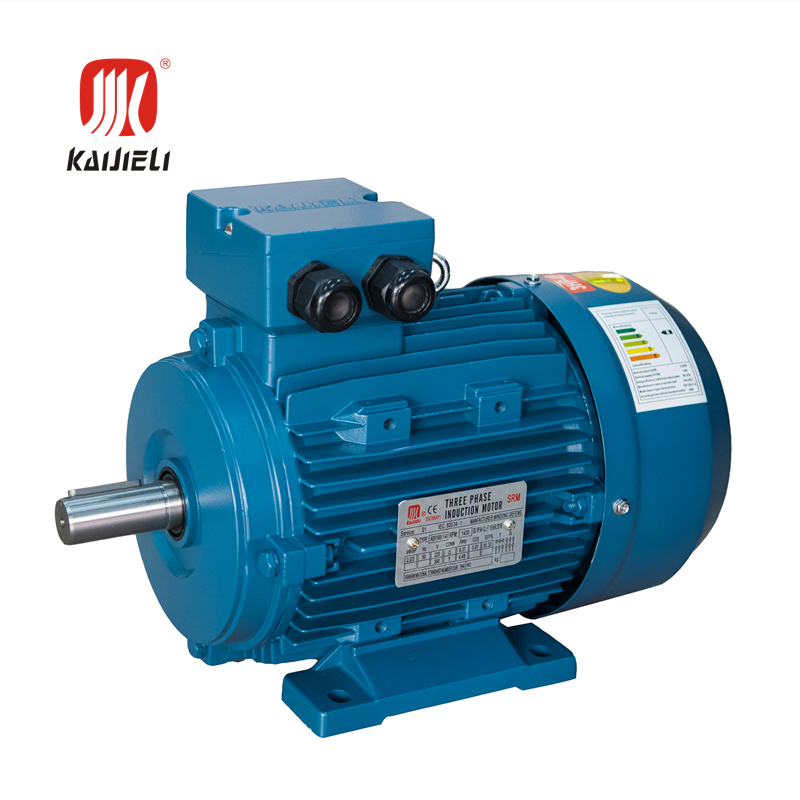

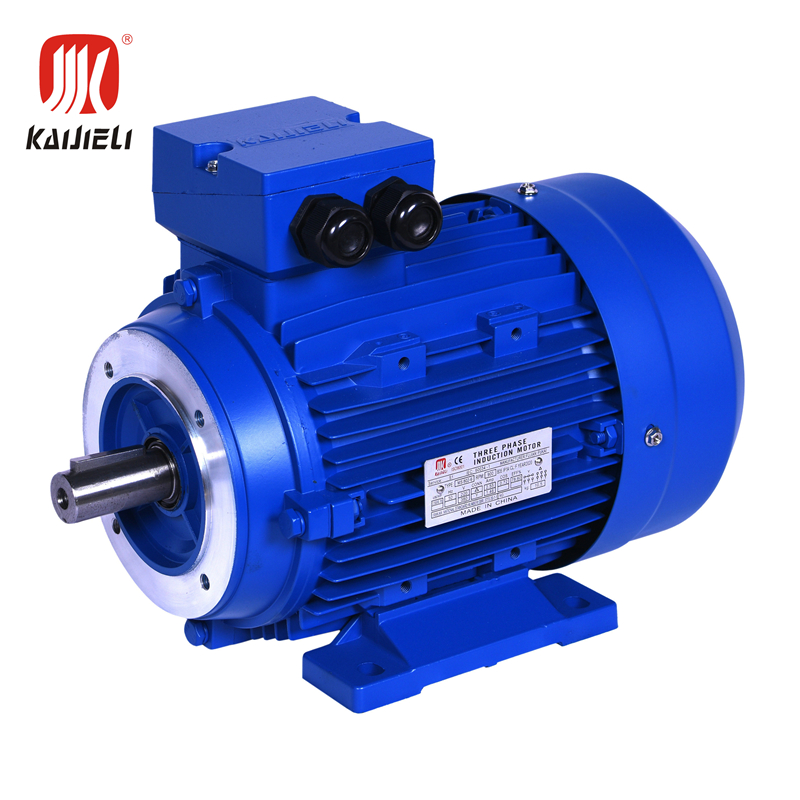

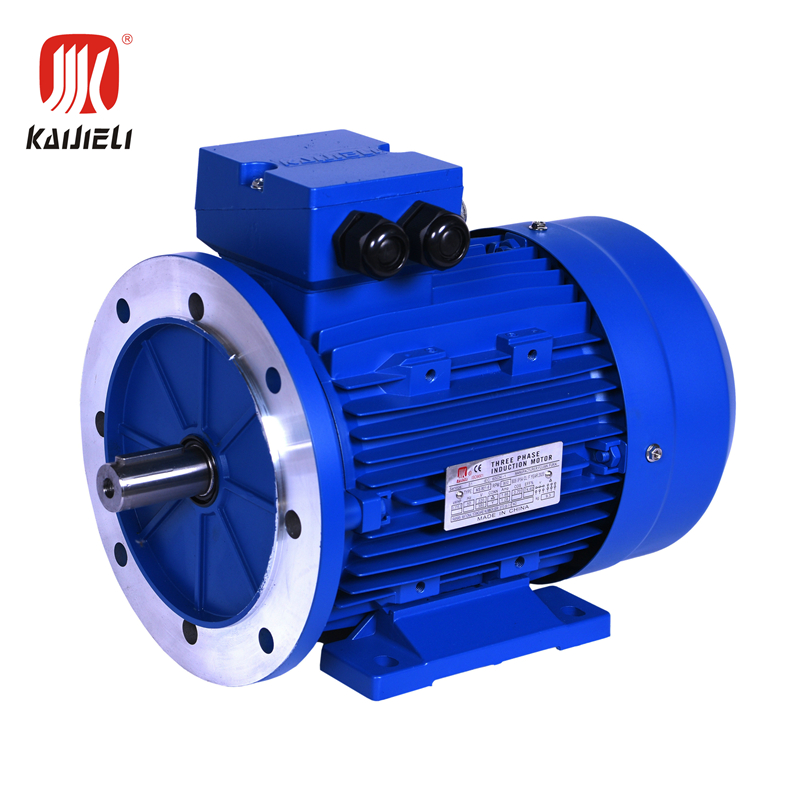

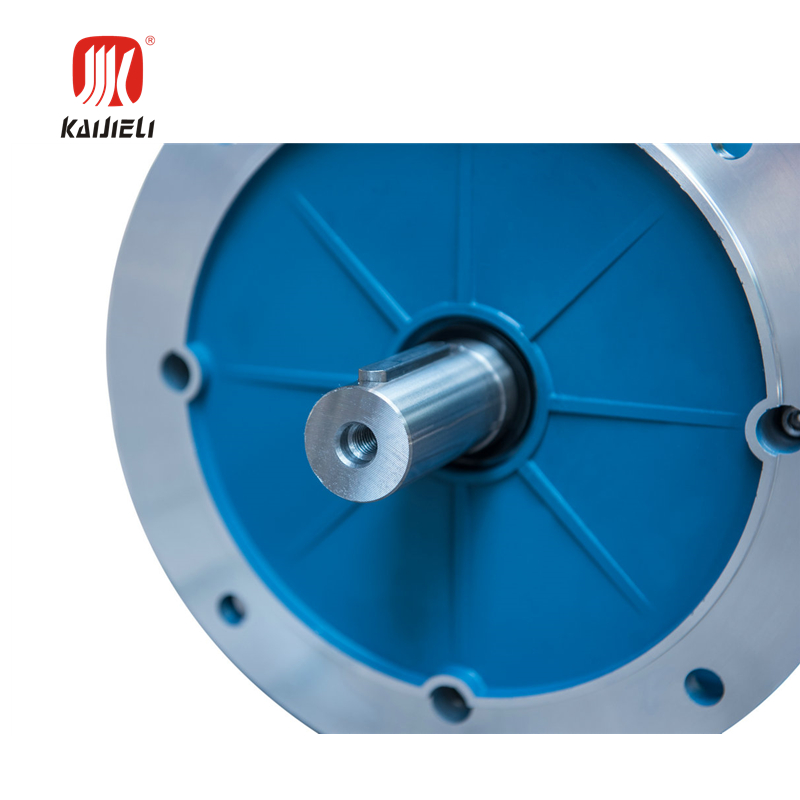

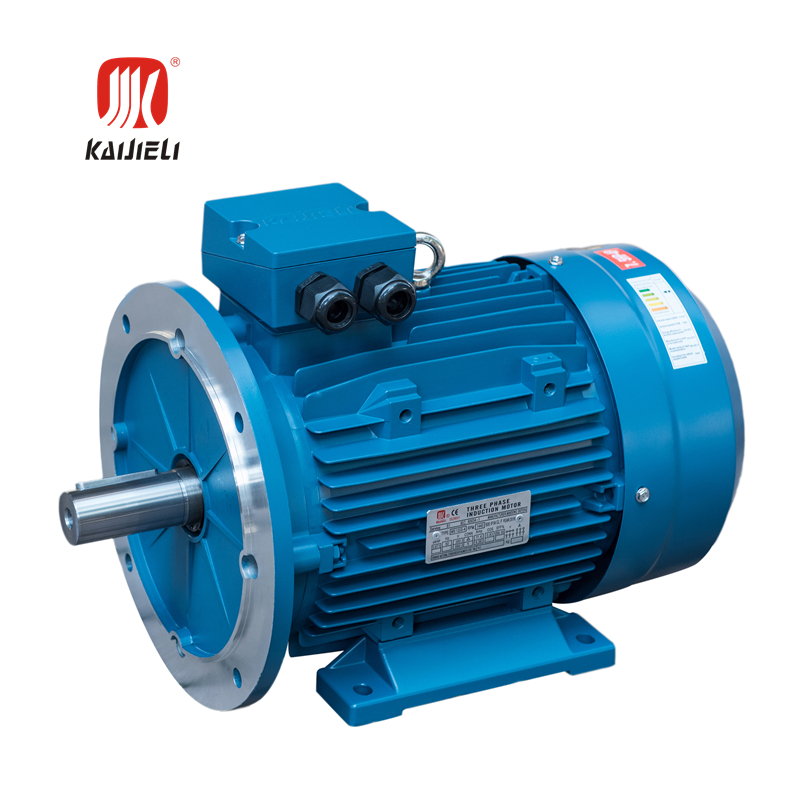

Ke3 Series Ultra High-Efficiency Three-Phase Asynchronous Induction Motor
- FOB goods (100)
- $201,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $7,035
- Section 301 tariff (25.0%)
- $50,250
- Customs fees (MPF/HMF)
- $886
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Ke3 Series Ultra High-Efficiency Three-Phase Asynchronous Induction Motor
- FOB goods (100)
- $201,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $7,035
- Section 301 tariff (25.0%)
- $50,250
- Customs fees (MPF/HMF)
- $886
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Cast Iron/ Aluminum + 100% Copper Wire
- Size: 305-1550
- Color: Blue/Grey/Green or Custimized according to RAL #
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Fujian, China
About this product
- Materials: Cast Iron/ Aluminum + 100% Copper Wire
- Size: 305-1550
- Color: Blue/Grey/Green or Custimized according to RAL #
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Fujian, China
Product details
| Materials | Cast Iron/ Aluminum + 100% Copper Wire |
|---|---|
| Size | 305-1550 |
| Color | Blue/Grey/Green or Custimized according to RAL # |
From the supplier
Introduction
KE3 Series General-Purpose Totally Enclosed Three-Phase Induction Motor, IP55 Protection, EU IE3 Efficiency
KE3 Series Motor Suitable For Continuous Duty (S1), Constant Speed Or Variable Frequency Adjustment Within A Certain Speed Range
The KE3 series three phase asynchronous motors are totally enclosed fan cooled(TEFC) with IP55 environmental protection, and applicable for general purpose use. These motors are designed and manufactured in accordance with EU IE3 standards.
The KE3 series motor is designed for constant or adjustable speed with continuous operation (S1)overa speed range.
Operating ConditionsAmbient temperature:-15º C~40º CAltitude:not exceed 1000mRated voltage:380V(at buyer' s option)Rated frequency:50HZ 60HZ(at buyer' s option)Cooling method:IC 411Duty:S1
FEATURES OF KE3 SERIES:
1)Available in 2,4,6 pole variants with efficiency grade 1 according to GB60034-30 and efficiency class IE3 according to IEC60034-30
2)Optimized compact style construction
3)Standard mounting construction according to IEC60034-7; IMB3, IMB5, IMB35, IMB14, IMB34, IMV1, IMV3 and etc
4)AII motors are designed to IP55 degree of protection(IEC60034-5)
5)Winding protections with PTC, PT100 and KTY84-130 as option
6)Insulation system is designed for temperature class 155°C(F). At rated output with line-fed operation, the motors can be used in temperature class 130°C(B)
Company Overview:
Certifications:
Process:
1. Stamping of lamination;
2. Rotor die-casting;
3. Winding and inserting - both manual and semi-automatically;
4. Vacuum varnishing;
5. Machining shaft, housing, end shields, etc;
6. Rotor balancing;
7. Painting - both wet paint and powder coating;
8. Assembly;
9. Packing;
10. Inspecting spare parts every processing;
11. 100% test after each process and final test before packing.
About Us:
KAIGONG ELECTRIC (SUZHOU) CO.,LTD is located in New District, Suzhou City. Our factory center is in Fuan City, Fujian Province.
We always adhere to the policy of high standard, high quality and high efficiency and devoted ourselves to
the research and sales of the qenerators, machine tools and other spare parts. It is a creative
technology company comprising the manufacture, sales and research of electric motors and
generators.We have 2 national invention patents. Our products in"KAIJIELI" brand are exported to
more than 50 countries and districts in Europe, South America, Middle East, South Asia, Southeast Asia
etc. We have steady sales channels and more than 50 agencies both at home and abroad.It is the
leading company in the industry and the total annual sales is Keeping growing.
RAQ:
Delivery time:Within 35 days working day since we receive the deposit.
MOQ: 1 set is acceptable.
Payment term: 30% T/T deposite,70%T/T balance before shipment; Or L/C 100% At Sight;
Packaging: Standard export package (Wrapping film and bubble pad or plywood case);
Frequency and voltage: 50HZ/60HZ; 110V / 220V,230V/ 400V, 220V/380V-440V ect;
Manufacturing standard: ISO9001:2008, CE, CCC, TUV, SGS.
