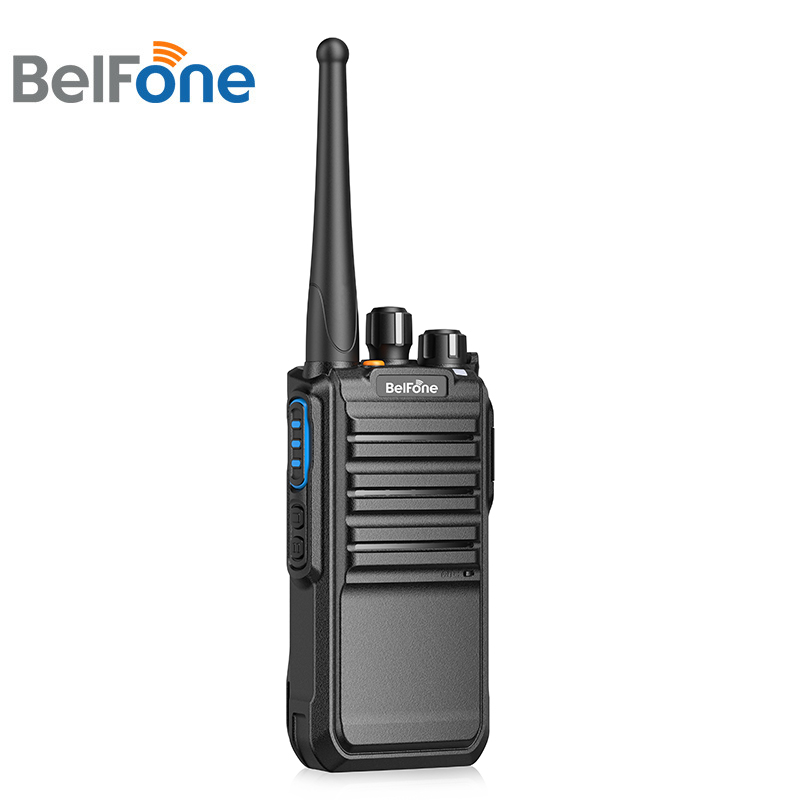

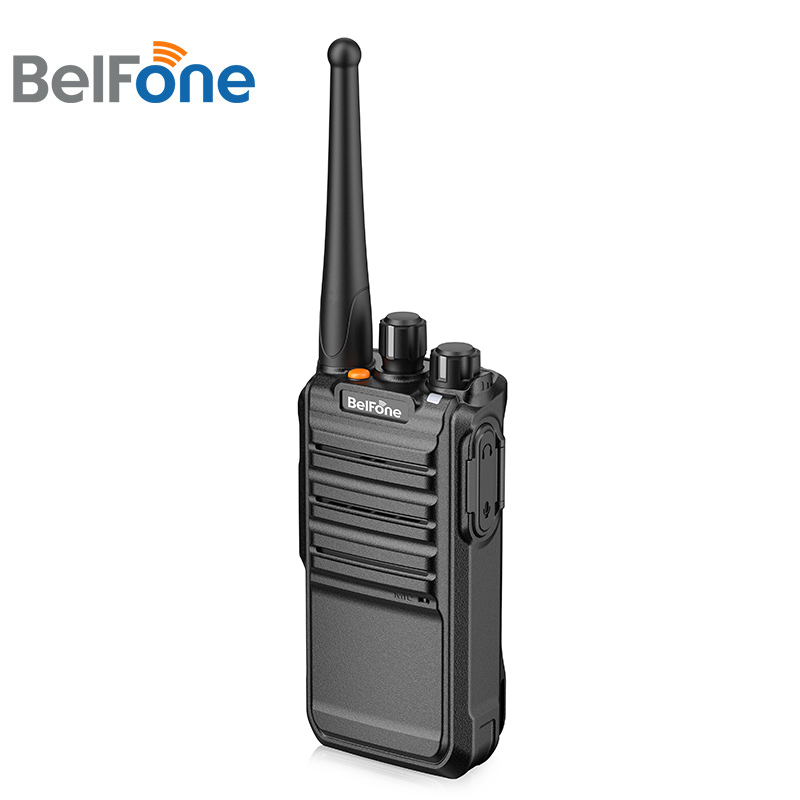

BF-TD516 is a DMR entry level portable designed for traditional analog users who want to experience digital communications while still keep to their analog budgets. With a loud and crystal clear audio, a longer battery life, and of course a higher spectrum efficiency delivered by a 12.5KHz channel spacing, BF-TD516 gives you a whole package of basic digital features and a smooth transition. BF-TD516 is an ideal analog replacement for small businesses, such as hotels, restaurants, supermarkets, etc.

Compatible with Motorola Audio Accessories

BF-TD516 is compatible with Motorola audio accessories. So, if you already have a Motorola analog earpiece or microphone, you can pair them with BelFone BF-TD516 and go hand-free.

Digital/Analog Mixed Mode

Receive both analog and digital signals on a single channel and can automatically switch into the needed mode for efficient communications.

Emergency Alert Button

BF-TD516 comes with a delicate orange emergency button. Just press this button and an emergency alert will instantly go off. Your safety is our utmost concern.

Small Size and Light Weight

BF-TD516 is small and light enough to be held easily and comfortably in a single hand. It is also very easy to operate.

Auto Power Save

In standby mode, BF-TD516 automatically switches into power save mode to further extend battery life.

Excellent Audio Quality

The FEC technology and AMBE＋2TM vocoder deliver a clear and crisp audio.

Private Call, Group Call And All Call (programmable)

The versatile calling functions bring more efficiency to your teamwork.

Scan/ Monitor (programmable)

At a convenient push of a button you can monitor all the conversations on your channel or you can scan conversations on different channels.

Specifications

General Frequency Range VHF: 136-174MHz; UHF: 350-390 MHz/400-480 MHz/ 450-520MHz Channels 32 Zones 2 Channel Spacing 12.5KHz/25KHz Working Voltage DC7.4V (±20％) Frequency Stability ±1.5ppm Antenna Impedance 50Ω Battery Capacity Real 1800mAh Battery Average Working Time Digital 18 hours; Analog 13 hours Dimension 59.7 (L)* 35 (W)* 114(H) mm Weight 264g (including battery) Transmitter Power Output High power: 5W; Middle power: 3W; Low power: 1W 4FSK Modulation 12.5KHz data only: 7K60FXD; 12.5KHz data and voice: 7K60FXE FM Modulation 12.5KHz: 8K50FXD; 25KHz: 16KΦF3E Modulation Limitation +/- 2.5KHz FM Noise -40dB Spurious Emission -36 dBm≤1GHz/-30 dBm≥1GHz Adjacent Channel Power ≤-60dB Frequency Response +1/-3dB Vocoder AMBE+2™ Audio Distortion ＜3% Receiver Digital Sensitivity 5% BER: 0.25 uV Analog Sensitivity 0.25 uV (12 dB SINAD) Intermodulation 65dB Adjacent Channel Selectivity 60dB Spurious Suppression 70dB FM Noise -40dB Frequency Response +1/-3 dB Audio Power 500mW Audio Distortion 3% (typical) Conduction Radiation -57 dBm Environmental Specifications Operating Temperature -20℃~+60℃ Storage Temperature -30℃~+85℃ Water Proof IP54 Shock & Vibration MIL-STD-810C/D/E/F
