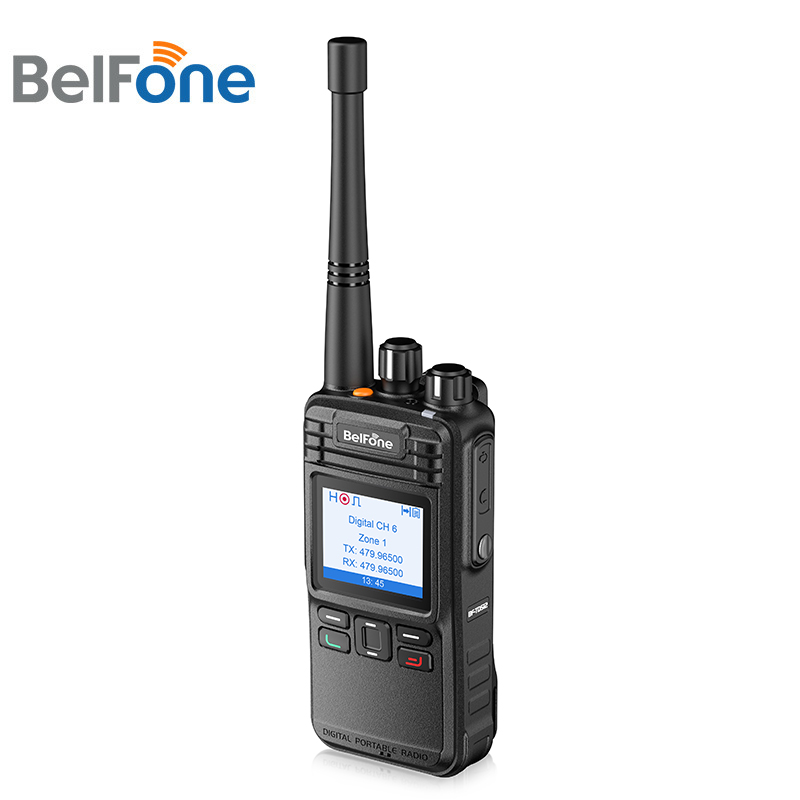

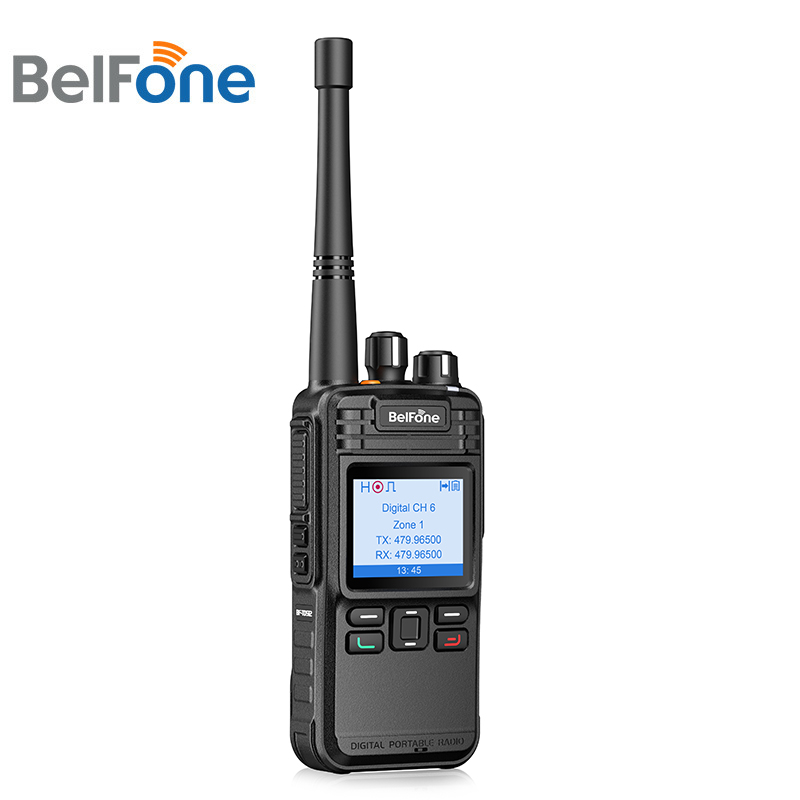

BF-TD512, an IP67 rated DMR radio, is featured with full color screen and half keypad which specially required by some customers. It brings the advantages, such as superior audio quality, outstanding coverage and long-lasting battery life. The virtual trunking technology greatly increases spectrum efficiency without any extra costs. It works with BelFone DMR conventional IP Connect system- SDC to realize more powerful features, delivering revolutionary capabilities to keep the team safer and more efficient.

DMO True 2-Slots

In direct mode these radios support two voice calls simultaneously due to DMR two timeslots, which means two communication paths at 1 frequency with no extra costs or frequency license.

Digital/Analog Dual Modes

Receive both analog and digital signals on a single channel and can automatically switch into the needed mode for efficient communications.

Personnel Safety

Mandown: If some worker slips or falls, the mandown function will automatically activate and transmit a signal to other radios for help. Built-in Lone Worker, and Emergency alarms are also available in case of any accident.

Automatic Roaming (Programmable)

In an IP multi-site network, this feature enables these radios to automatically roam among all sites and stay connected, delivering more flexibility and efficiency.

Voice Recording

(32G memory--can record over 400 hours’ communications)

Support voice recording and you can play the recording on your radio. This is a radio with a good and long memory.

Radio Priority-Based Interruption

This function enables a radio with higher level to interrupt communications between radios with lower levels, giving higher priority to radios with higher levels. This means better dispatching efficiency.

IP67 Protection

Tightly sealed against dust, spills, sprays and unexpected showers, ensuring outstanding performance in tough environments.

Advanced Encryption with RC4 Technology

The RC4 encryption technology keeps your communications safe and private, optimizing your information safety.

DMO Pseudo Trunk

The user can choose slot 1 or slot 2 for communications. When one slot is occupied the radio will automatically switch into the free slot. Frequency efficiency is greatly increased.

General Version Basic Frequency Range VHF: 136-174MHz; UHF: 350-390MHz/ 400-480MHz/ 450-520MHz Channels 512 Zones 32 Channel Spacing 12.5KHz/ 25KHz Working Voltage DC7.4V (±20％) Frequency Stability ±1.5ppm Antenna Impedance 50Ω Battery Capacity Real 2000mAh Battery Average Working Time Digital 22 hours; Analog 16 hours Dimension 60.8(L)* 35.7(W)* 118.5(H) mm Weight 239g (including battery) Transmitter Power Output High power: 4.5W; Low power: 1W 4FSK Modulation 12.5KHz data only: 7K60FX; 12.5KHz data and voice: 7K60FXE FM Modulation 12.5KHz: 8K50F3E; 25KHz: 16KφF3E Modulation Limitation +/- 2.5KHz FM Noise -40dB Spurious Emission -36 dBm≤1GHz/-30 dBm≥1GHz Adjacent Channel Power ≤-60dB Frequency Response +1/-3dB Vocoder AMBE++ Audio Distortion ≤3% Receiver Digital Sensitivity 5% BER: 0.25 uV Analog Sensitivity 0.25 uV (12 dB SINAD) Intermodulation 60dB Adjacent Channel Selectivity 60dB Spurious Suppression 60dB FM Noise -40dB Frequency Response +1/-3 dB Audio Power 1.5W Audio Distortion 3% (typical) Conduction Radiation -57dBm GPS Precision Horizontal Accuracy ≤10m (with good signal) TTFF (first location) Cold Boot ＜1 minute(with good signal) TTFF (first location) Hot Boot ＜10 seconds (with good signal) Environmental Specifications Operating Temperature -20℃~+60℃ Storage Temperature -30℃~+85℃ Water and Dust Proof IP67 Shock & Vibration MIL-STD-810C/D/E/F
