Main performance and structural characteristics:
1. PLC control with color touch screen and stable and reliable dual-axis high-precision output, bag making, metering, filling, sealing, punching, and bag cutting can be completed at one time
2. The air circuit control and circuit control are separated separately, the noise is small, and the circuit is more stable.
3. Use vacuum belt to pull the film: less film pulling resistance, the packaging bag is well formed, more beautiful, and the belt is not easy to wear.
4. Double servo control is adopted to achieve high-precision positioning and accurate size.
5. Using an external film release mechanism, the installation of packaging film is simpler and easier.
6. The deviation adjustment of the packaging bag only needs to be adjusted on the touch screen, and the operation is simple.
7. The whole machine adopts a closed mechanism to effectively prevent dust from entering the machine.
8. Using electronic weighing method, the packaging weight is more precise, and the production cost is lower.

Scope of application:

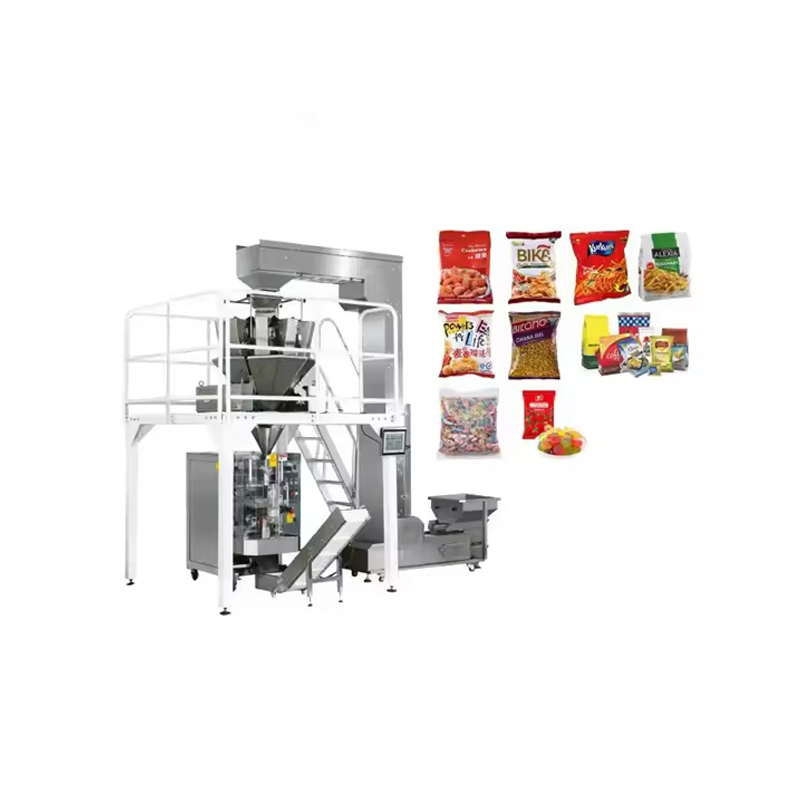

Suitable for packaging granules, flakes, strips, such as sugar granules, potato chips, shrimp strips, jelly, peanuts and other products within 3000ml.

Sample display：

Main technical parameters:

Model HTL-V420 HTL-V520 HTL-V680 Bag length 80-300（L） 80-400（L） 100-480（L） Bag width 50-200(W) 80-250(W) 180-320(W) Max width of film 420mm 520mm 680mm packing speed 5-60(bags/min) 5-50(bags/min) 5-50(bags/min) Volume range 150-1200（ml） 3000（ml） 6000（ml） Air consumption 0.65Mpa 0.65Mpa 0.65Mpa Gas consumption 0.3(m3/min) 0.4(m3/min) 0.4(m3/min) Voltage 220V 220VAC/50HZ 220VAC/50HZ Power 2.2kw 4kw 5kw Dimension 1320*950*1360mm 1150*1795*1650mm 1780*1350*1950mm Weight 540kg 600kg 900kg
