About this product
- Size: 2850*1510*1430
- Color: Red and Gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Size: 2850*1510*1430
- Color: Red and Gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Size | 2850*1510*1430 |
|---|---|
| Color | Red and Gray |
From the supplier

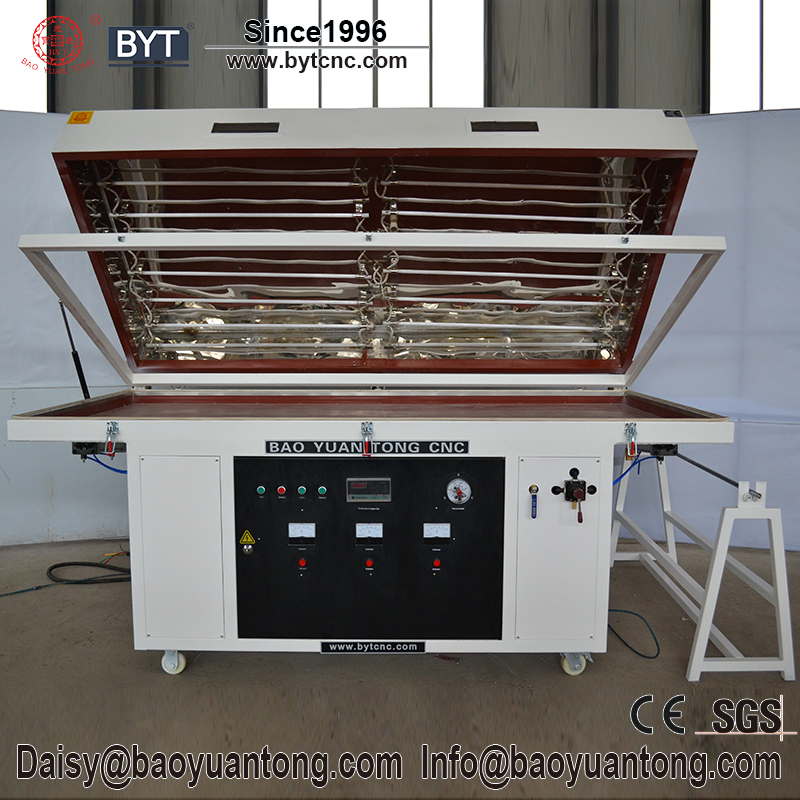

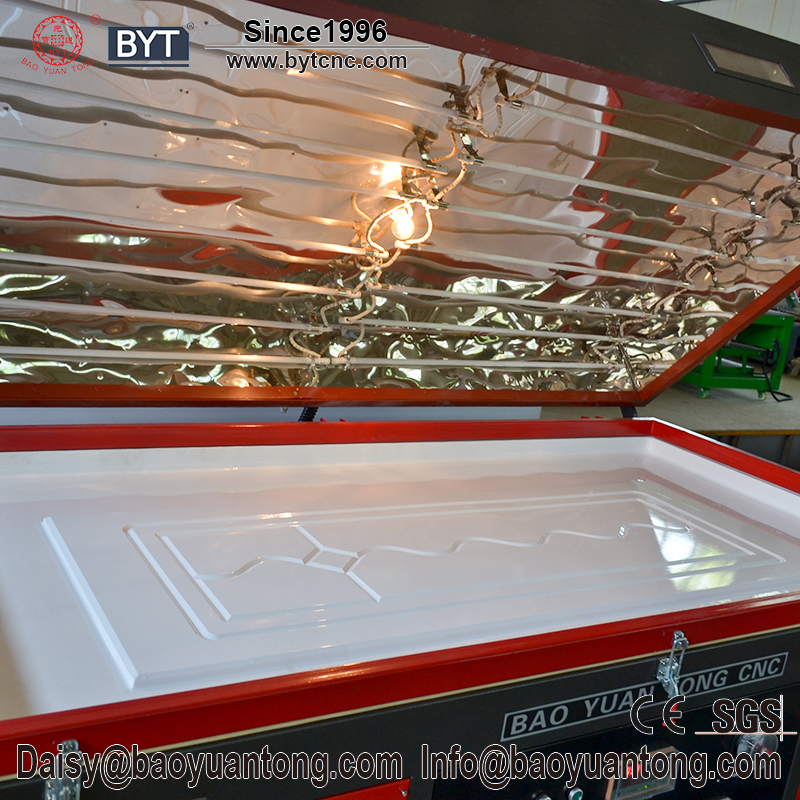

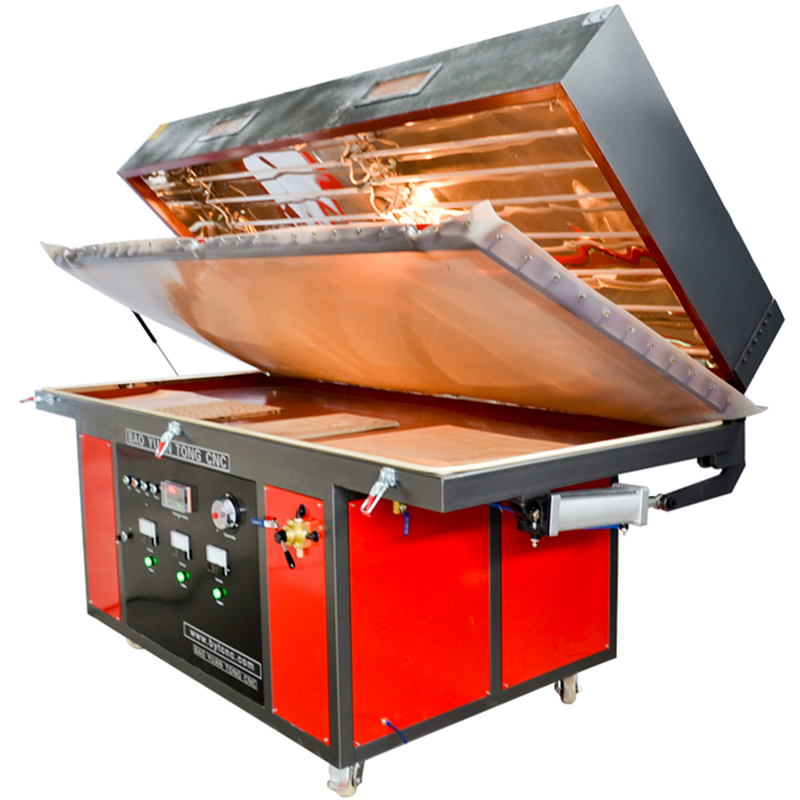

BFM-2600 PVC Foil film vacuum membrane press machine for MDF cabinet kitchen door PVC laminating
Film vacuum membrane press machine suitable for different PVC film laminated on the furniture,speakers ,arts and crafts decorative wall panels and other board furniture.
Feature:
1.Net weight :BFM-2600 Whole machine net weight meet 900KGS, Other supplier same machine about 600KGS .The overall stability of the equipment is enhanced after the weight of the equipment increases.
2.Insulating layer:Adopt special thickened 40mm insulation layer , Other supplier use 20mm-30mm During heating the thickening of insulation layer improves the insulation effect and saves resources.
3.More safety opening device:Use SC80*300 double cylinder,which can meet 500KG opening force, the connecting lever thickness meet 20mm .more safety . For other supplier connecting lever only about 10mm .
4.Install vacuum storage tank:Our machine is automatic film laminating machine ,when the vacuum storage tank pressure is insufficient,the vacuum pump will working automatically ,this way also extend the service life of vacuum pump . But for other supplier usually is manual and without vacuum storage tank
5.PVC film thickness :Until now we tested the max. membrane press film thickness meet 0.5mm
6.Easy movement :Install four wheels on the machine bottom, easy movement .
7.Two inspection window: This way it is more easy to check the inside working condition .but for other supplier only have one inspection window
8.Install the retainer frame ,more convenient for use .
Technical data:
Model
BFM-2600
BFM-2613
Working area（mm）
2600*1100
2600*1300
Max. forming height（mm）
50
50
Working negative pressure
-0.1MPa
-0.1MPa
Vacuum pump output
54m³/h (15L)
54m³/h(15L)
Total power
20.5
20.5
Working voltage
380V/50HZ/3P
380V/50HZ/3P
Net Weight(kgs)
850
920
Overall size(mm)（L*W*H）
2850*1510*1430
2850*1710*1430
